Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

18 part groups · 3 illustrations

Illustrations

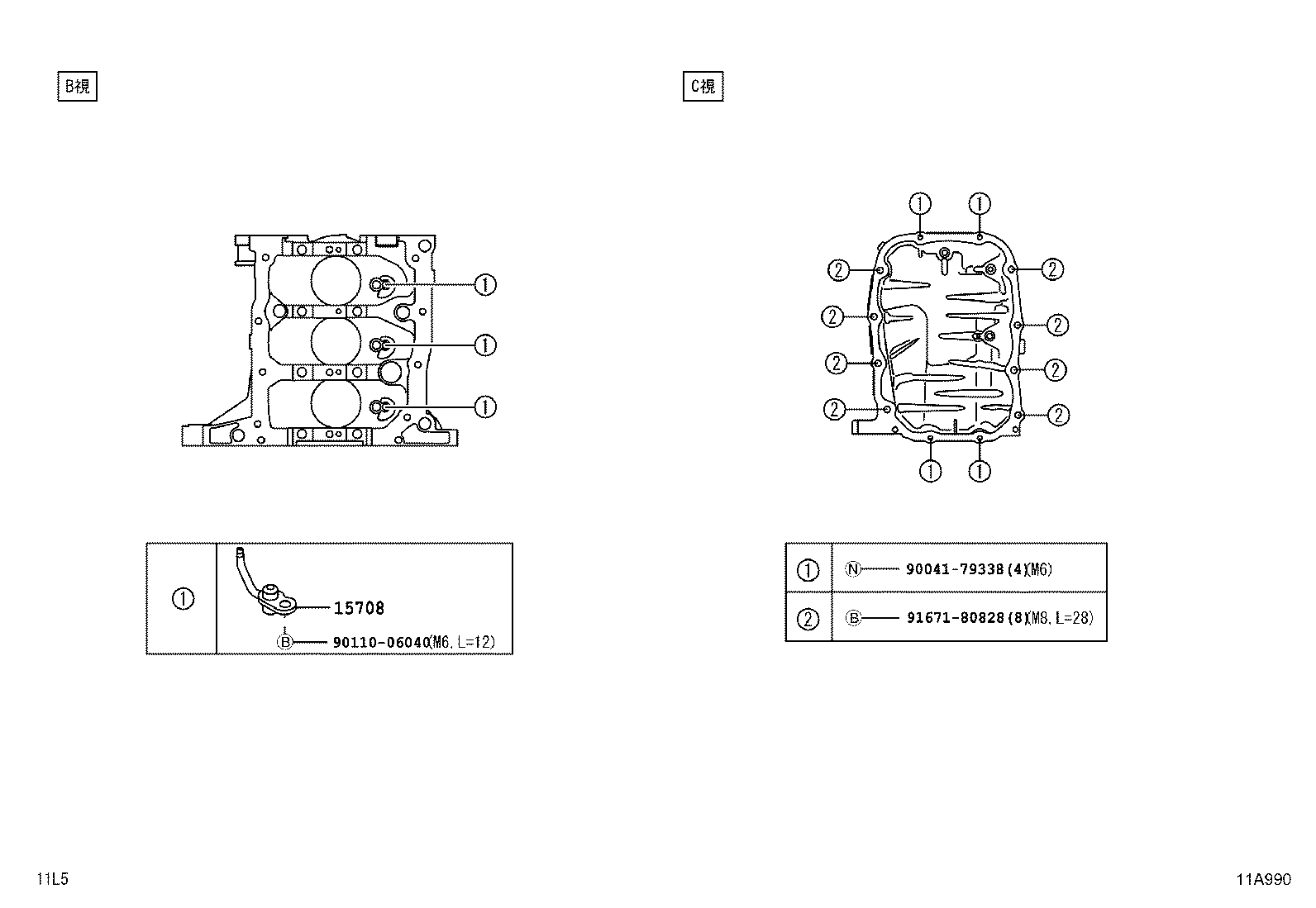

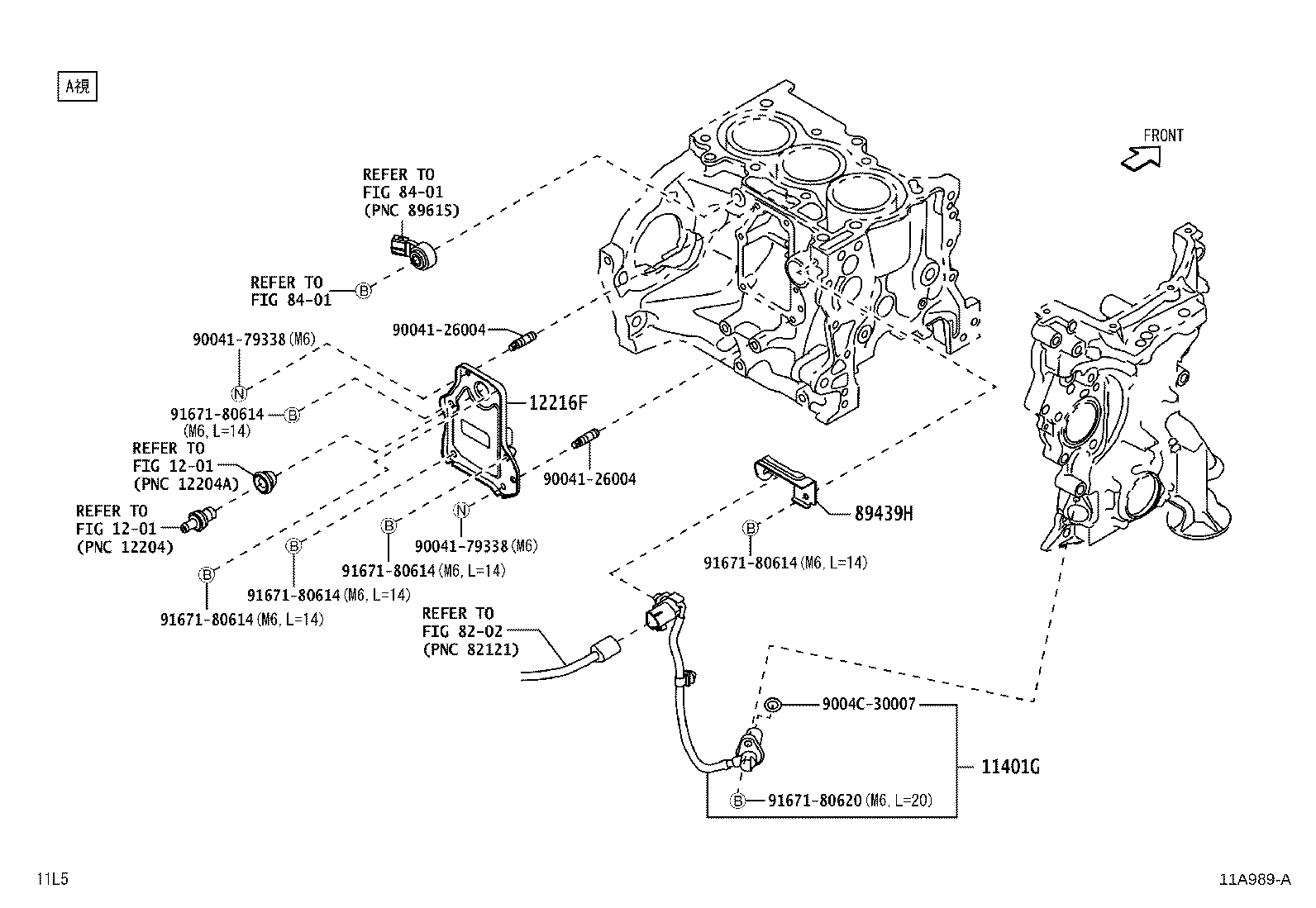

Figure 11H64J 11H64J 2015-07 → — Figure 11A989A 11A989A 2015-07 → — Figure 11A990 11A990 2015-07 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11415J Gasket(FOR DRAIN COCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11427 Bolt, Stud(FOR TIMING CHAIN COVER SET)
11432M Union(FOR CYLINDER BLOCK)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434Y Pin, Straight(FOR OIL PAN)
11444 Plug, Hole
11445 Spacer, Cylinder Block Water Jacket
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12216F Plate, Ventilation Baffle
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
89439H Bracket, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
