Toyota Pixis Mega
2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan
Supported model
Data version 2018-01

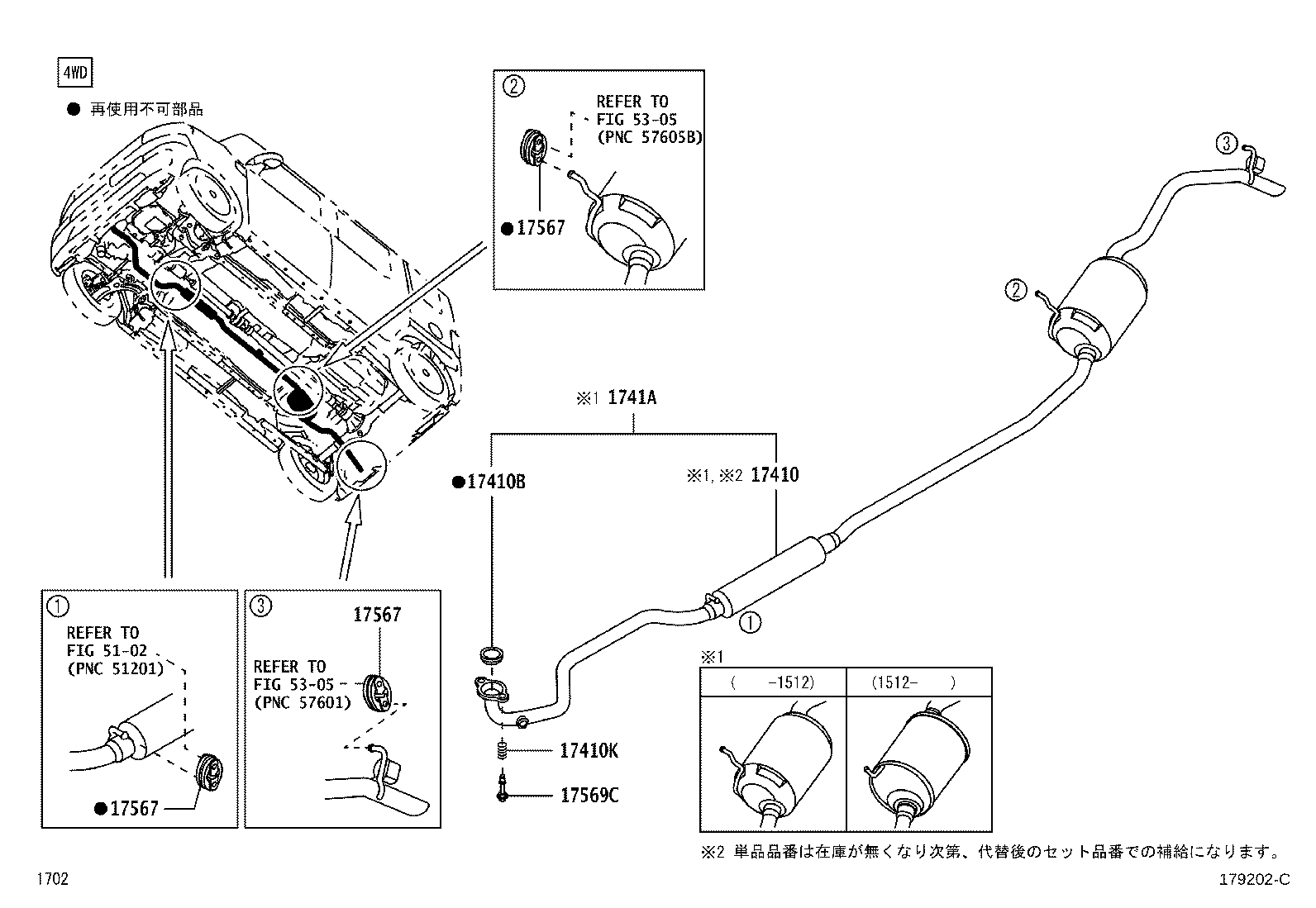

Exhaust Pipe
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17410K | Spring, Exhaust Pipe |
| 1741A | Pipe Set, Exhaust |
| 17420Y | Pipe Set, Exhaust, Front |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430X | Pipe Set, Exhaust Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17567 | Cushion, Exhaust Pipe Support |
| 17569C | Bolt, Exhaust Pipe Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
