Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 4 illustrations

Illustrations

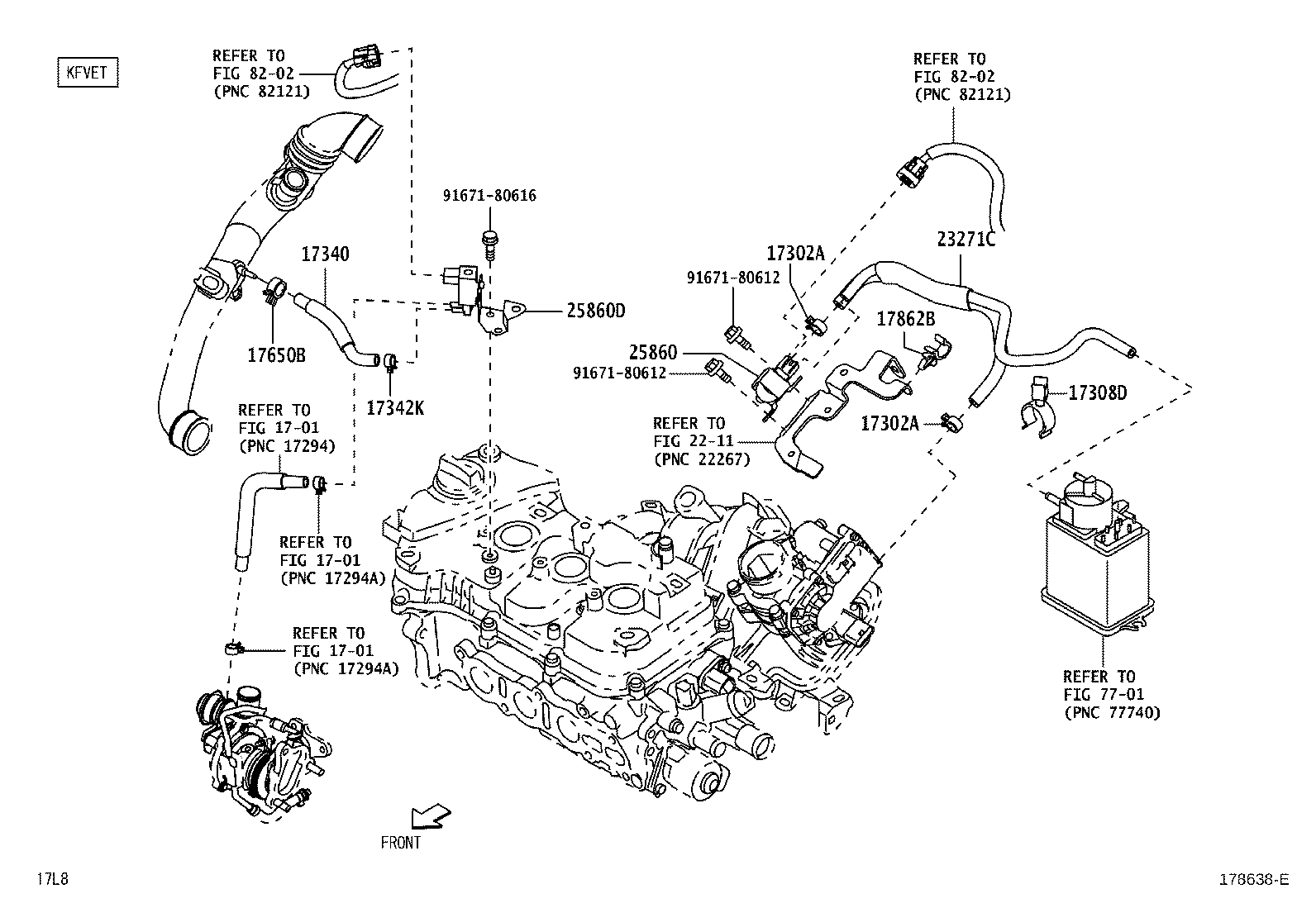

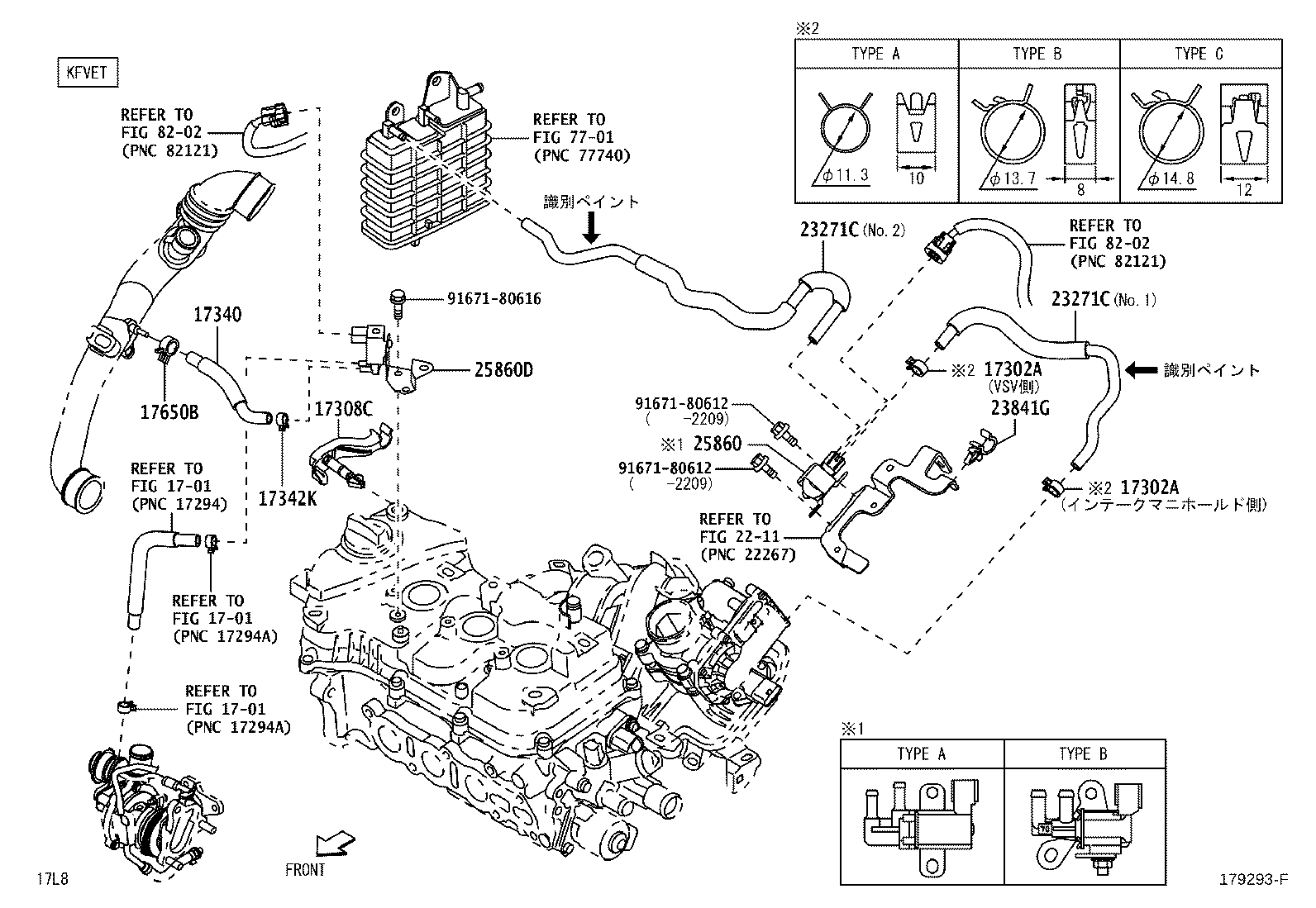

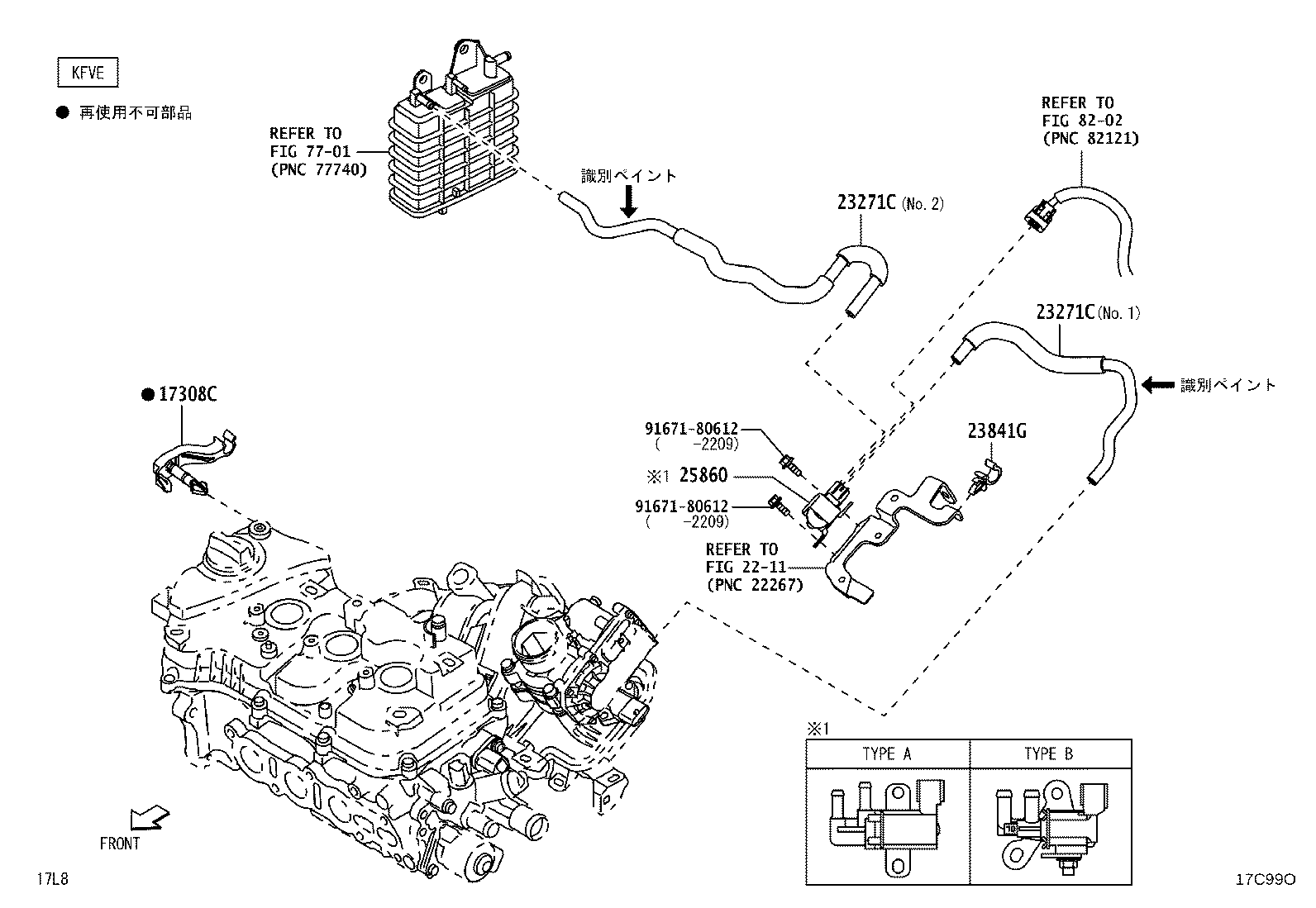

Figure 179197B 179197B 2015-07 → 2016-05 Figure 17C99O 17C99O 2016-05 → — Figure 178638E 178638E 2015-07 → 2016-05 Figure 179293F 179293F 2016-05 → —

Part groups

PNCDescription
17302A Clip, Hose
17308C Clamp(FOR VACUUM HOSE)
17308D Clamp, NO.2(FOR VACUUM HOSE)
17340 Hose Assy, Vacuum Switching Valve
17342K Clip(FOR VACUUM HOSE)
17650B Clip(FOR VACUUM SWITCHING VALVE HOSE)
17862B Clamp, Hose
23271C Hose, Fuel
23841G Clamp, Fuel Hose
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
