Toyota Pixis Mega
2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan
Supported model
Data version 2018-01

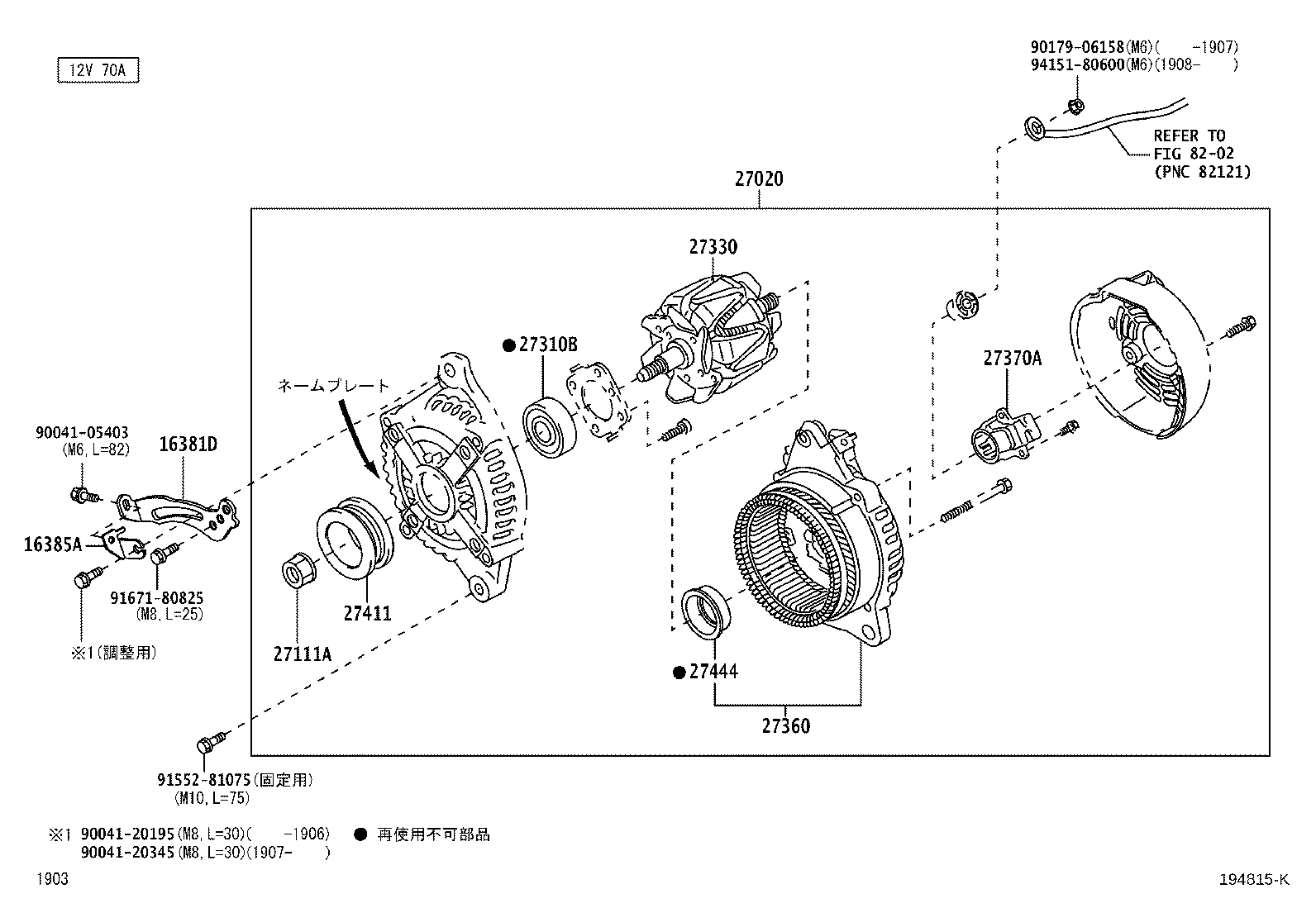

Alternator
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16381D | Bar, Fan Belt Adjusting |
| 16385A | Slider, Fan Belt Adjusting |
| 27020 | Alternator Assy |
| 27111A | Nut, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27330 | Rotor Assy, Alternator |
| 27360 | Coil Assy, Alternator |
| 27370A | Holder Assy, Alternator Brush |
| 27411 | Pulley, Alternator |
| 27444 | Packing, Alternator Bearing Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
