Toyota Pixis Mega
2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan
Supported model
Data version 2018-01

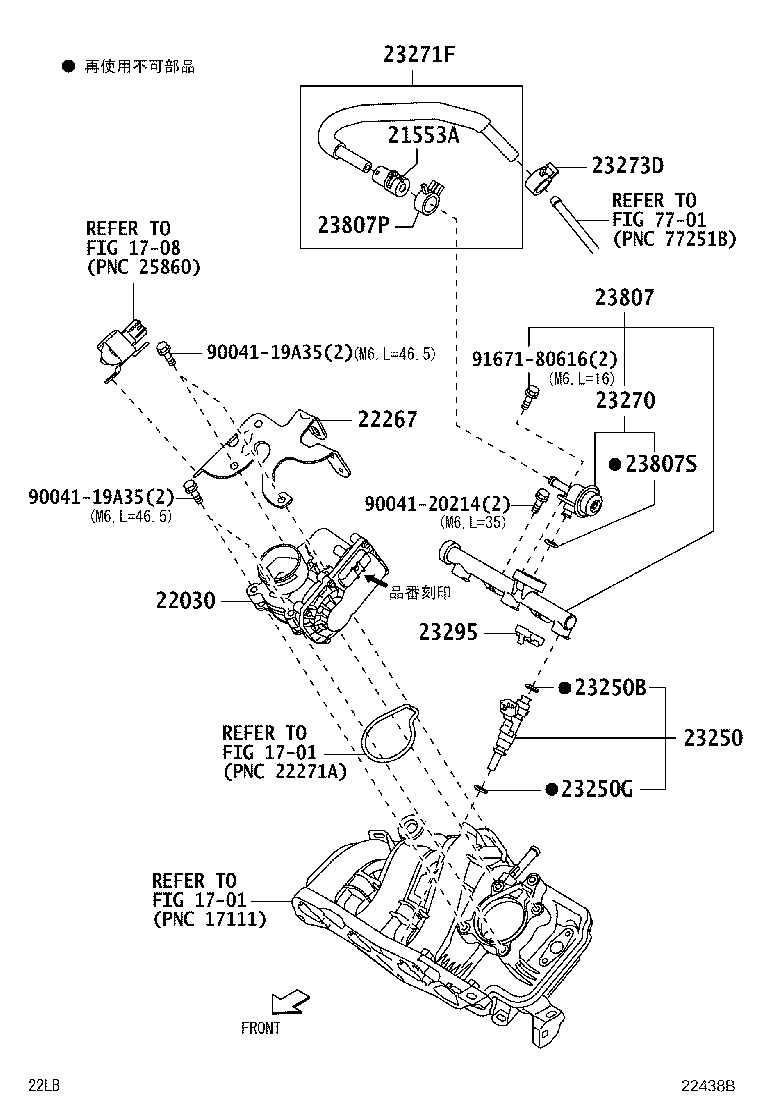

Fuel Injection System
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 21553A | Guide, Fuel Main |
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22267 | Bracket, Throttle Body |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250G | Ring, O, NO.2(FOR FUEL INJECTOR) |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23271F | Hose, Fuel |
| 23273D | Clip(FOR FUEL HOSE NO.2) |
| 23295 | Holder, Injector, NO.1 |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807P | Clip(FOR FUEL HOSE) |
| 23807S | Ring, O(FOR FUEL DELIVARY PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
