Toyota Pixis Mega
2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan
Supported model
Data version 2018-01

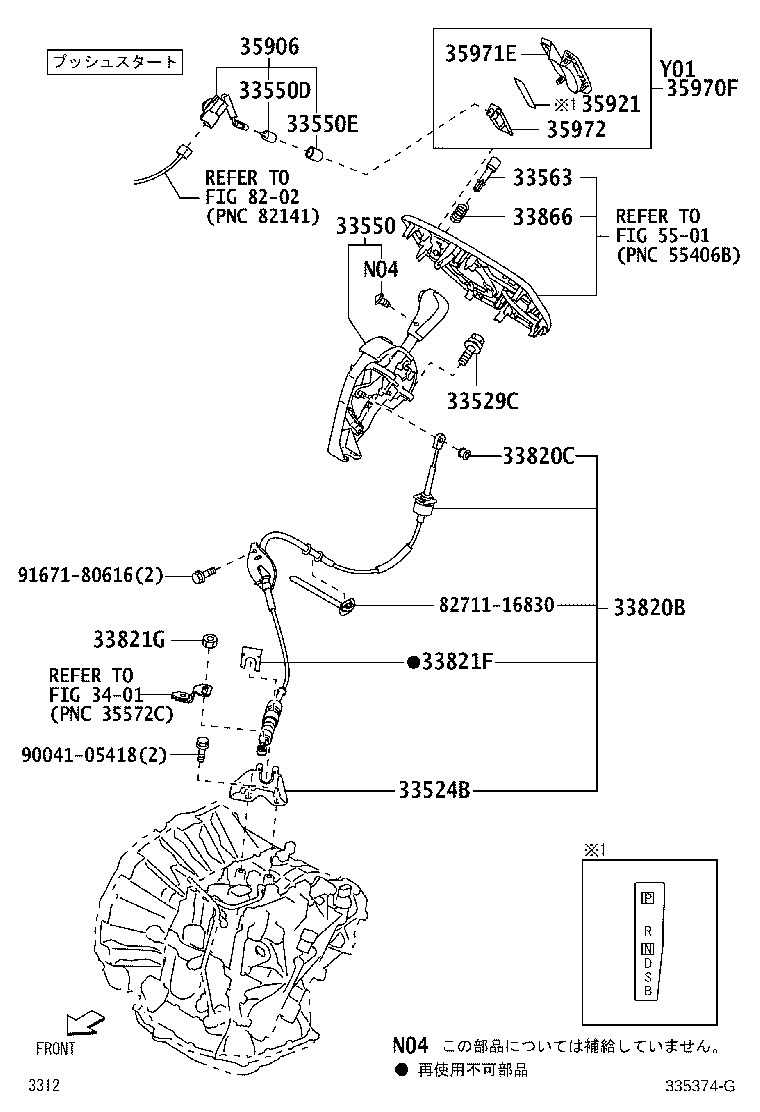

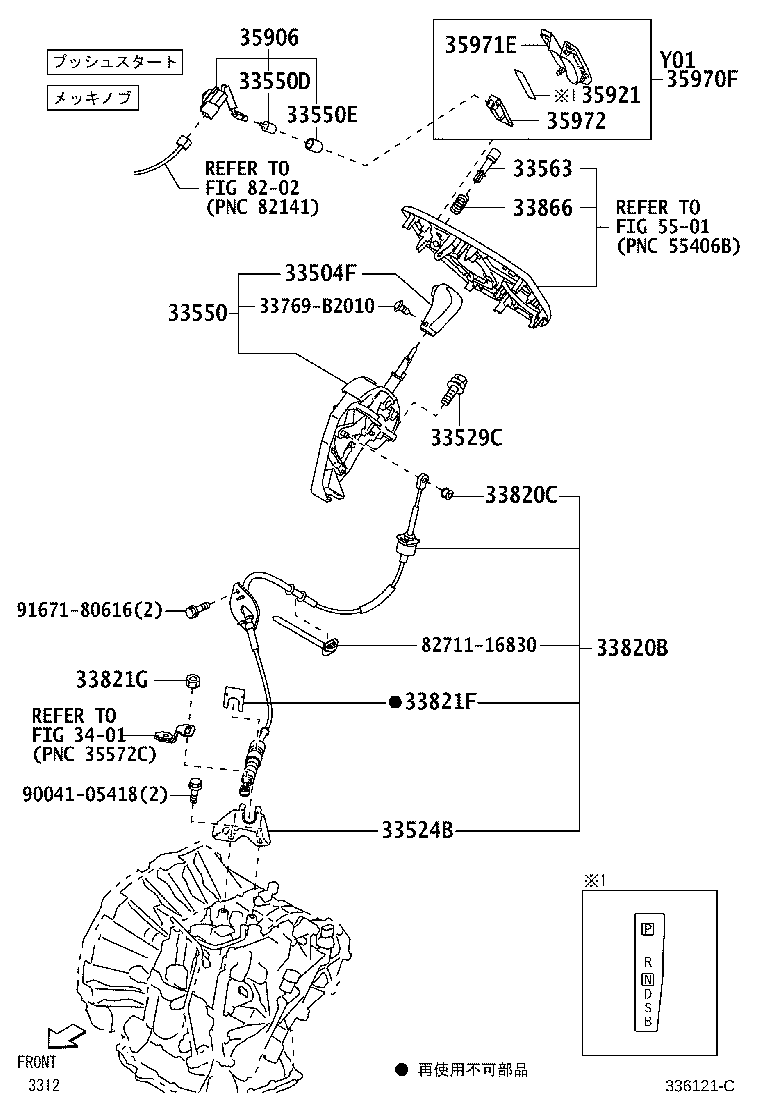

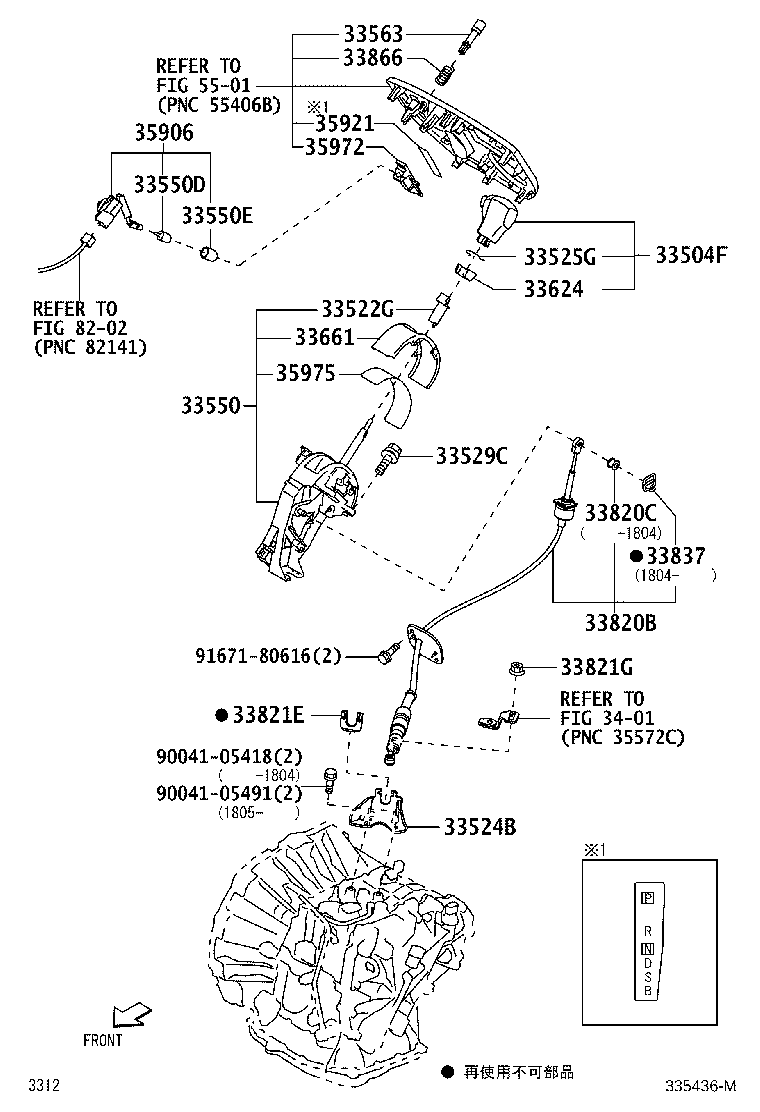

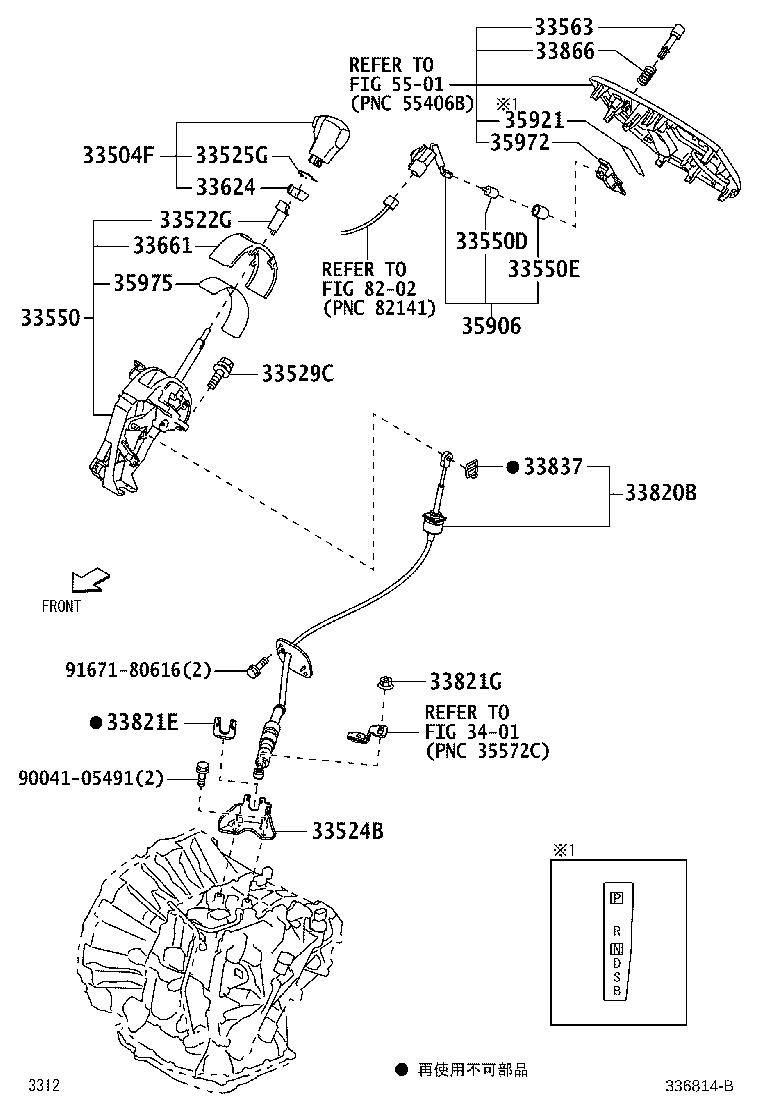

Shift Lever & Retainer
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33522G | Cover, Shift Lever Housing Dust |
| 33524B | Bracket, Control Cable |
| 33525G | Ring, Shift Lever |
| 33529C | Bolt, Shift Lever |
| 33550 | Floor Shift Assy, Transmission |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33560A | Cable Assy, Shift Lock Release |
| 33563 | Button, Shift Lock Release |
| 33624 | Holder, Knob Cover |
| 33661 | Housing, Shift Lever Guide |
| 33820B | Cable Assy, Transmission Control |
| 33820C | Bush (FOR TRANSMISSION CONTROL CABLE) |
| 33821E | Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33821F | Clamp, NO.2 (FOR TRANSMISSION CONTROL CABLE) |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33837 | Clip, Transmission Control Cable Adjust |
| 33866 | Spring, Shift Lock Release |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35970F | Housing Assy, Position Indicator |
| 35971E | Housing, Position Indicator |
| 35972 | Cover, Position Indicator Housing |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
