Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

8 part groups · 2 illustrations

Illustrations

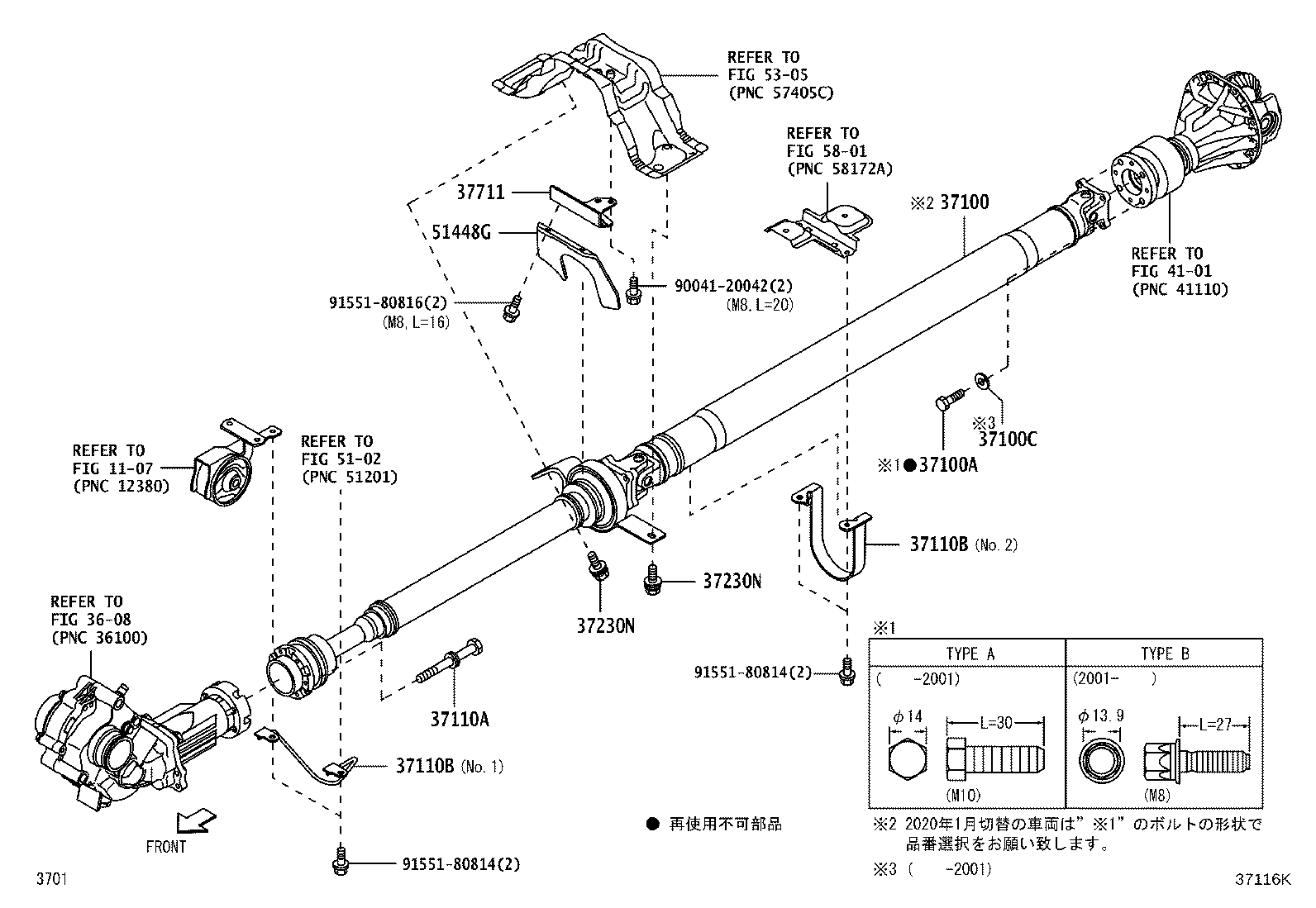

Figure 370891B 370891B 2015-07 → 2016-05 Figure 37116K 37116K 2016-05 → —

Part groups

PNCDescription
37100 Shaft Assy, Propeller W/Center Bearing
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100C Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37110A Bolt (FOR PROPELLER SHAFT)
37110B Guard, Propeller Shaft
37230N Bolt, NO.2 (FOR CENTER SUPPORT BEARING)
37711 Bracket, Propeller Shaft Dust Cover, NO.1
51448G Protector, Propeller Shaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
