Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 2 illustrations

Illustrations

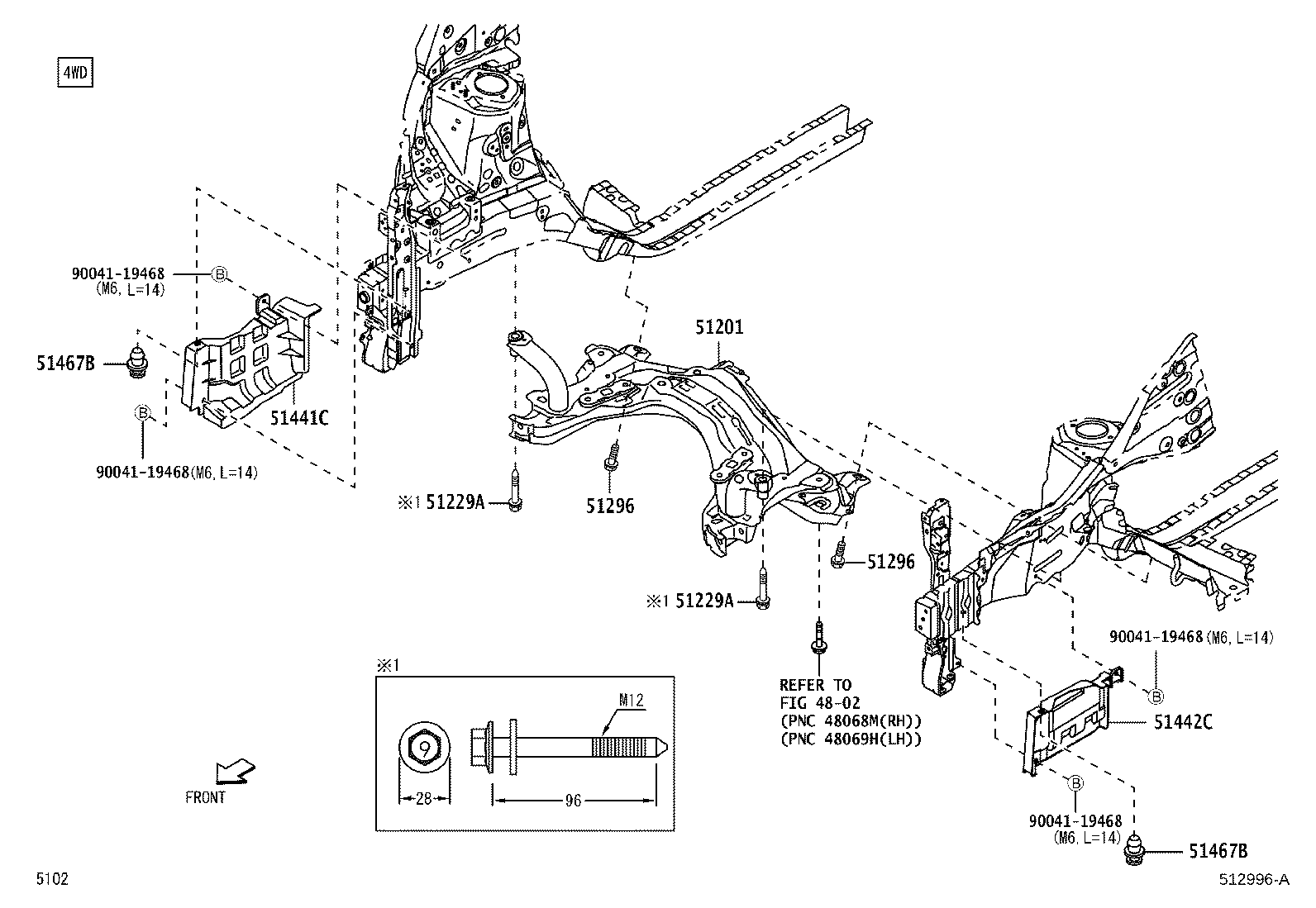

Figure 512995B 512995B 2015-07 → — Figure 512996A 512996A 2015-07 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51223A Cover, Engine Mounting Hole
51229A Bolt, Front Suspension Member Mounting
51296 Bolt, Front Suspension Member Mounting
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51454 Clip
51467B Retainer, Engine Under Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
