Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 3 illustrations

Illustrations

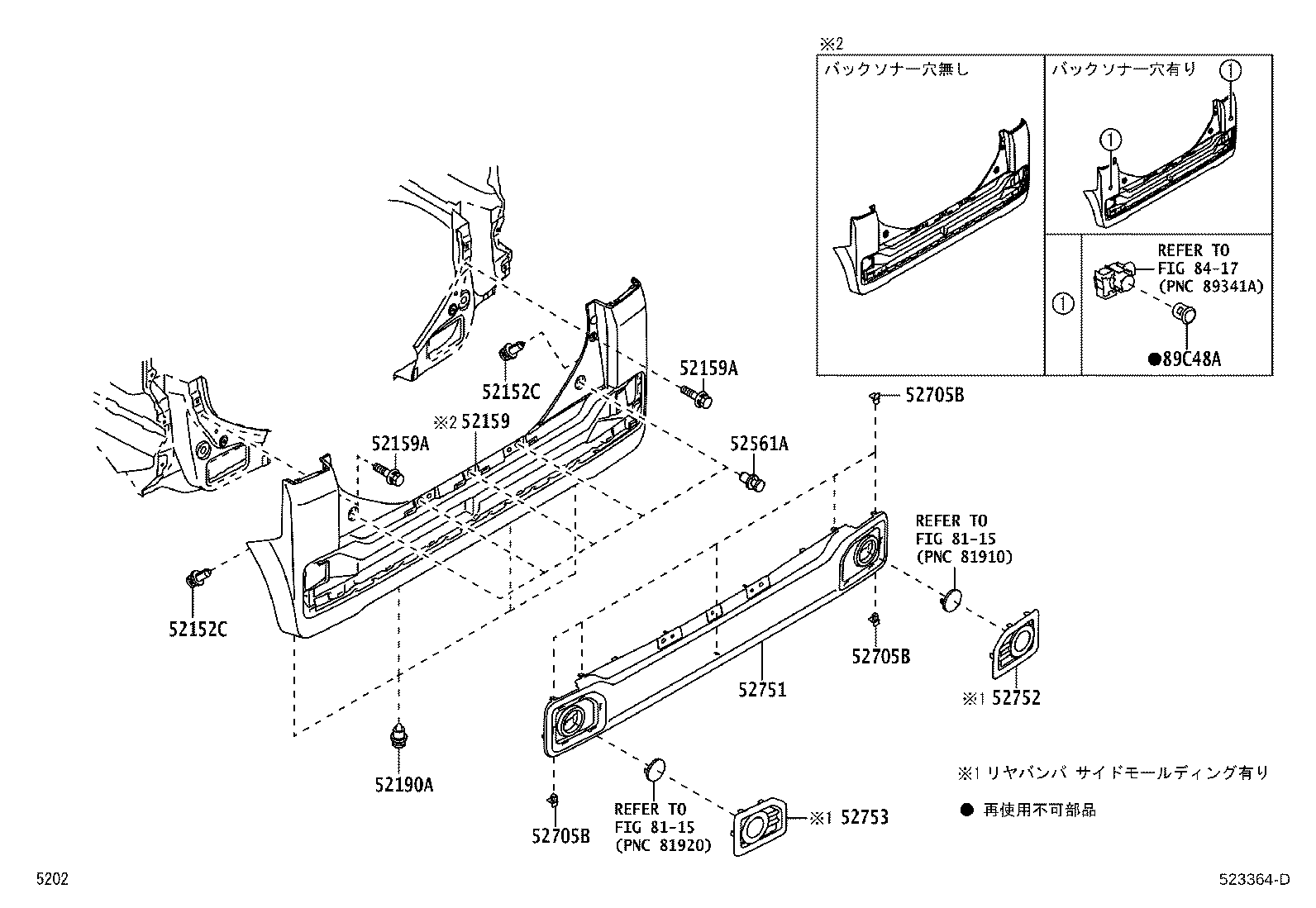

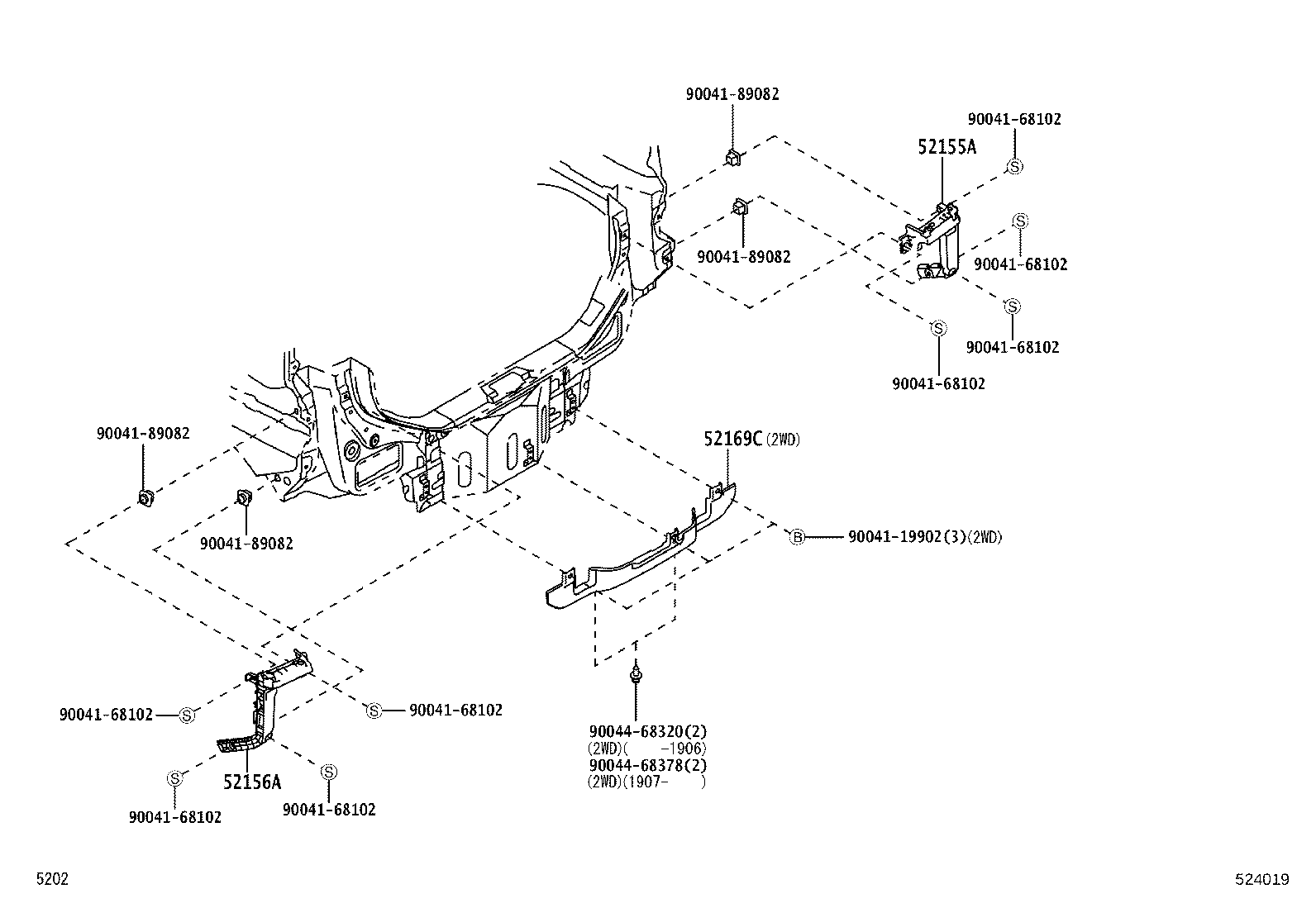

Figure 523308E 523308E 2015-07 → 2016-05 Figure 523364D 523364D 2016-05 → — Figure 524019 524019 2015-07 → —

Part groups

PNCDescription
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52159A Bolt(FOR REAR BUMPER COVER)
52169C Cover, Rear Bumper, Lower
52190A Clip
52561A Clip(FOR REAR BUMPER RETAINER)
52705B Retainer, Rear Bumper Moulding
52751 Moulding, Rear Bumper
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
89C48A Retainer, Ultrasonic Sensor, Rear Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
