Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01

Hood & Front Fender

40 part groups · 4 illustrations

PNC	Description
53183I	Seal, Headlamp Cover, RH
53183N	Clip(FOR HEADLAMP COVER SEAL)
53184G	Seal, Headlamp Cover, LH
53301	Hood Sub-assy
53341B	Insulator, Hood
53341C	Clip(FOR HOOD INSULATOR)
53378C	Seal, Hood Air Intake Duct
53378D	Clip(FOR HOOD AIR INTAKE DUCT SEAL)

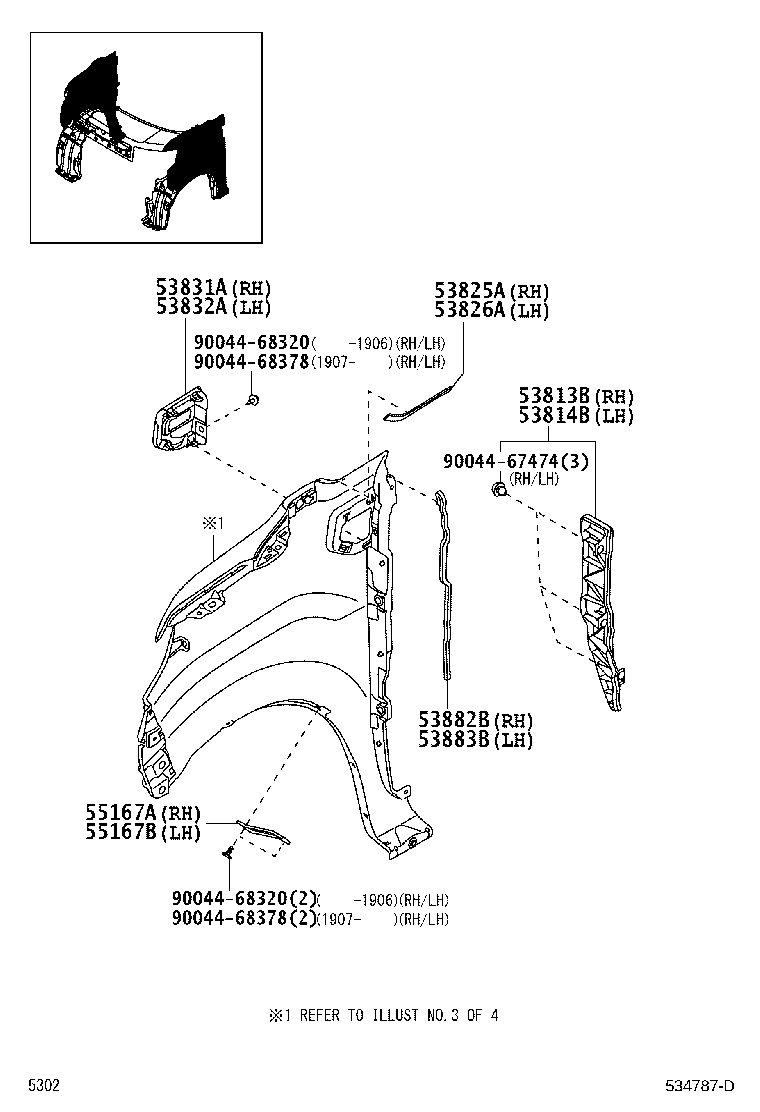

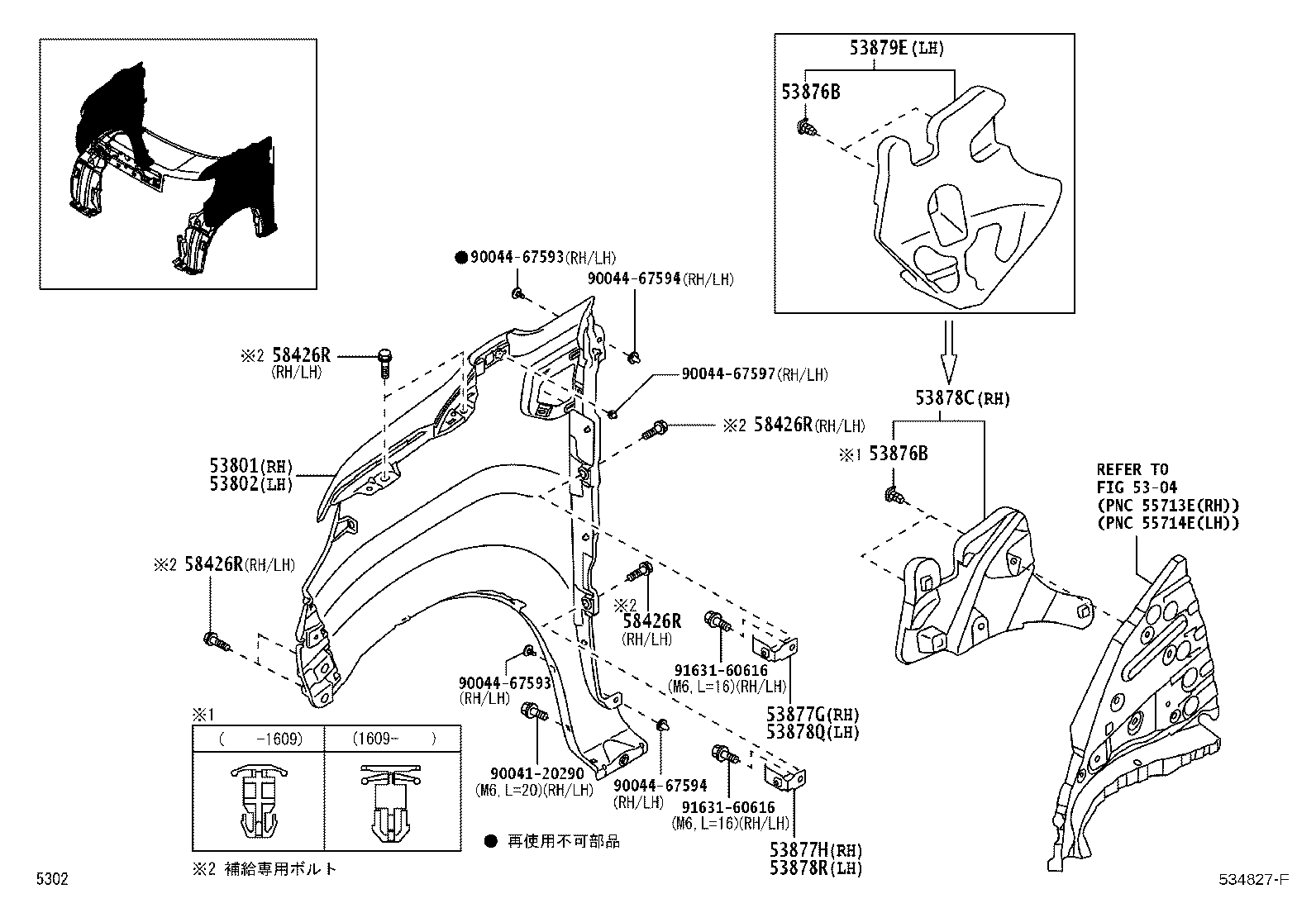

53801	Fender Sub-assy, Front RH
53801F	Retainer, Front Fender Splash Shield, RH
53802	Fender Sub-assy, Front LH
53802F	Retainer, Front Fender Splash Shield, LH
53813B	Extension, Front Fender, RH
53814B	Extension, Front Fender, LH
53825A	Protector, Front Fender, Upper RH
53826A	Protector, Front Fender, Upper LH
53831A	Panel, Front Fender Side, Upper RH
53832A	Panel, Front Fender Side, Upper LH
53851D	Pad, Front Wheel Opening Extension, RH
53852B	Pad, Front Wheel Opening Extension, LH

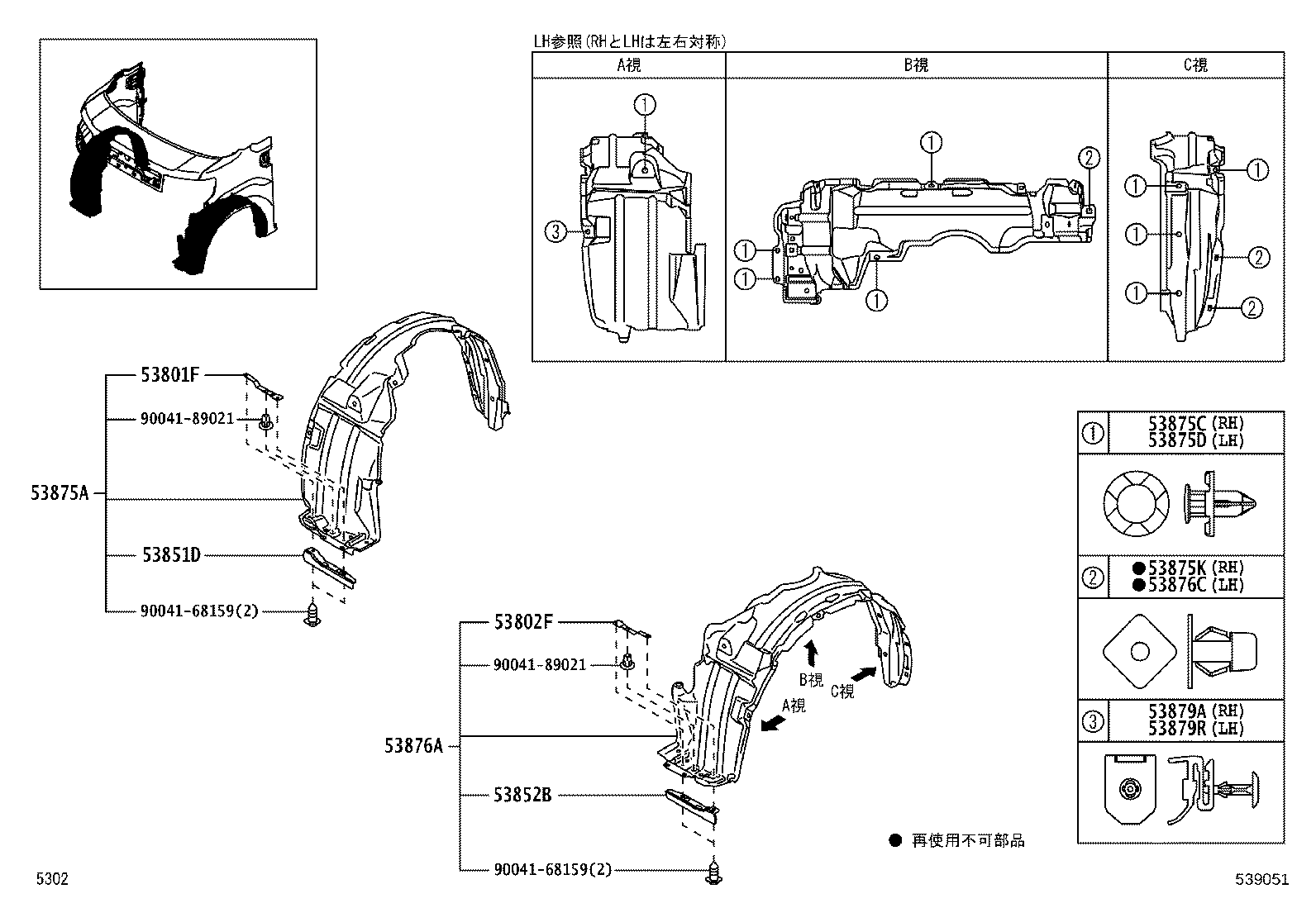

53875A	Liner, Front Fender, RH
53875C	Clip, Front Fender Liner
53875D	Clip, Front Fender Liner, NO.2
53875K	Grommet, Screw
53876A	Liner, Front Fender, LH
53876B	Clip, Front Fender Liner
53876C	Grommet, Screw
53877G	Bracket, Front Fender Rear Side Panel, Lower RH
53877H	Bracket, Front Fender Rear Side Panel, Lower RH
53878C	Spacer, Front Fender
53878Q	Bracket, Front Fender Rear Side Panel, Lower LH
53878R	Bracket, Front Fender Rear Side Panel, Lower LH
53879A	Retainer, Front Fender Liner
53879E	Spacer, Front Fender, LH
53879R	Retainer, Front Fender Liner
53882B	Seal, Front Fender, RH
53883B	Seal, Front Fender, LH
55167A	Bracket, Front Fender Apron Mounting, RH
55167B	Bracket, Front Fender Apron Mounting, LH
58426R	Bolt(FOR FRONT FENDER)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
