Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

26 part groups · 3 illustrations

Illustrations

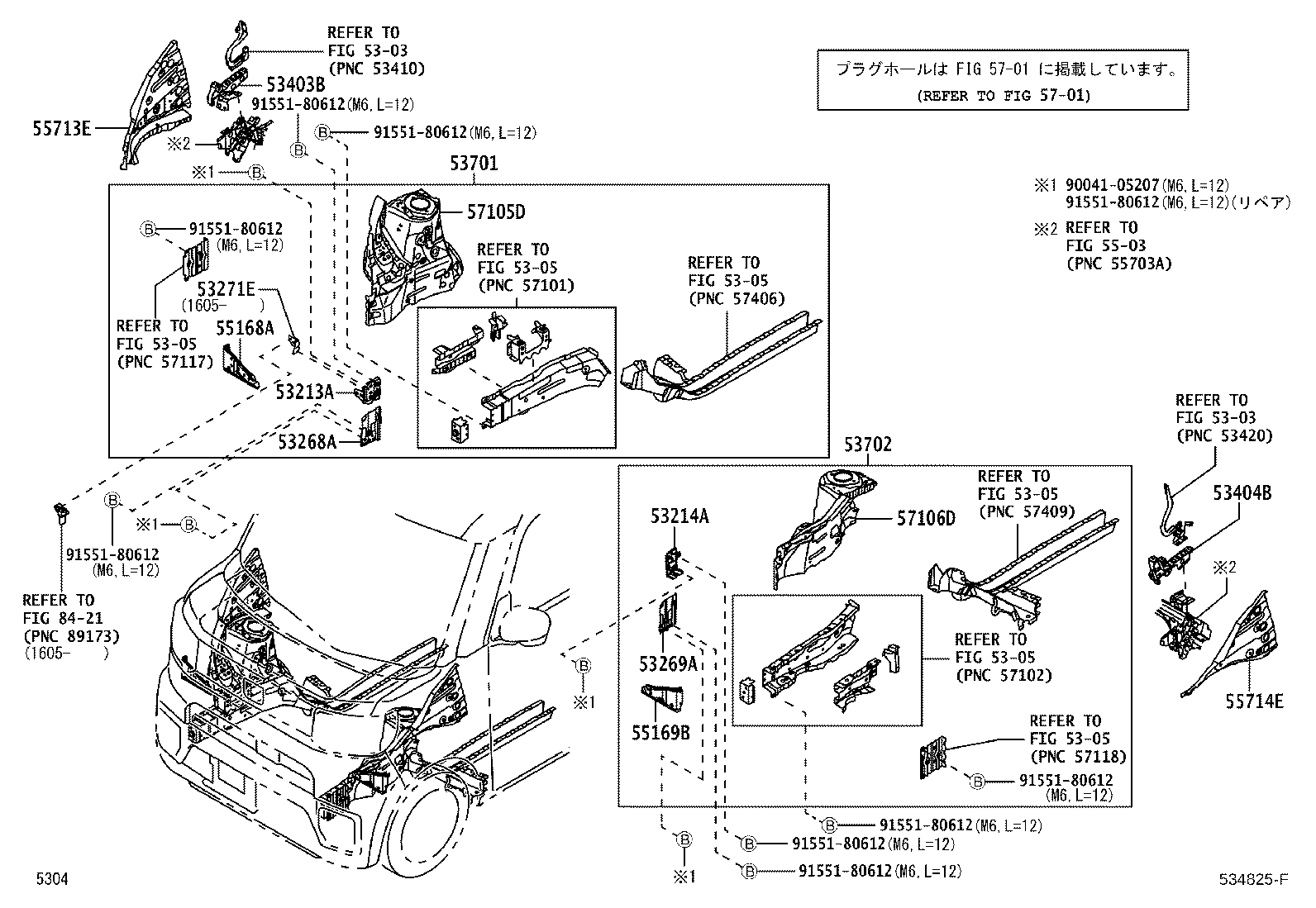

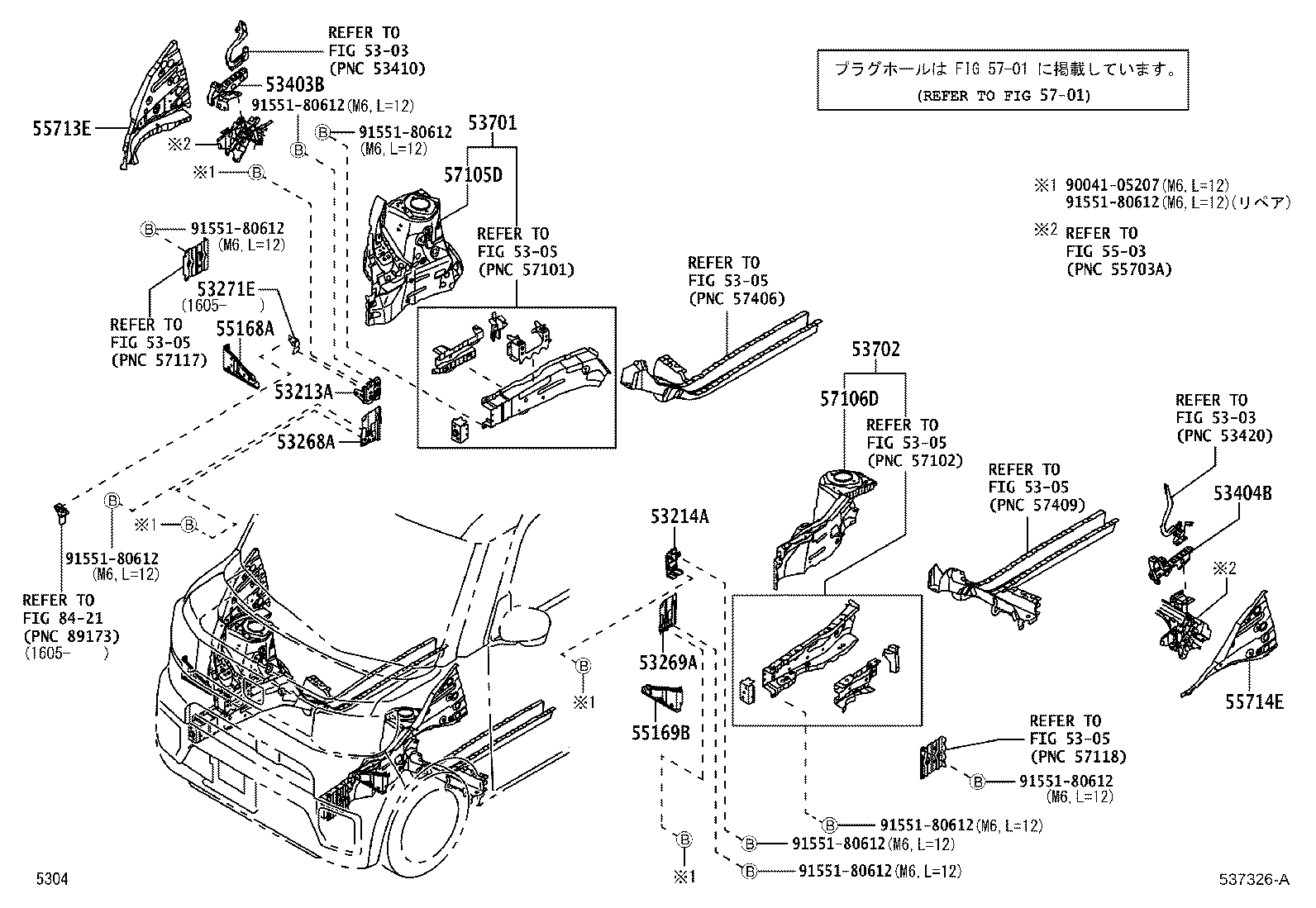

Figure 534824H 534824H 2015-07 → — Figure 534825F 534825F 2015-07 → 2021-01 Figure 537326A 537326A 2021-01 → —

Part groups

PNCDescription
52021B Reinforcement Sub-assy, Front Bumper
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53208A Support Sub-assy, Hood Lock
53213A Support, Radiator, Upper RH
53214A Support, Radiator, Upper LH
53215B Support, Hood Lock
53216A Support, Radiator, Upper
53218A Support, Radiator, Lower
53268A Reinforcement, Radiator Mounting, RH
53269A Reinforcement, Radiator Mounting, LH
53271E Bracket, Headlamp Mounting, RH
53381D Bumper, Hood TO Front Shroud
53403B Bracket Sub-assy, Hood Hinge, RH
53404B Bracket Sub-assy, Hood Hinge, LH
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
55101 Panel Sub-assy, Dash
55168A Bracket, Front Fender Mounting, RH
55169B Bracket, Front Fender Mounting, LH
55210 Insulator Assy, Dash Panel
55210A Clip
55713E Panel, Cowl Top Side, RH
55714E Panel, Cowl Top Side, LH
57105D Plate Sub-assy, Front Side Member, RH
57106D Plate Sub-assy, Front Side Member, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
