Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

66 part groups · 7 illustrations

Illustrations

55857U 2015-07 → —

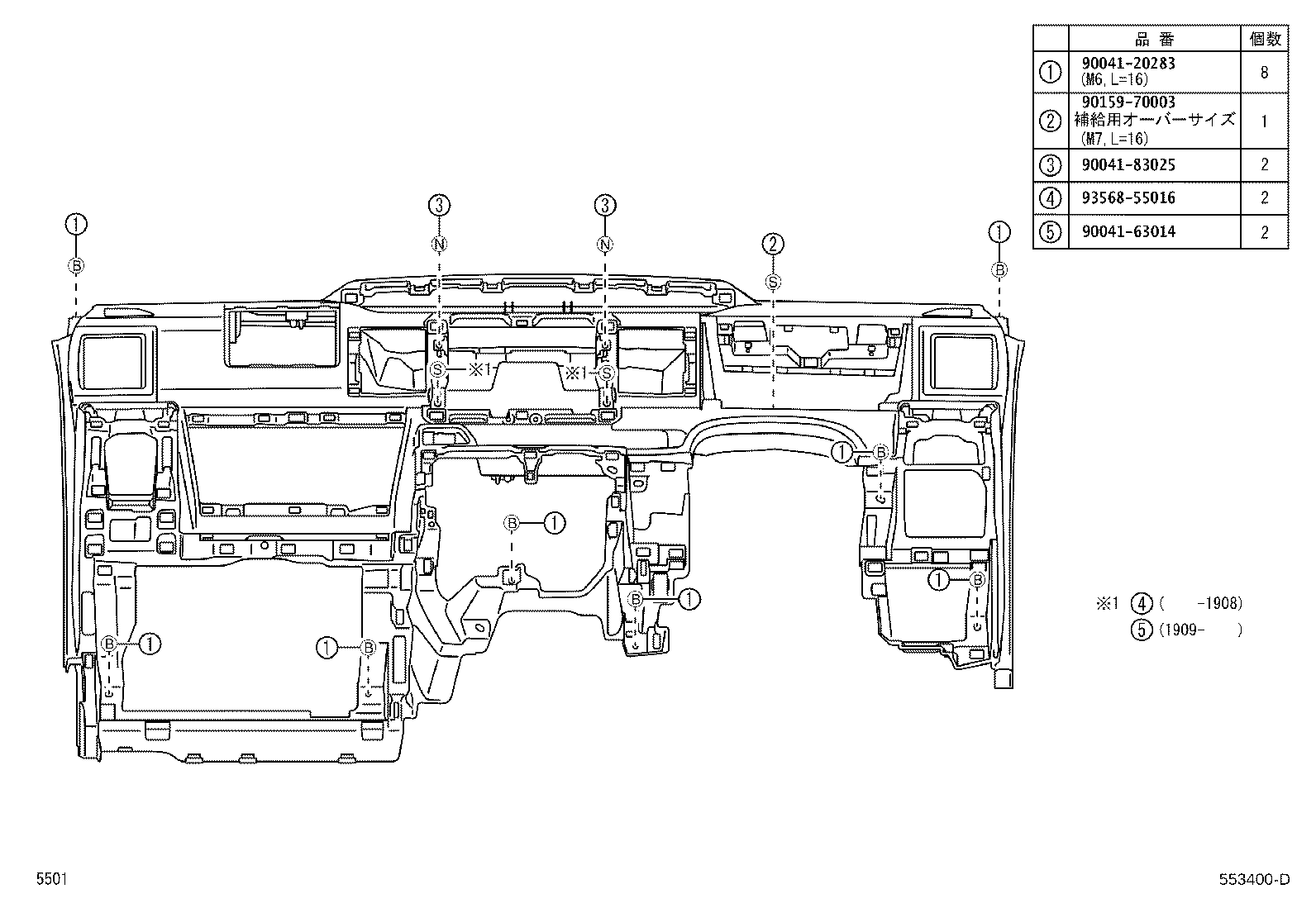

553400D 2015-07 → —

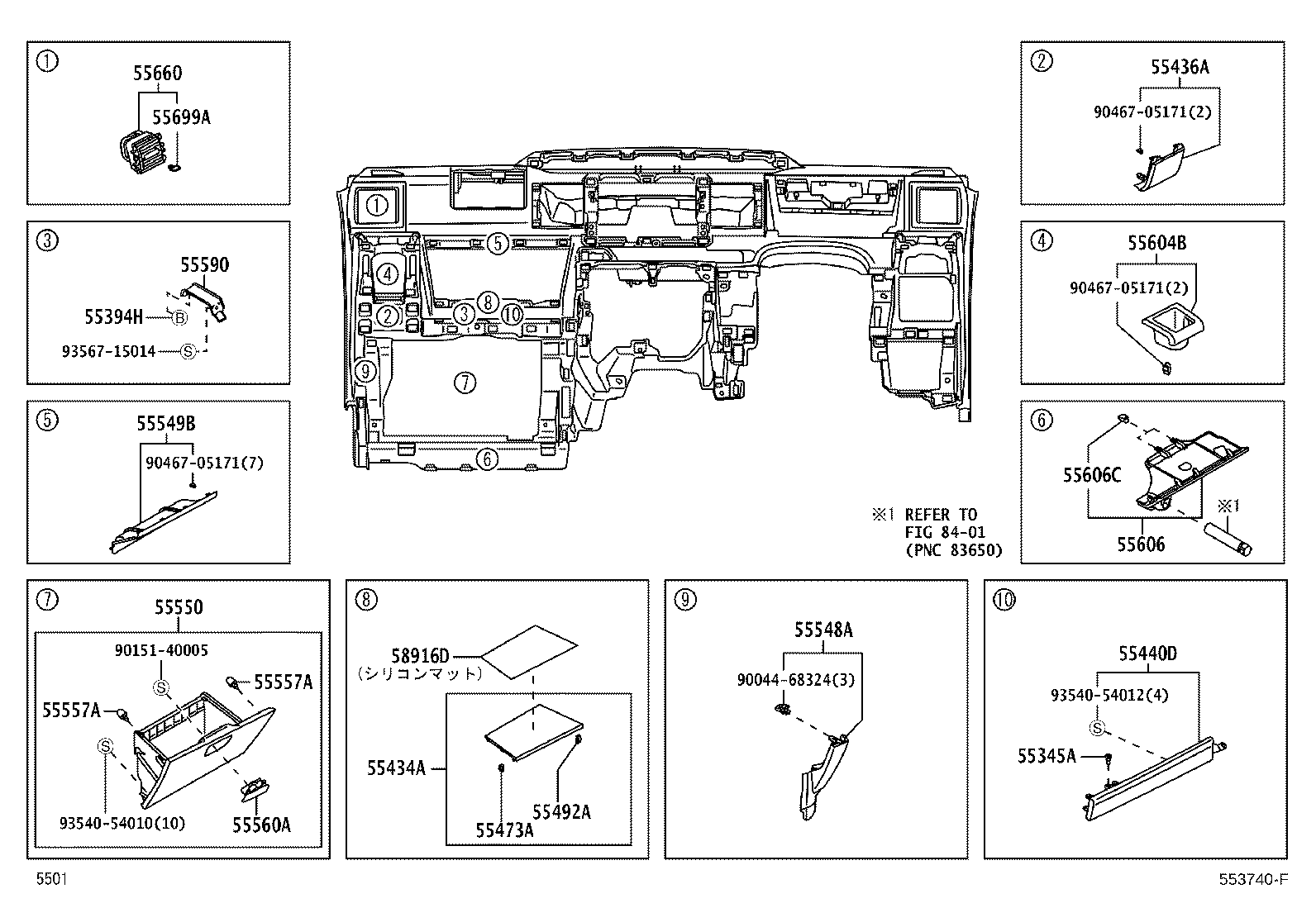

553740F 2015-07 → —

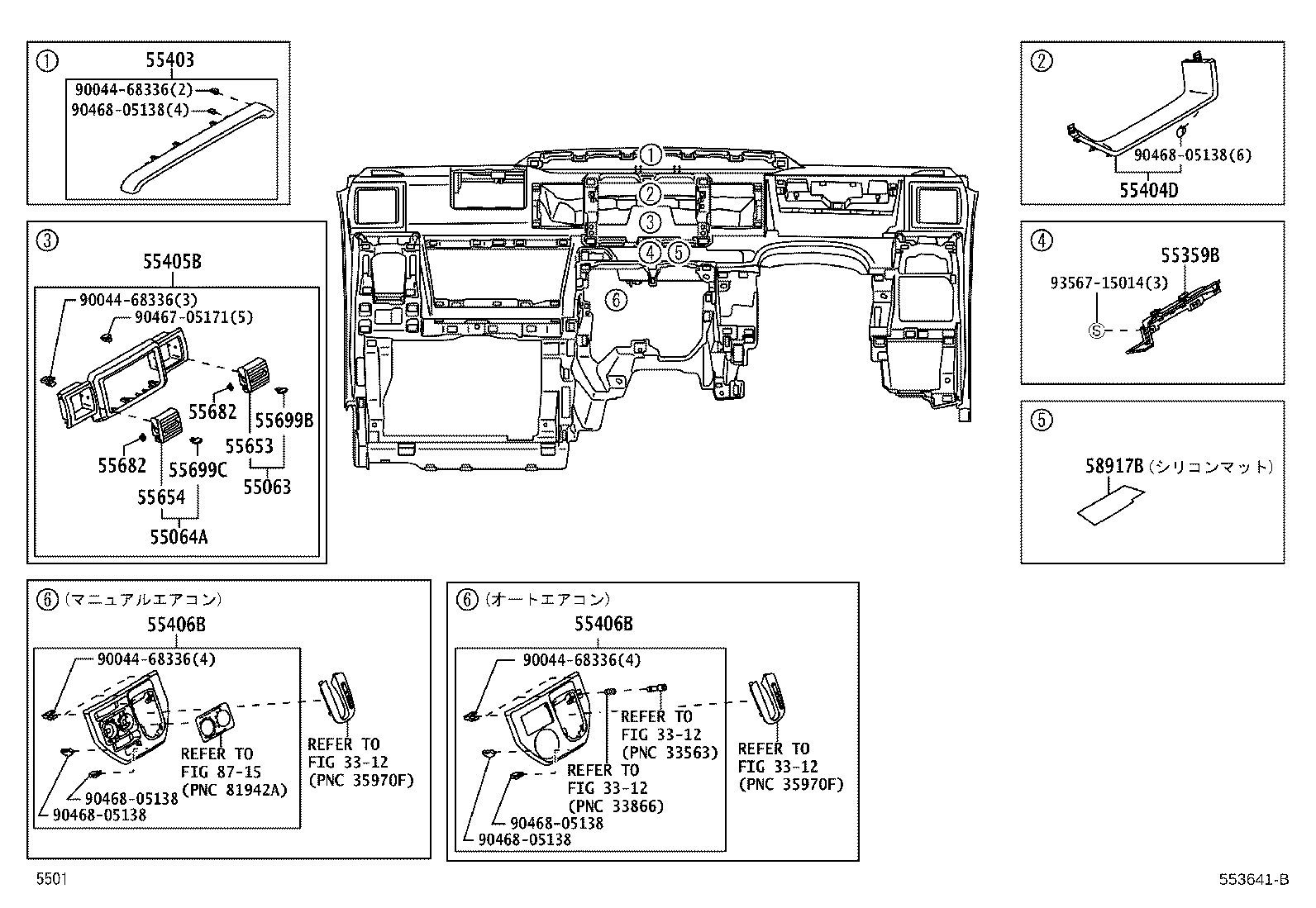

553641B 2015-07 → 2016-05

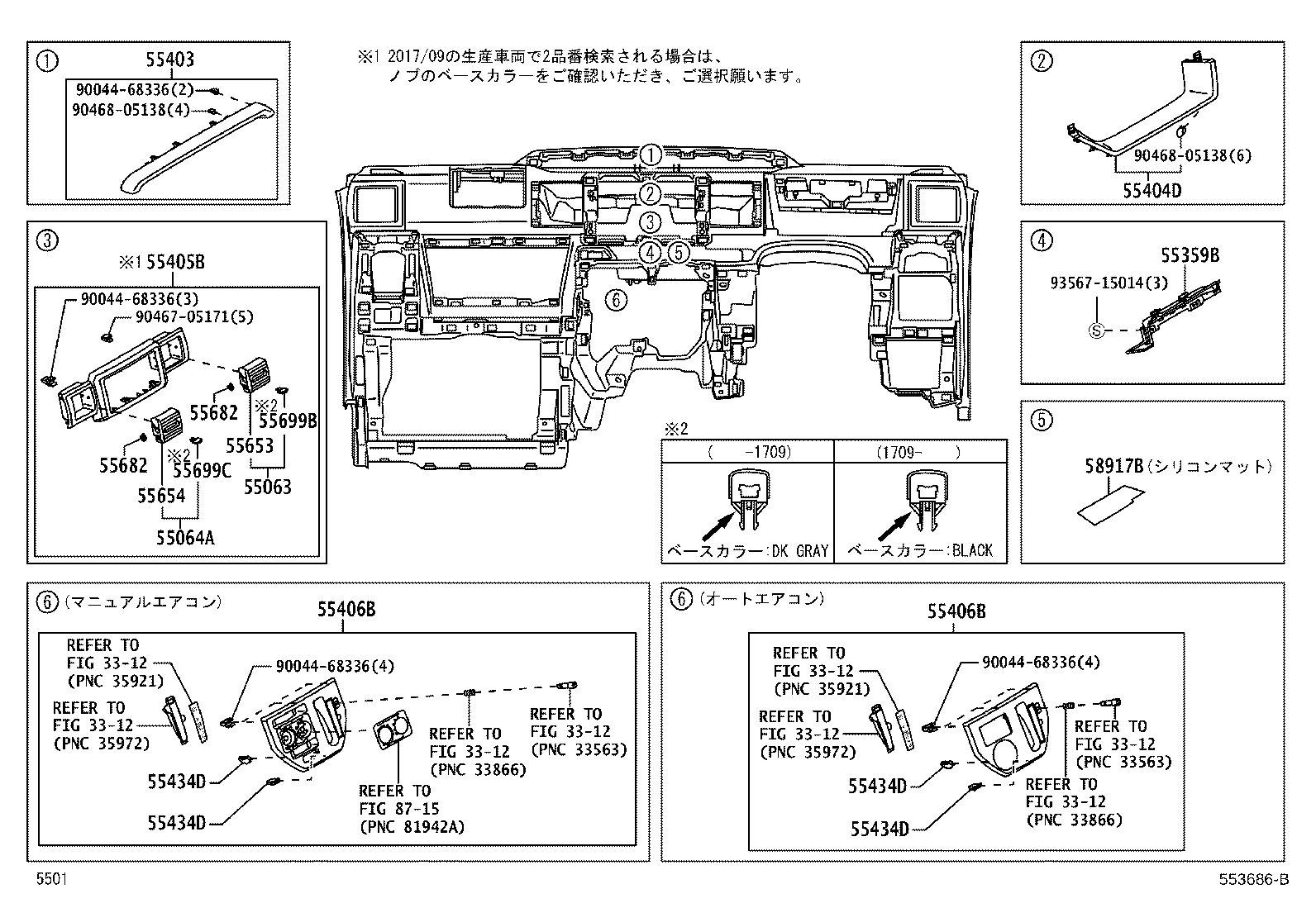

553686B 2016-05 → —

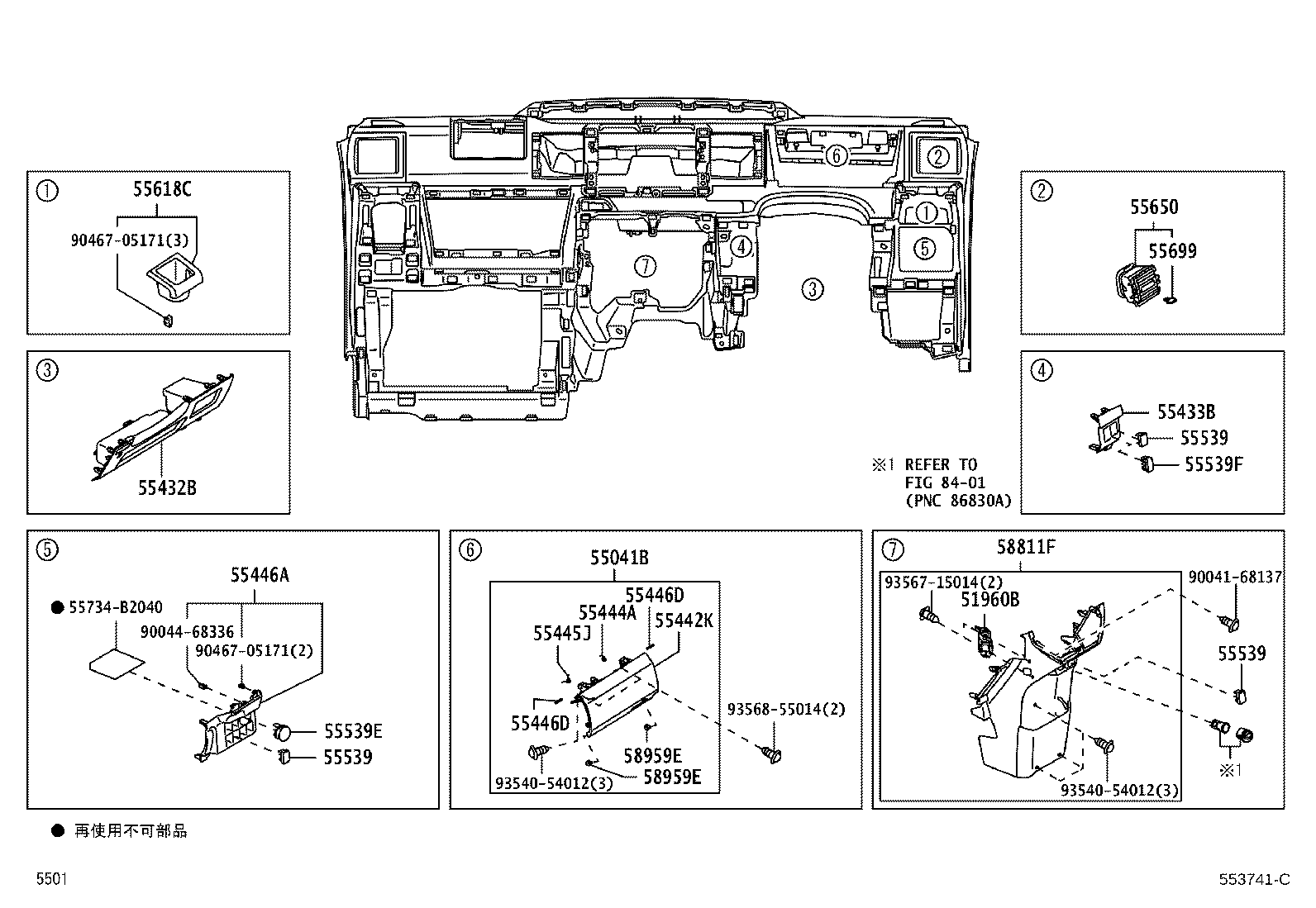

553741C 2015-07 → 2016-05

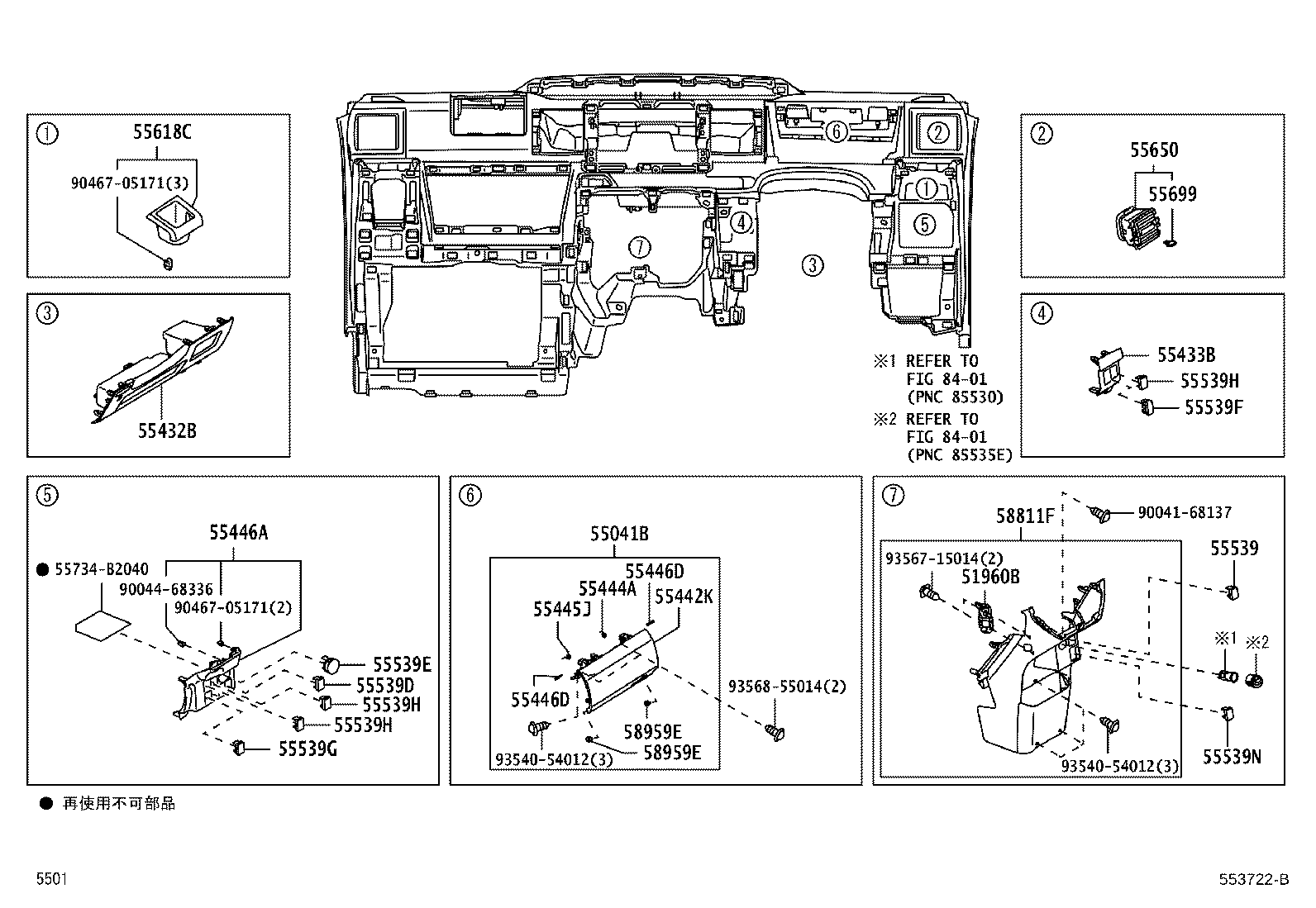

553722B 2016-05 → —

Part groups

PNC	Description
51960B	Hook Assy, Front
55041B	Door Sub-assy, Instrument Panel Box, NO.1
55063	Register Sub-assy, Instrument, NO.3
55064A	Register Sub-assy, Instrument, NO.4
55301	Panel Sub-assy, Instrument
55306A	Brace Sub-assy, Instrument Panel, NO.1
55313	Panel, Instrument, Lower LH
55331	Reinforcement, Instrument Panel
55345A	Clip, Instrument Panel, NO.1
55349A	Cushion, Instrument Panel
55355E	Cushion, Instrument Panel
55359B	Box, Instrument Panel, Center
55376	Bracket, Instrument Panel Mounting, NO.1
55394B	Bolt, Instrument Panel
55394C	Bolt, Instrument Panel
55394H	Bolt, Instrument Panel, NO.2
55403	Hood Sub-assy, Meter
55404D	Panel Sub-assy, Instrument Cluster Finish
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55406B	Panel Sub-assy, Instrument Cluster Finish, Lower Center
55423B	Cover, Instrument Cluster Finish Panel
55432B	Panel, Instrument Panel Finish, Lower
55433B	Panel, Instrument Panel Finish, Lower NO.2
55434A	Panel, Instrument Finish, Lower Sub
55434D	Clip, Instrument Panel Finish, Lower Center
55436A	Panel, Instrument Panel Finish, End LH
55440D	Box Assy, Instrument Panel
55442K	Door, Instrument Panel Box
55444A	Spring, Instrument Panel Box
55445J	Spring, Instrument Panel Box
55446A	Base, Switch Hole, NO.1
55446D	Shaft, Instrument Panel Box
55473A	Retainer, Instrument Panel Finish Panel
55492A	Retainer, Instrument Panel Finish, Lower
55539	Cover, Spare Switch Hole
55539D	Cover, Spare Switch Hole
55539E	Cover, Spare Switch Hole
55539F	Cover, Spare Switch Hole
55539G	Cover, Spare Switch Hole
55539H	Cover, Spare Switch Hole
55539N	Cover, Spare Switch Hole
55548A	Cover, Instrument Panel Hole
55549B	Cover, Instrument Panel Hole, NO.2
55550	Door Assy, Glove Compartment
55557A	Cushion, Glove Compartment Door Check
55560A	Lock Assy, Glove Compartment Door
55590	Plate Assy, Grove Compartment Door Lock Striker
55604B	Holder Sub-assy, Instrument Panel Cup
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55606C	Clip(FOR INSTRUMENT PANEL UNDER COVER)
55618C	Holder, Instrument Panel Cup
55650	Register Assy, Instrument Panel, NO.1
55653	Register, Instrument Panel, NO.3
55654	Register, Instrument Panel, NO.4
55660	Register Assy, Instrument Panel, NO.2
55682	Spring, Instrument Panel Register Support
55699	Knob, Instrument Panel Register Control
55699A	Knob, Instrument Panel Register Control NO.2
55699B	Knob, Instrument Panel Register Control NO.3
55699C	Knob, Instrument Panel Register Control NO.4
58811F	Box, Consol
58916D	Mat, Box Bottom
58917B	Mat, Box Bottom
58959E	Cushion, Console Compartment Door
73970A	Airbag Assy, Instrument Panel Passenger
88376D	Cap, Blind

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
