Toyota Pixis Mega
2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan
Supported model
Data version 2018-01

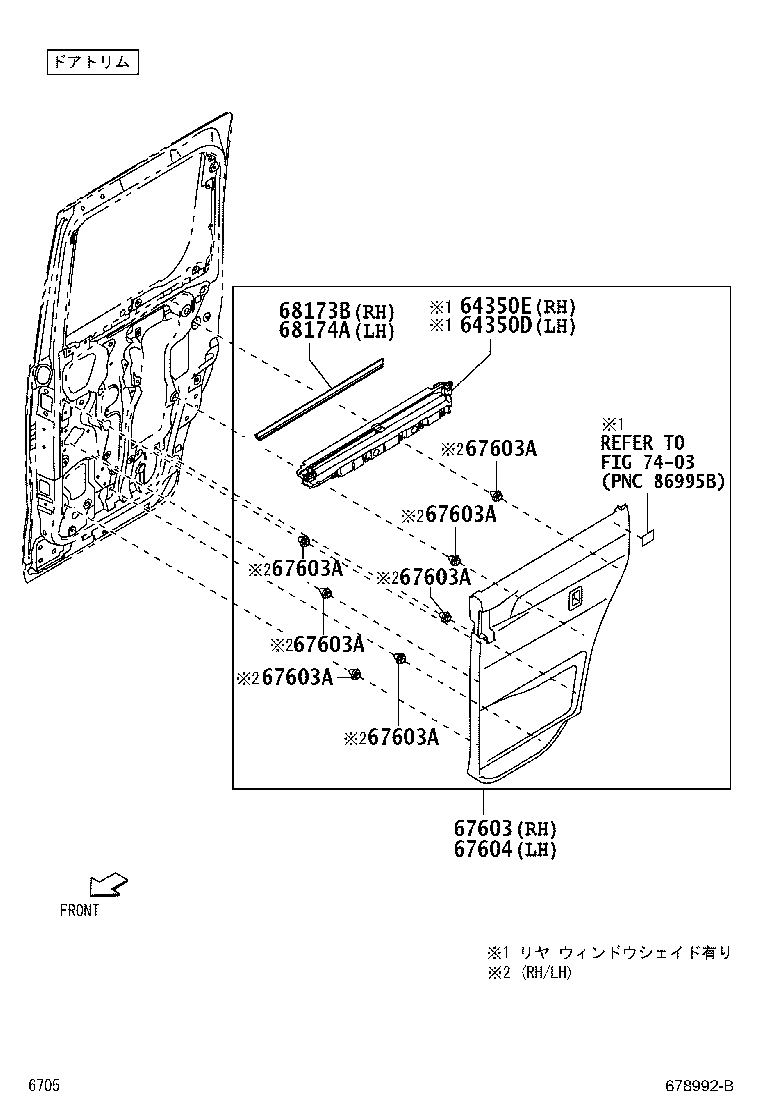

Rear Door Panel & Glass
57 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62368B | Clip, Door Window Glass, Rear LH |
| 64350D | Shade Assy, Rear Door Trim LH |
| 64350E | Shade Assy, Rear Door Trim RH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67216E | Stopper, Rear Door Glass, Upper NO.2 |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67457C | Bracket, Rear Door Rear Guide, Upper RH |
| 67458B | Bracket, Rear Door Rear Guide, Upper LH |
| 67487C | Seal, Rear Door Rear Guide, RH |
| 67488C | Seal, Rear Door Rear Guide, LH |
| 67525C | Cover, Slide Door Panel, Lower RH |
| 67525D | Cover, Slide Door Panel, Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67603D | Retainer, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604D | Retainer, Rear Door Trim, LH |
| 67675C | Garnish, Rear Door Frame, NO.2 RH |
| 67676C | Garnish, Rear Door Frame, NO.2 LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67841G | Cover, Slide Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67842G | Cover, Slide Door Service Hole, LH |
| 67843A | Cover, Rear Door Service Hole, NO.2 |
| 67844A | Cover, Rear Door Service Hole, NO.2 LH |
| 67852A | Cover, Slide Door Service Hole, NO.2 |
| 67854B | Cover, Slide Door Service Hole, NO.3 |
| 67867J | Clip, Door Weatherstrip, RH(FOR REAR DOOR) |
| 67869D | Clip, Door Weatherstrip |
| 67869K | Clip, Door Weatherstrip, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67887B | Clip(FOR REAR DOOR WEATHERSTRIP) |
| 67887H | Weatherstrip, Rear Door, NO.2 RH |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 67888F | Weatherstrip, Rear Door, NO.2 LH |
| 67897H | Cushion, Rear Door |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68191B | Run, Rear Door Glass, NO.2 RH |
| 68192B | Run, Rear Door Glass, NO.2 LH |
| 68211E | Clip, Door Glass Weatherstrip |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 69905D | Channel Sub-assy, Slide Door Glass, RH |
| 69906D | Channel Sub-assy, Slide Door Glass, LH |
| 69975D | Filler, Rear Door Glass Channal |
| 75933B | Tape, Black Out, Outer Front RH |
| 75934B | Tape, Black Out, Outer Front LH |
| 84250D | Sensor Assy, Power Slide Door, RH |
| 84260J | Sensor Assy, Power Slide Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
