Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

13 part groups · 4 illustrations

Illustrations

Figure 67A317A

67A317A 2015-07 → —

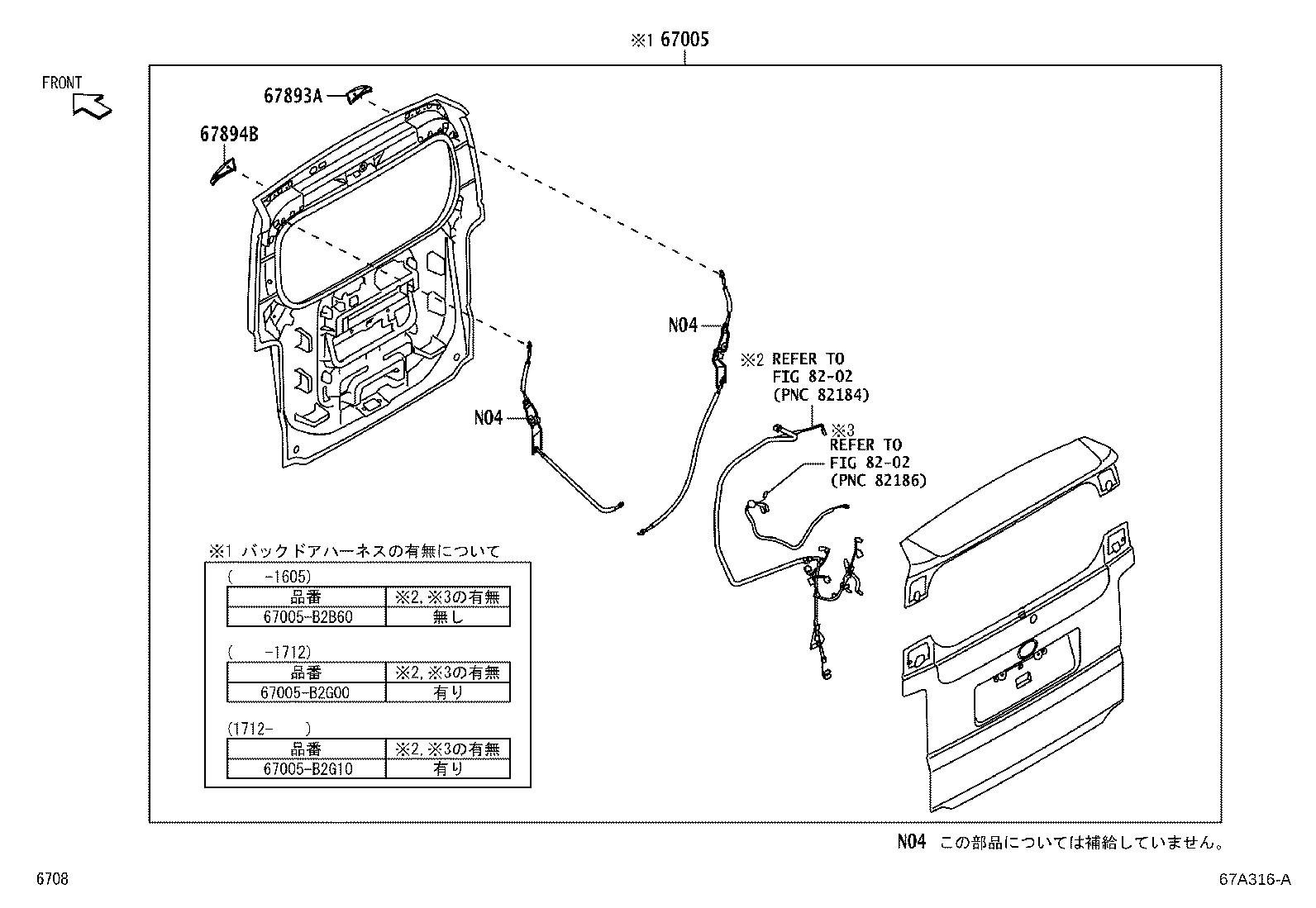

Figure 67A316A

67A316A 2015-07 → —

Figure 678983B

678983B 2015-07 → —

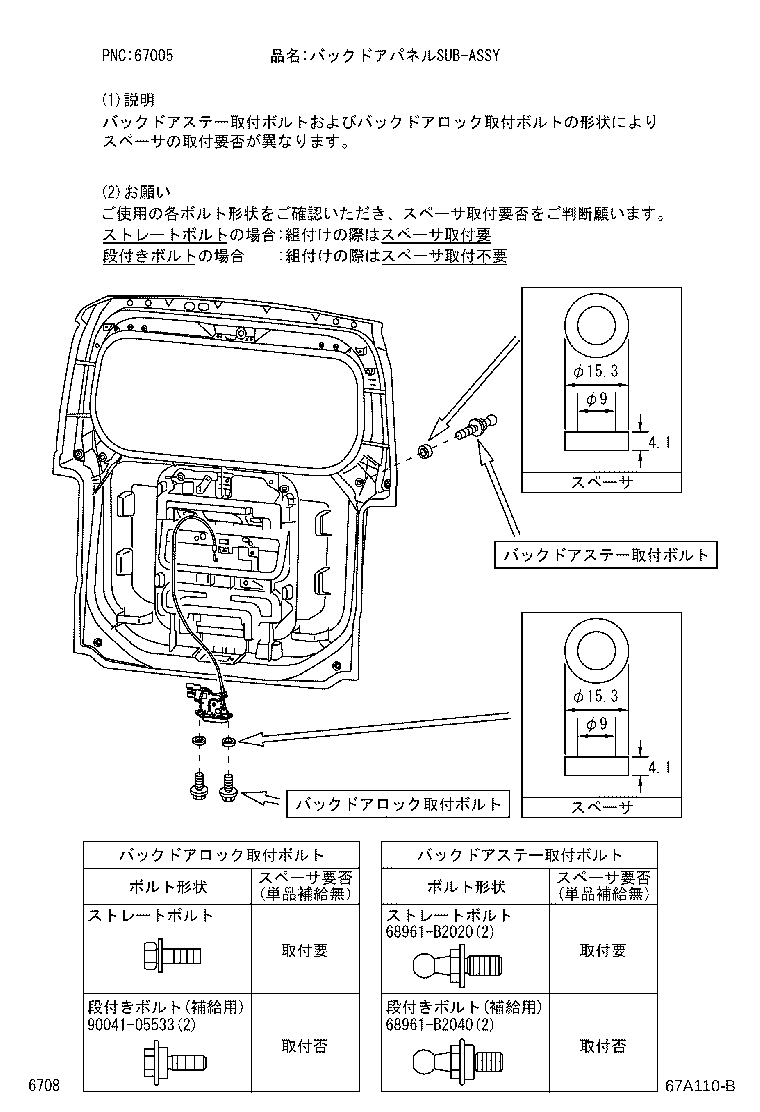

Figure 67A110B

67A110B 2015-07 → —

Part groups

PNC	Description
64780A	Panel Assy, Back Door Trim
64827D	Clip, Back Window Glass
64885A	Channel, Back Window Glass, RH
64886	Channel, Back Window Glass, LH
67005	Panel Sub-assy, Back Door
67005B	Cushion(FOR BACK DOOR PANEL)
67750A	Clip(FOR BACK DOOR TRIM)
67818B	Spacer, Back Window Glass
67881A	Weatherstrip, Back Door
67893A	Protector, Back Door Panel, NO.1
67894B	Protector, Back Door Panel, NO.2
68131	Glass, Back Door
75129C	Cushion, Rear Licence Plate

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
