Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

21 part groups · 4 illustrations

Illustrations

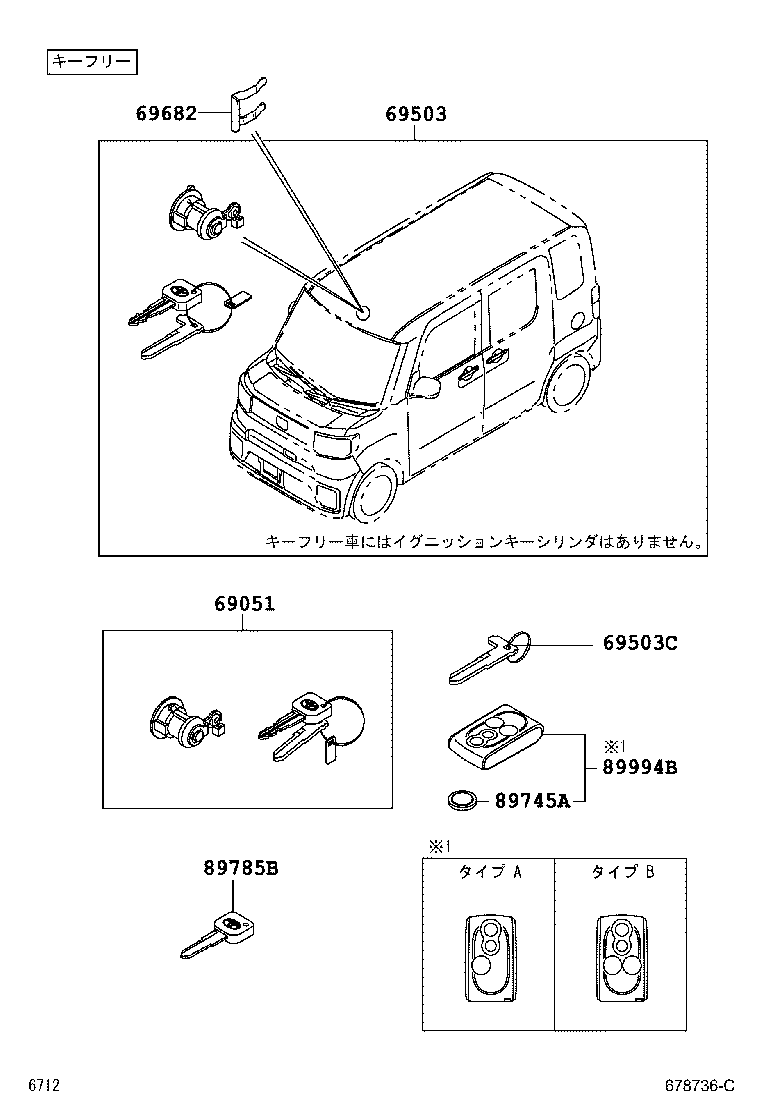

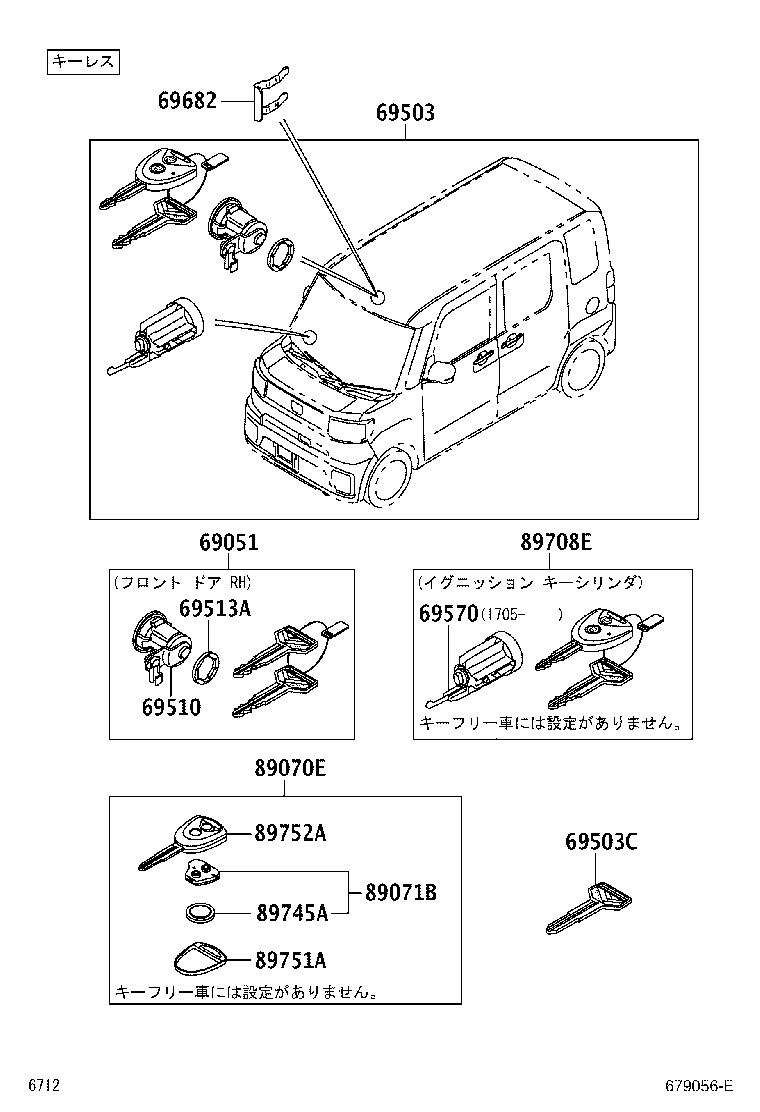

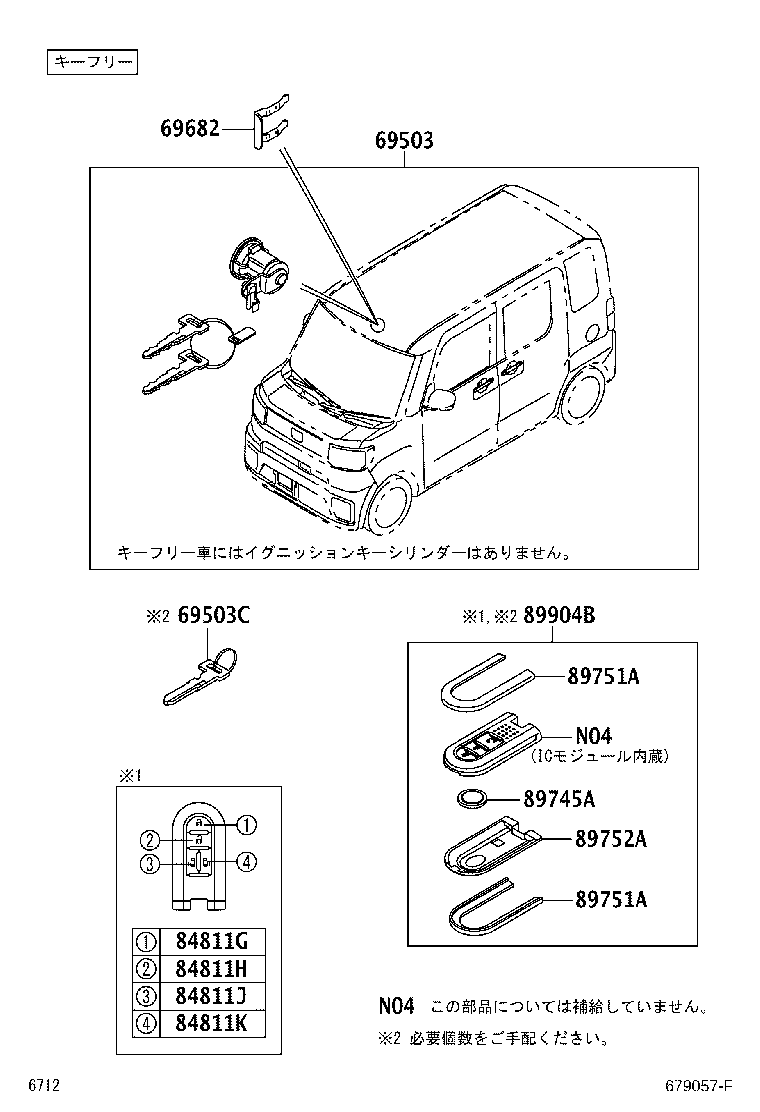

Figure 678735F 678735F 2015-07 → 2016-05 Figure 679056E 679056E 2016-05 → — Figure 678736C 678736C 2015-07 → 2016-05 Figure 679057F 679057F 2016-05 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69503 Cylinder Set, Lock
69503C Key, Sub
69510 Cylinder Assy, Front Door Lock, RH
69513A Pad, Door Cylinder
69570 Cylinder Assy, Ignition Switch Lock
69682 Retainer, Lock Cylinder
84811G Knob, Switch, NO.1
84811H Knob, Switch, NO.2
84811J Knob, Switch, NO.3
84811K Knob, Switch, NO.4
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89708E Cylinder Set, Lock W/Transmitter
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89759 Screw, Door Control Transmitter
89785B Transmitter, Transponder Key Master
89904B Transmitter Sub-assy, Electrical Key
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
