Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

27 part groups · 7 illustrations

Illustrations

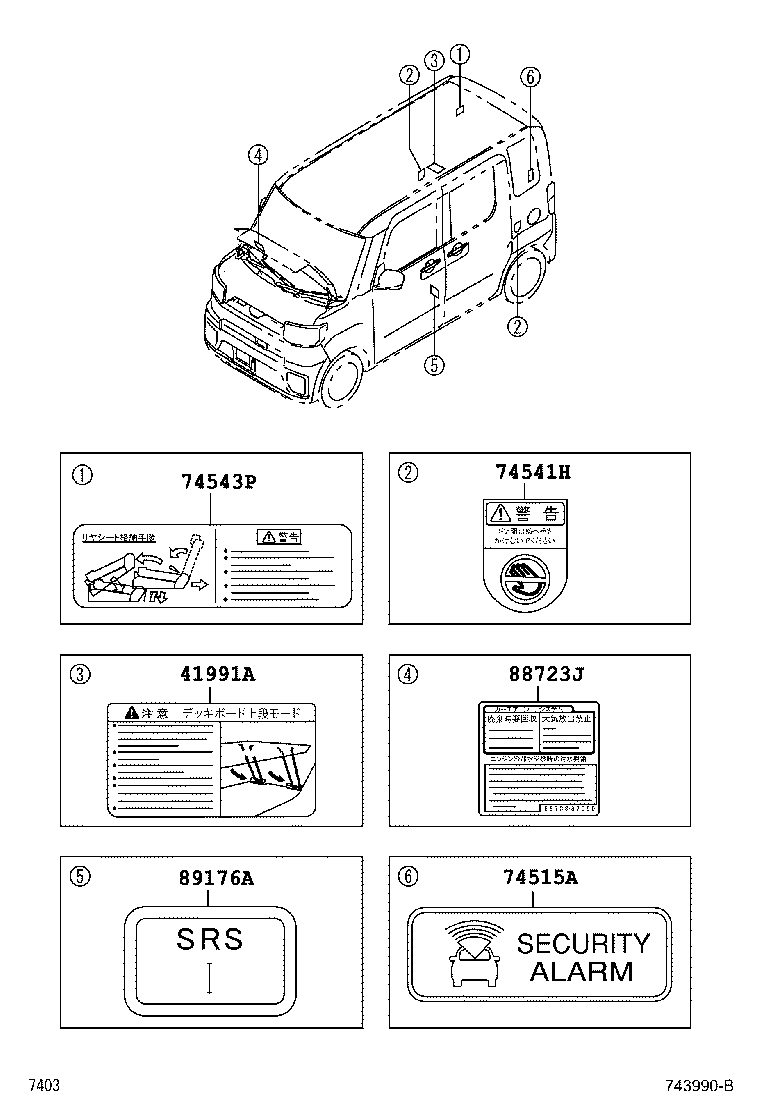

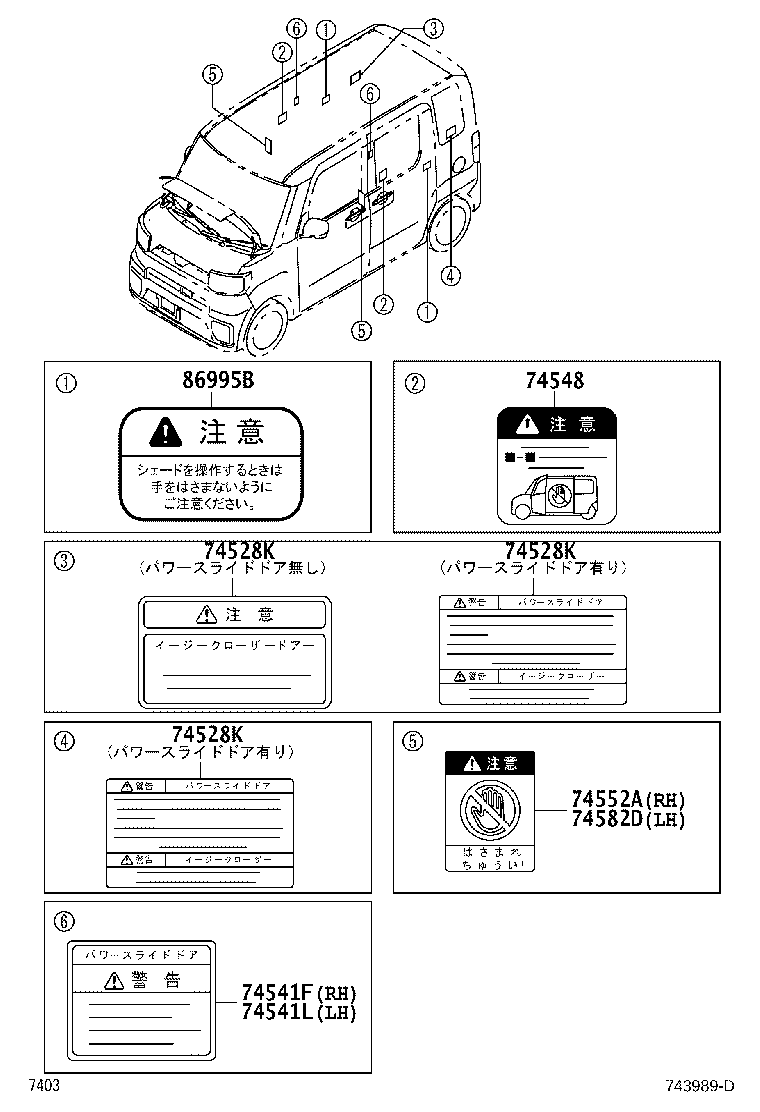

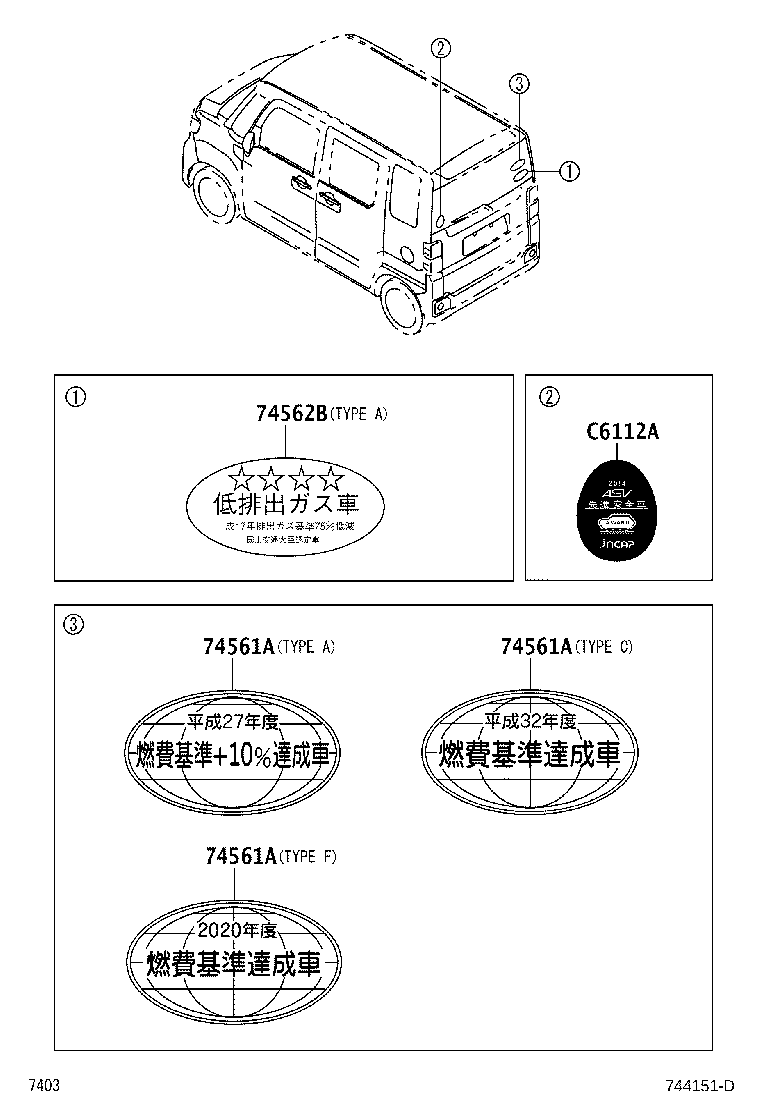

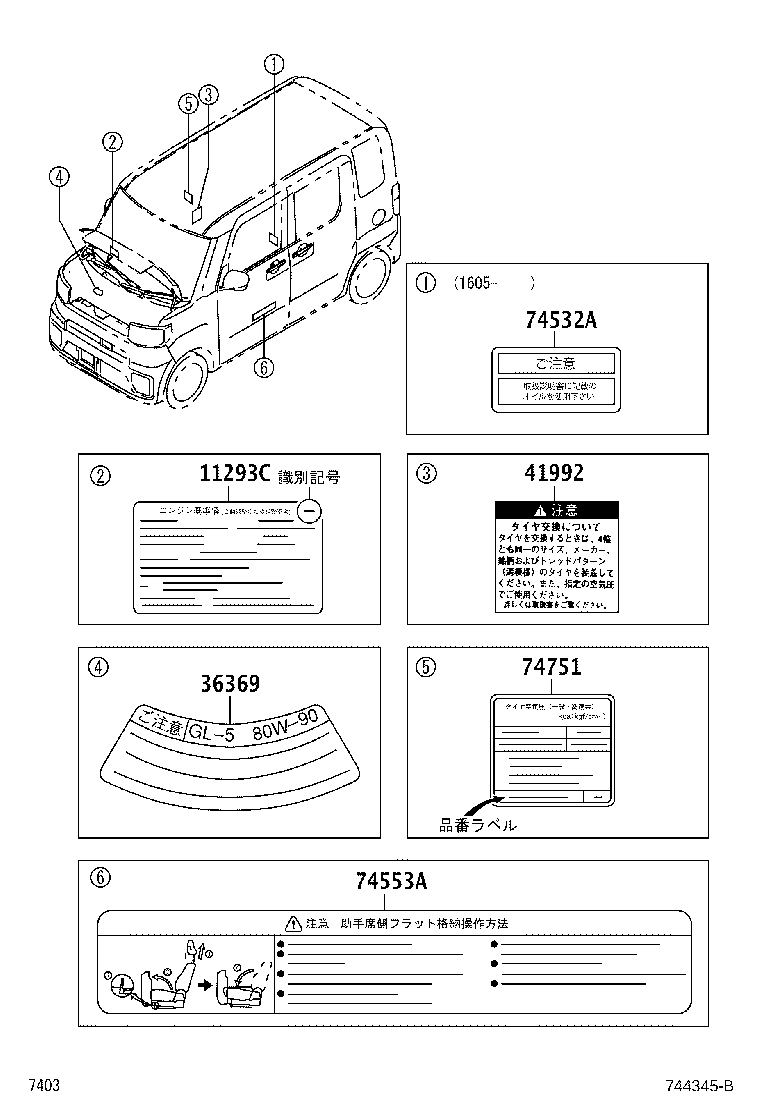

Figure 745605 745605 2015-07 → — Figure 744345B 744345B 2015-07 → — Figure 743989D 743989D 2015-07 → — Figure 743990B 743990B 2015-07 → — Figure 743991C 743991C 2015-07 → 2017-12 Figure 744671 744671 2017-12 → — Figure 744151D 744151D 2015-07 → —

Part groups

PNCDescription
11293C Label, Tune-up Specification Information
16793E Label, Cooling Fan Caution
36369 Label, Transfer Information
41991A Plate, Caution
41992 Label, Differential Notice
46275B Label, Parking Brake Release Information, NO.2
74515A Plate, Theft Warning
74528G Label, Power Slide Door Caution
74528K Label, Door Closer Caution
74532A Plate, Caution
74541F Label, Slide Door Glass Caution
74541H Plate, Body Caution
74541L Label, Bottle Holder Information
74543P Label, Rear Seat Caution
74548 Plate, Body Caution
74552A Label, Safety Caution
74553A Plate, Front Seat Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74582D Label, Safety Caution
74751 Label, Tire Pressure Information
86995B Plate, Caution
86995E Label, Caution
88723J Label, Cooler Service Caution, NO.2
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
C6112A Label, Safety Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
