Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

47 part groups · 7 illustrations

Illustrations

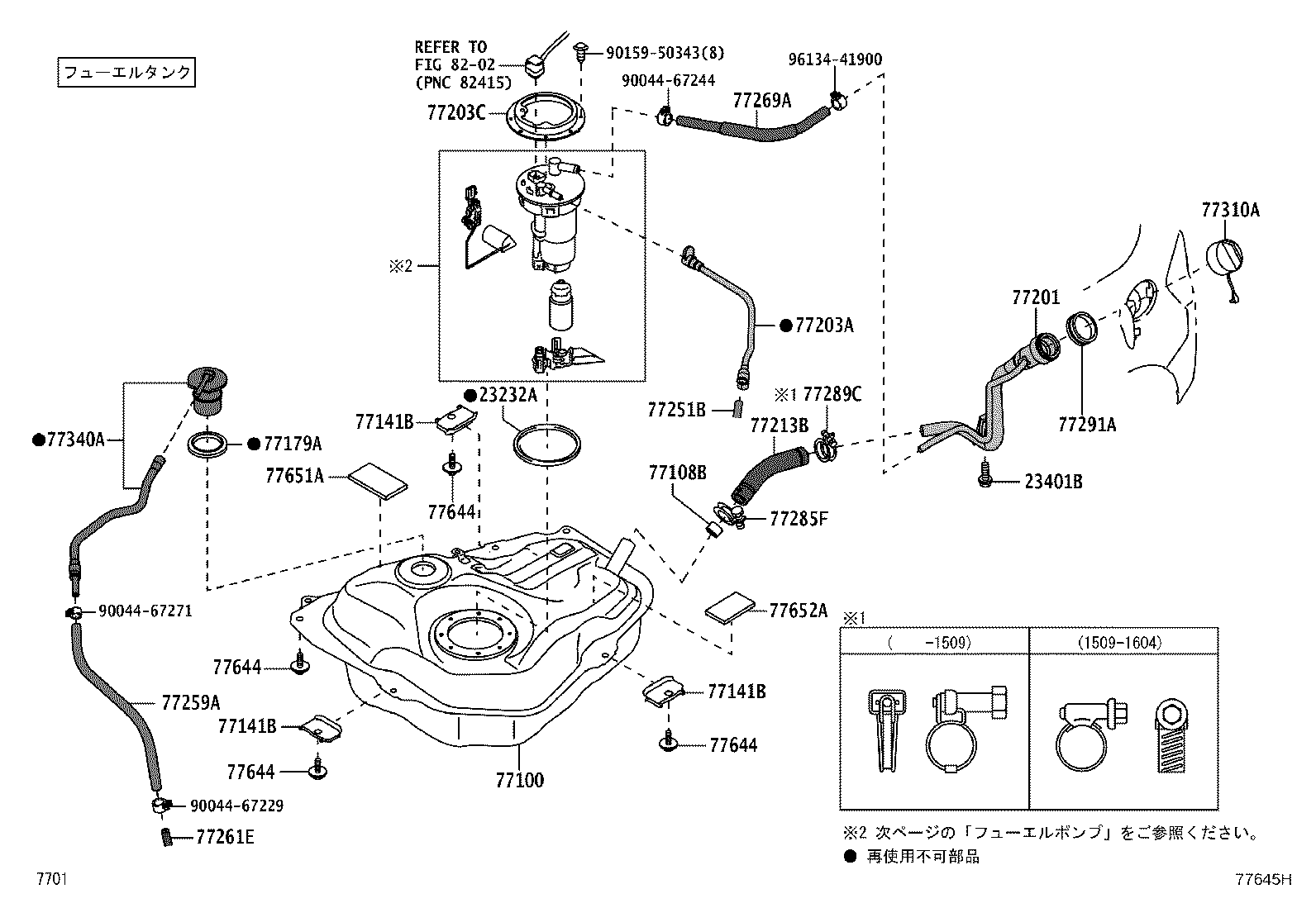

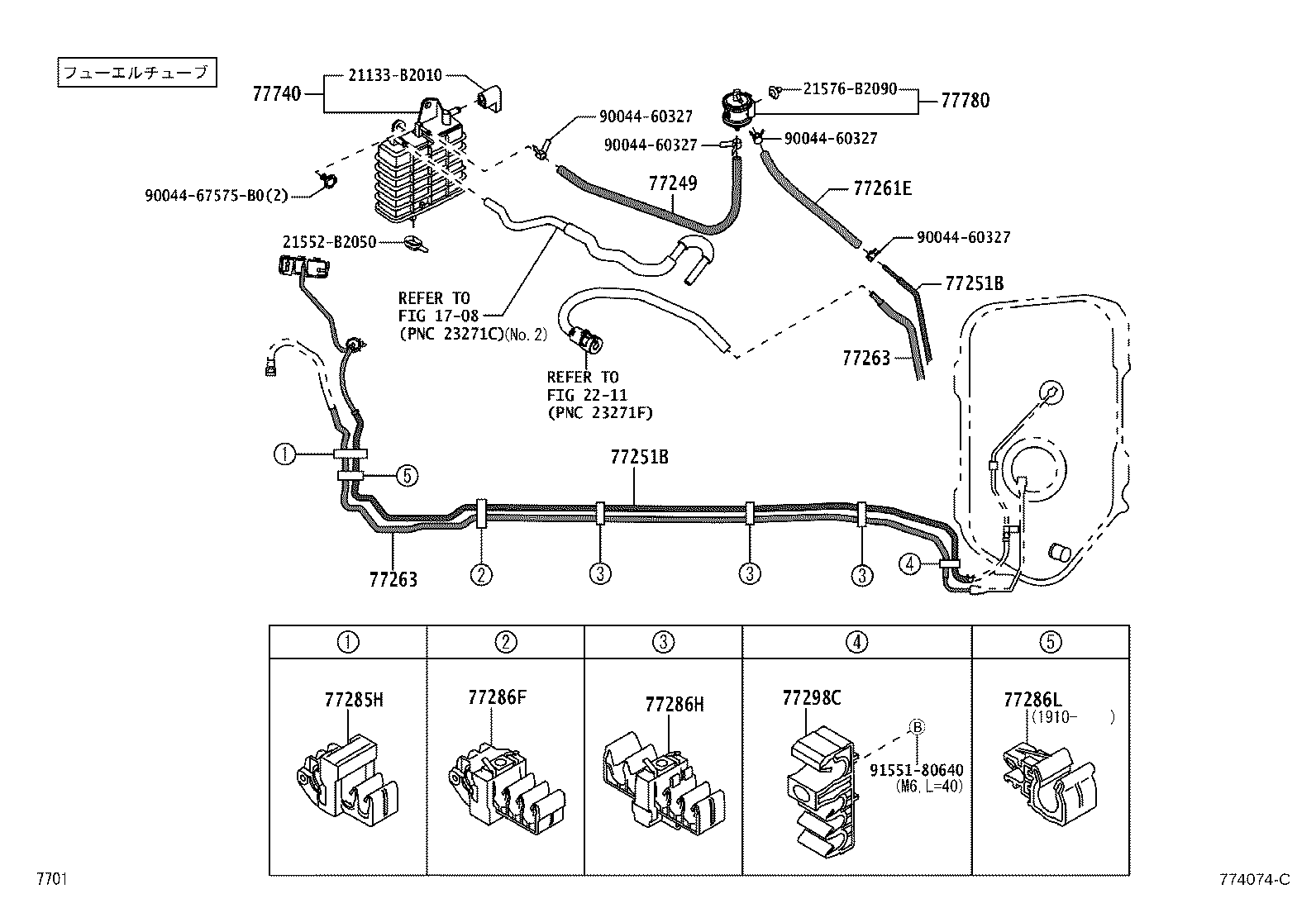

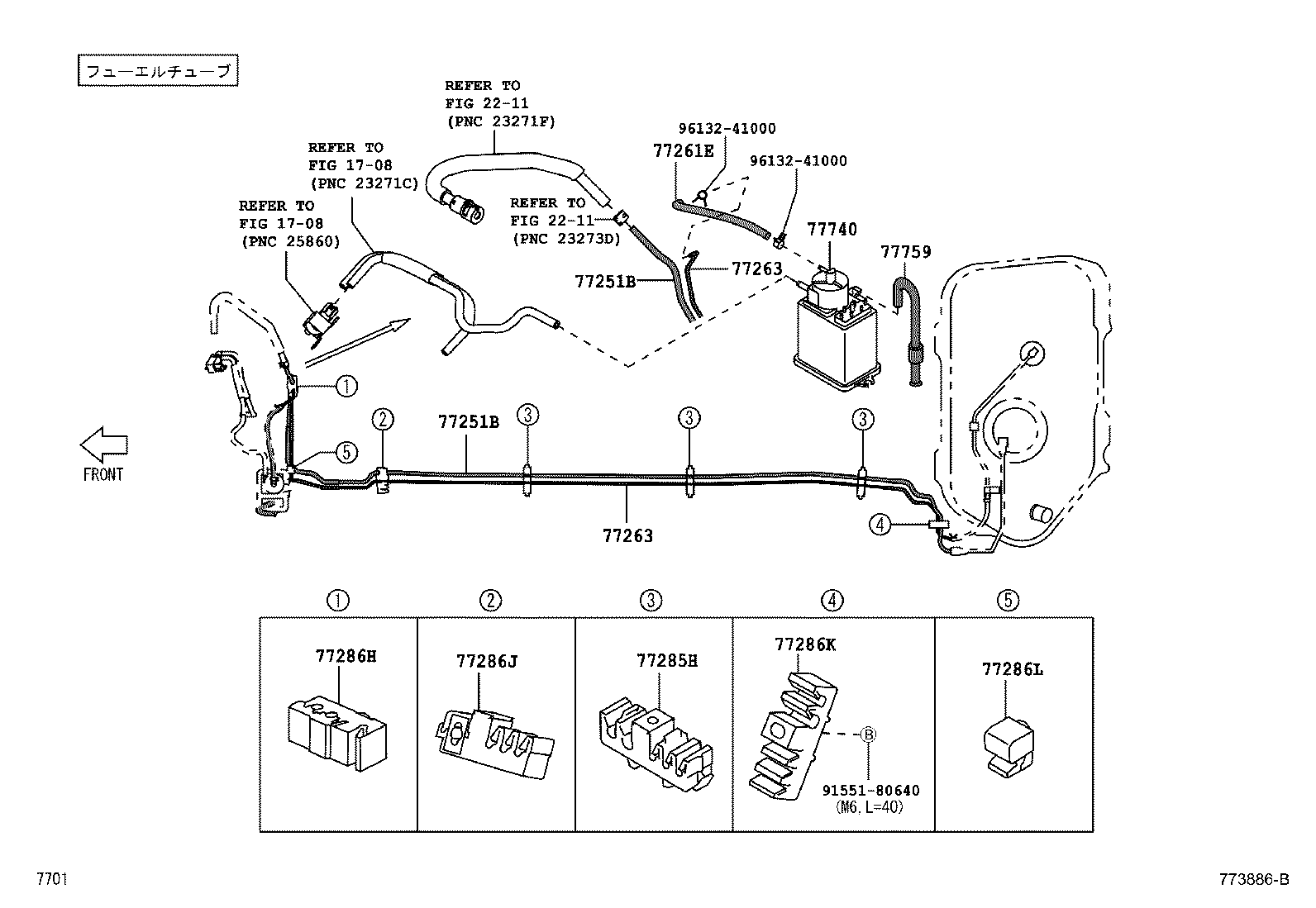

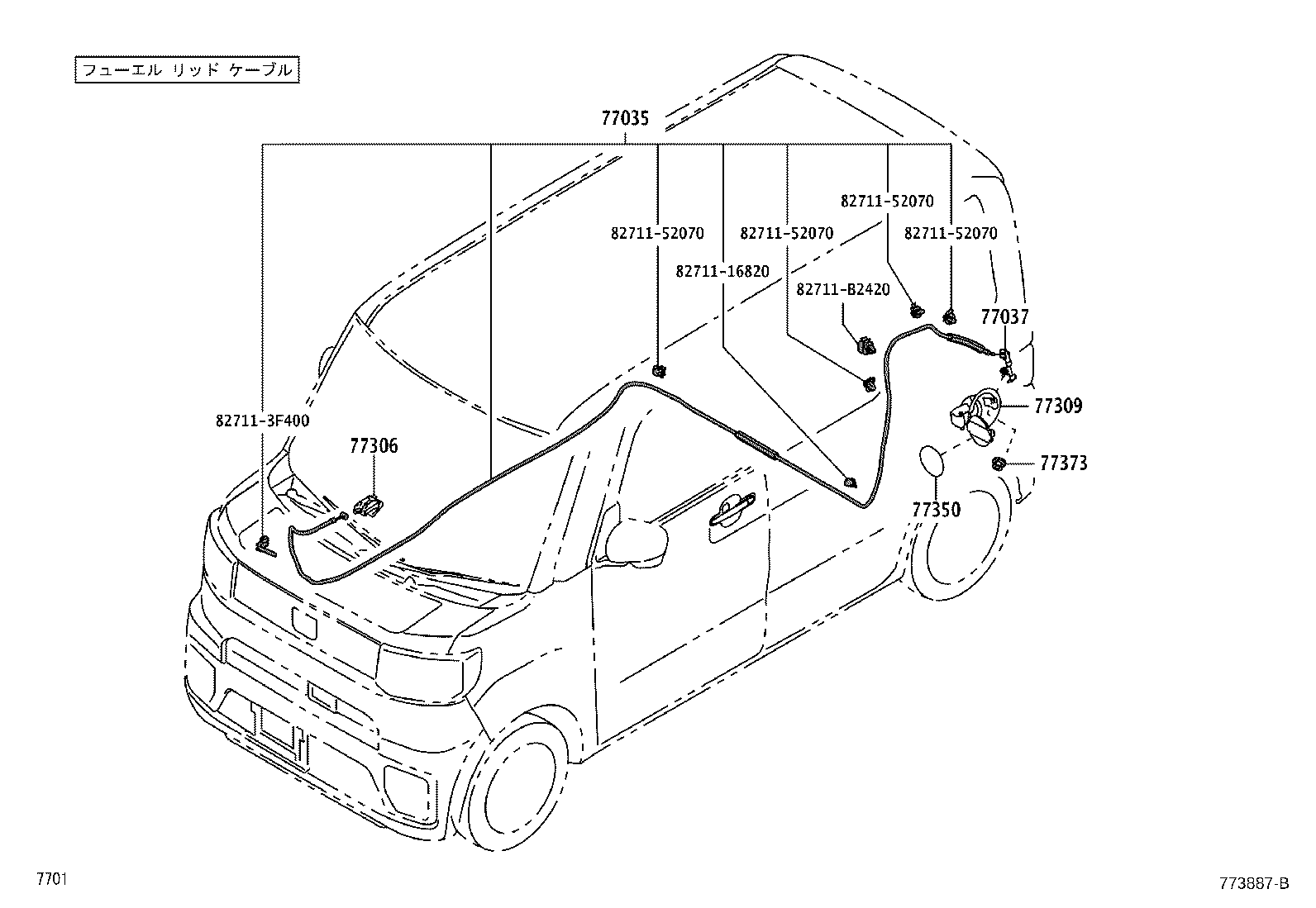

Figure 77645G 77645G 2015-07 → — Figure 77645H 77645H 2015-07 → — Figure 775680 775680 2015-07 → 2016-05 Figure 775343A 775343A 2016-05 → — Figure 773886B 773886B 2015-07 → 2016-05 Figure 774074C 774074C 2016-05 → — Figure 773887B 773887B 2015-07 → —

Part groups

PNCDescription
23191A Flange, Fuel Pump
23210A Pump Assy, Fuel W/Motor & Bracket
23217D Filter, Fuel Pump
23220A Pump Assy, Fuel W/Filter
23221 Pump, Fuel
2322F Support, Fuel Pump Filter
23232A Gasket, Fuel Pump
23401B Bolt
77024A Plate Sub-assy, Fuel Suction
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77108B Valve Sub-assy, Fuel Tank Filler Check
77141B Reinforcement, Fuel Tank Flange, NO.1
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77203A Tube Sub-assy, Fuel Suction
77203C Bracket, Fuel Pump
77213B Hose, Fuel Tank TO Filler Pipe
77249 Hose, Fuel Emission
77251B Tube, Fuel Main
77259A Hose, Fuel(FOR BREATHER TUBE)
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77263 Tube, Fuel Tank TO Canister, NO.3
77269A Hose, Fuel Tank Breather
77285F Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286K Clamp, Fuel Tube, NO.2
77286L Clamp, Fuel Tube, NO.5
77289C Clamp, Fuel Tube, NO.4
77291A Shield, Fuel Tank Filler Pipe
77298C Clamp, Fuel Tube, NO.4
77306 Lever Sub-assy, Fuel Lid Lock Open
77309 Hinge Sub-assy, Fuel Inlet Box Cover
77310A Cap Assy, Fuel Tank
77340A Valve Assy, Fuel Cut Off W/Tube
77350 Lid Assy, Fuel Filler Opening
77373 Nut, Fuel Lid Lock
77644 Bolt, Fuel Tank
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77740 Canister Assy, Charcoal
77759 Hose, Charcoal Canister
77780 Valve Assy, Purge Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
