Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

15 part groups · 2 illustrations

Illustrations

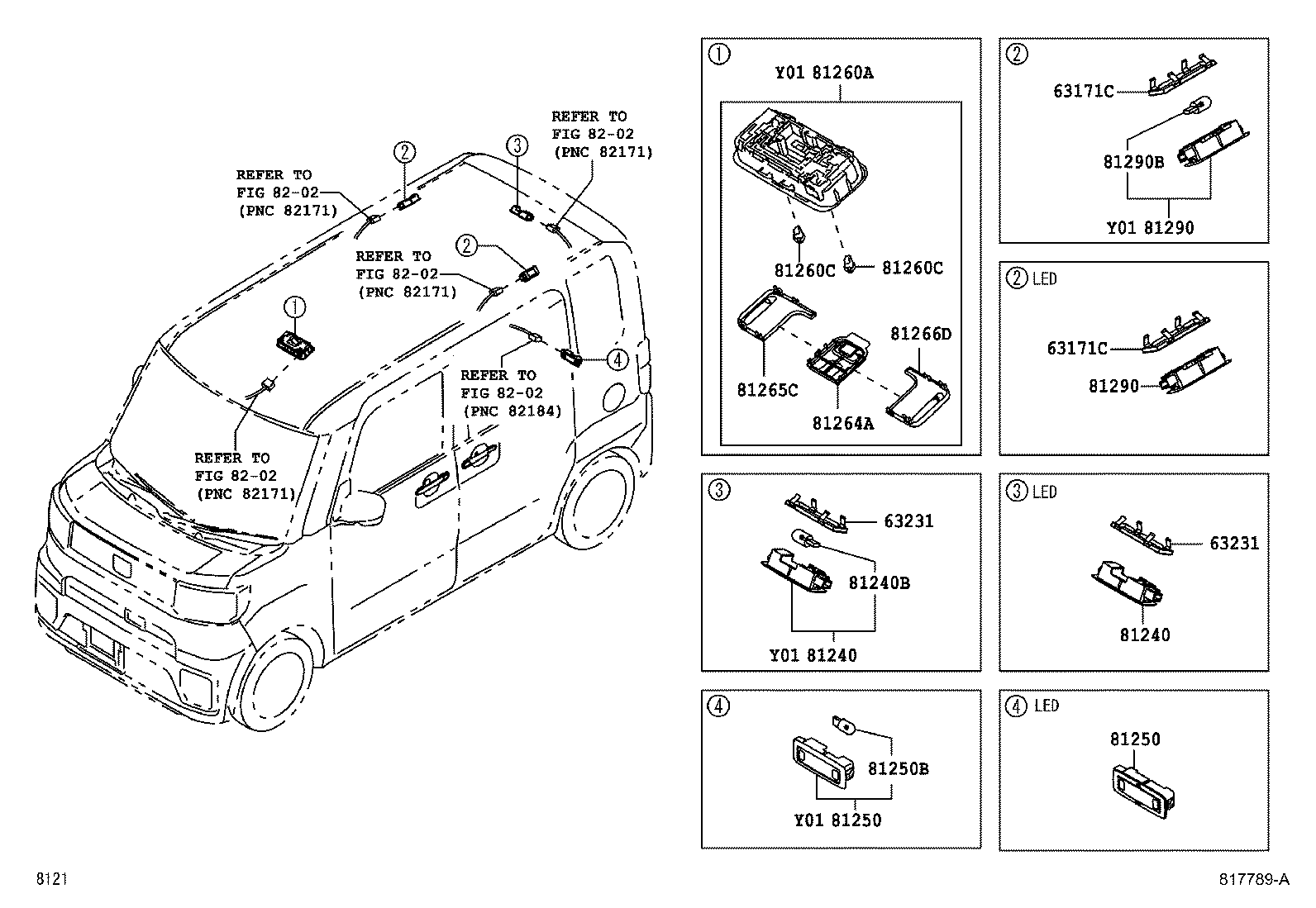

Figure 817682A 817682A 2015-07 → 2016-05 Figure 817789A 817789A 2016-05 → —

Part groups

PNCDescription
63171C Bracket, Room Lamp
63231 Bracket, Room Lamp
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81260H Bulb(FOR MAP LAMP), NO.2
81260J Socket, Bulb(FOR MAP LAMP)
81264A Cover, Map Lamp
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81290 Lamp Assy, Room, NO.3
81290B Bulb, Room Lamp, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
