Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

73 part groups · 11 illustrations

Illustrations

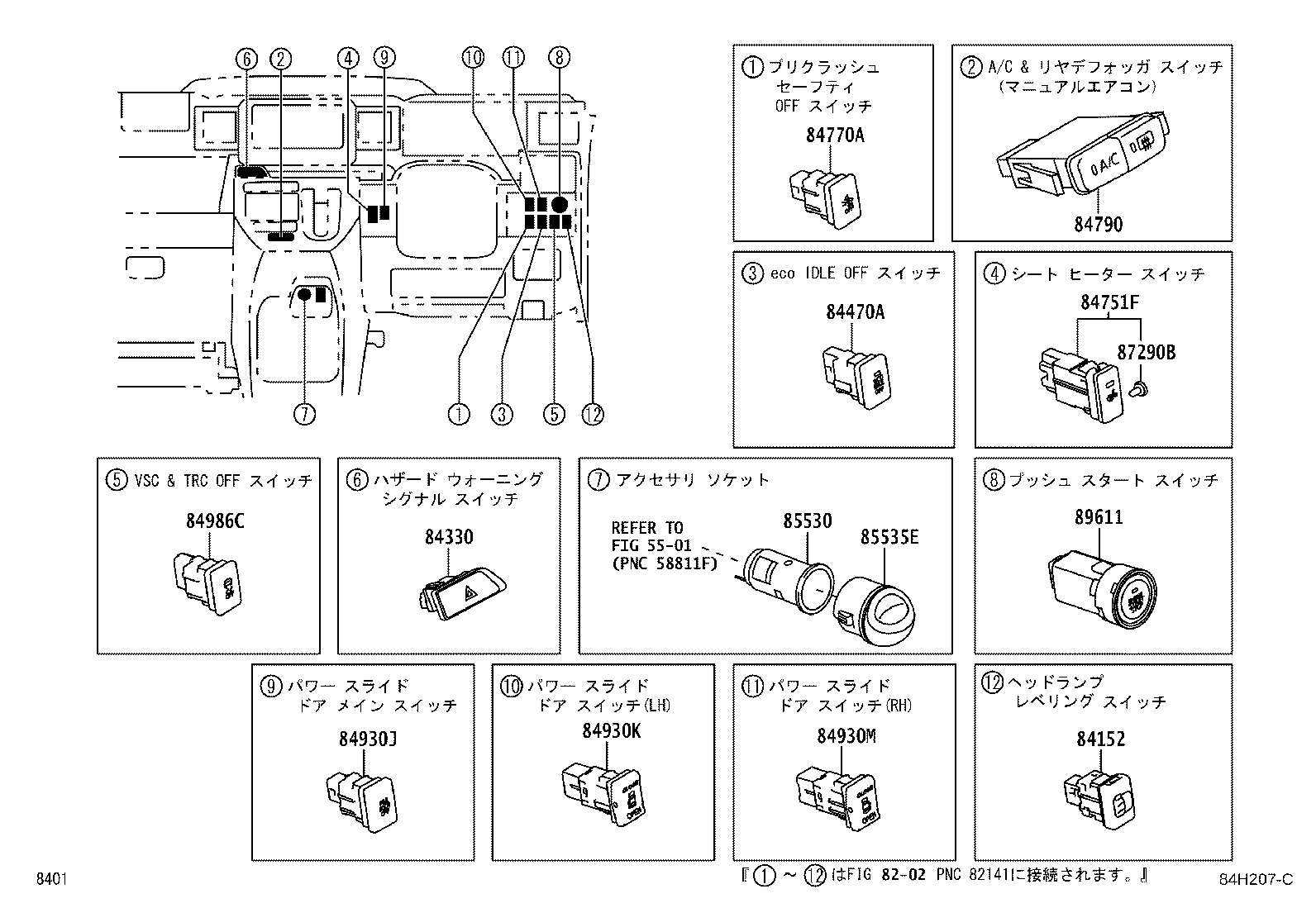

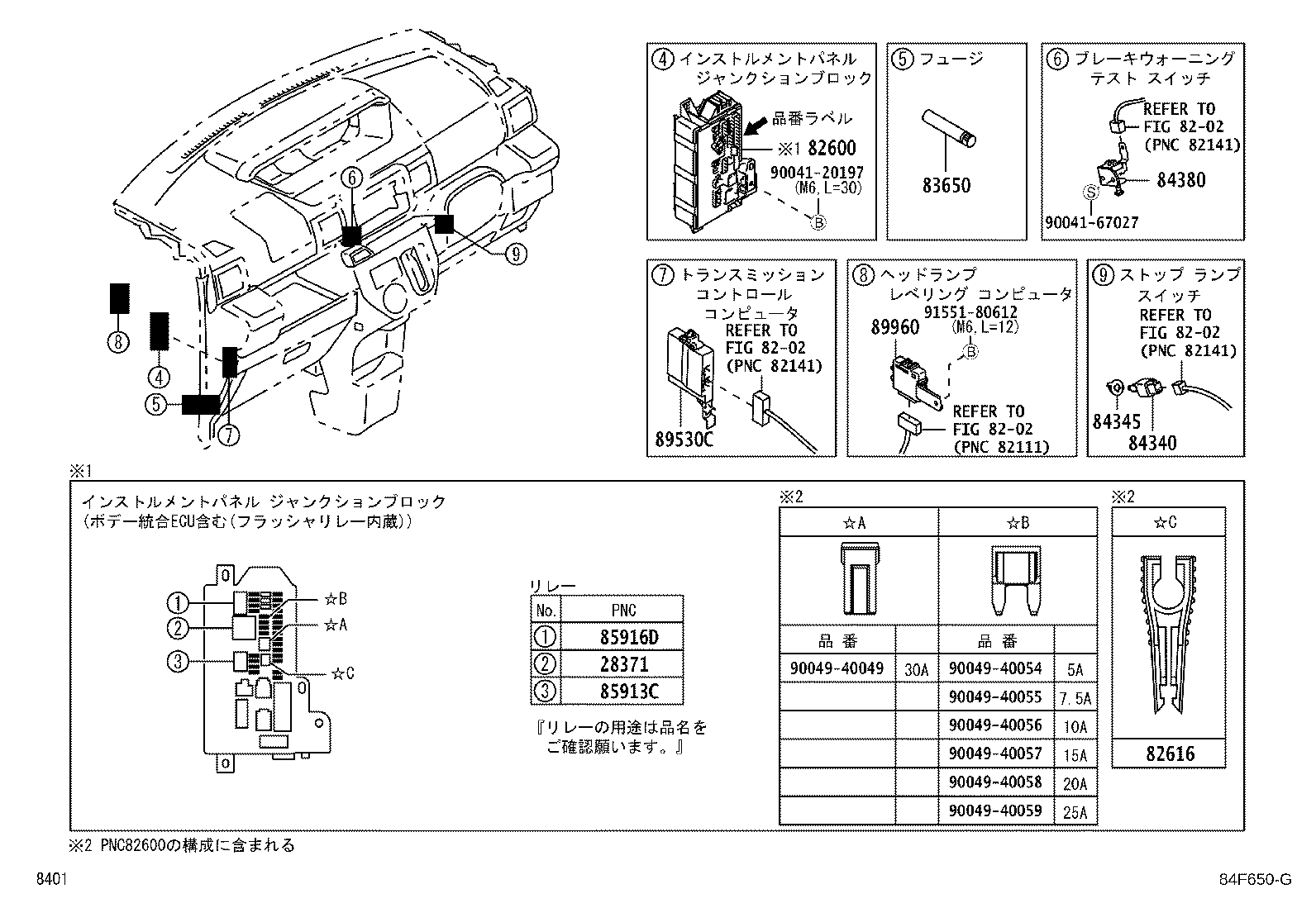

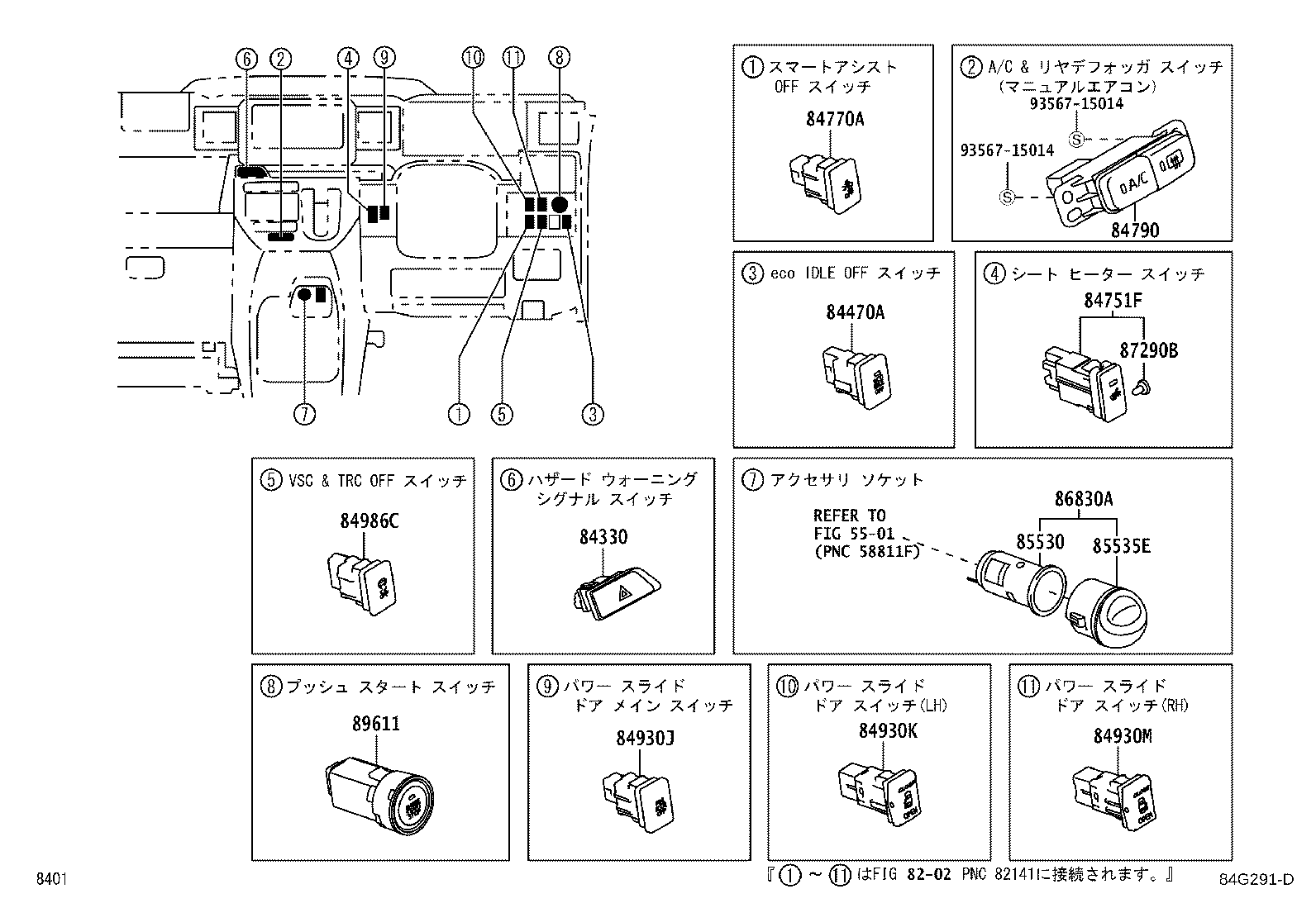

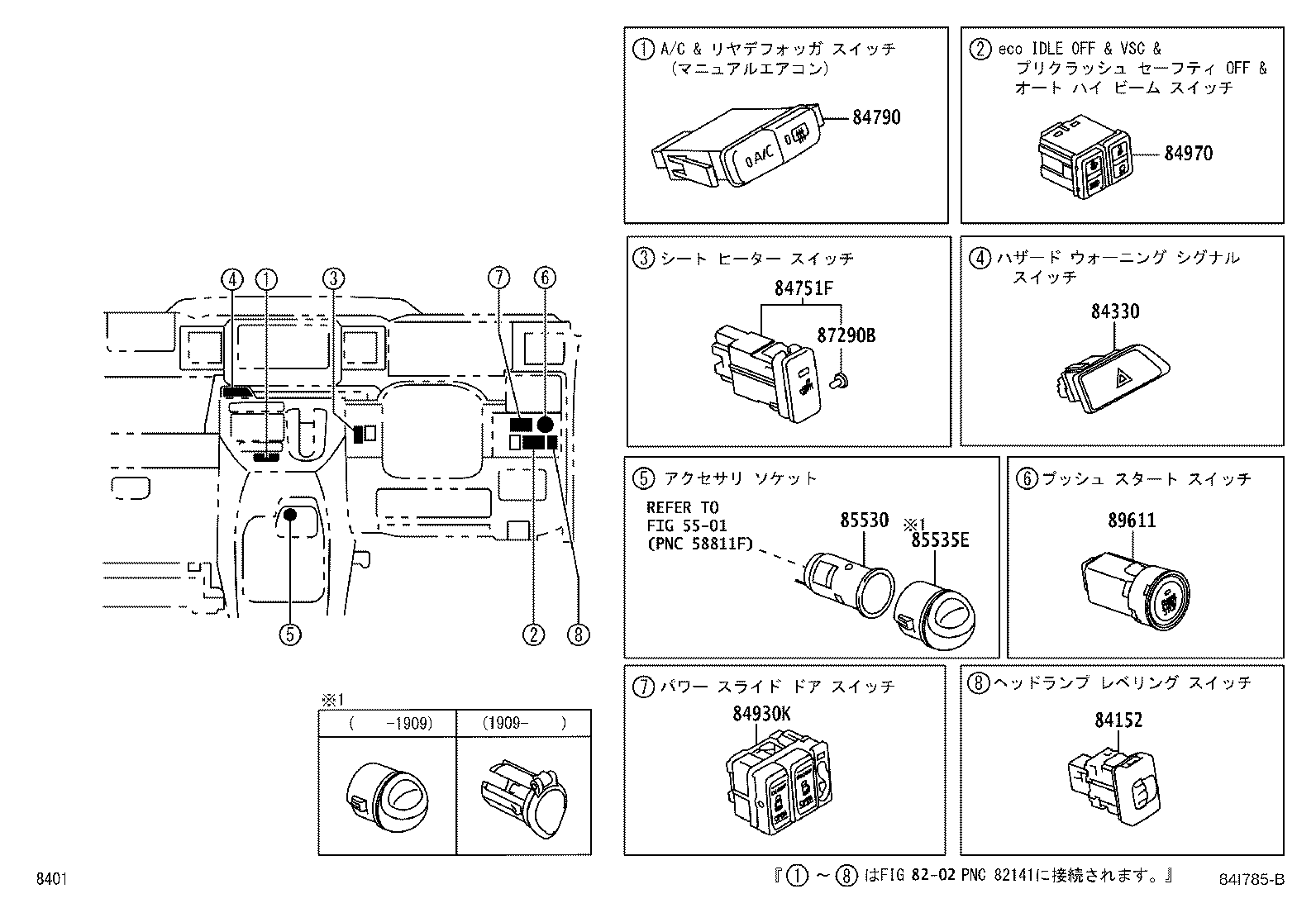

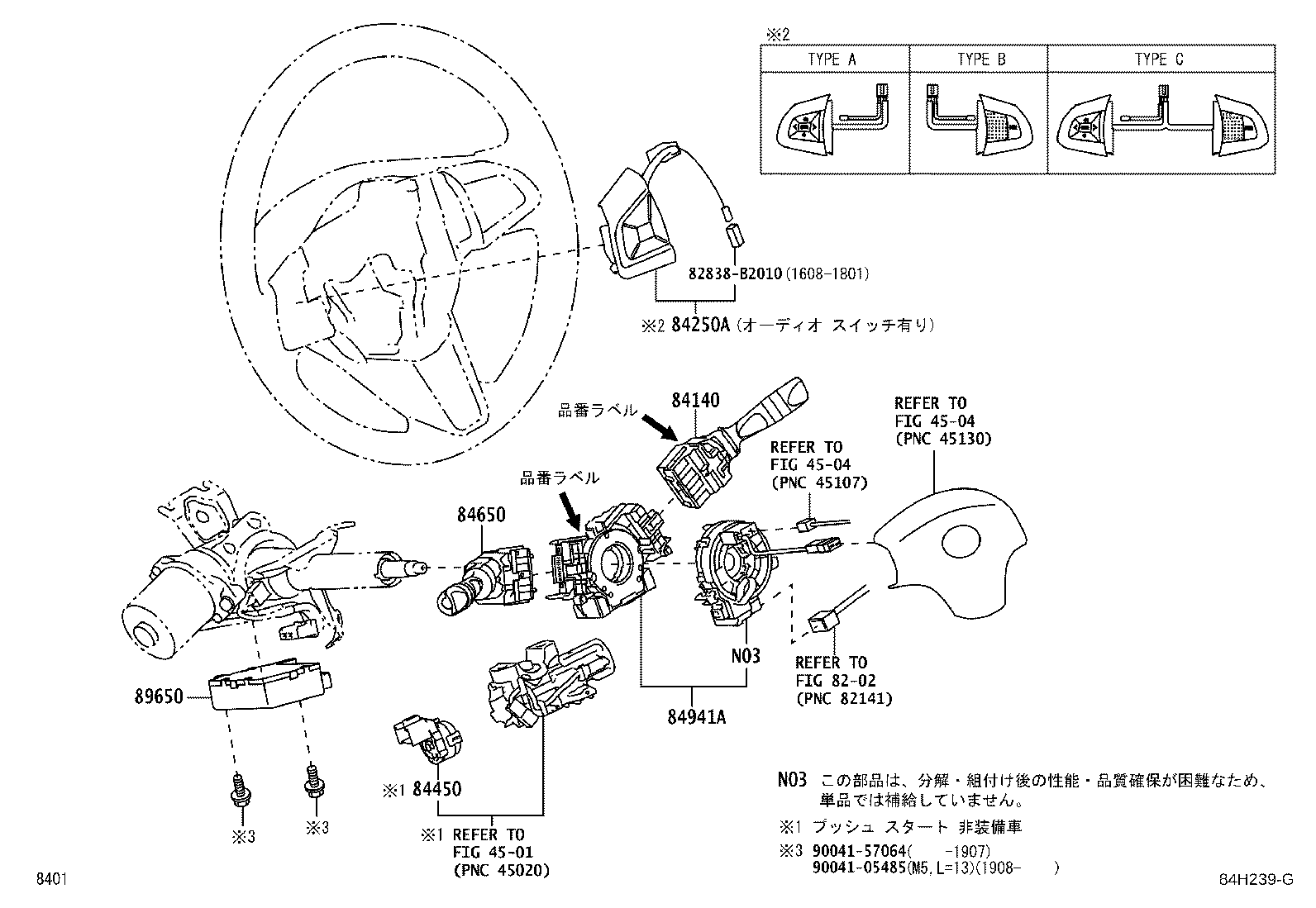

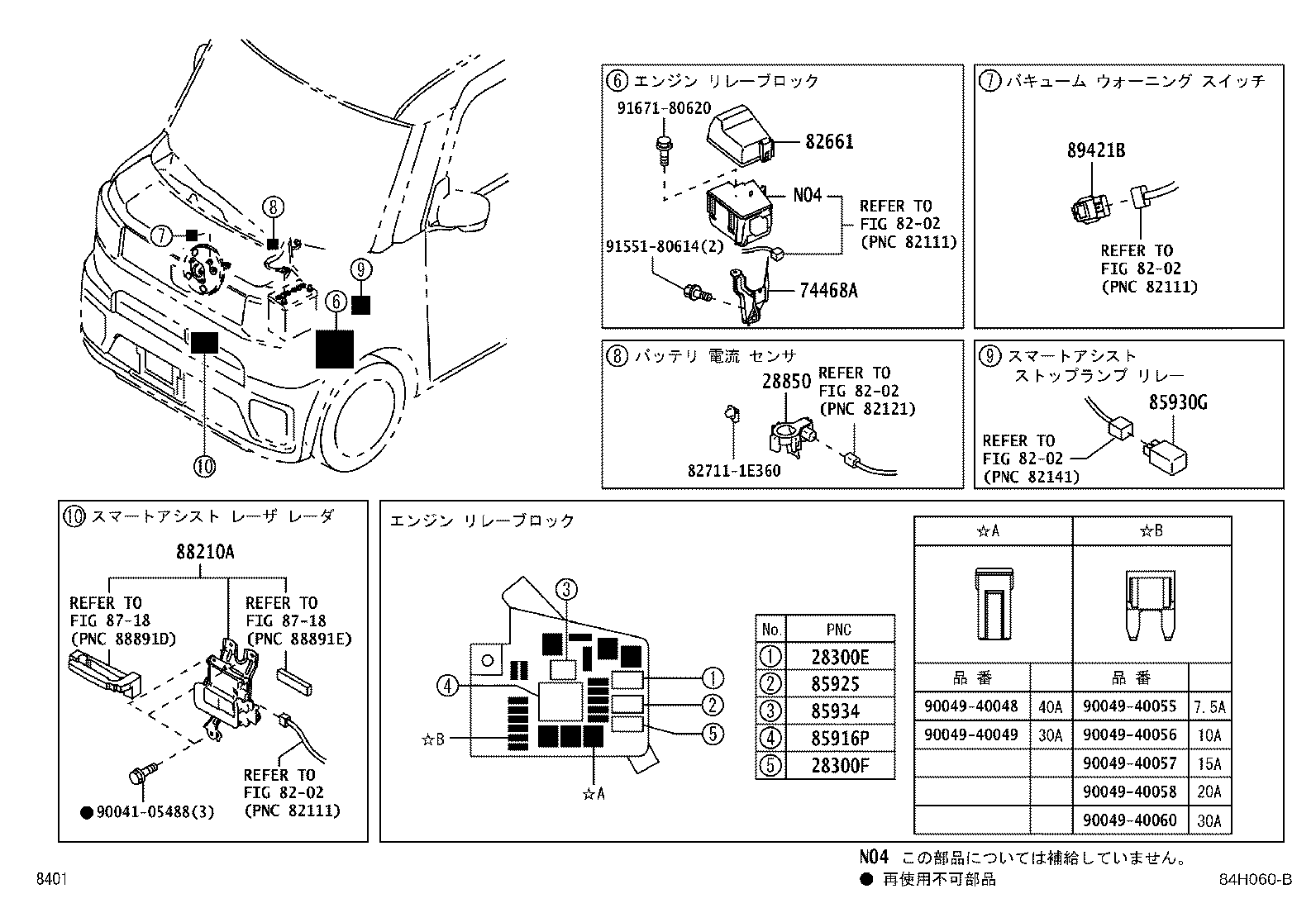

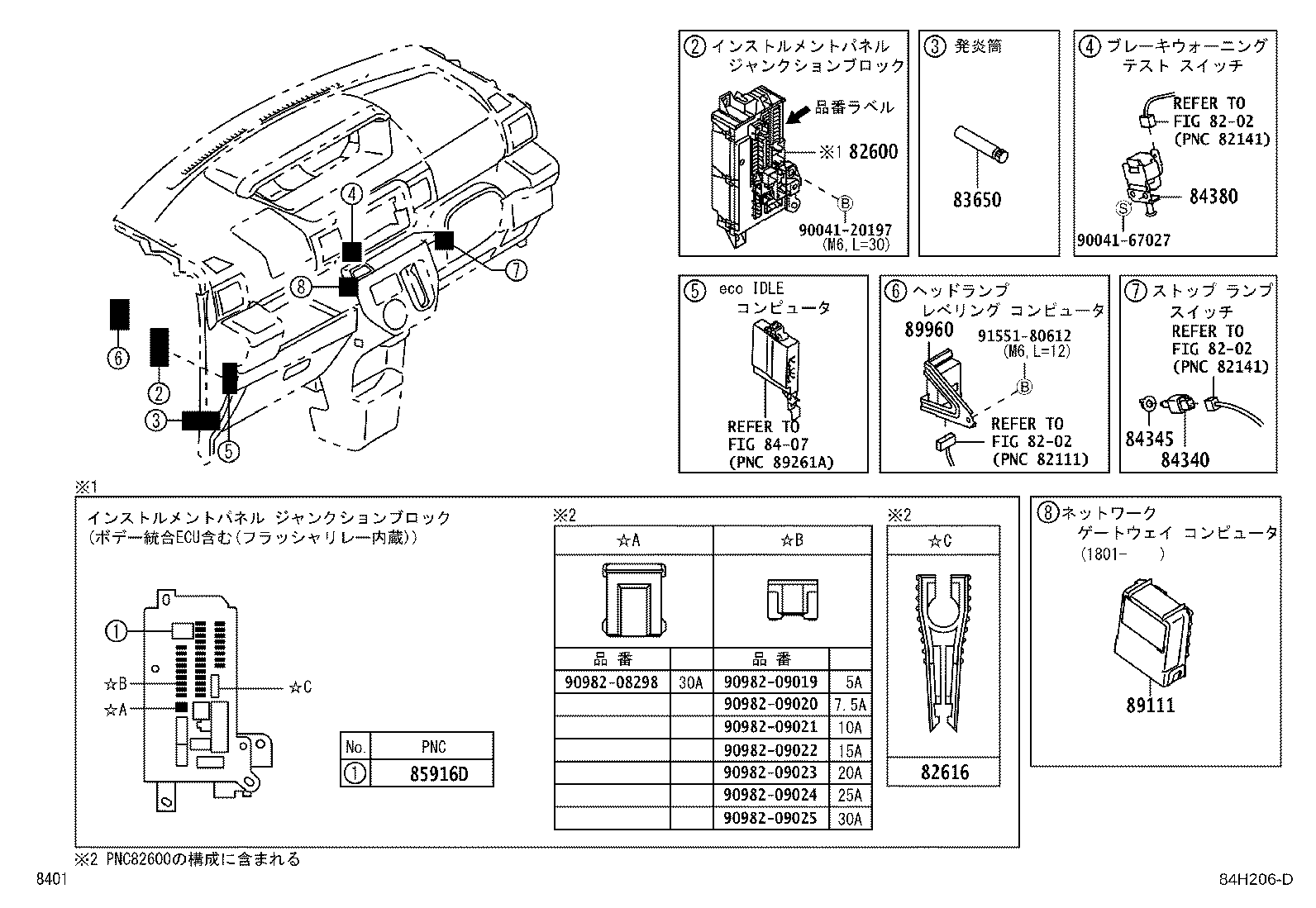

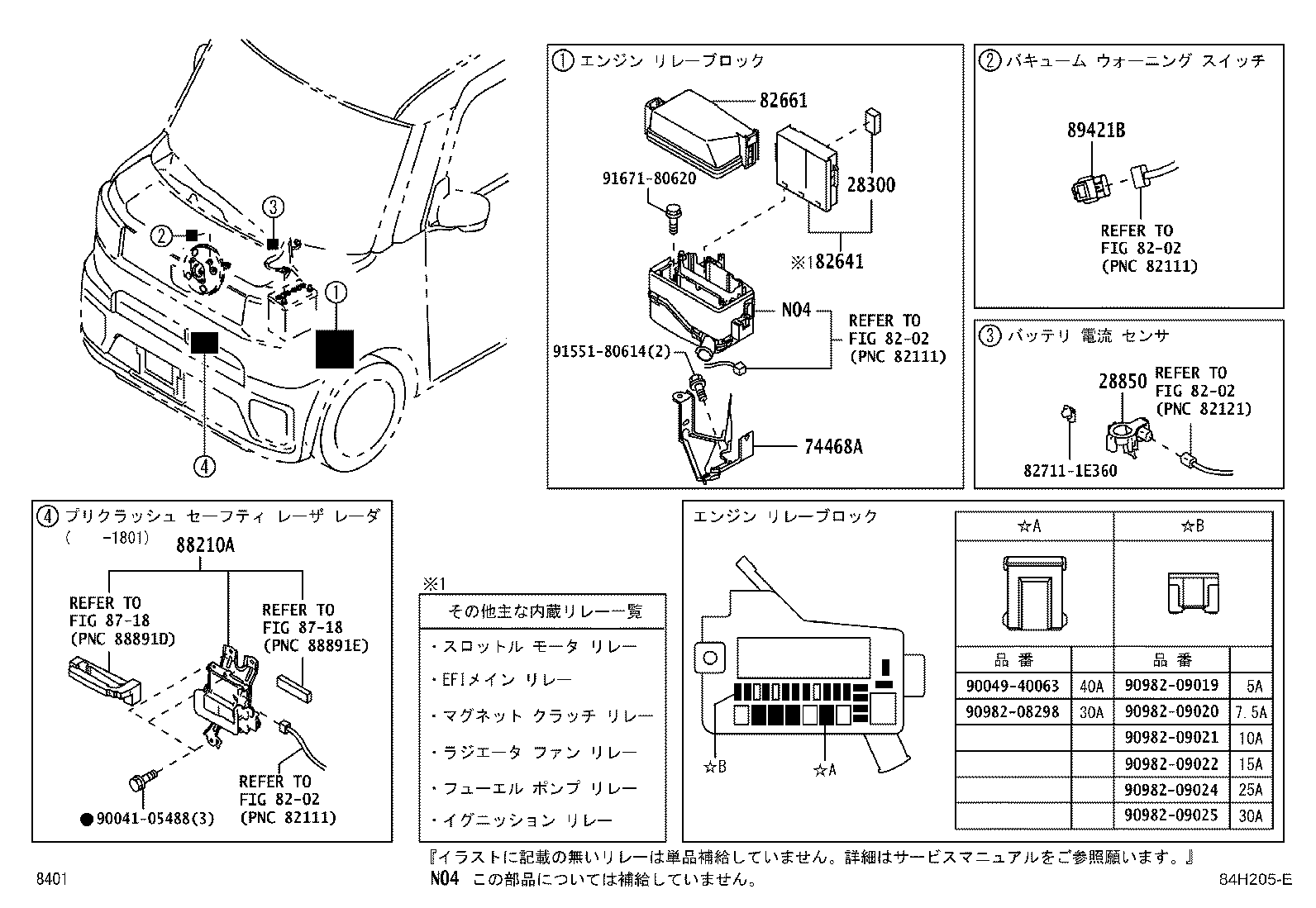

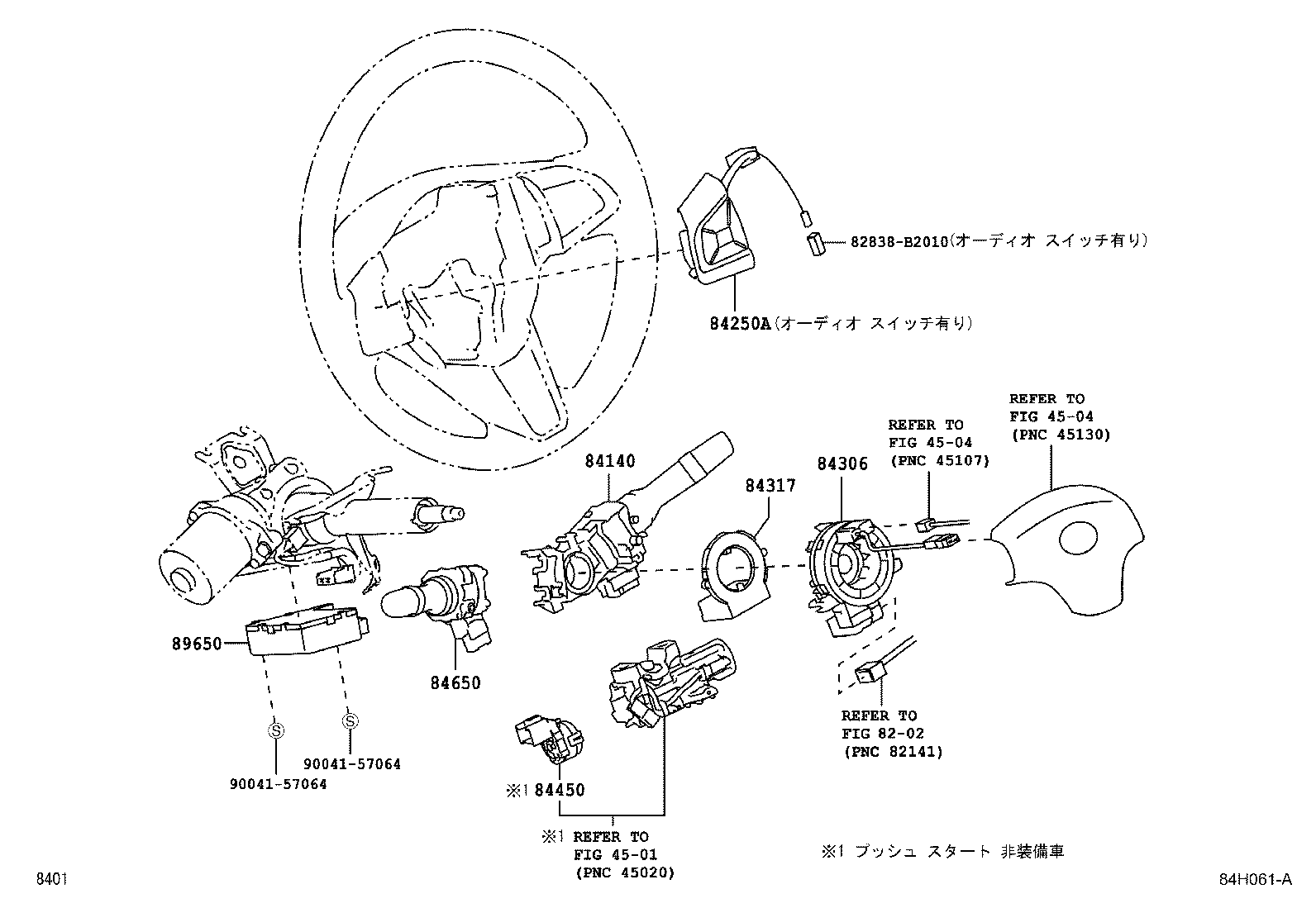

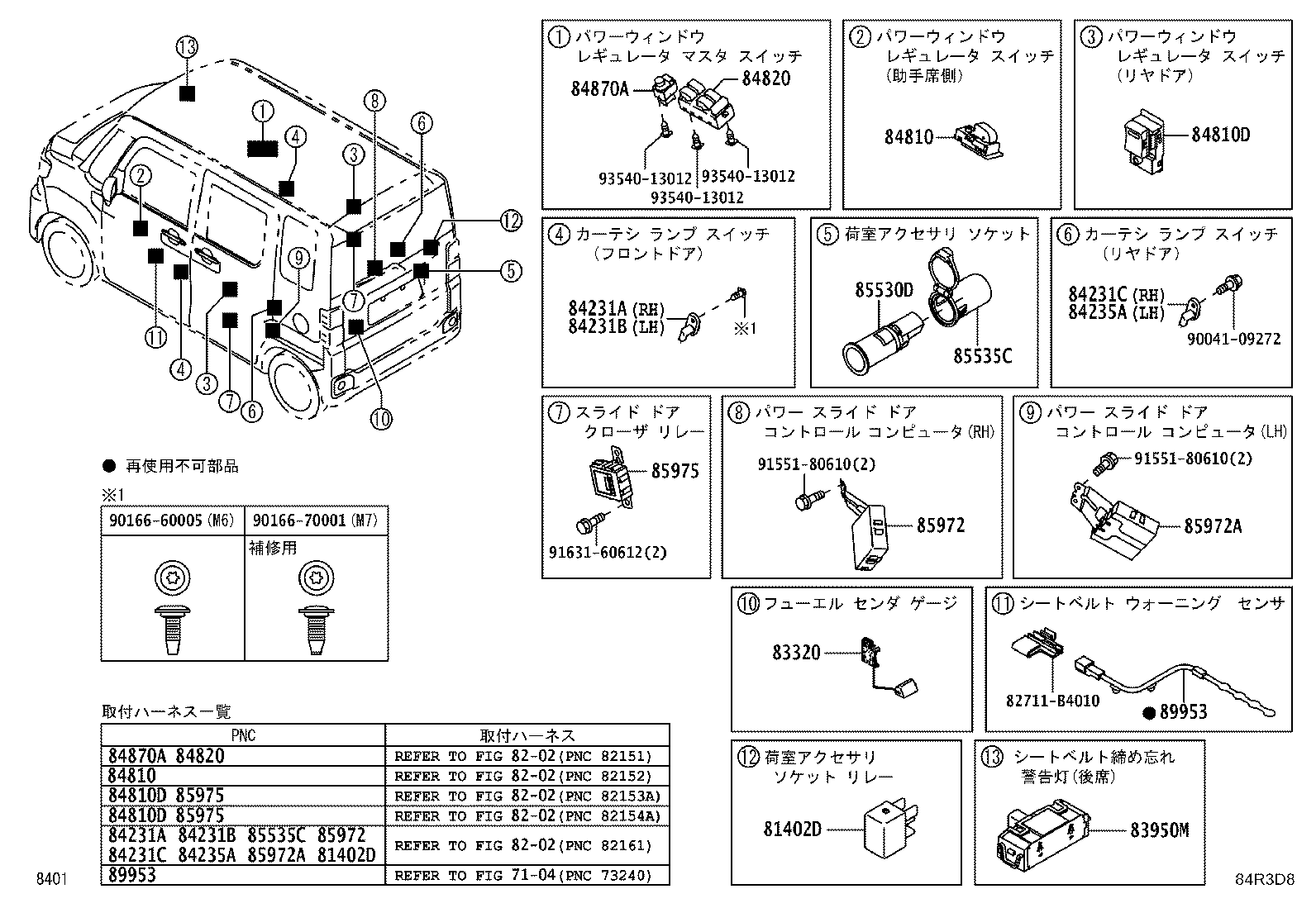

Figure 84H059A 84H059A 2015-07 → — Figure 84H060B 84H060B 2015-07 → 2016-05 Figure 84H205E 84H205E 2016-05 → — Figure 84F650G 84F650G 2015-07 → 2016-05 Figure 84H206D 84H206D 2016-05 → — Figure 84G291D 84G291D 2015-07 → 2016-05 Figure 84H207C 84H207C 2016-05 → 2018-01 Figure 84I785B 84I785B 2018-01 → — Figure 84H061A 84H061A 2015-07 → 2016-05 Figure 84H239G 84H239G 2016-05 → — Figure 84R3D8 84R3D8 2015-07 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300E Relay Assy, Starter, NO.1
28300F Relay Assy, Starter, NO.2
28371 Relay, Ignition, NO.1
28850 Sensor Assy, Battery Current
74468A Bracket, Relay Block
81402D Relay, Acc Socket
82600 Block Assy, Fuse
82616 Puller, Fuse
82641 Relay, Integration NO.1
82661 Cover, Relay Block, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83950M Lamp Assy, Telltale
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84231A Switch, Courtesy Lamp
84231B Switch, Courtesy Lamp
84231C Switch, Courtesy Lamp
84235A Switch, Courtesy Lamp
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84317 Sensor, Steering Position
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84751F Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930J Switch Assy, Auto Slide Door Main
84930K Switch Assy, Auto Slide Door Control
84930M Switch Assy, Auto Slide Door Control
84941A Base, Switch
84970 Switch Assy, Combination
84986C Switch, Vsc Off
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85535C Cover, Power Outlet Socket, Rear
85535E Cover, Power Outlet Socket, NO.2
85913C Relay, Heater, NO.1
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85925 Relay, Radiator Fan
85930G Relay, Acc
85934 Relay, Magnet-clutch
85972 Computer, Slide Door Control, RH
85972A Computer, Slide Door Control
85975 Relay, Slide Door Closer
86830A Accessory Socket & Cover Assy
87290B Bulb (FOR HEATER SWITCH)
88210A Sensor Assy, Laser Radar
89111 Computer, Network Gateway
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89530C Computer Assy, Transmission Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89953 Sensor, Belt Warning Occupant Detection
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
