Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

12 part groups · 2 illustrations

Illustrations

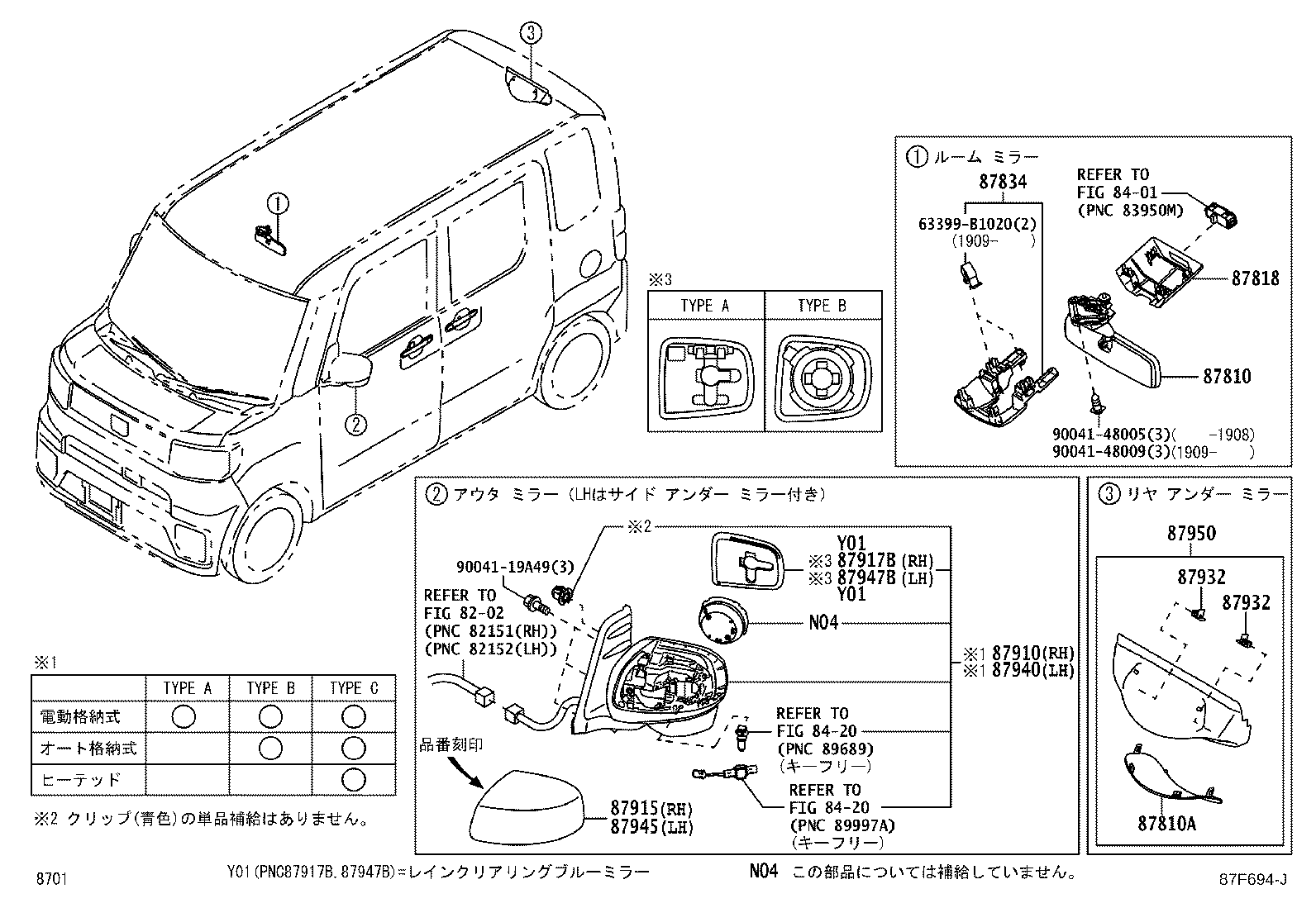

Figure 87F476E 87F476E 2015-07 → 2016-05 Figure 87F694J 87F694J 2016-05 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87810A Mirror Assy Inner Rear View, NO.2
87818 Cover, Inner RR View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87917B Mirror, Outer Rear View, RH
87932 Retainer, Under Mirror Support
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
87947B Mirror, Outer Rear View, LH
87950 Mirror Assy, Outer Under Rear View
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
