Toyota Pixis Mega

2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan

Supported model Data version 2018-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

12 part groups · 3 illustrations

Illustrations

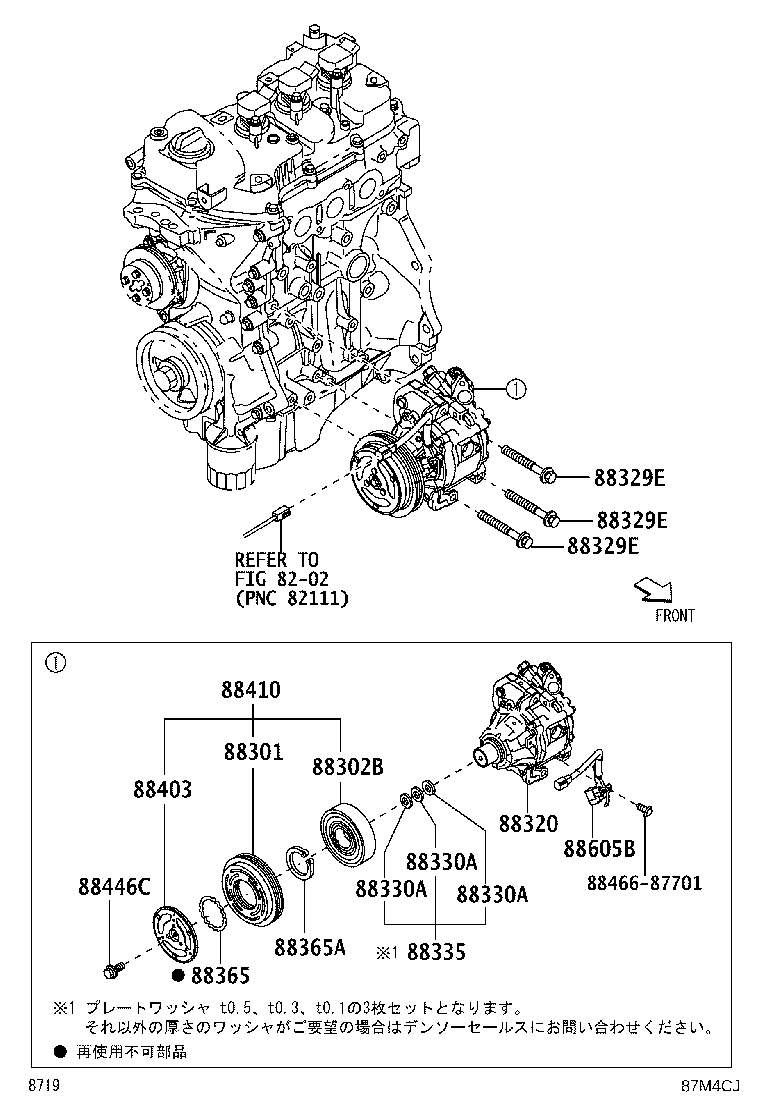

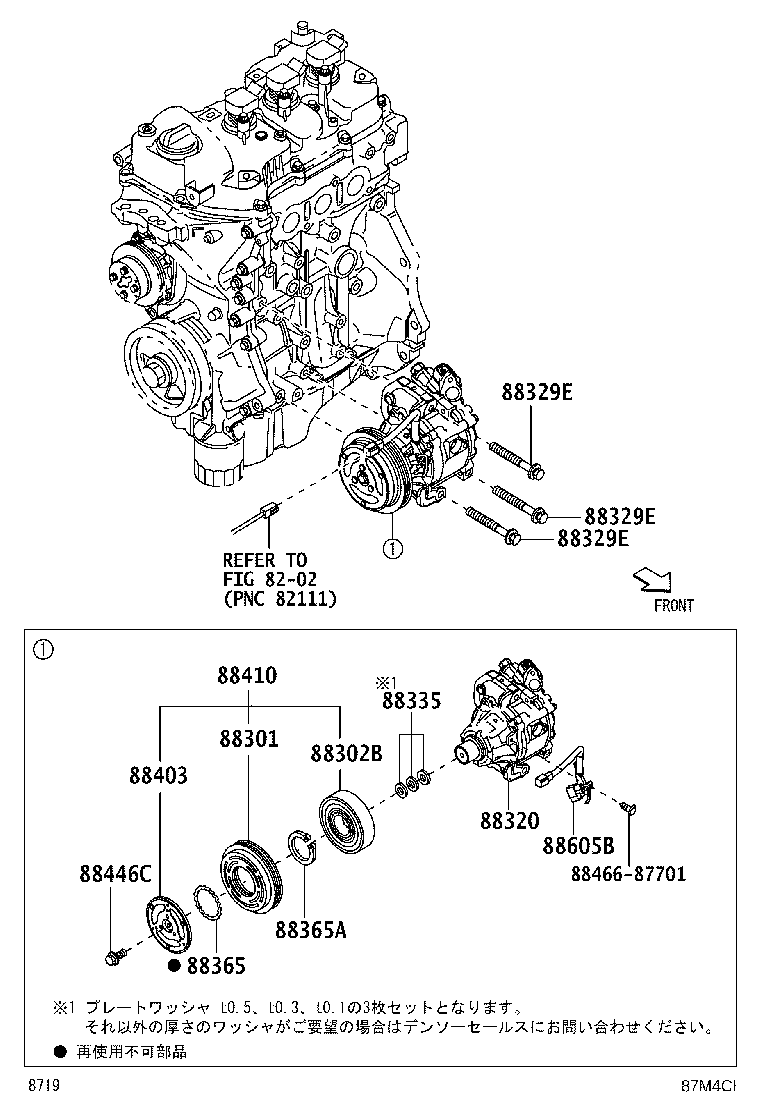

Figure 87F116D 87F116D 2015-07 → 2016-05 Figure 87M4CI 87M4CI 2016-05 → 2018-01 Figure 87M4CJ 87M4CJ 2018-01 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302B Stator, Magnet Clutch
88320 Compressor Assy, Cooler
88329E Bolt, Compressor, NO.1
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88365 Ring, Snap
88365A Ring, Snap (FOR COMPRESSOR)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88446C Bolt, Magnet Clutch Setting
88605B Harness Sub-assy, Air Conditioner Wiring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
