Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 2 illustrations

Illustrations

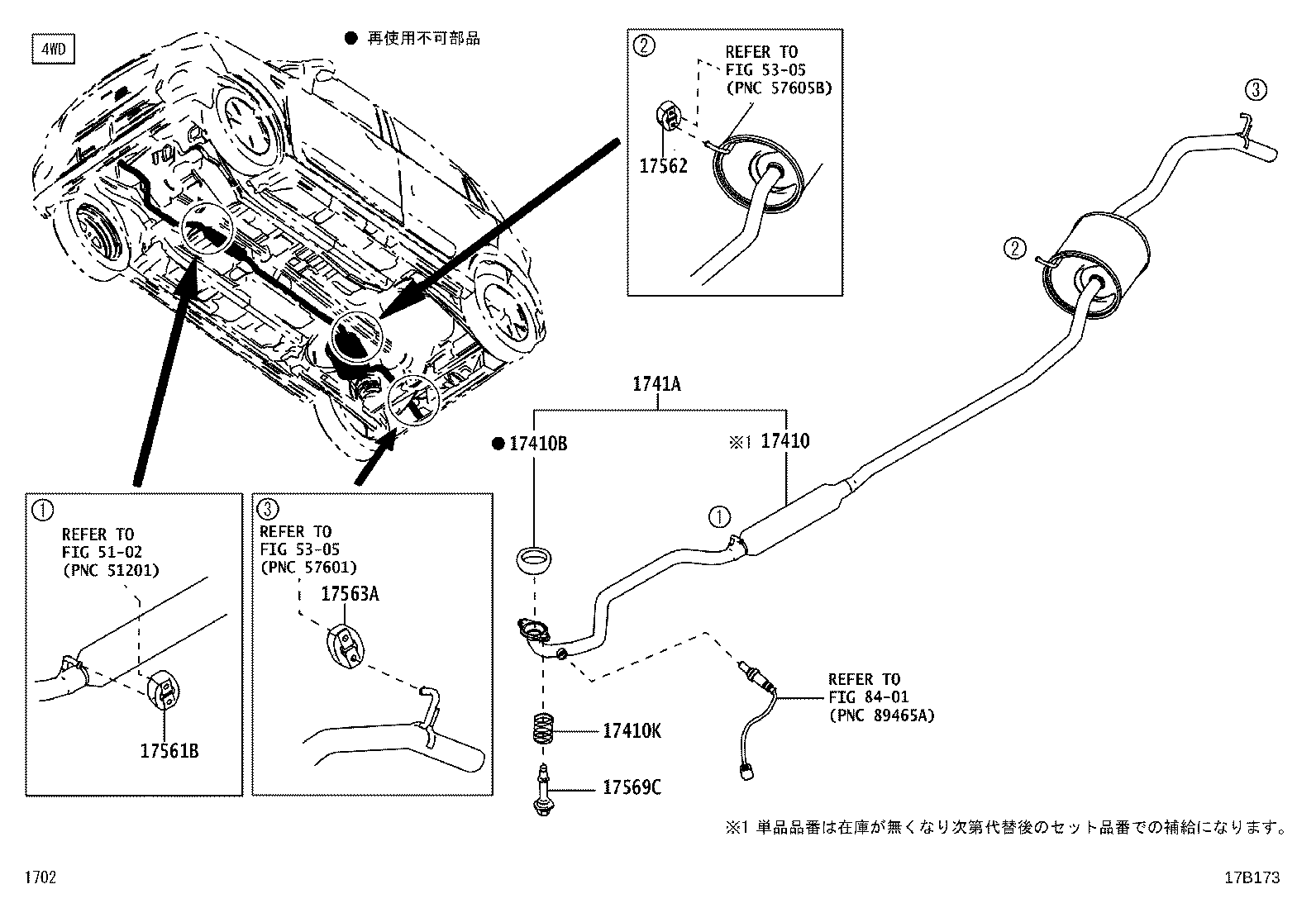

Figure 17B172 17B172 2016-09 → — Figure 17B173 17B173 2016-09 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17410K Spring, Exhaust Pipe
1741A Pipe Set, Exhaust
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17569C Bolt, Exhaust Pipe Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
