Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

19 part groups · 2 illustrations

Illustrations

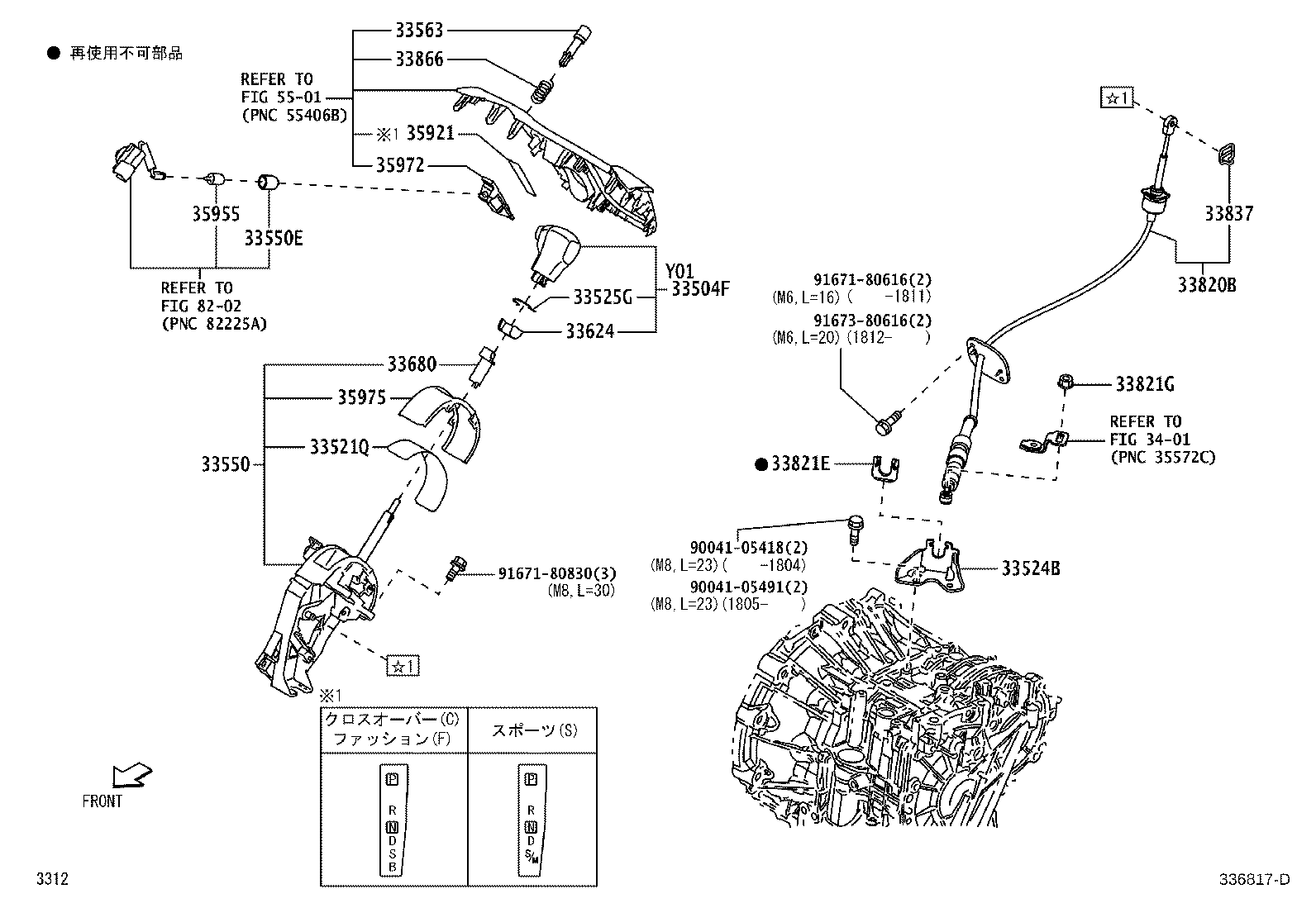

Figure 335609L 335609L 2016-09 → 2018-04 Figure 336817D 336817D 2018-04 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33521Q Housing, Shift Lever (FOR FLOOR SHIFT)
33524B Bracket, Control Cable
33525G Ring, Shift Lever
33550 Floor Shift Assy, Transmission
33550E Cap, Position Indicator Lamp
33563 Button, Shift Lock Release
33624 Holder, Knob Cover
33680 Cover Sub-assy, Shift Lever
33820B Cable Assy, Transmission Control
33820C Bush (FOR TRANSMISSION CONTROL CABLE)
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33837 Clip, Transmission Control Cable Adjust
33866 Spring, Shift Lock Release
35921 Plate, Control Position Indicator
35955 Bulb, Position Indicator Lamp
35972 Cover, Position Indicator Housing
35975 Cover, Slide (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
