Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

19 part groups · 3 illustrations

Illustrations

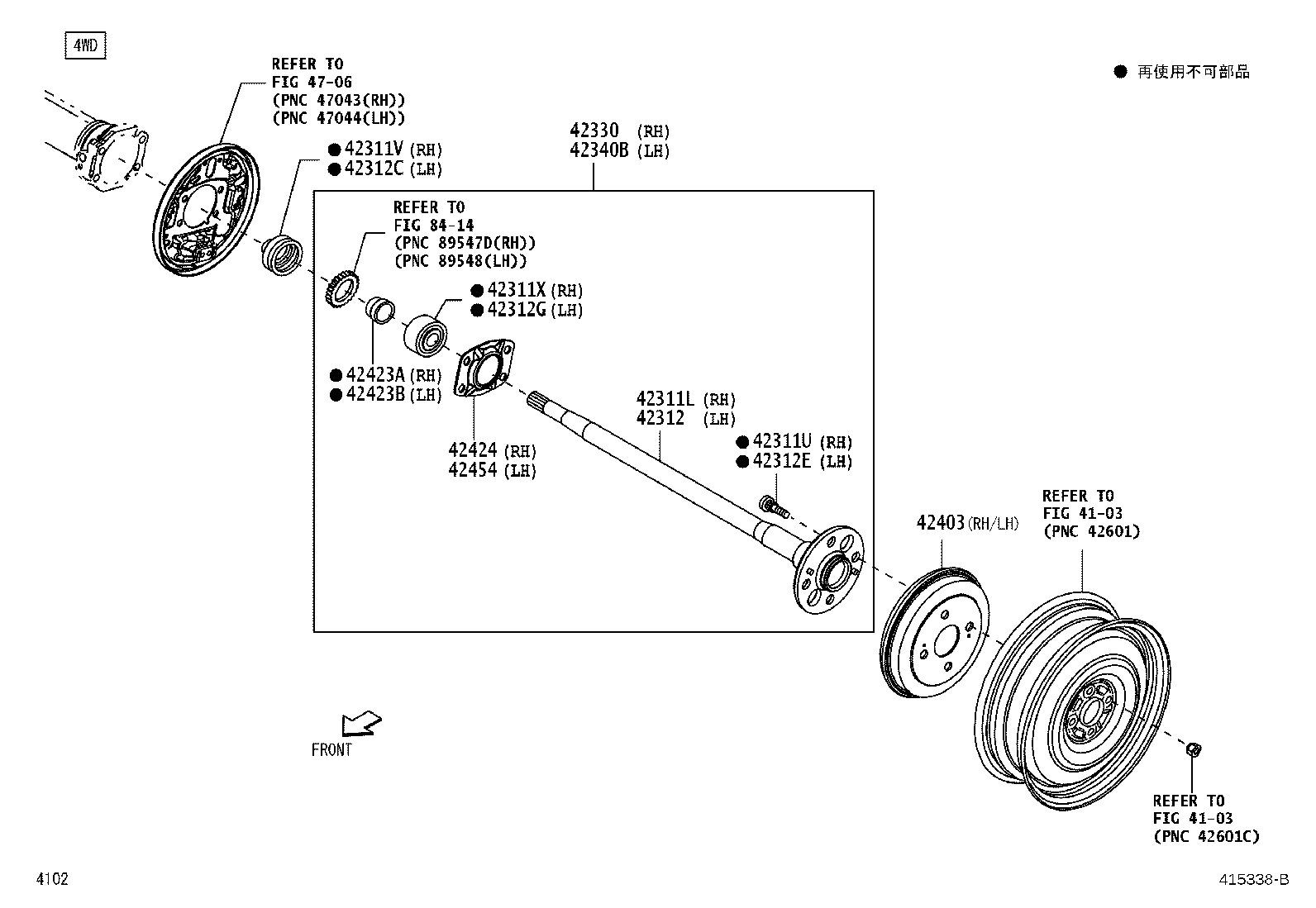

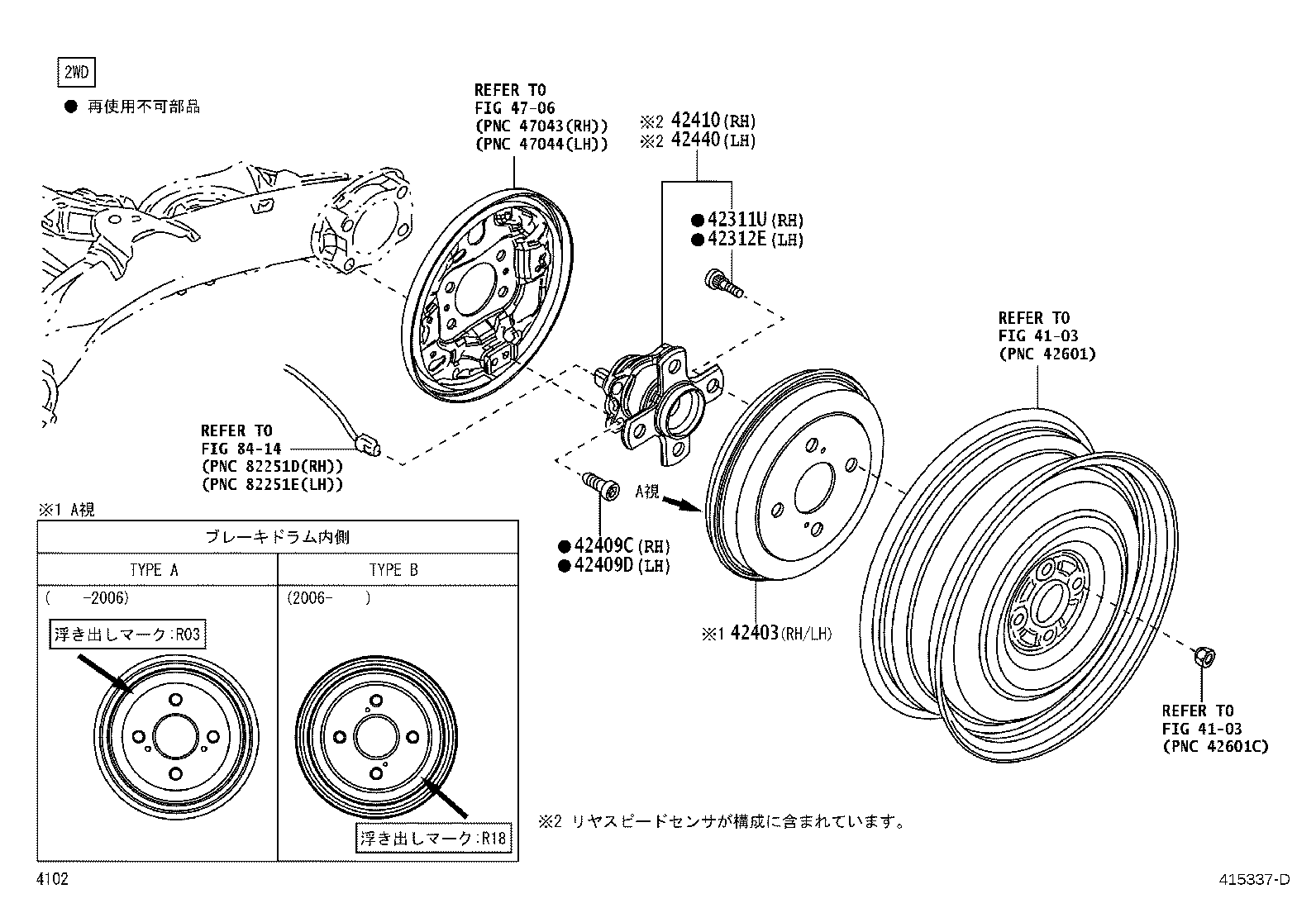

Figure 415336B 415336B 2016-09 → 2019-11 Figure 415337D 415337D 2019-11 → — Figure 415338B 415338B 2016-09 → —

Part groups

PNCDescription
42311L Shaft, Rear Axle, RH
42311U Bolt, Hub(FOR REAR AXLE RH)
42311V Seal, Oil(FOR REAR AXLE SHAFT RH)
42311X Bearing(FOR REAR AXLE SHAFT INNER RH)
42312 Shaft, Rear Axle, LH
42312C Seal, Oil(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42312G Bearing(FOR REAR AXLE SHAFT INNER LH)
42330 Shaft Assy, Rear Drive, RH
42340B Shaft Assy, Rear Drive, LH
42403 Drum Sub-assy, Rear Brake
42409C Bolt (FOR REAR AXLE BEARING RH)
42409D Bolt (FOR REAR AXLE BEARING LH)
42410 Hub & Bearing Assy, Rear Axle, RH
42423A Retainer, Rear Axle Bearing, Inner RH
42423B Retainer, Rear Axle Bearing, Inner LH
42424 Retainer, Rear Axle Bearing, Outer, RH
42440 Hub & Bearing Assy, Rear Axle, LH
42454 Retainer, Rear Axle Bearing, Outer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
