Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

10 part groups · 2 illustrations

Illustrations

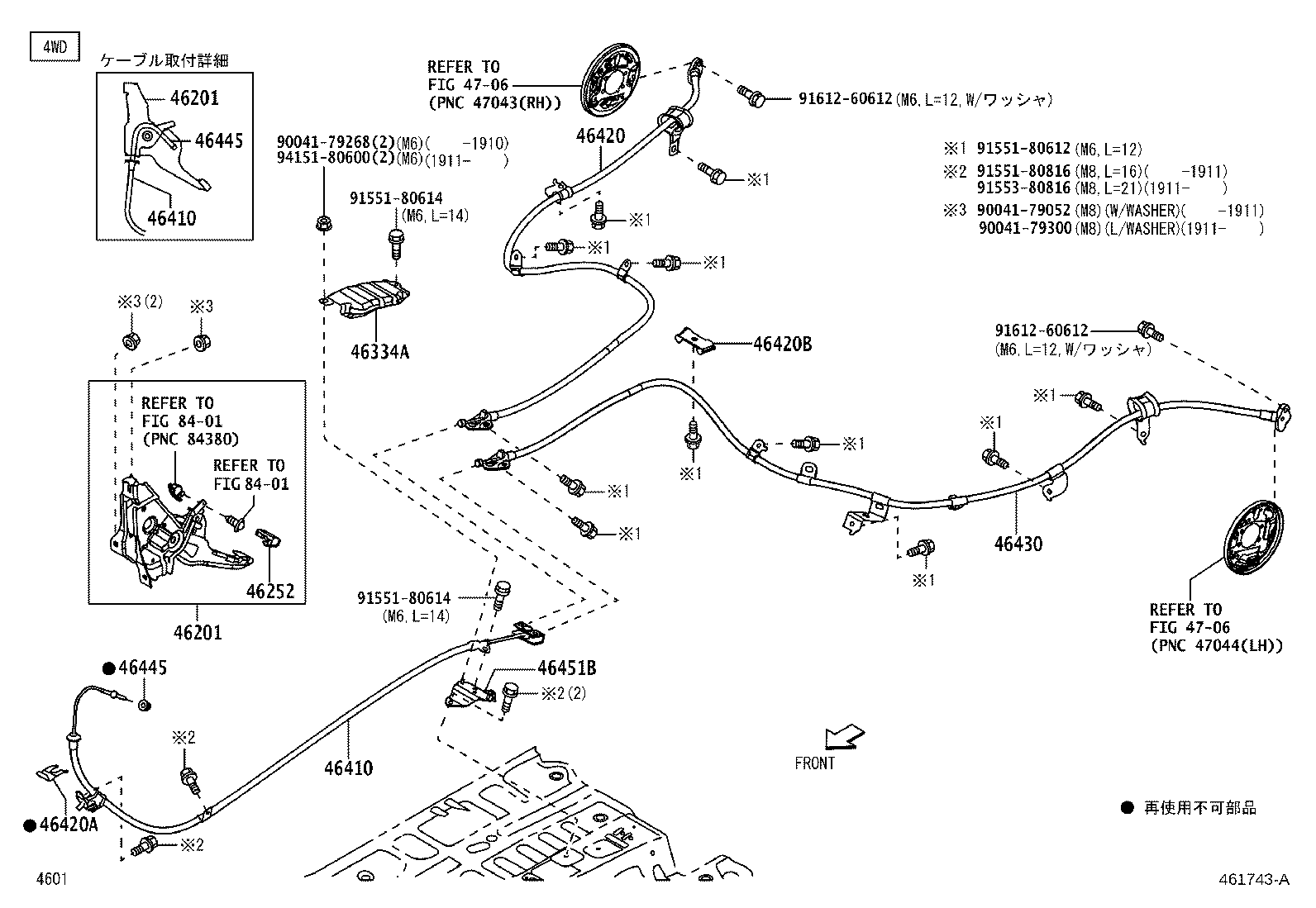

Figure 461742A 461742A 2016-09 → — Figure 461743A 461743A 2016-09 → —

Part groups

PNCDescription
46201 Pedal Sub-assy, Parking Brake
46252 Pad, Parking Pedal
46334A Protector, Parking Brake Cable Joint
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46445 Nut, Parking Brake Cable Adjusting, NO.2
46451B Bracket, Parking Brake Cable Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
