Toyota Pixis Joy
2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan
Supported model
Data version 2017-10

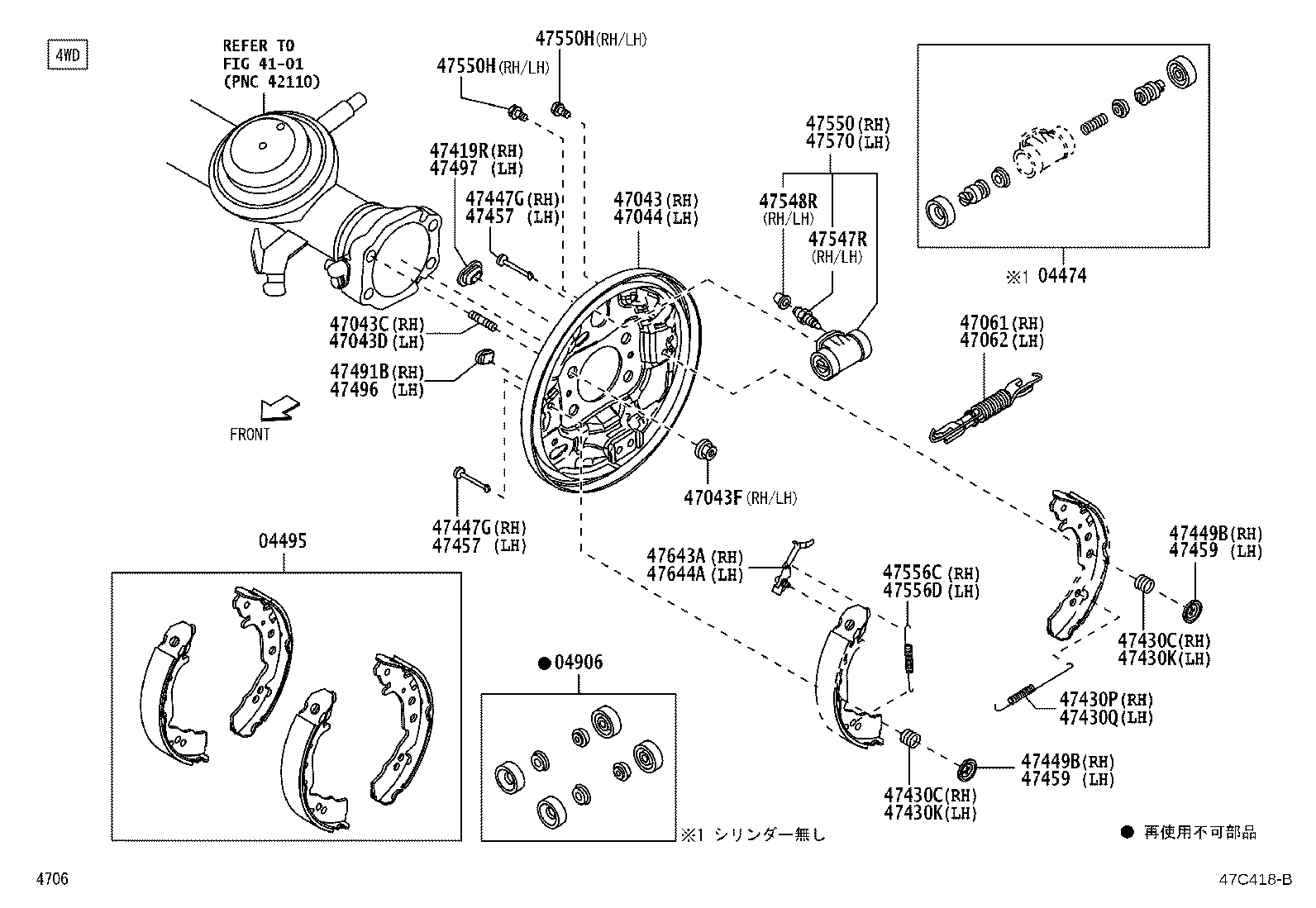

Rear Drum Brake Wheel Cylinder & Backing Plate
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04474 | Cylinder Kit, Rear Wheel |
| 04495 | Shoe Kit, Rear Brake |
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043C | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043D | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47061 | Strut Set, Parking Brake Shoe, RH |
| 47062 | Strut Set, Parking Brake Shoe, LH |
| 47419R | Plug, Hole(FOR REAR BRAKE) |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430K | Spring(FOR REAR BRAKE SHOE HOLD DOWN, NO.2) |
| 47430P | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430Q | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47447G | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47449B | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47457 | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47459 | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47491B | Plug, Hole(FOR REAR BRAKE) |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47497 | Plug, Hole NO.2(FOR REAR BRAKE) |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550H | Bolt(FOR REAR WHEEL CYLINDER) |
| 47556C | Spring, Adjuster Lock, RH(FOR REAR BRAKE) |
| 47556D | Spring, Adjuster Lock, LH(FOR REAR BRAKE) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47643A | Lever, Rear Brake Automatic Adjust, RH |
| 47644A | Lever, Rear Brake Automatic Adjust, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
