Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 3 illustrations

Illustrations

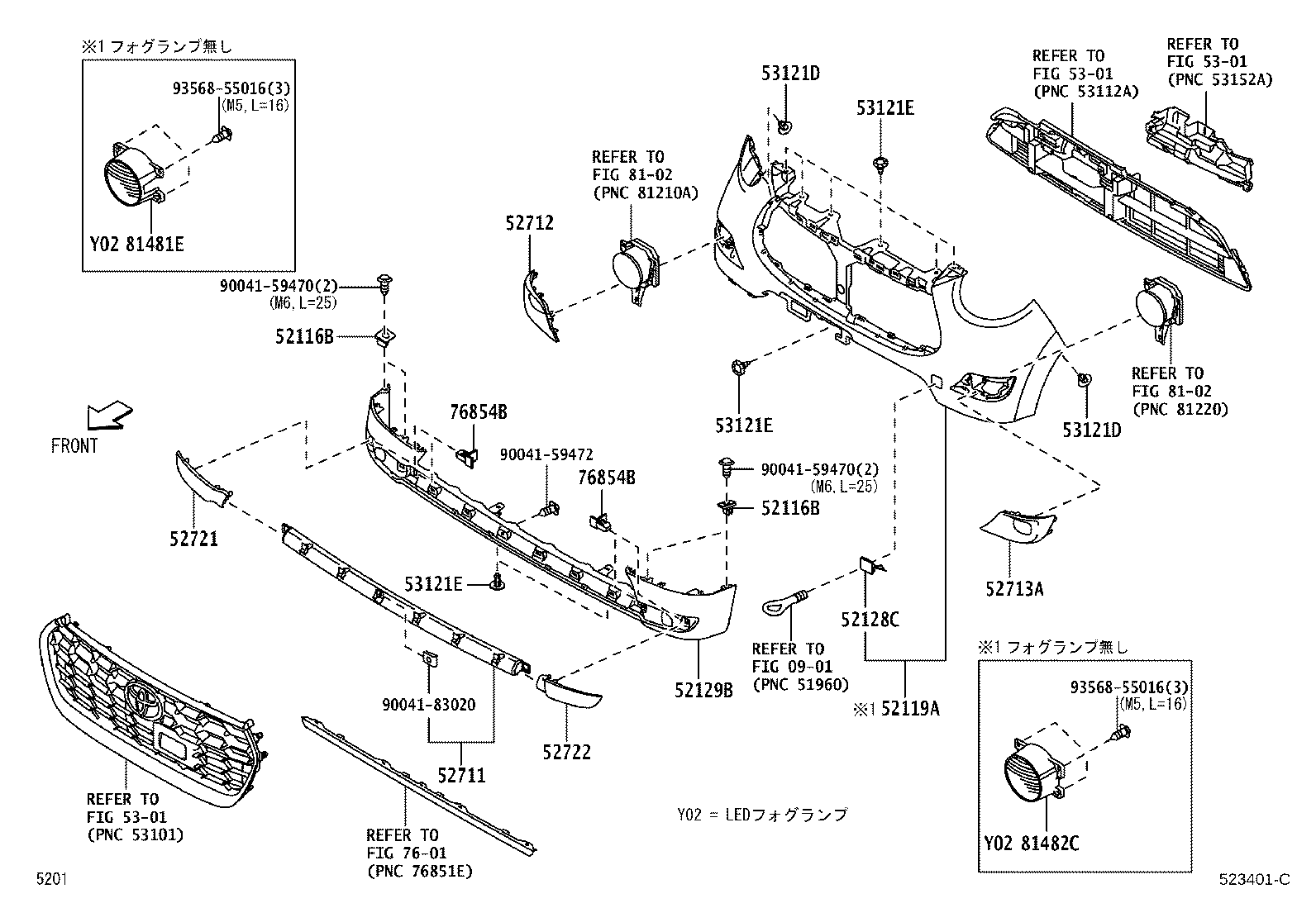

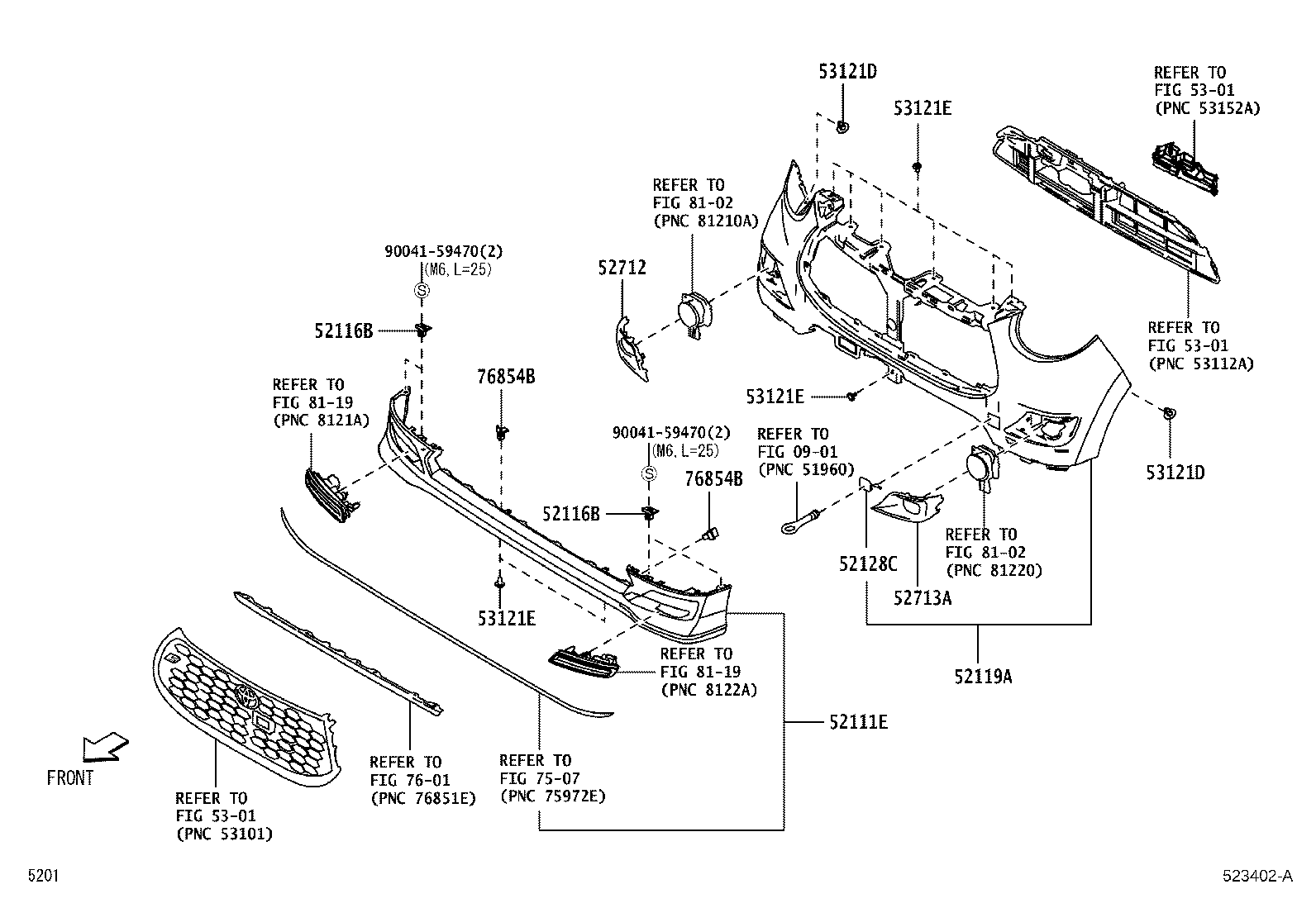

Figure 523400C 523400C 2016-09 → — Figure 523401C 523401C 2016-09 → — Figure 523402A 523402A 2016-09 → —

Part groups

PNCDescription
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115F Insert, Front Bumper Cover
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52411 Guard, Front Bumper
52526C Retainer, Front Bumper, Lower
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
53121D Clip(FOR FRONT BUMPER), NO.2
53121E Clip(FOR FRONT BUMPER), NO.1
76854B Retainer, Front Spoiler,NO.2
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
