Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

20 part groups · 3 illustrations

Illustrations

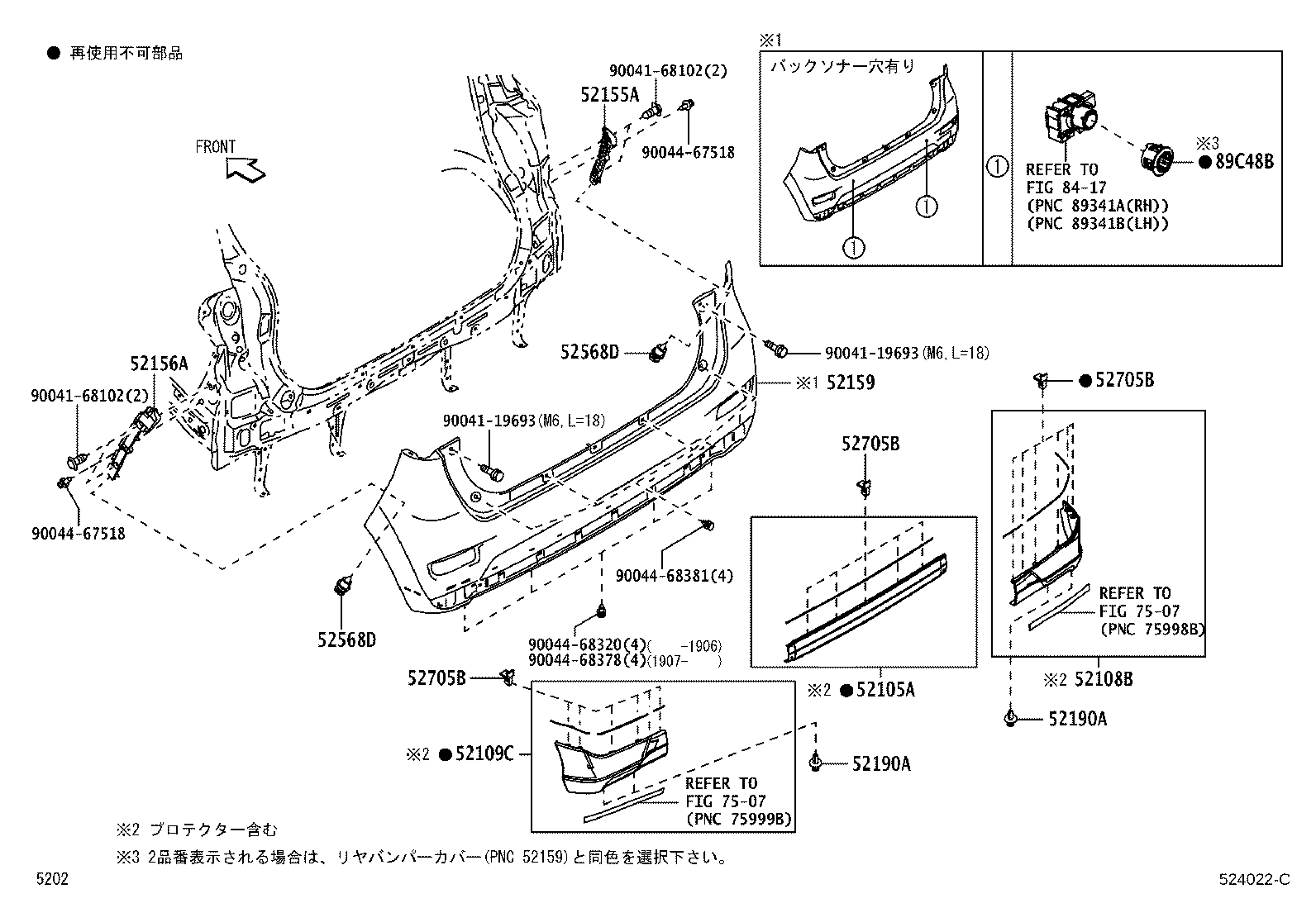

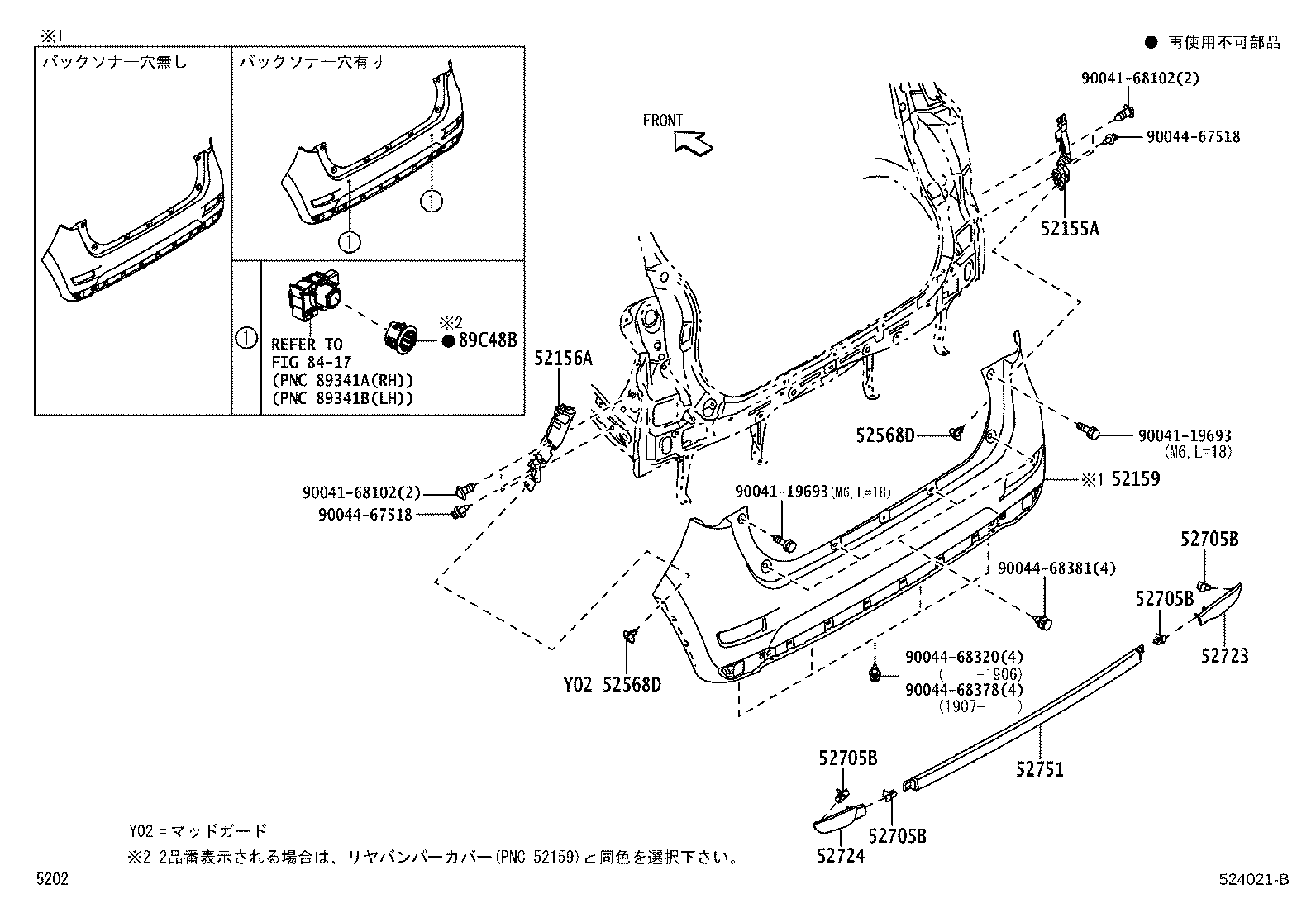

Figure 524020B 524020B 2016-09 → — Figure 524021B 524021B 2016-09 → — Figure 524022C 524022C 2016-09 → —

Part groups

PNCDescription
52105A Bumper Sub-assy, Rear Center
52108B Extension Sub-assy, Rear Bumper Side, RH
52109C Extension Sub-assy, Rear Bumper Side, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52190A Clip
52451 Guard, Rear Bumper
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52568D Retainer, Rear Bumper, Upper NO.2
52705B Retainer, Rear Bumper Moulding
52723 Moulding, Rear Bumper Extension, RH
52724 Moulding, Rear Bumper Extension, LH
52751 Moulding, Rear Bumper
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
