Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 6 illustrations

Illustrations

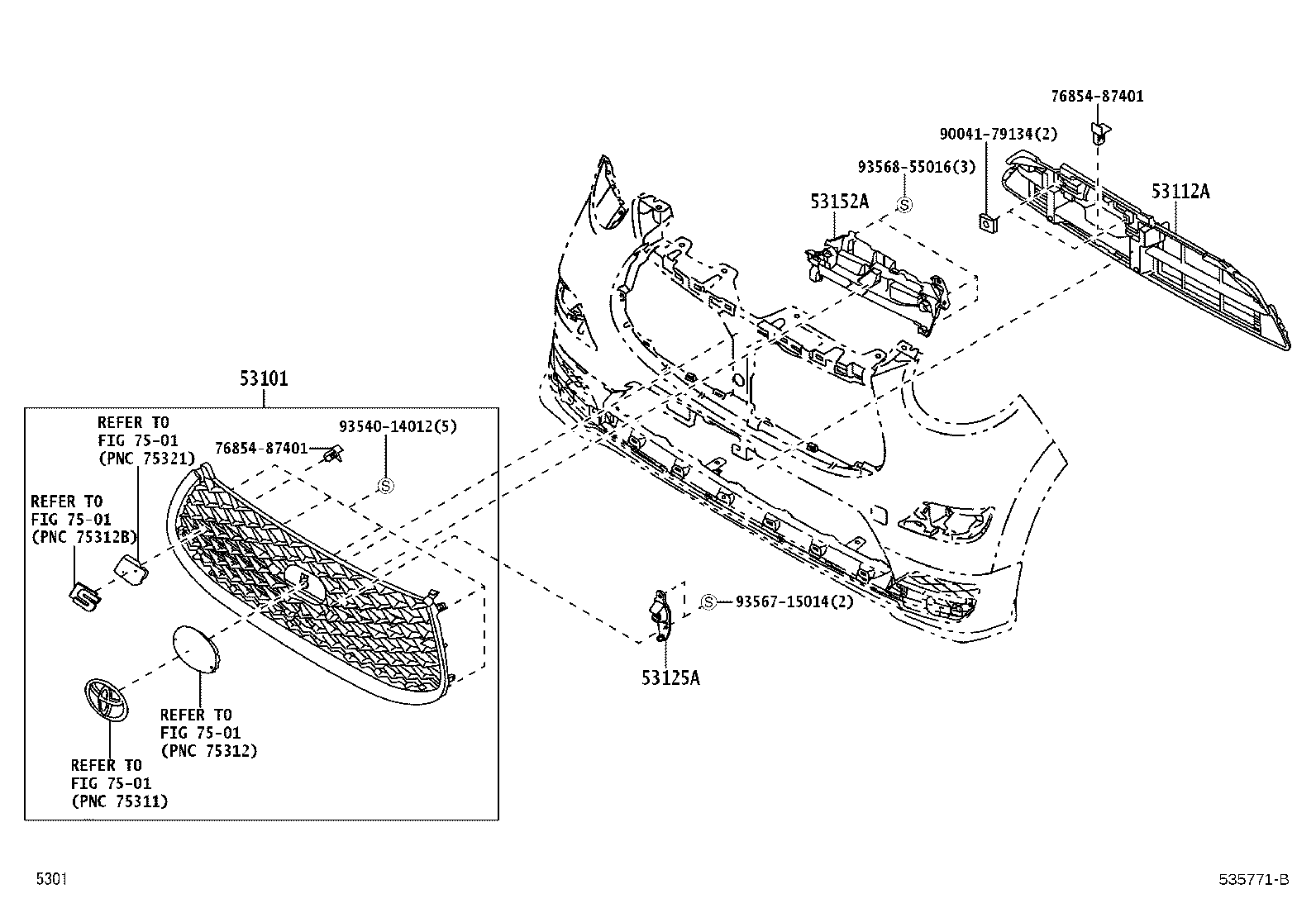

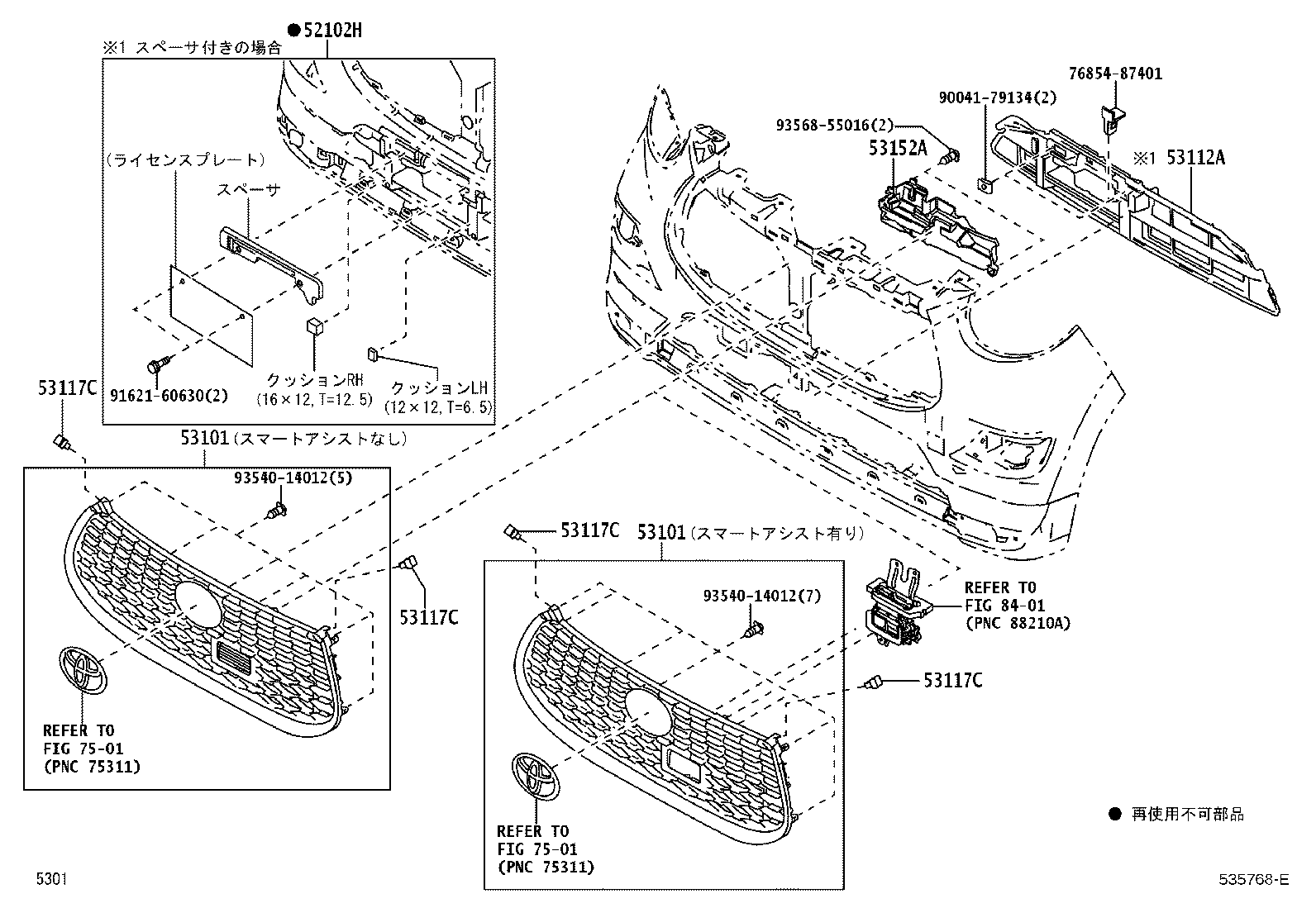

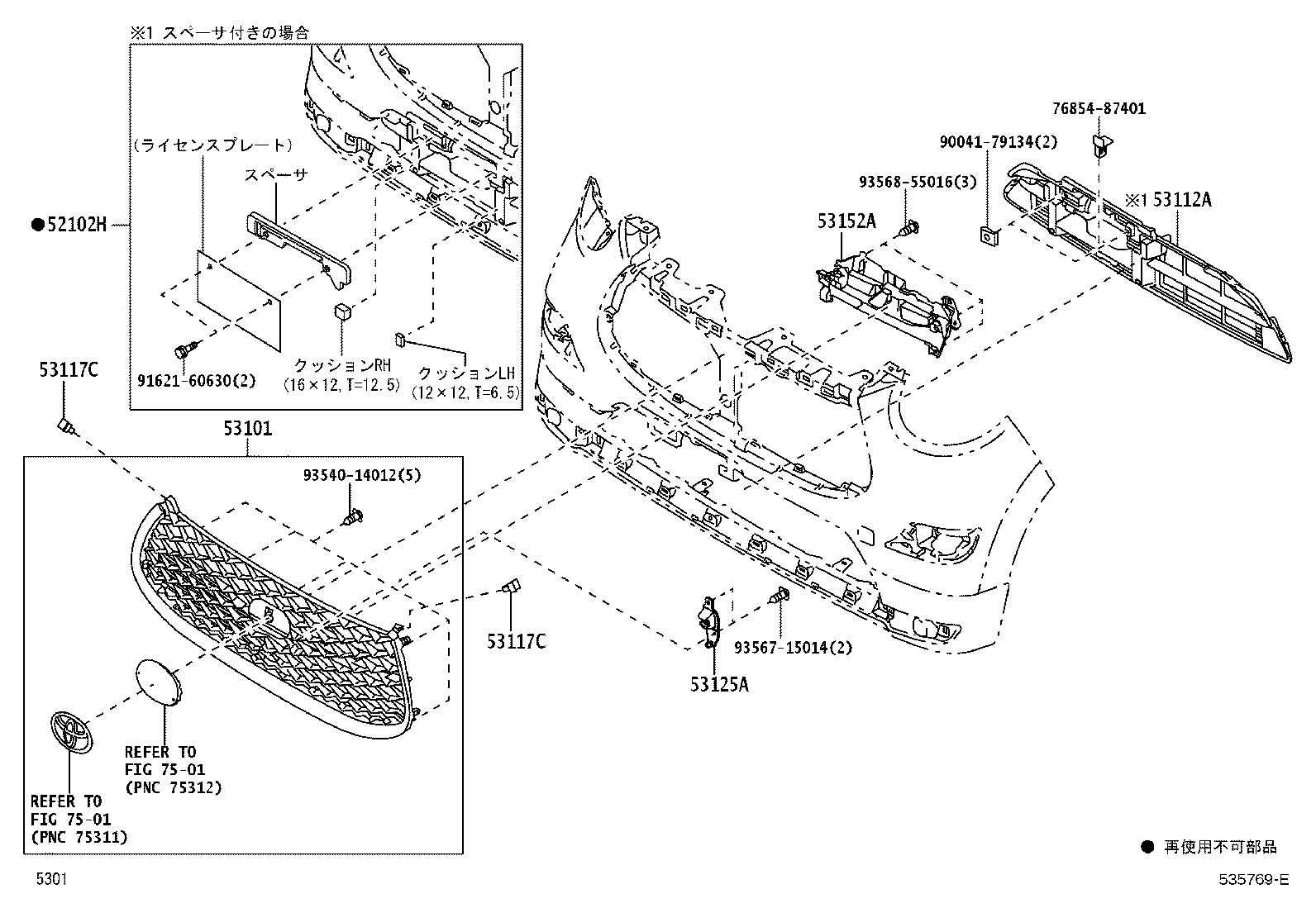

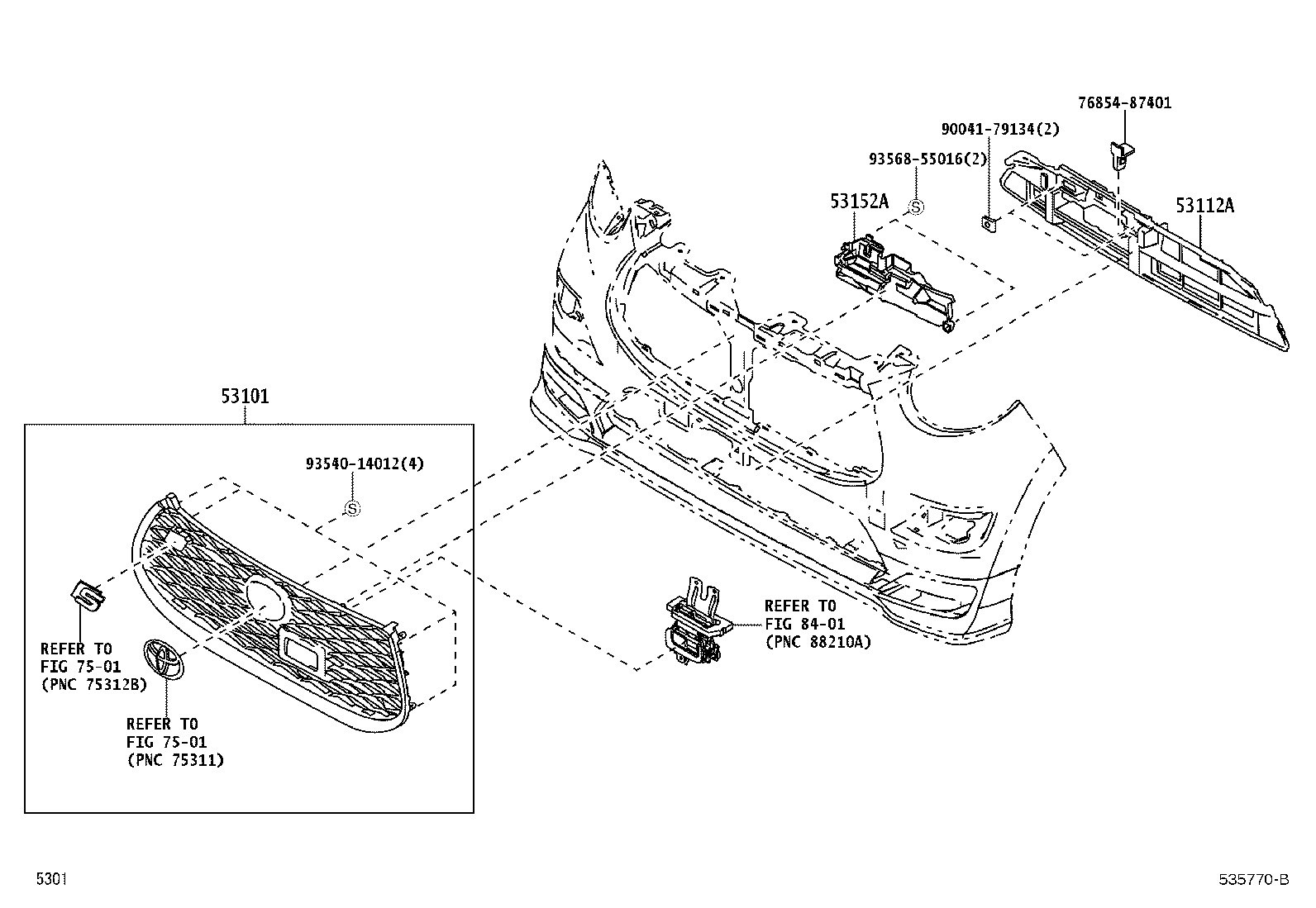

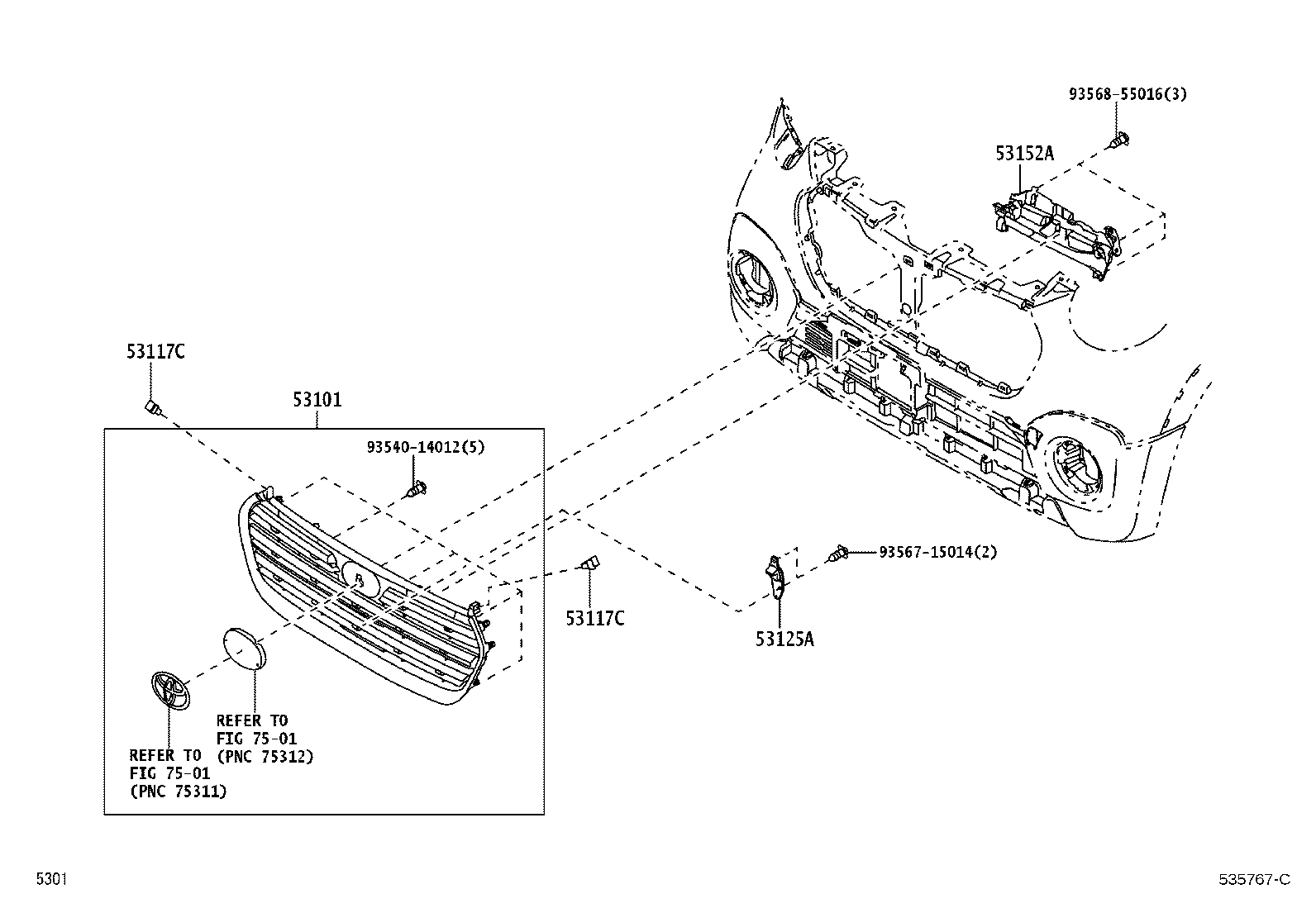

Figure 535766C 535766C 2016-09 → 2017-10 Figure 535767C 535767C 2017-10 → — Figure 535768E 535768E 2016-09 → 2017-10 Figure 535769E 535769E 2017-10 → — Figure 535770B 535770B 2016-09 → 2017-10 Figure 535771B 535771B 2017-10 → —

Part groups

PNCDescription
52102H Bracket Set, Front License Plate
53101 Grille Sub-assy, Radiator
53112A Grille, Radiator, Lower
53117C Retainer, Radiator Grille, NO.1
53125A Moulding, Radiator Grille, Center RH
53152A Guide, Radiator Grille Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
