Toyota Pixis Joy
2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan
Supported model
Data version 2017-10

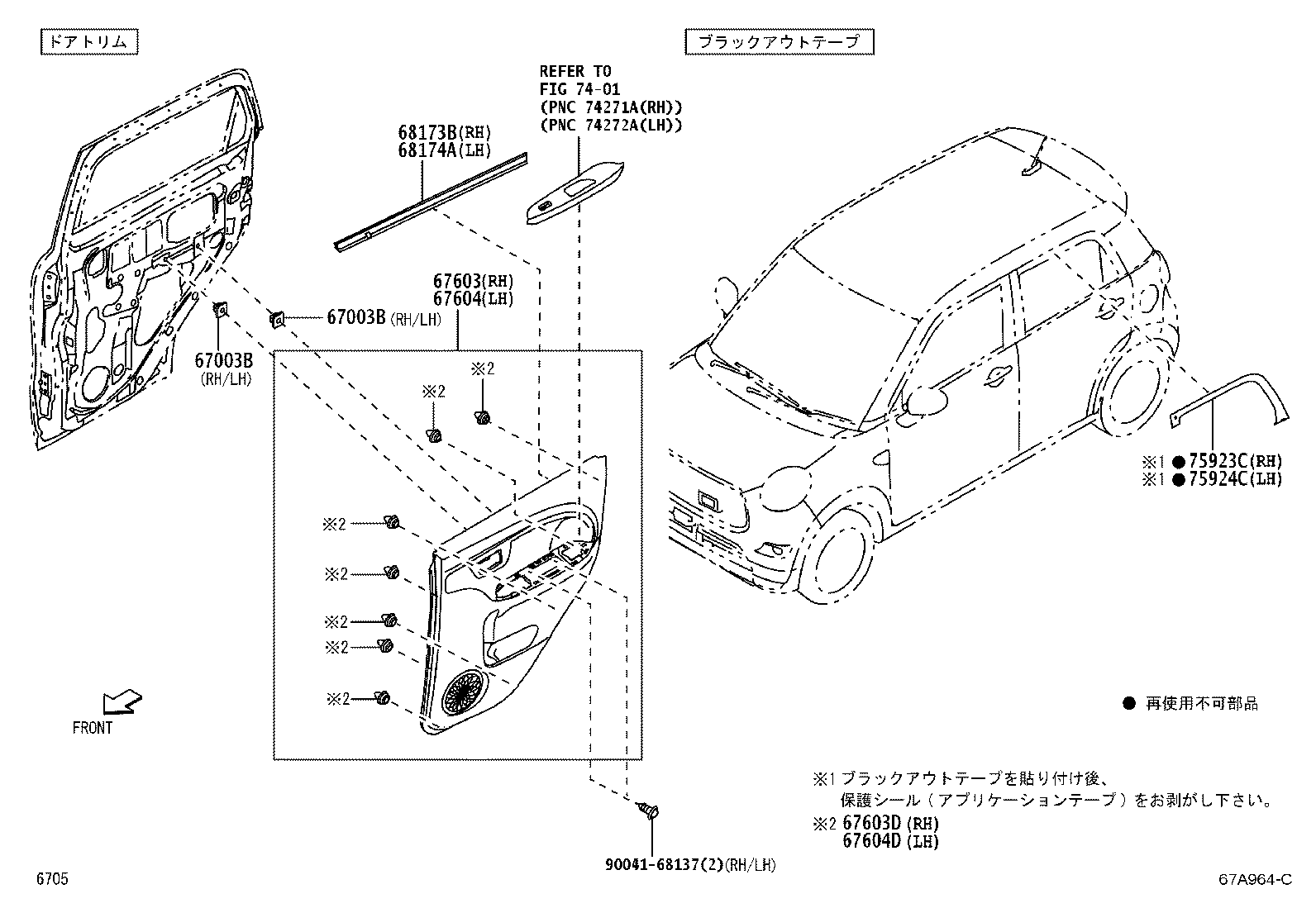

Rear Door Panel & Glass
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003B | Grommet(FOR REAR DOOR PANEL) |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67216E | Stopper, Rear Door Glass, Upper NO.2 |
| 67405B | Guide Sub-assy, Rear Door Window, Front RH |
| 67406B | Guide Sub-assy, Rear Door Window, Front LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603D | Retainer, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604D | Retainer, Rear Door Trim, LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67847B | Seal, Rear Door Vent, RH NO.1 |
| 67847H | Seal, Rear Door Vent, RH NO.2 |
| 67848A | Seal, Rear Door Vent, LH NO.1 |
| 67848B | Seal, Rear Door Vent, LH NO.2 |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68191B | Run, Rear Door Glass, NO.2 RH |
| 68192B | Run, Rear Door Glass, NO.2 LH |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 69905F | Channel Sub-assy, Rear Door Glass, RH |
| 69906E | Channel Sub-assy, Rear Door Glass, LH |
| 69975D | Filler, Rear Door Glass Channal |
| 75923C | Tape, Black Out, NO.2 RH |
| 75924C | Tape, Black Out, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
