Toyota Pixis Joy
2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan
Supported model
Data version 2017-10

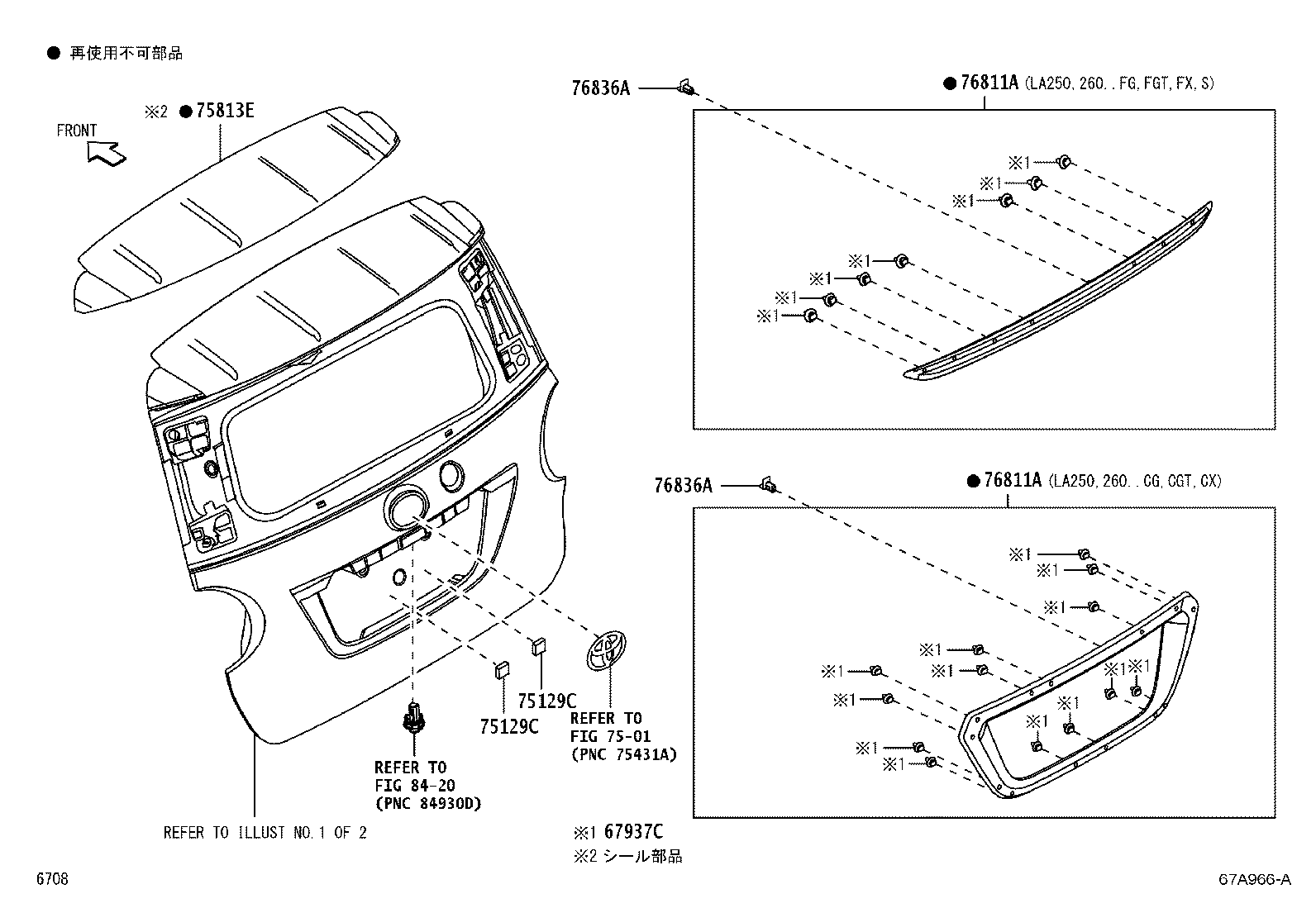

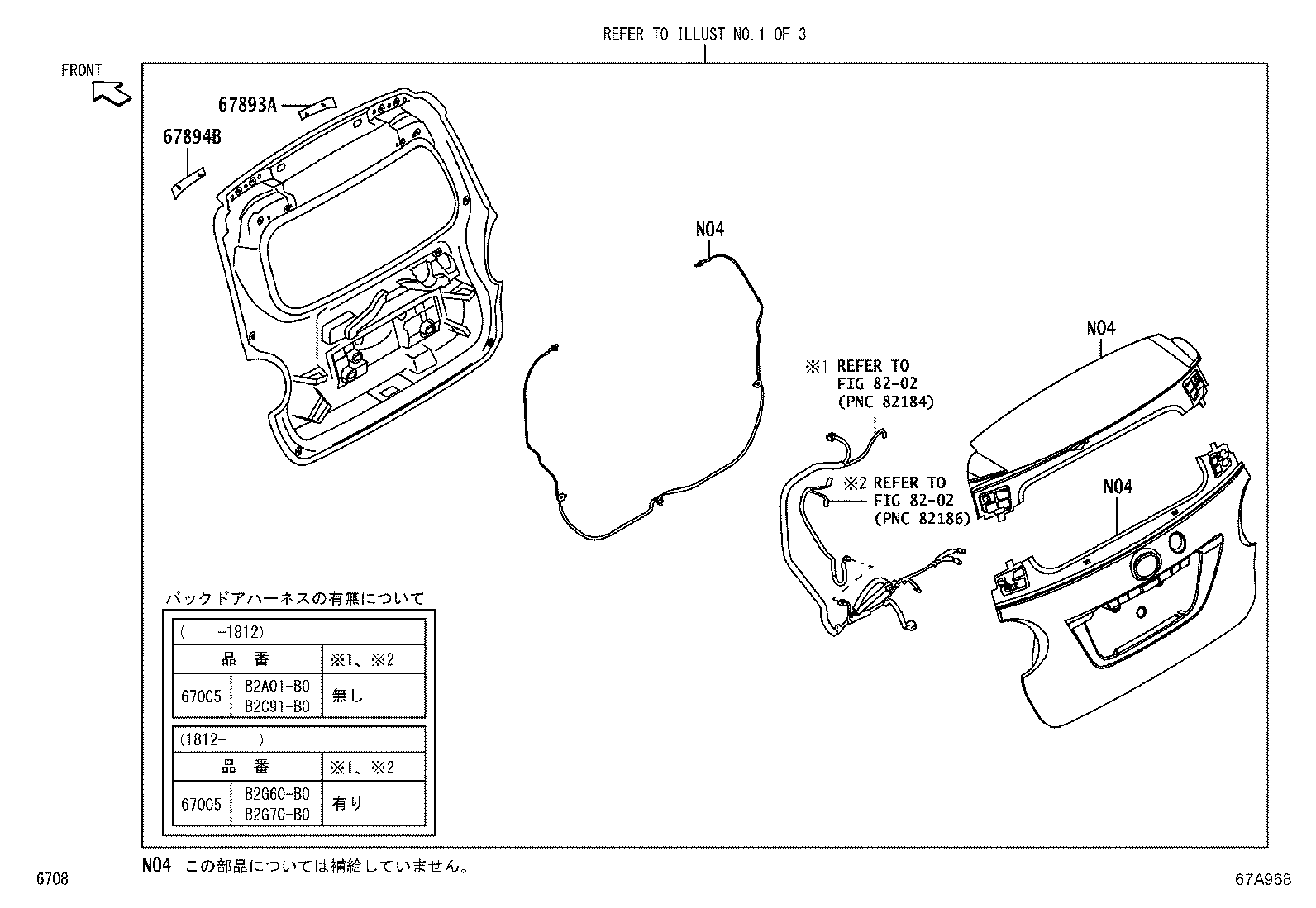

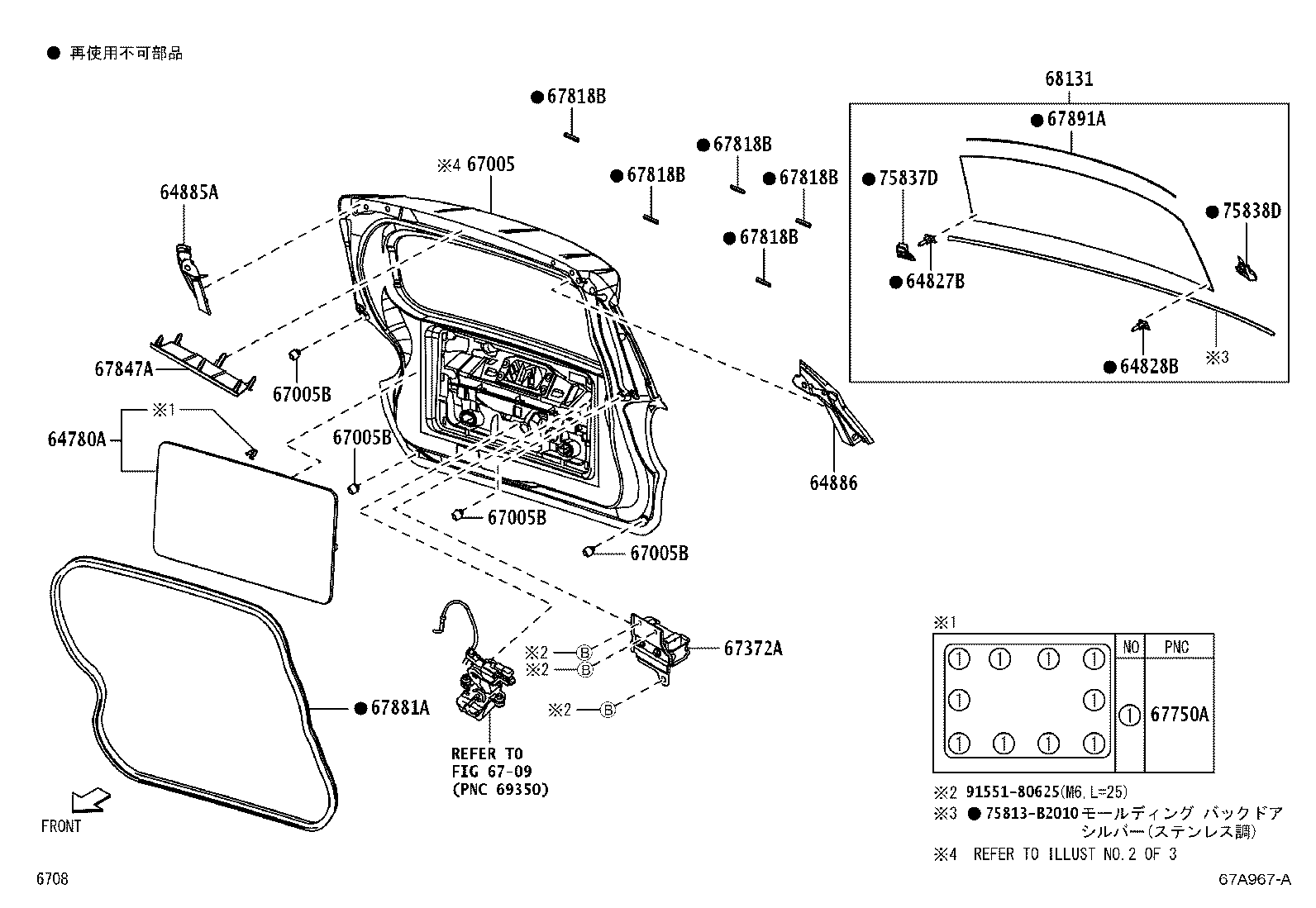

Back Door Panel & Glass
23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 64780A | Panel Assy, Back Door Trim |
| 64827B | Clip, Back Window Glass, RH |
| 64828B | Clip, Back Window Glass, LH |
| 64885A | Channel, Back Window Glass, RH |
| 64886 | Channel, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67372A | Weight, Back Door |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67818B | Spacer, Back Window Glass |
| 67847A | Cover, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67891A | Seal, Back Door |
| 67893A | Protector, Back Door Panel, NO.1 |
| 67894B | Protector, Back Door Panel, NO.2 |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 68131 | Glass, Back Door |
| 75129C | Cushion, Rear Licence Plate |
| 75813E | Moulding, Back Door, Outside Upper |
| 75837D | Cover, Back Door Finish, RH |
| 75838D | Cover, Back Door Finish, LH |
| 76811A | Garnish, Back Door, Outside |
| 76836A | Retainer, Rear Spoiler Side, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
