Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

8 part groups · 2 illustrations

Illustrations

Figure 71F776B

71F776B 2016-09 → —

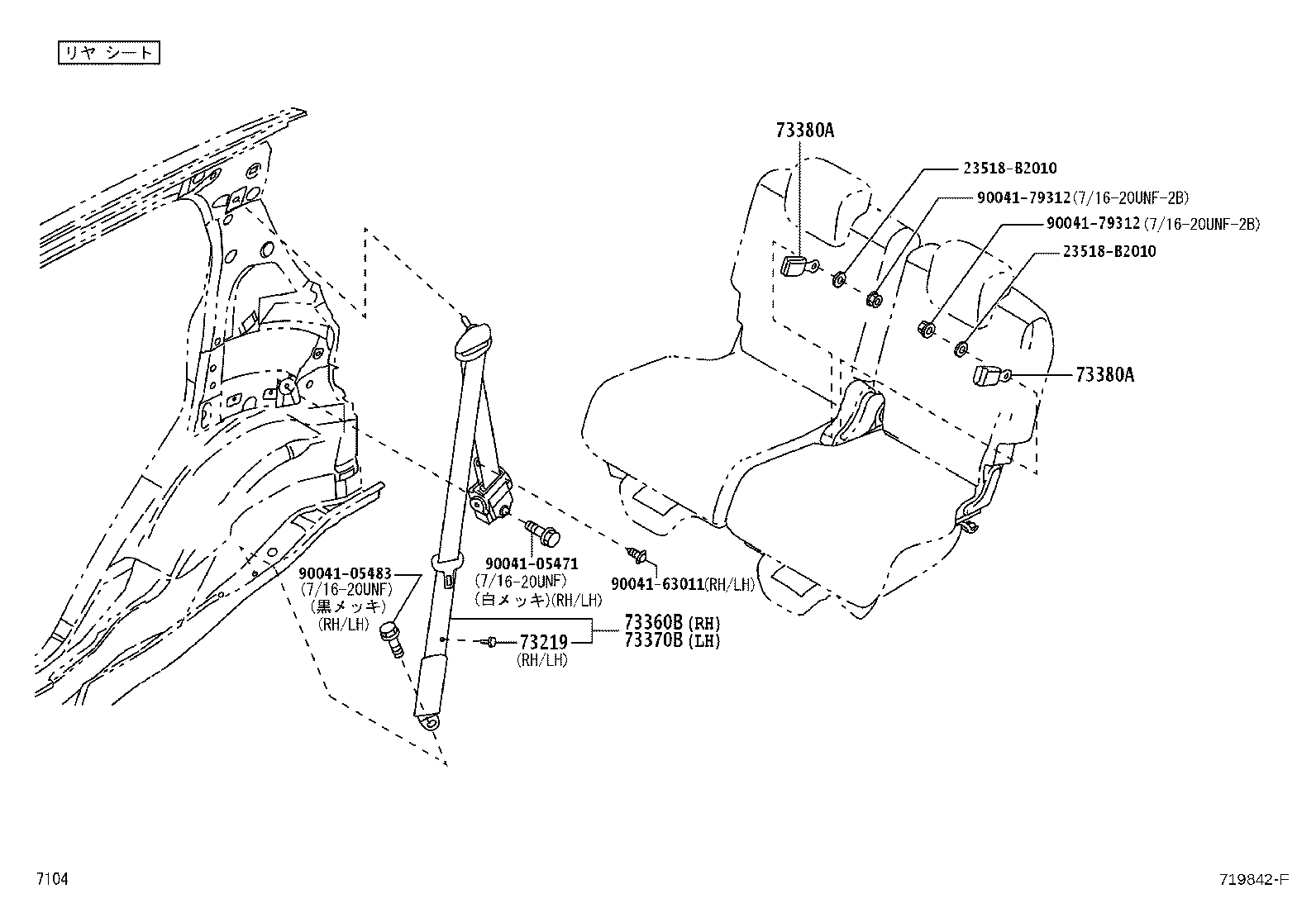

Figure 719842F

719842F 2016-09 → —

Part groups

PNC	Description
73210	Belt Assy, Front Seat Outer, RH
73219	Stopper, Tongue Plate
73220	Belt Assy, Front Seat Outer, LH
73230	Belt Assy, Front Seat Inner, RH
73240	Belt Assy, Front Seat Inner, LH
73360B	Belt Assy, Rear Seat, Outer
73370B	Belt Assy, Rear Seat, Outer
73380A	Belt Assy, Rear Seat, Inner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
