Toyota Pixis Joy
2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan
Supported model
Data version 2017-10

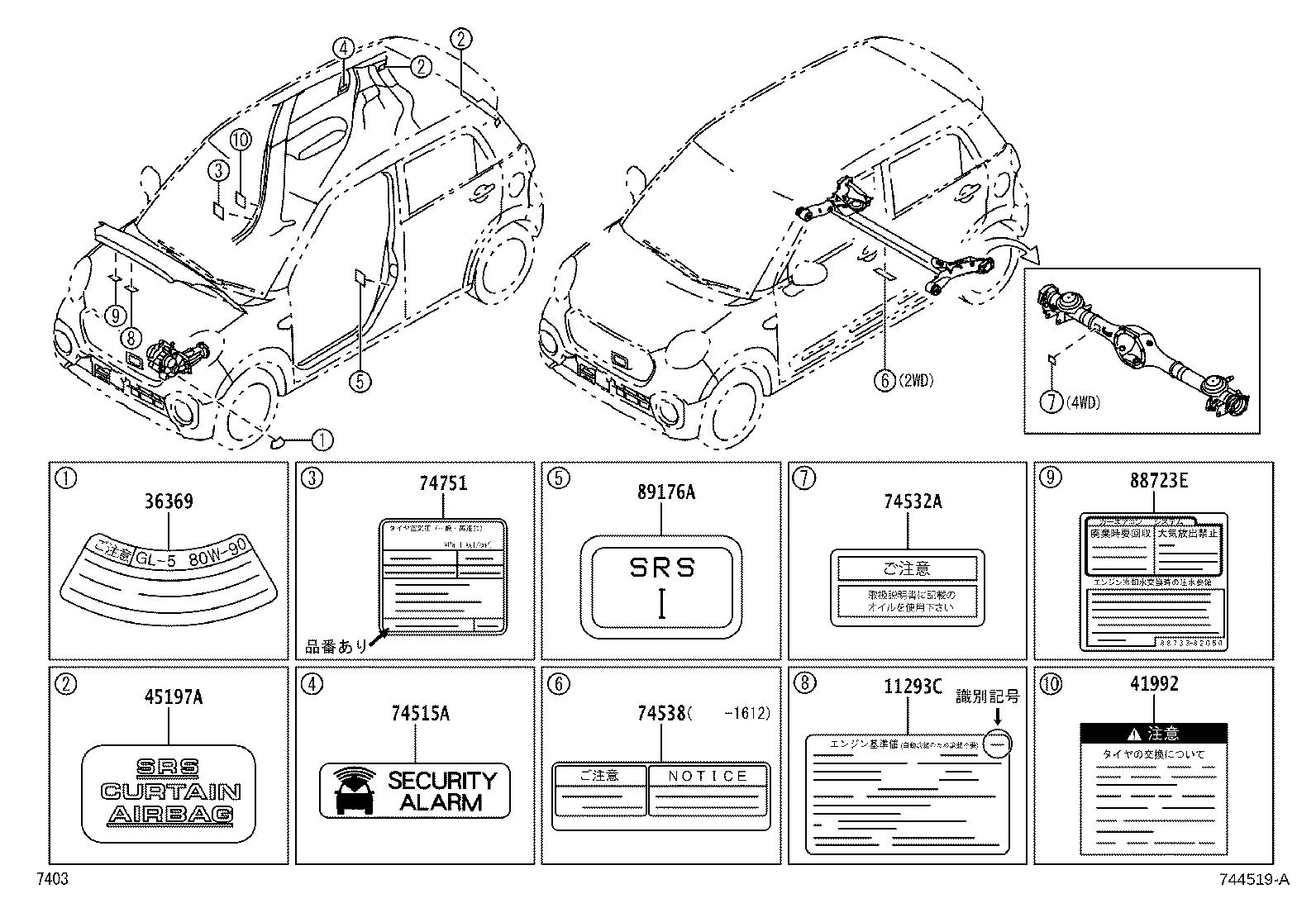

Caution Plate (EXTERIOR & INTERIOR)
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293C | Label, Tune-up Specification Information |
| 16793E | Label, Cooling Fan Caution |
| 36369 | Label, Transfer Information |
| 41992 | Label, Differential Notice |
| 45197A | Label, Airbag Caution |
| 46275B | Label, Parking Brake Release Information, NO.2 |
| 74515A | Plate, Theft Warning |
| 74532A | Plate, Caution |
| 74538 | Plate, Jack Carrier Caution |

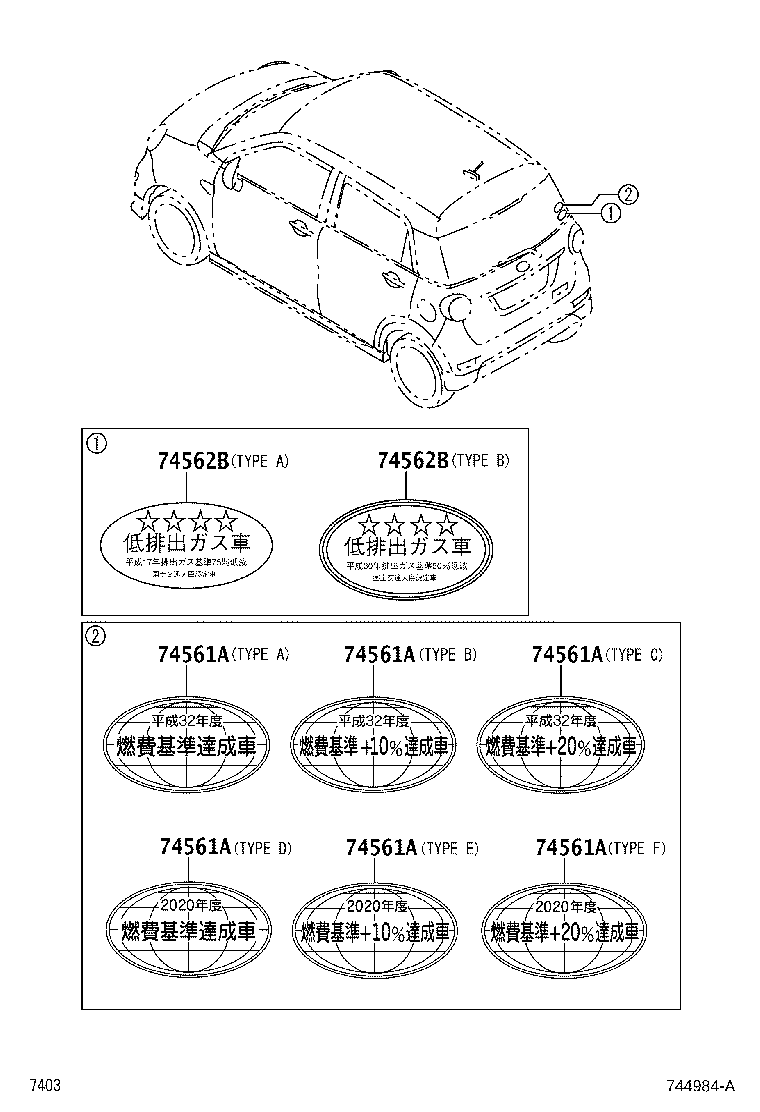

| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74751 | Label, Tire Pressure Information |
| 86995E | Label, Caution |
| 88723E | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
| 89616 | Label, Push Start Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
