Toyota Pixis Joy
2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan
Supported model
Data version 2017-10

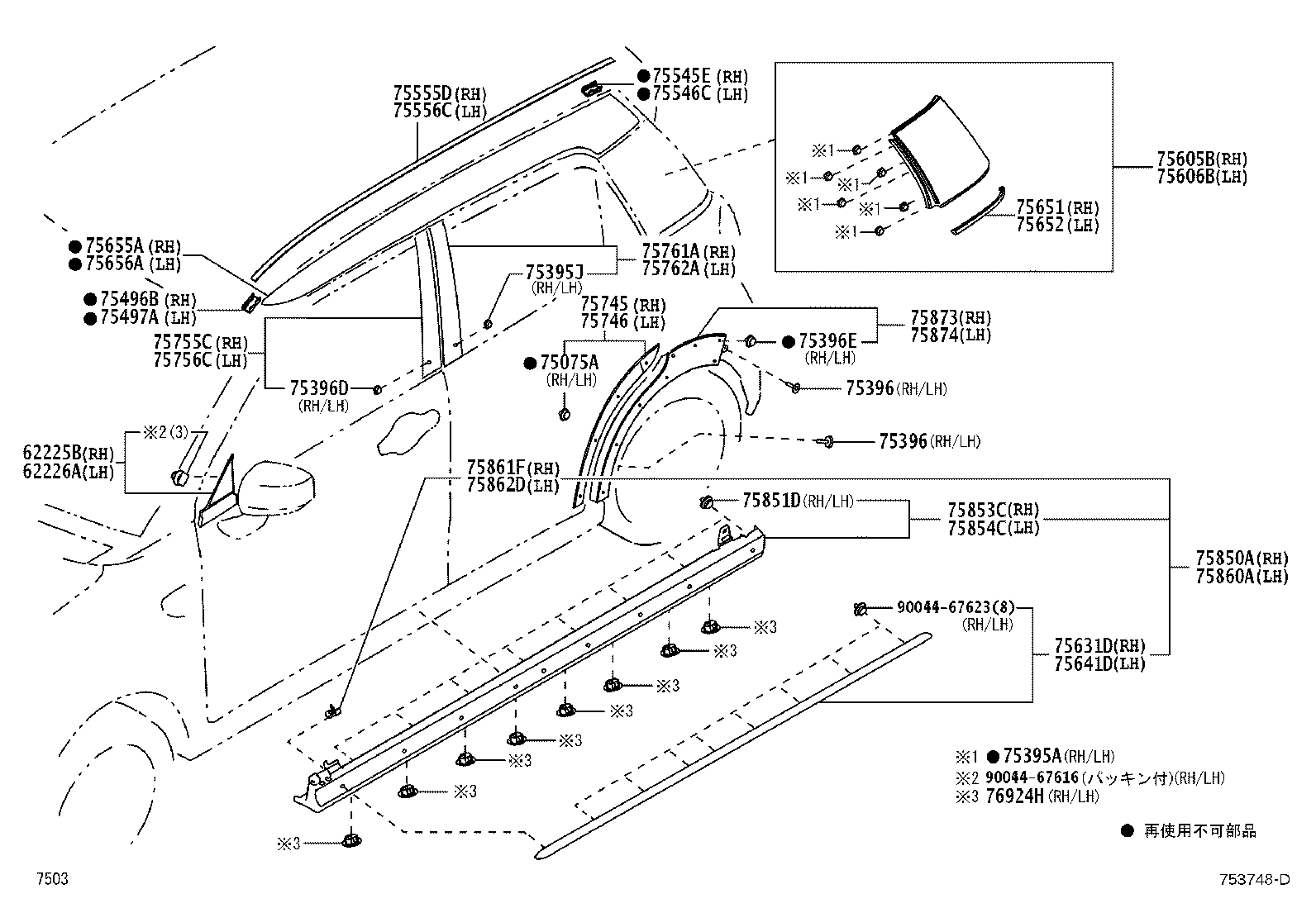

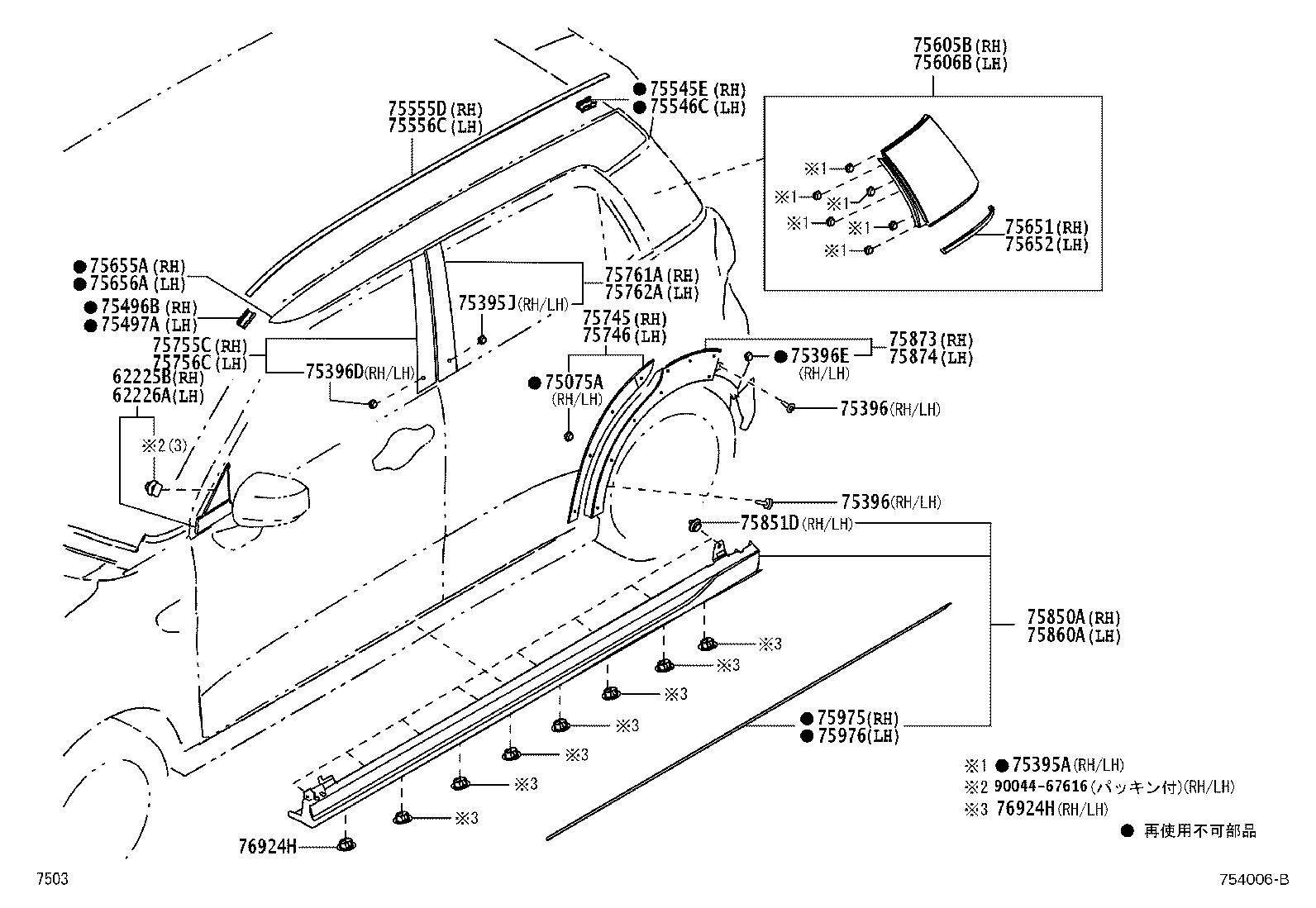

Side Moulding
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62225B | Garnish, Front Pillar, Lower RH |
| 62226A | Garnish, Front Pillar, Lower LH |
| 75075A | Clip(FOR REAR DOOR OUTSIDE MOULDING) |
| 75395A | Clip, Outside Moulding, NO.1 |
| 75395G | Clip, Outside Moulding, NO.1 |
| 75395H | Clip, Outside Moulding, NO.1 |
| 75395J | Clip, Outside Moulding, NO.1 |
| 75396 | Clip, Outside Moulding, NO.2 |
| 75396D | Clip, Outside Moulding, NO.2 |
| 75396E | Clip, Outside Moulding, NO.2 |
| 75496B | Clip, Roof Drip Side Finish Moulding, RH |
| 75497A | Clip, Roof Drip Side Finish Moulding, LH |
| 75545E | Clip, Roof Drip Side Finish Moulding, RH |
| 75546C | Clip, Roof Drip Side Finish Moulding, LH |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75631D | Moulding, Side Panel, Lower NO.1 RH |
| 75641D | Moulding, Side Panel, Lower NO.1 LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75655A | Moulding, Quarter, Outside Center RH |
| 75656A | Moulding, Quarter, Outside Center LH |
| 75735A | Moulding, Front Door Outside, Lower RH |
| 75736A | Moulding, Front Door Outside, Lower LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75745 | Moulding, Rear Door Outside, Lower RH |
| 75746 | Moulding, Rear Door Outside, Lower LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75851D | Clip(FOR ROCKER PANEL MOULDING SET) |
| 75853C | Moulding, Rocker Panel, Lower RH |
| 75854C | Moulding, Rocker Panel, Lower LH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75861F | Retainer, Rocker Panel Moulding, RH |
| 75862D | Retainer, Rocker Panel Moulding, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 75975 | Stripe, Side, RH Upr NO.3 |
| 75976 | Stripe, Side, LH Upr |
| 76924H | Retainer, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
