Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

21 part groups · 2 illustrations

Illustrations

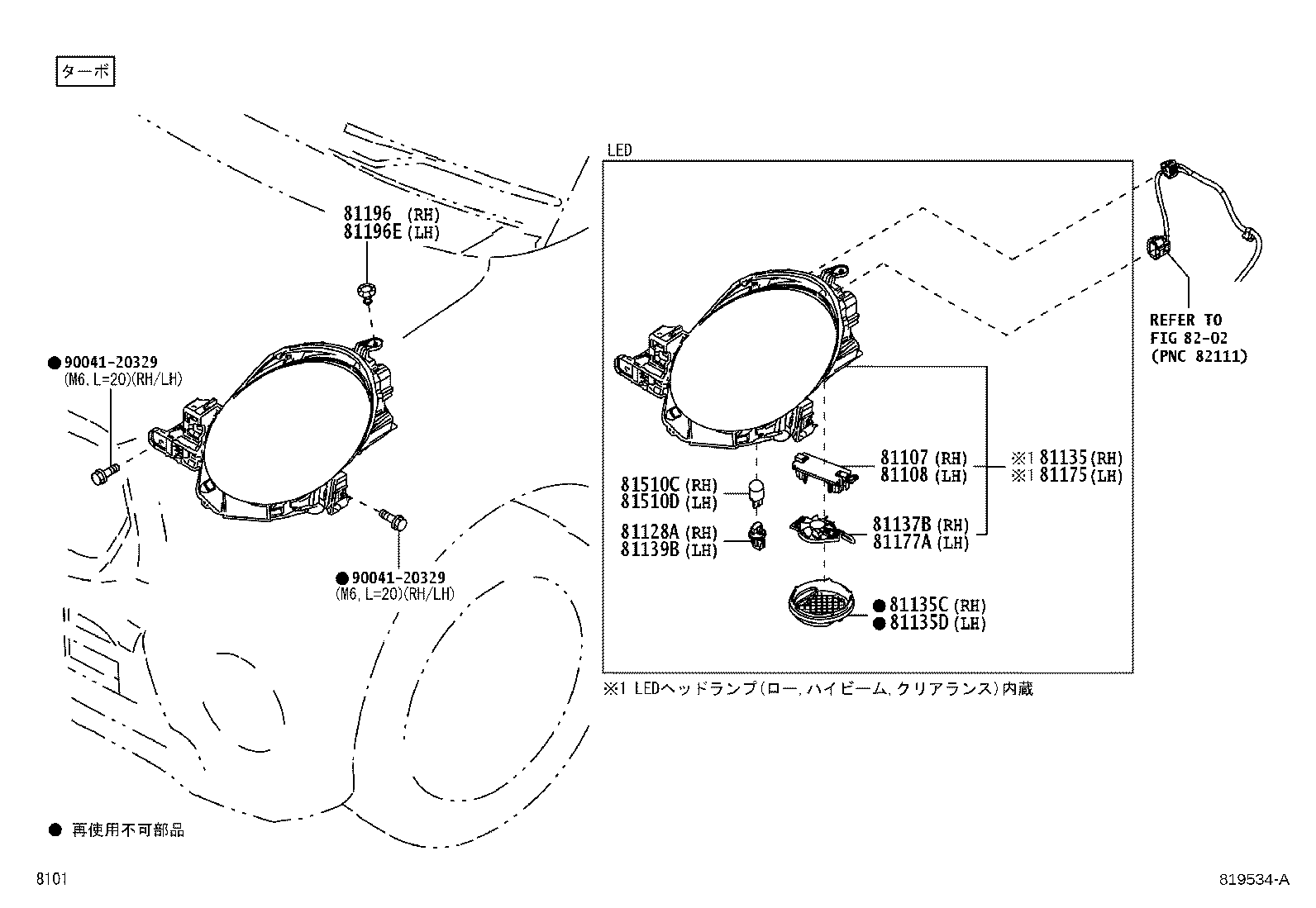

Figure 819533A 819533A 2016-09 → — Figure 819534A 819534A 2016-09 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81115E Code,Headlamp
81125 Cord, Headlamp
81128A Socket, Headlamp, Bulb
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81135D Cover, Headlamp Back, NO.2
81137B Fan, Headlamp, RH
81139 Cover, Headlamp Socket
81139B Socket, Headlamp Bulb
81144C Cover, Headlamp Socket
81175 Unit Assy, Headlamp, LH
81177A Fan, Headlamp, LH
81196 Retainer, Headlamp
81196E Retainer, Headlamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81610F Bulb(FOR CLEARANCE LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
