Toyota Pixis Joy
2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan
Supported model
Data version 2017-10

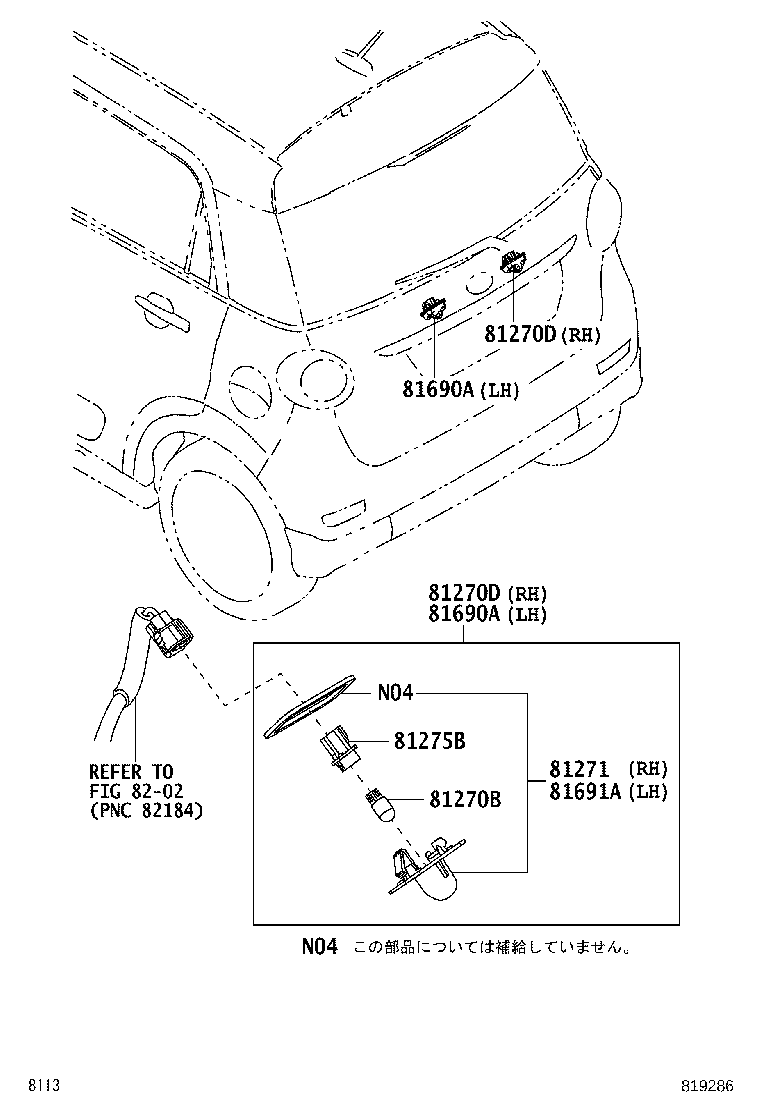

Rear License Plate Lamp
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81270B | Bulb (FOR LICENSE PLATE LAMP) |
| 81270D | Lamp Assy, License Plate, RH |
| 81271 | Lens, License Plate Lamp |
| 81274 | Gasket, License Plate Lamp Body |
| 81275B | Socket Plug, License Plate Lamp |
| 81277J | Gasket, License Plate Lamp Body, NO.2 |
| 81690A | Lamp Assy, License Plate, LH |
| 81691A | Lens, License Plate, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
