Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

54 part groups · 9 illustrations

Illustrations

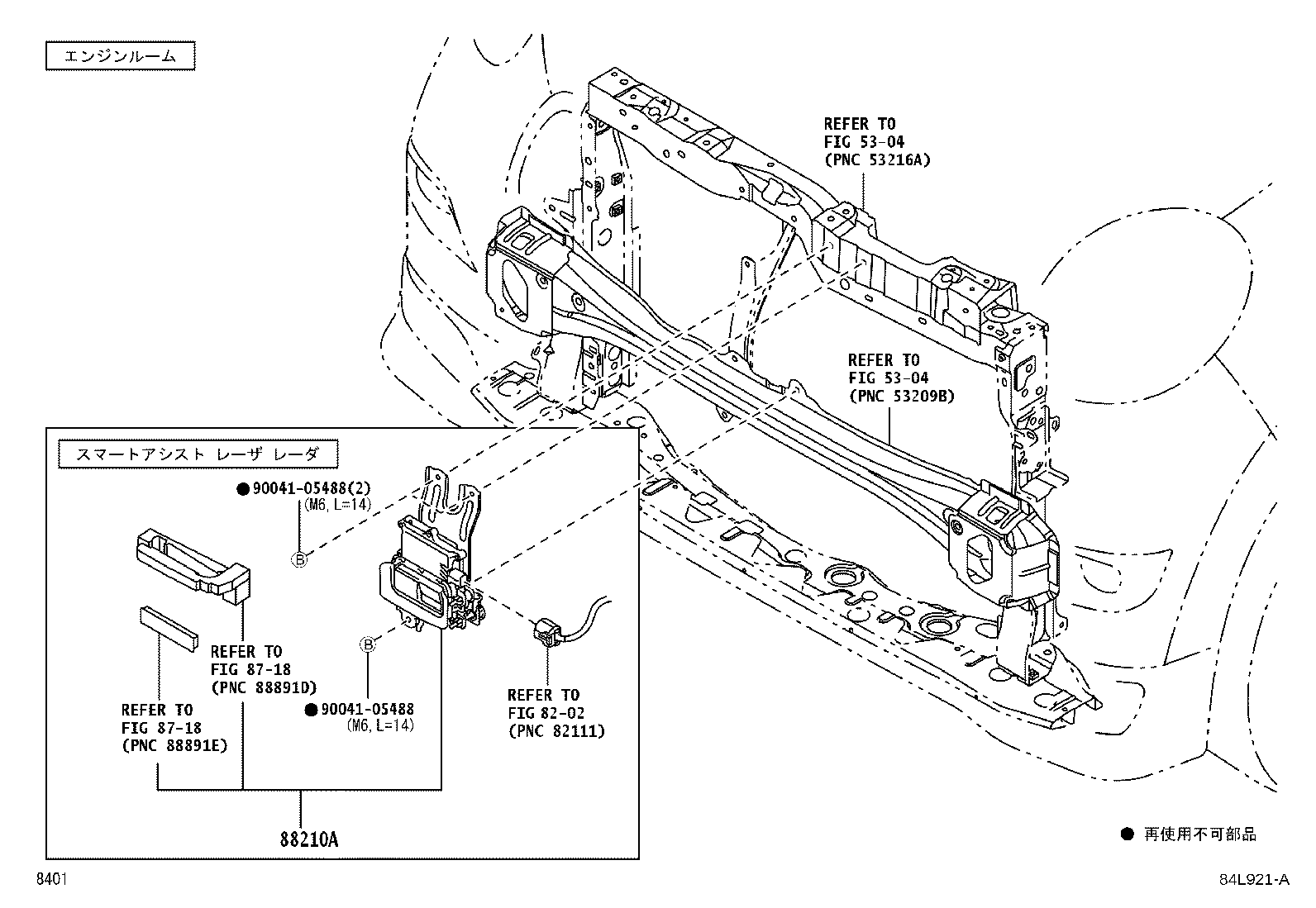

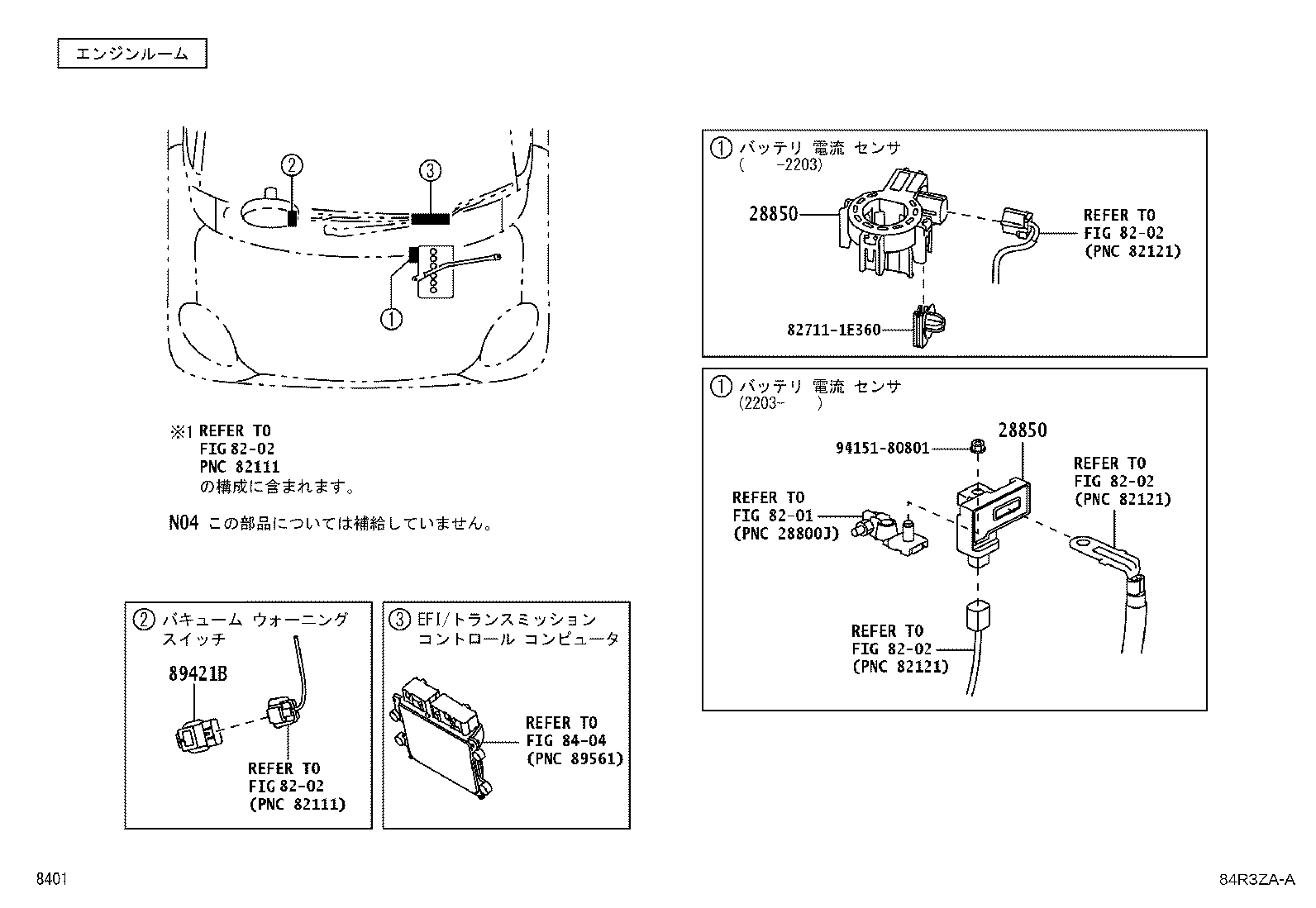

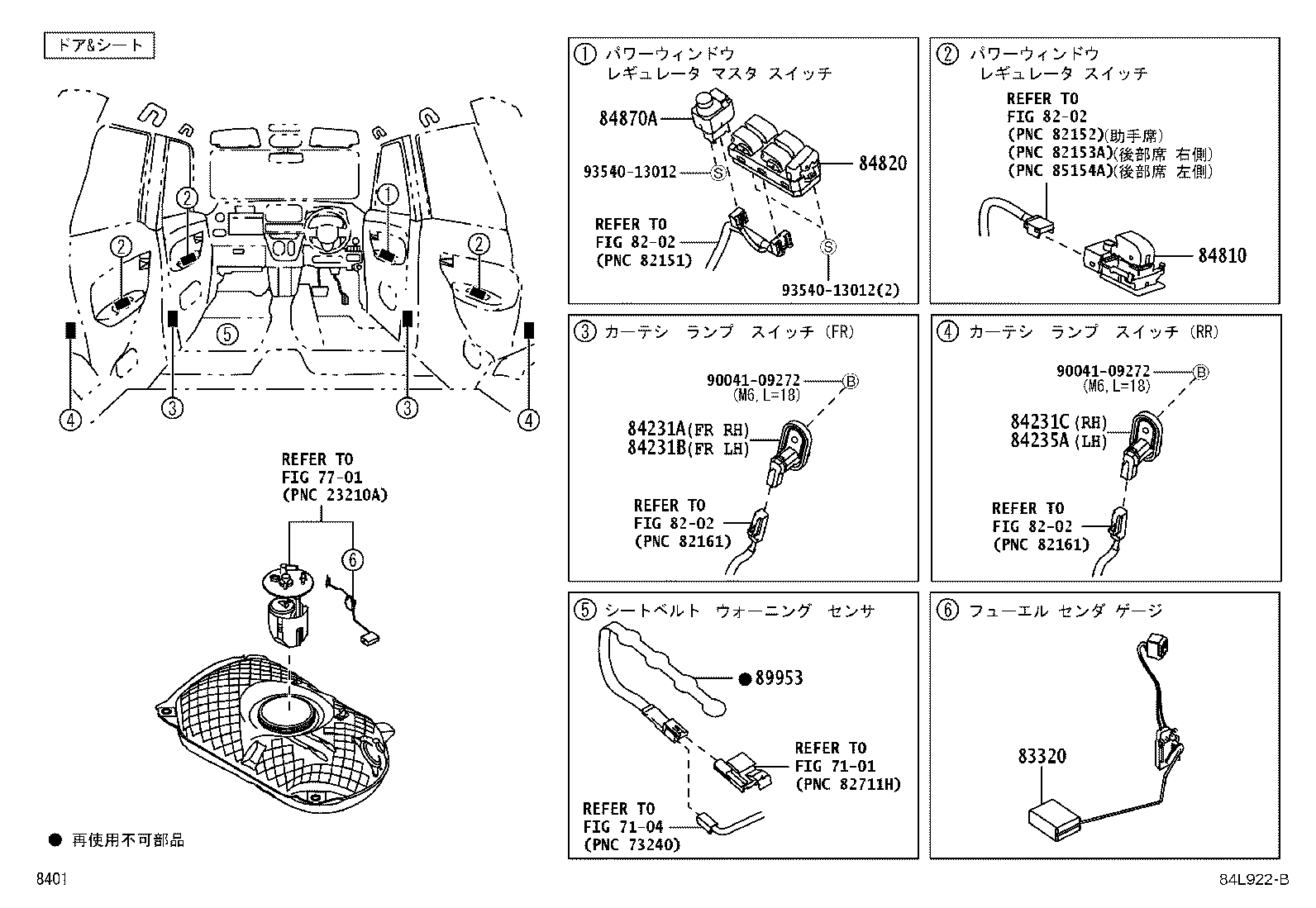

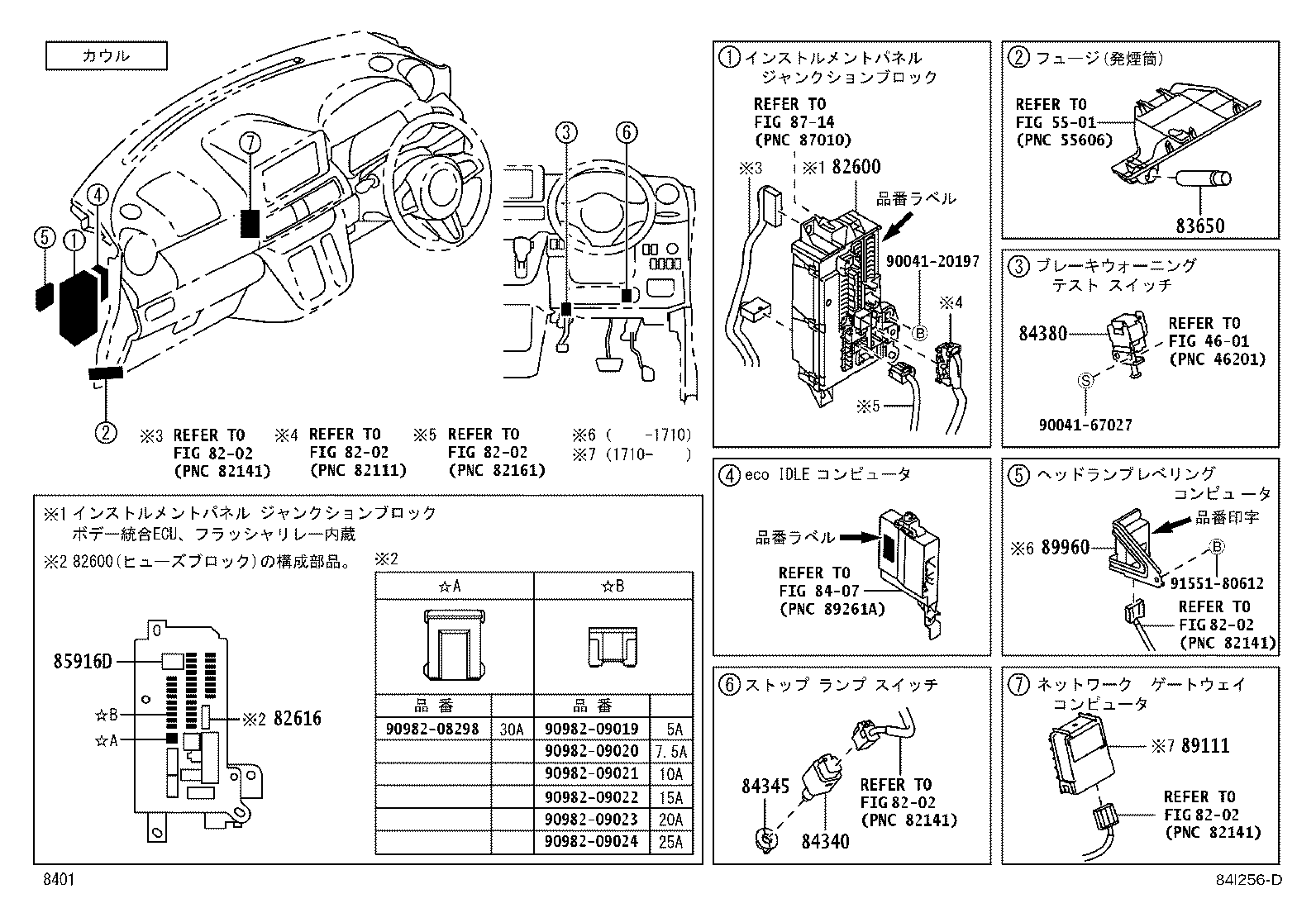

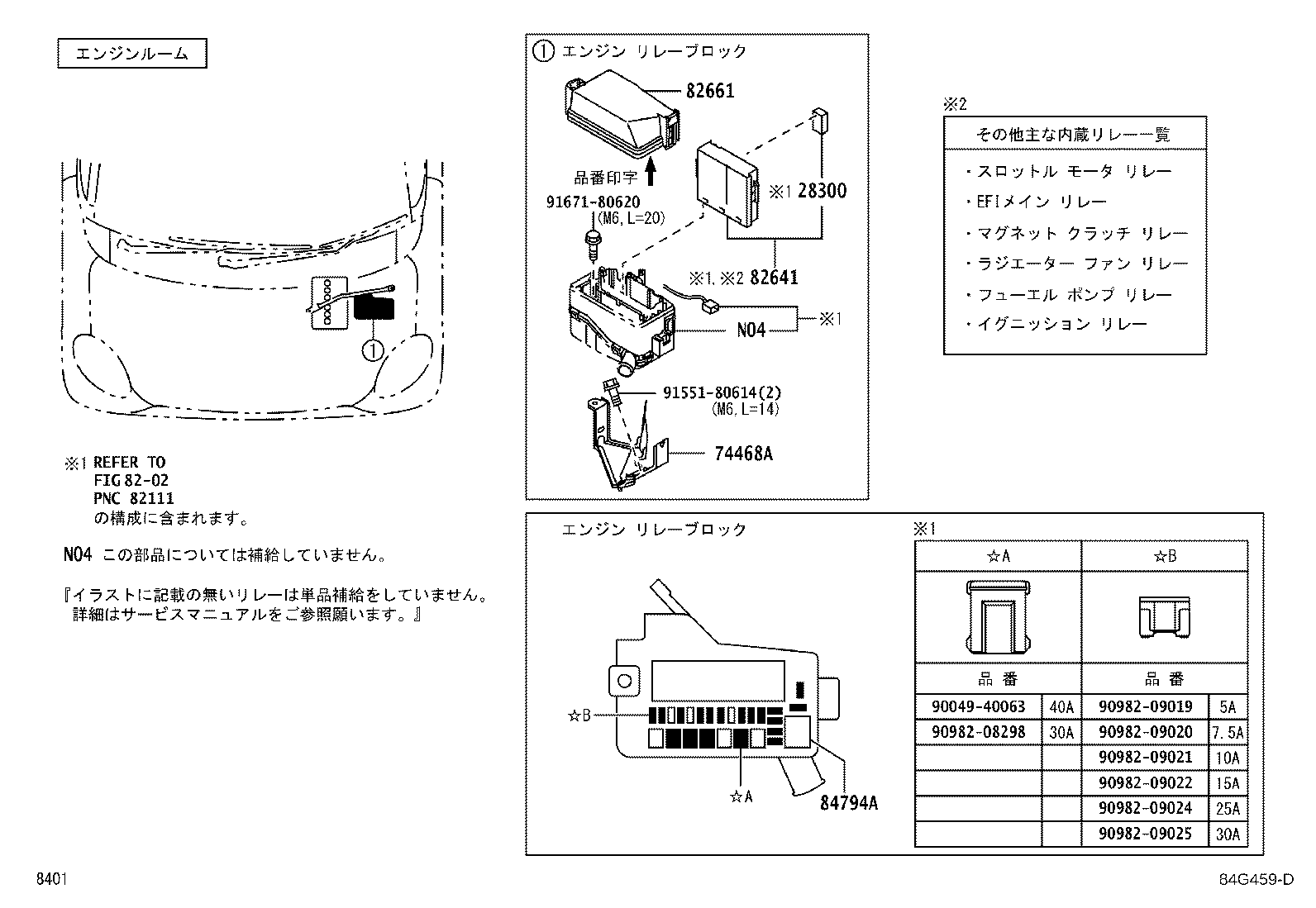

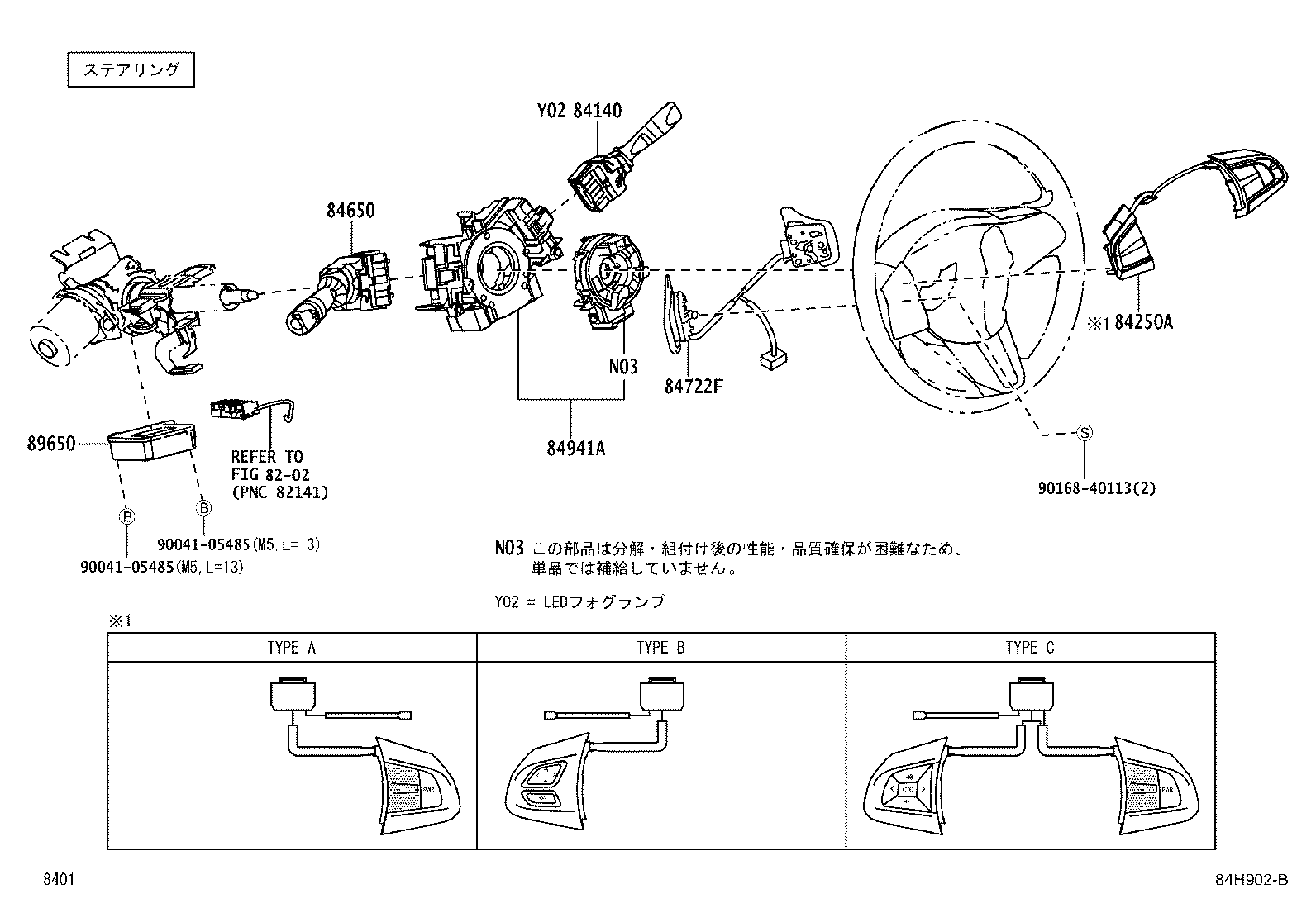

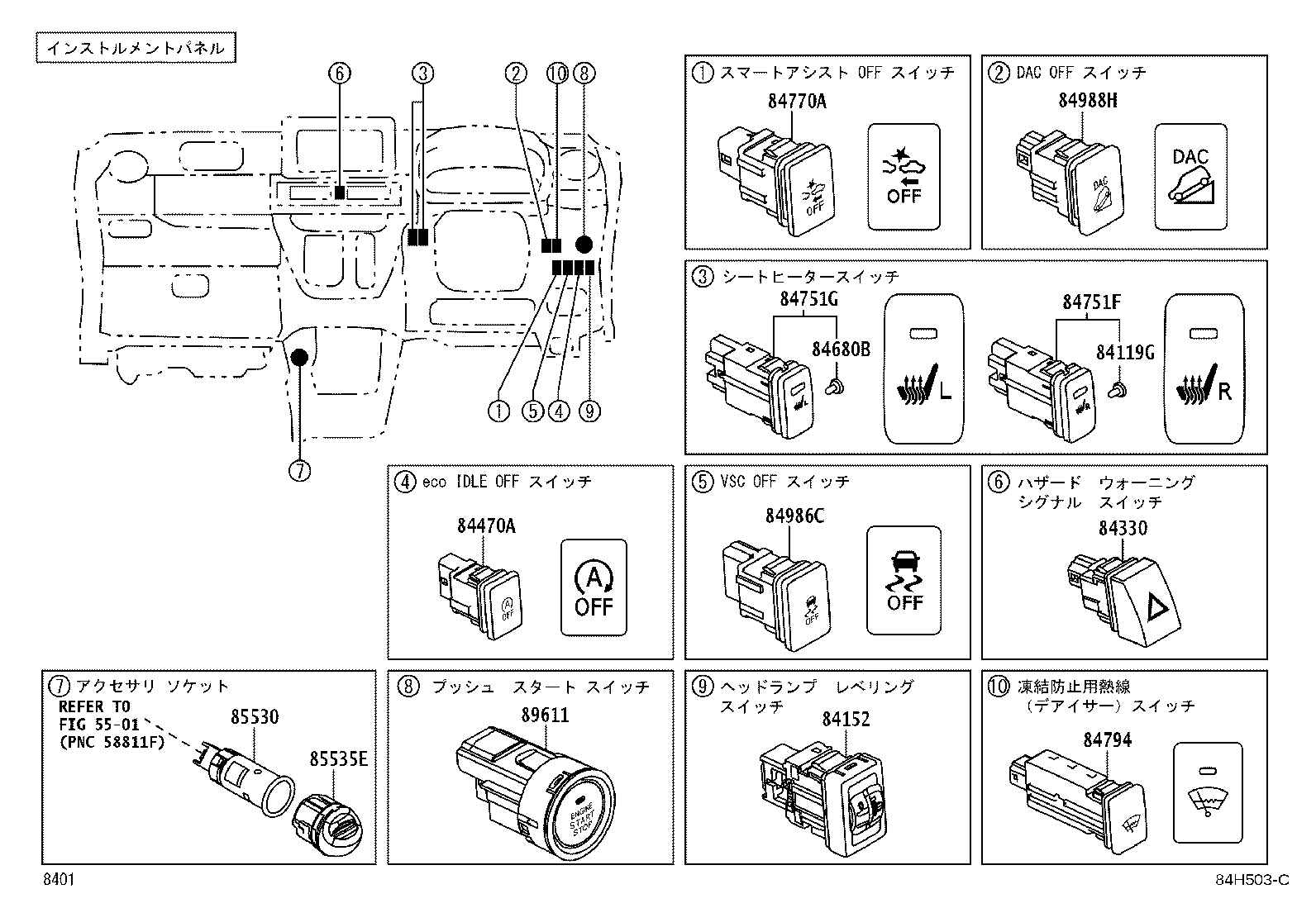

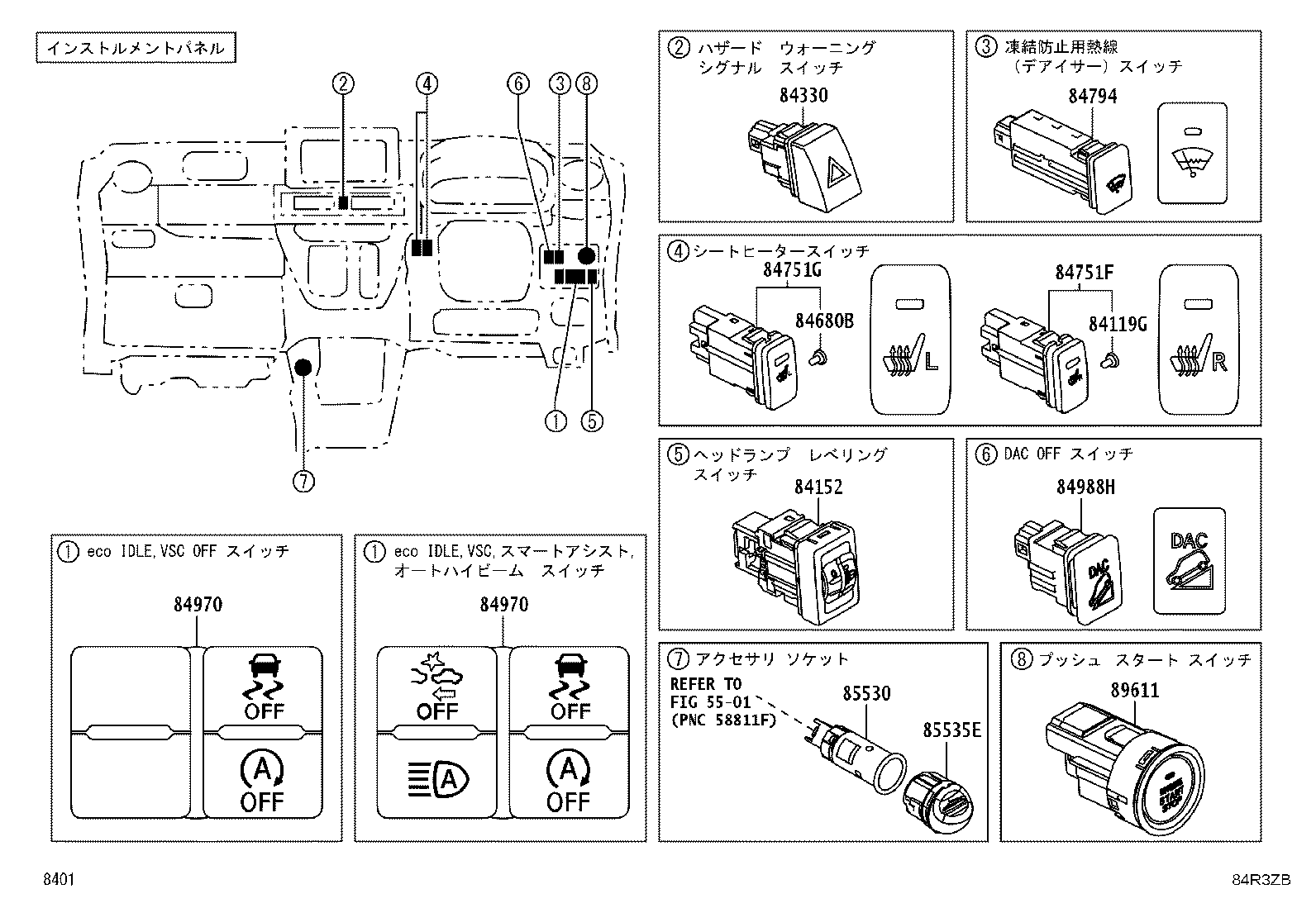

Figure 84L920A 84L920A 2016-09 → — Figure 84G459D 84G459D 2016-09 → — Figure 84R3ZAA 84R3ZAA 2016-09 → — Figure 84L921A 84L921A 2016-09 → 2017-10 Figure 84I256D 84I256D 2016-09 → — Figure 84H503C 84H503C 2016-09 → 2017-10 Figure 84R3ZB 84R3ZB 2017-10 → — Figure 84L922B 84L922B 2016-09 → — Figure 84H902B 84H902B 2016-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28850 Sensor Assy, Battery Current
74468A Bracket, Relay Block
82600 Block Assy, Fuse
82616 Puller, Fuse
82641 Relay, Integration NO.1
82661 Cover, Relay Block, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84119G Blub
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84231A Switch, Courtesy Lamp
84231B Switch, Courtesy Lamp
84231C Switch, Courtesy Lamp
84235A Switch, Courtesy Lamp
84250A Switch Assy, Steering Pad
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84470A Switch Assy, Ecorun Cancel
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84680B Bulb
84722F Switch, Transmission Control
84751F Switch, Seat Heater
84751G Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84941A Base, Switch
84970 Switch Assy, Combination
84986C Switch, Vsc Off
84988H Switch, Downhill Assist Control
85530 Socket Assy, Power Outlet, NO.1
85535E Cover, Power Outlet Socket, NO.2
85916D Relay, Fog Lamp
88210A Sensor Assy, Laser Radar
89111 Computer, Network Gateway
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89953 Sensor, Belt Warning Occupant Detection
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
