Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 2 illustrations

Illustrations

Figure 868138E

868138E 2016-09 → —

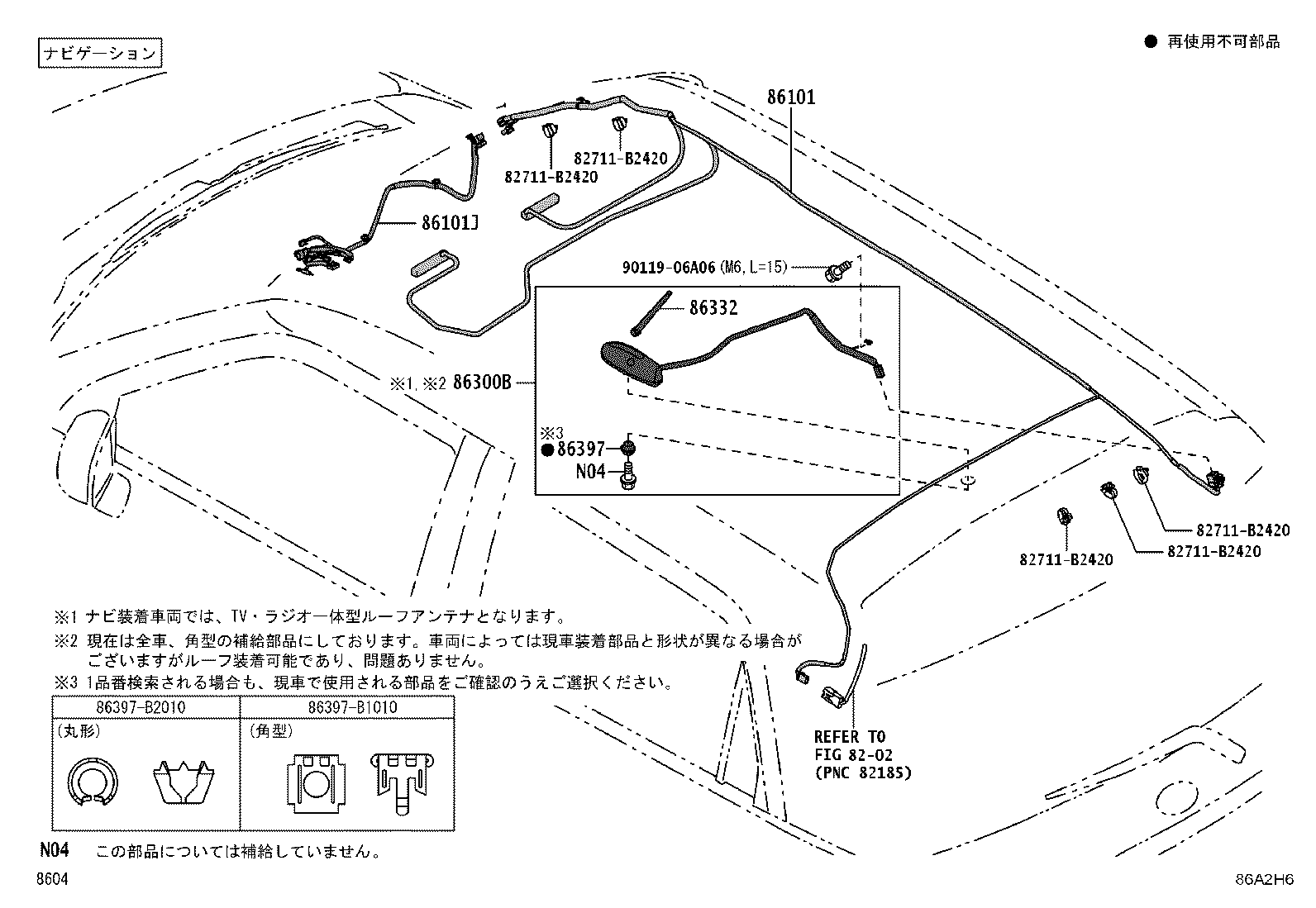

Figure 86A2H6

86A2H6 2016-09 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101J	Cord Sub-assy, Antenna, NO.2
86300B	Antenna Assy, Amplifier, NO.1
86316	Cable, Antenna
86316D	Cable, Antenna, NO.2
86332	Rod, Antenna
86397	Plate, Antenna Earth

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
