Toyota Pixis Joy

2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 3 illustrations

Illustrations

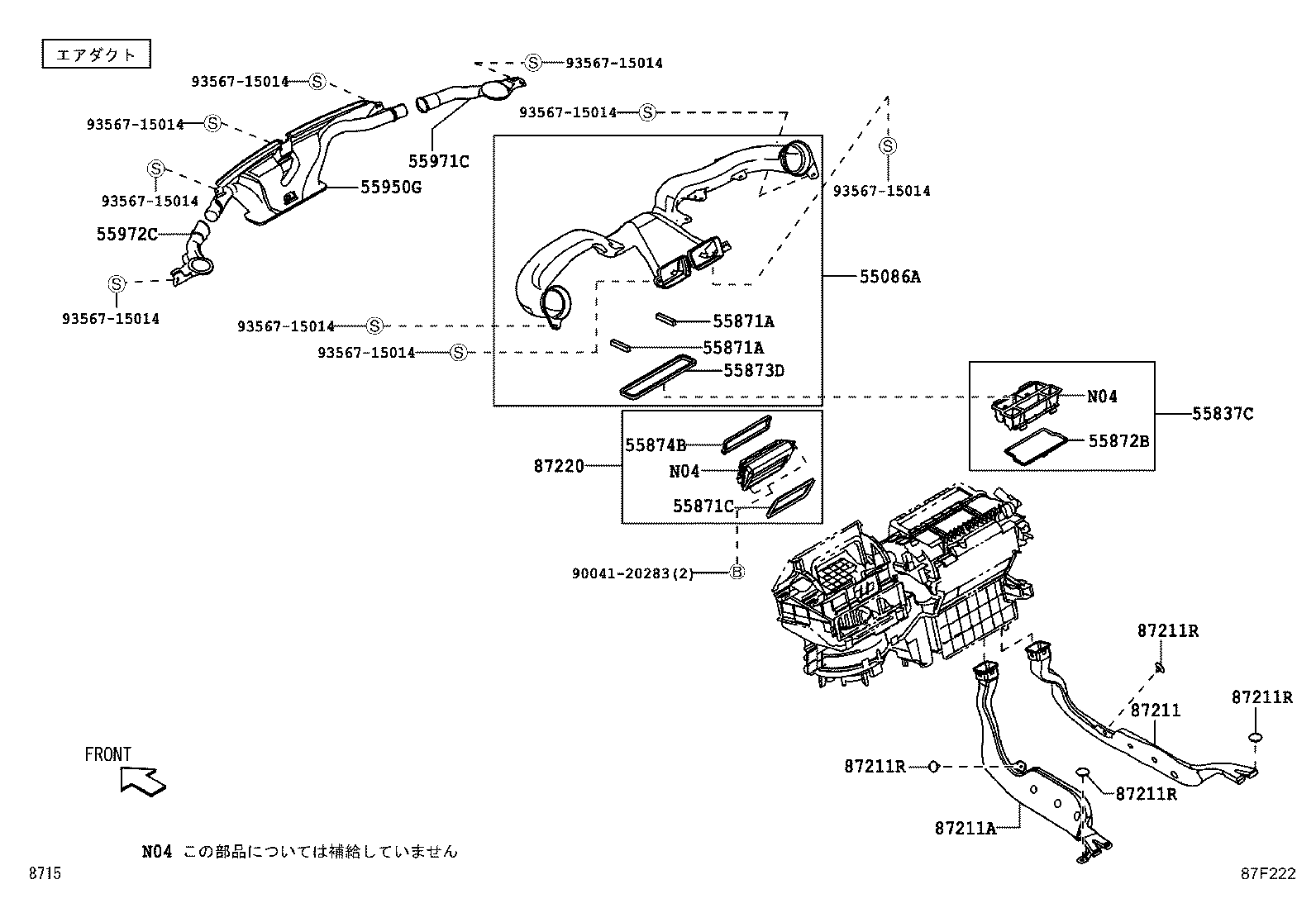

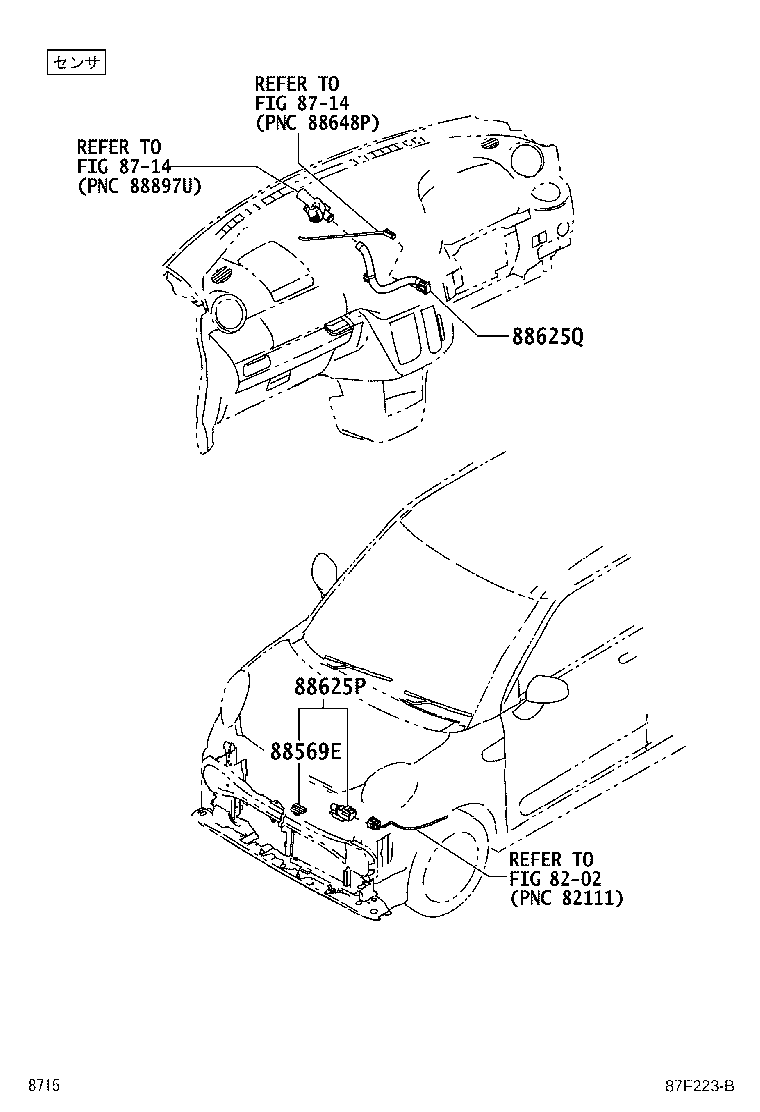

Figure 87F221A 87F221A 2016-09 → — Figure 87F222 87F222 2016-09 → — Figure 87F223B 87F223B 2016-09 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55837C Duct, Heater TO Register Center Sub
55871A Seal, Air Duct, NO.1
55871C Seal, Air Duct
55872B Seal, Air Duct,NO.2
55873D Seal, Air Duct, Center
55874B Seal, Air Duct, NO.4
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211R Clip, Air Duct
87220 Duct Assy, Air
88569E Clamp (FOR COOLER THERMISTOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
