Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

16 part groups · 3 illustrations

Illustrations

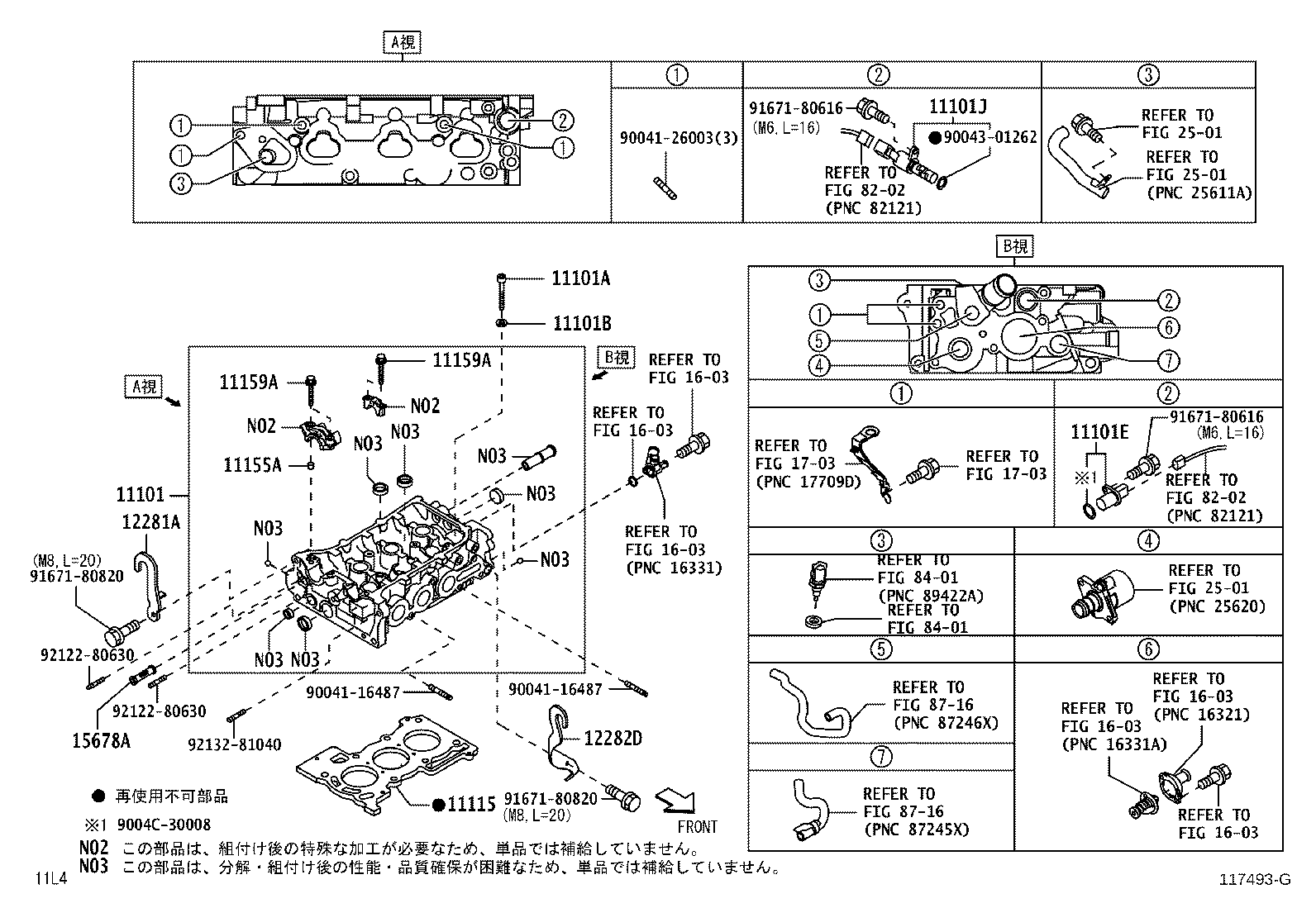

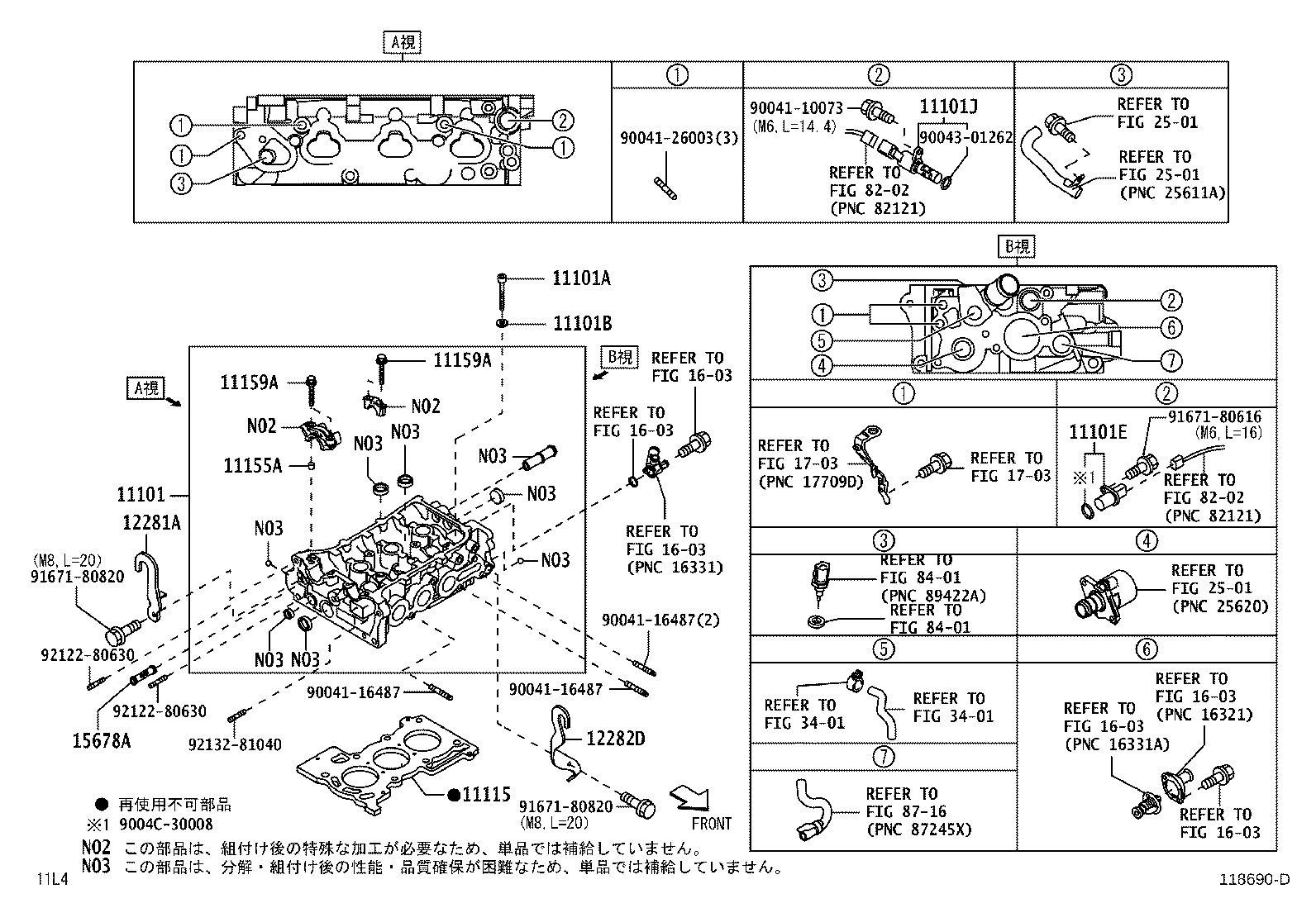

Figure 11H67B 11H67B 2012-04 → — Figure 117493G 117493G 2012-04 → 2013-07 Figure 118690D 118690D 2013-07 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101E Sensor, Cam Position
11101J Valve Assy, Camshaft Timing Oil Control
11115 Gasket, Cylinder Head
11155A Pin, Ring W/Head
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11201 Cover Sub-assy, Cylinder Head
11201H Bolt(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
15678A Filter, Oil Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
