Toyota Pixis Epoch
2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan
Supported model
Data version 2017-11

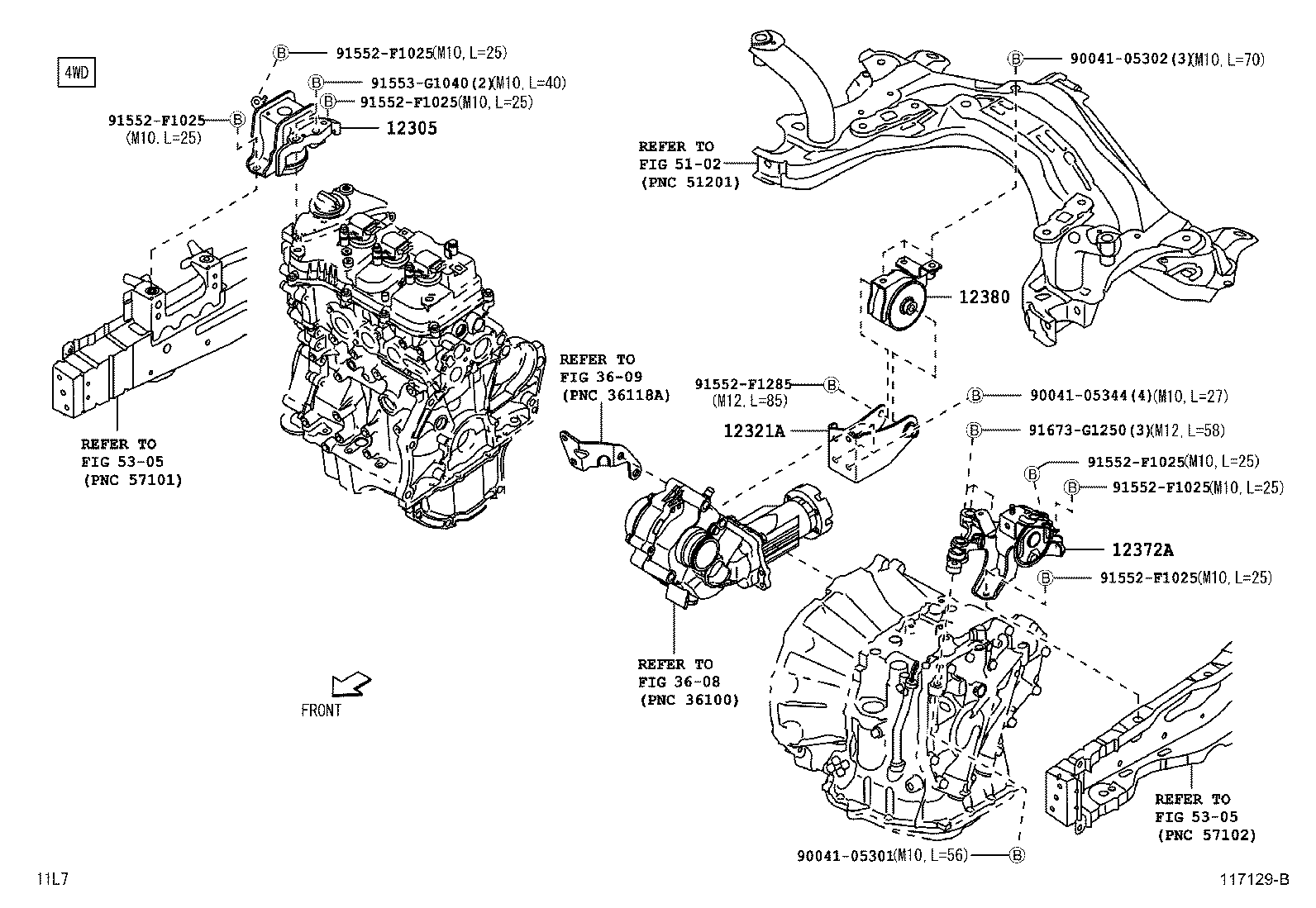

Mounting
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12309 | Rod Sub-assy, Engine Moving Control |
| 12321A | Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE) |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12380 | Insulator Assy, Engine Mounting, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
