Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

15 part groups · 3 illustrations

Illustrations

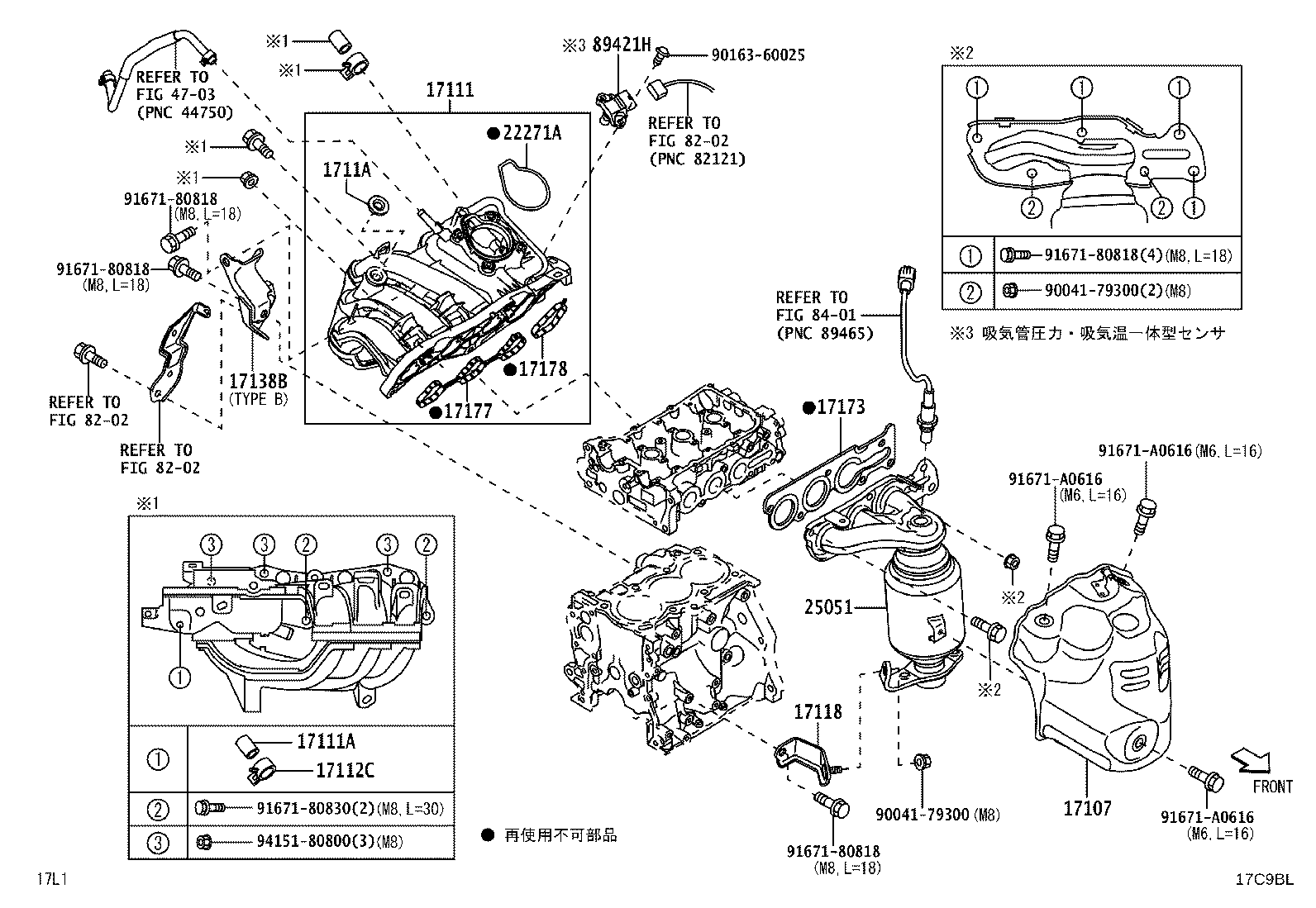

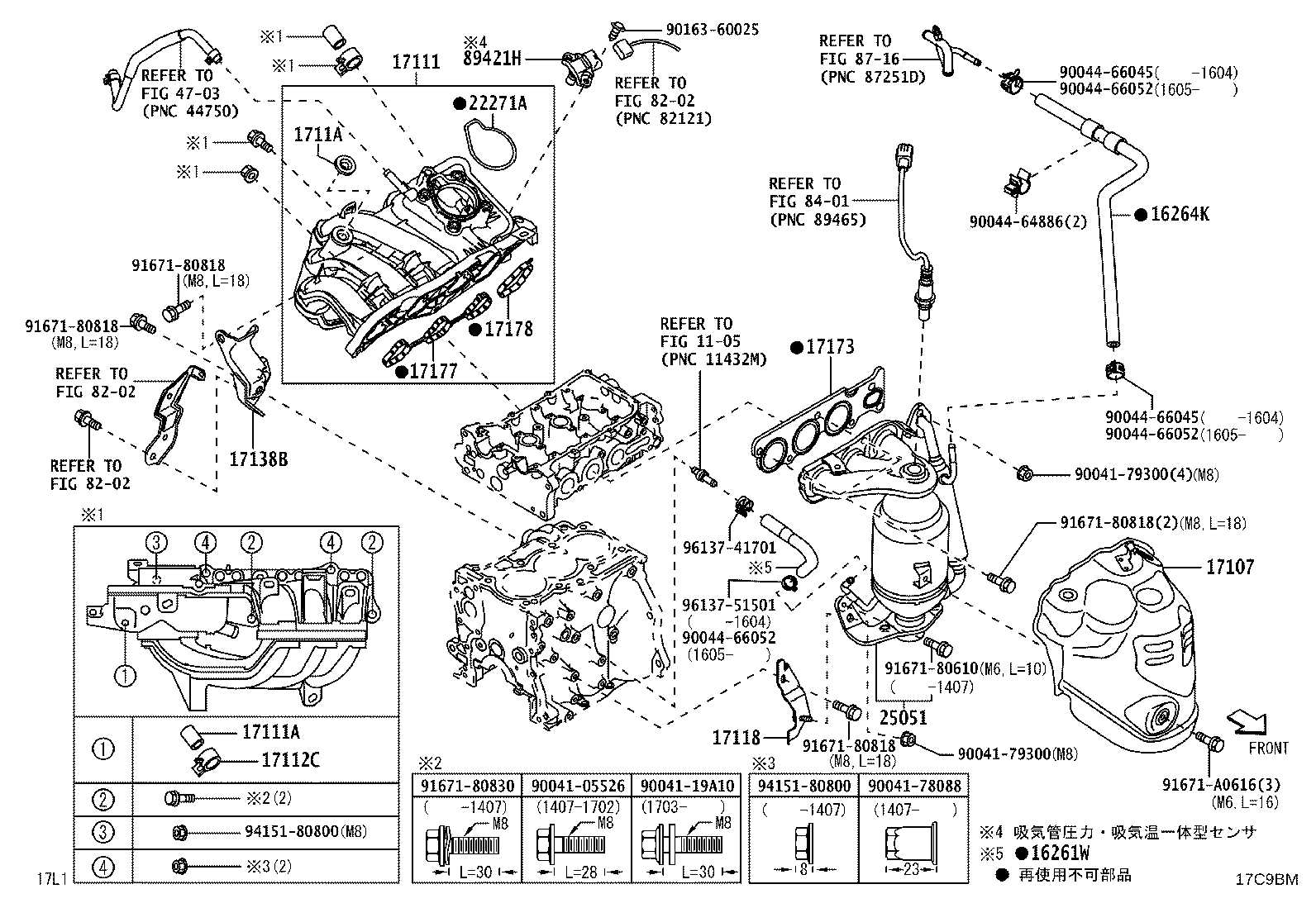

Figure 17C9BK 17C9BK 2012-04 → 2013-05 Figure 17C9BL 17C9BL 2013-05 → 2013-07 Figure 17C9BM 17C9BM 2013-07 → —

Part groups

PNCDescription
16261W Hose, Water By-pass, NO.1
16264K Hose, Water By-pass, NO.2
17107 Insulator Sub-assy, Exhaust Manifold Heat
17111 Manifold, Intake
17111A Plug, NO.1
17112C Clip(FOR INTAKE MANIFOLD)
17118 Stay, Manifold
1711A Grommet
17138B Stay, Intake Manifold
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
22271A Gasket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
89421H Sensor, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
