Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

14 part groups · 3 illustrations

Illustrations

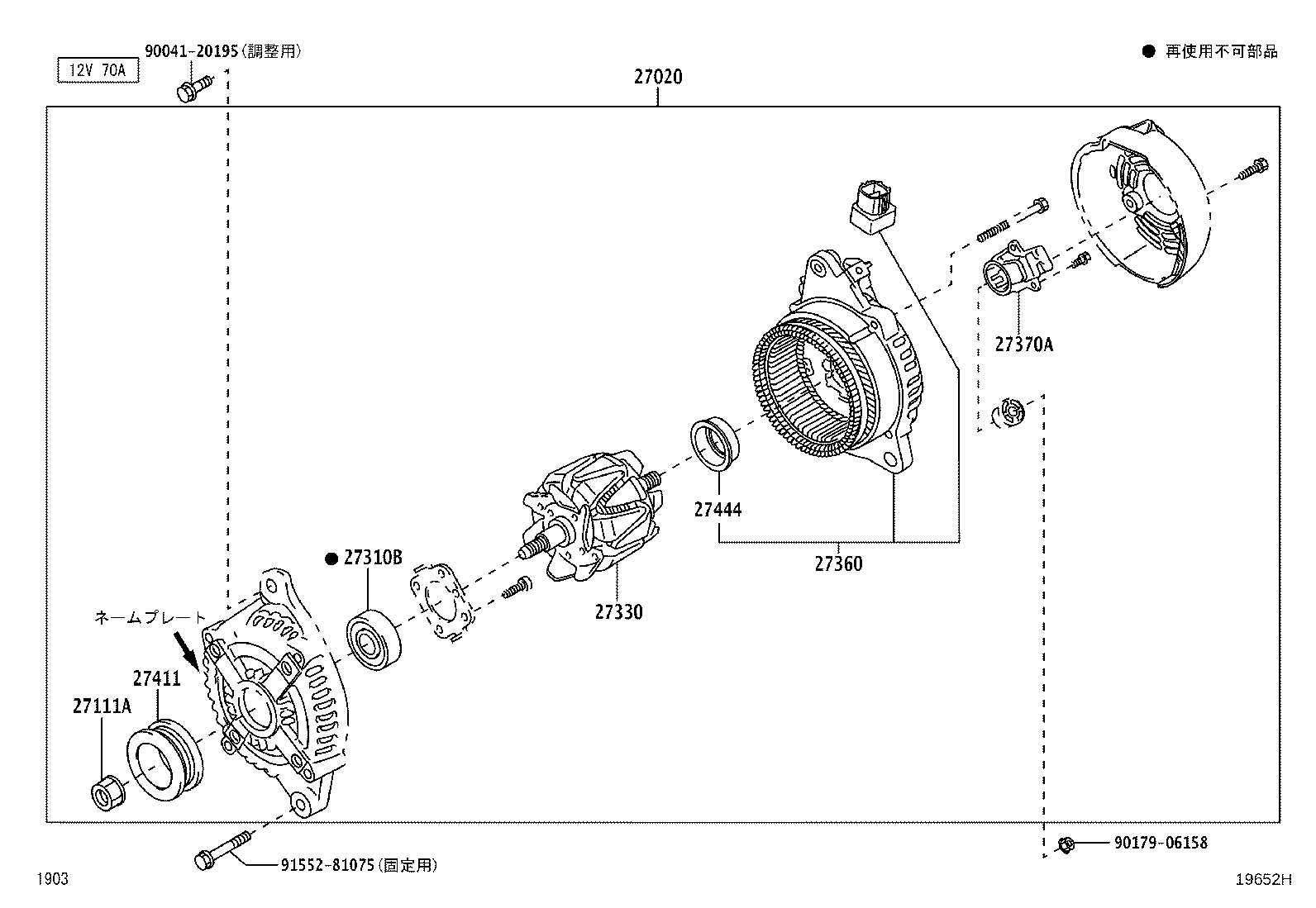

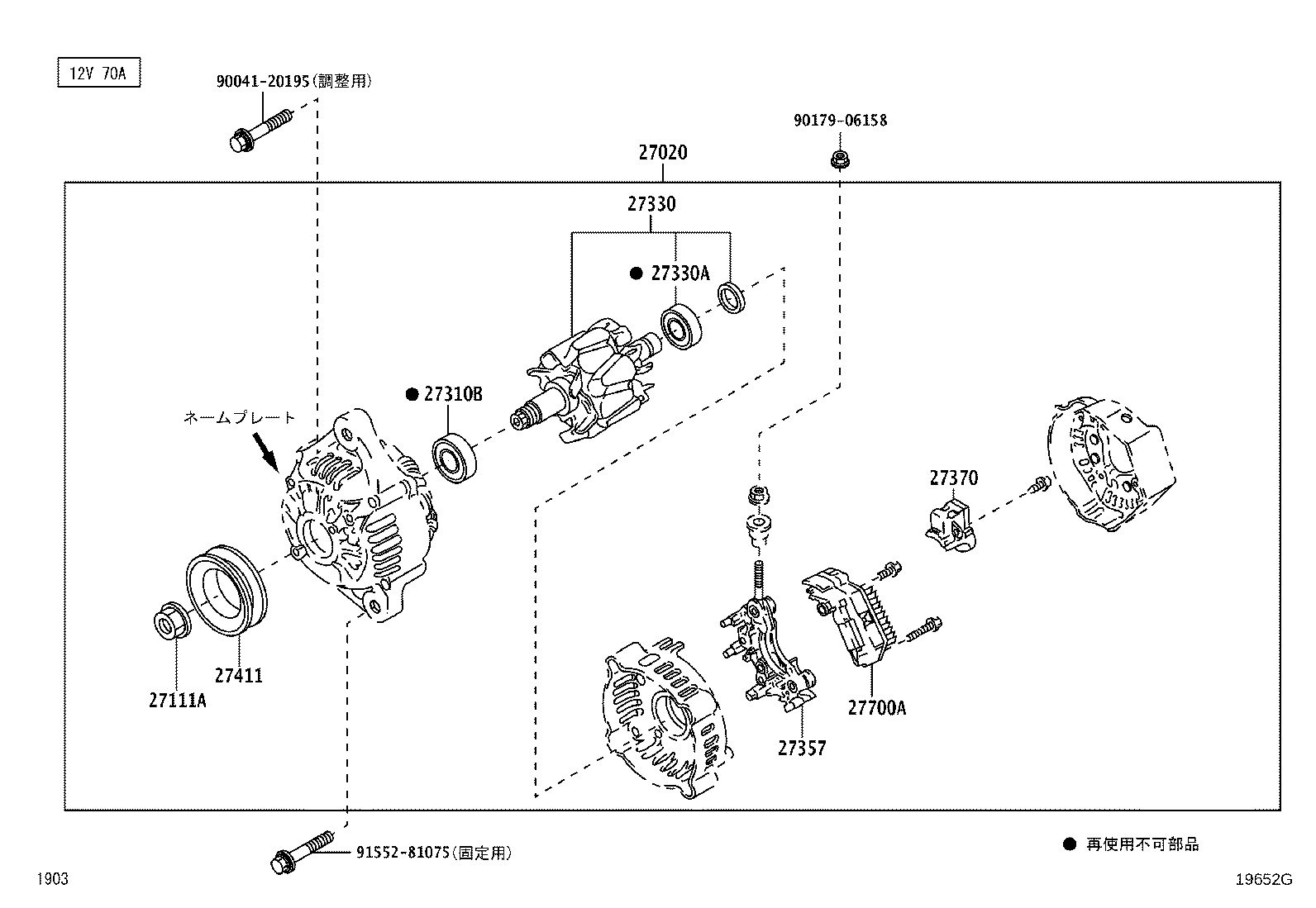

Figure 19652F 19652F 2012-04 → 2013-07 Figure 19652G 19652G 2013-07 → 2015-02 Figure 19652H 19652H 2015-02 → —

Part groups

PNCDescription
27020 Alternator Assy
27111A Nut, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27357 Holder, Alternator, W/Rectifier
27360 Coil Assy, Alternator
27370 Holder Assy, Alternator Brush
27370A Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27411 Pulley, Alternator
27444 Packing, Alternator Bearing Cover
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
