Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

15 part groups · 2 illustrations

Illustrations

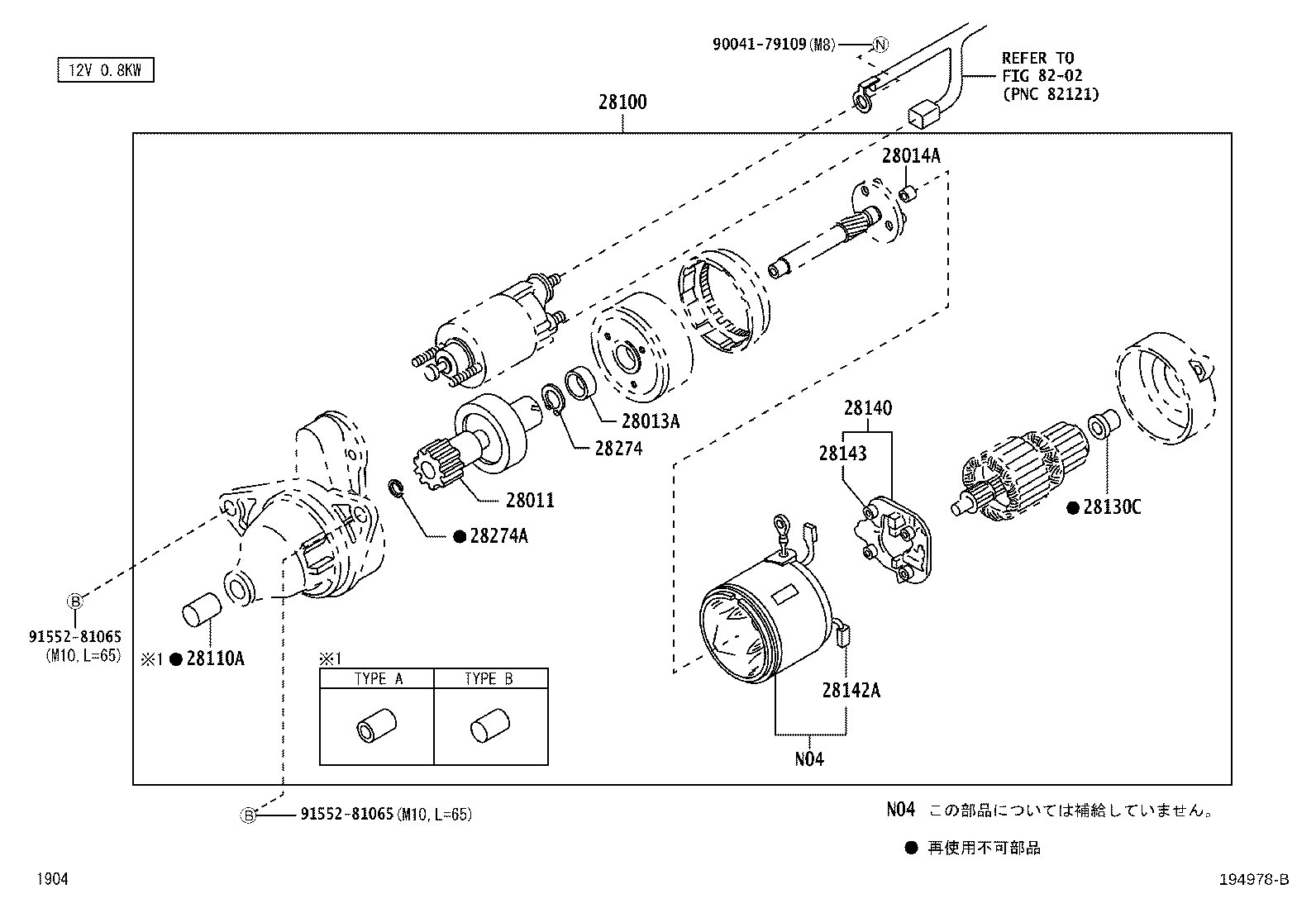

Figure 193887G 193887G 2012-04 → 2016-04 Figure 194978B 194978B 2016-04 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28013A Bearing, Starter Center & Shock Absorber, NO.2
28014A Bush OR Bearing, Planet Carrier Shaft
28100 Starter Assy
28110A Bearing(FOR STARTER HOUSING)
28120 Yoke Assy, Starter
28130C Bearing, Starter Flange
28140 Holder Assy, Starter Brush
28142A Starter Kit
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28163 Nut OR Collar, Pinion Stop, Starter
28274 Snap Ring, Starter, NO.1
28274A Snap Ring, Starter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
