Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

16 part groups · 6 illustrations

Illustrations

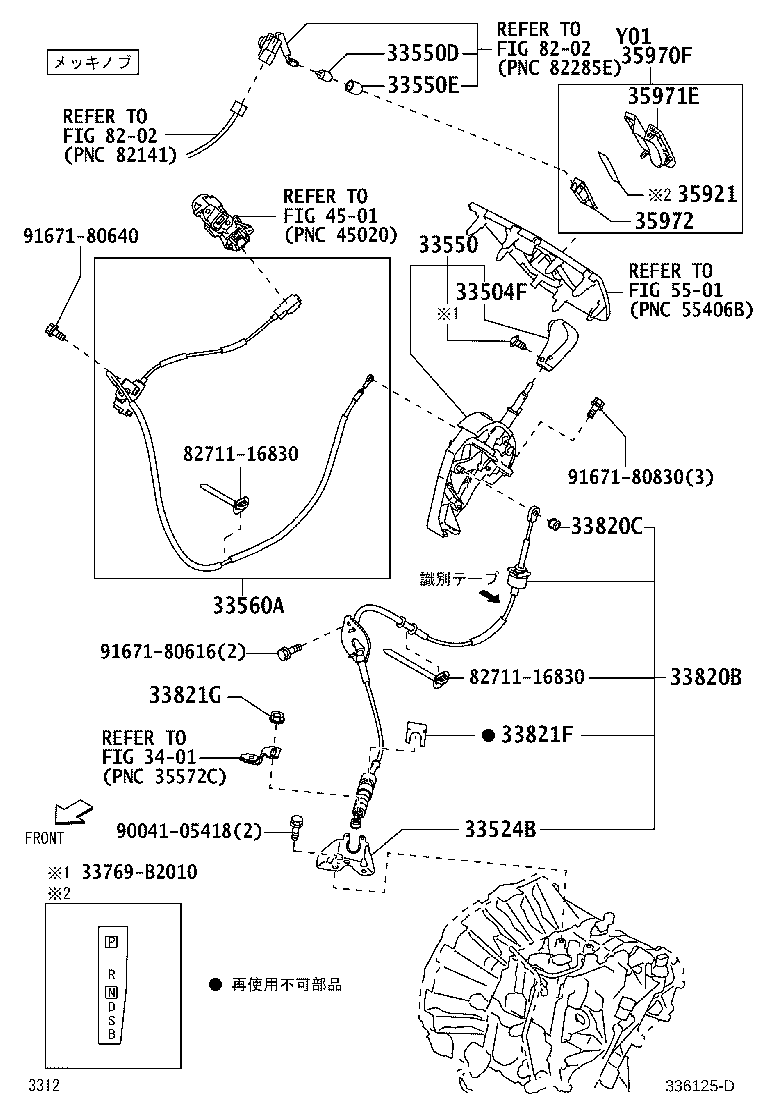

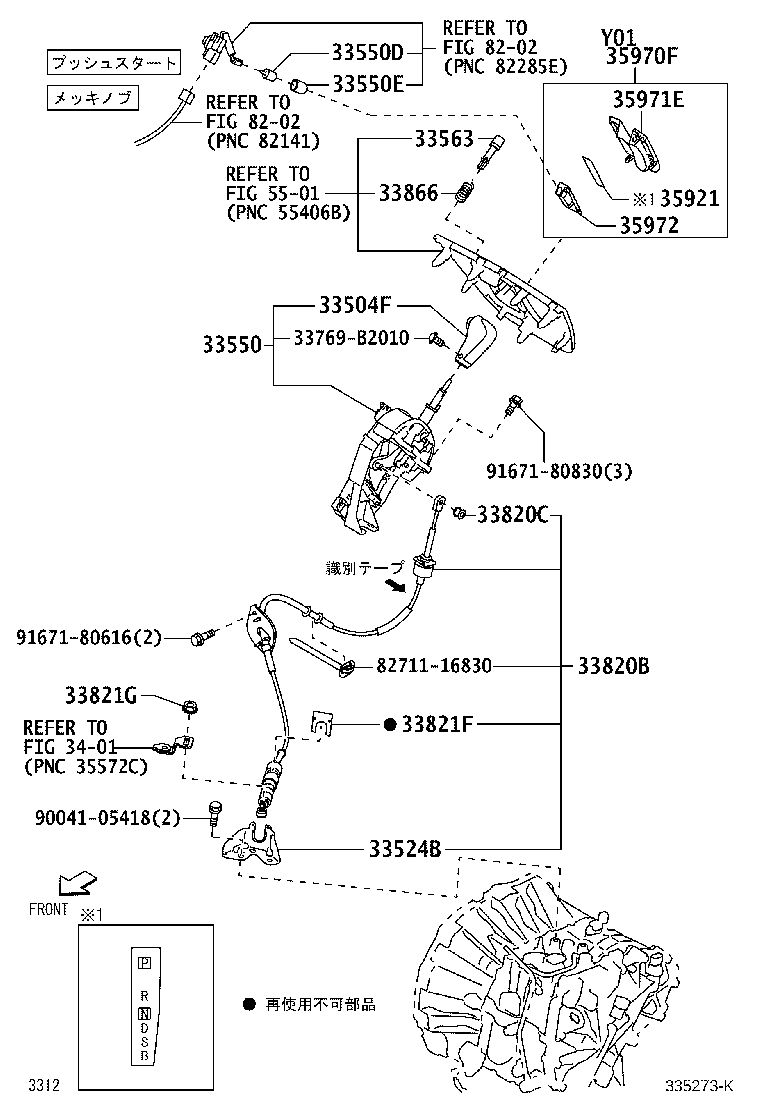

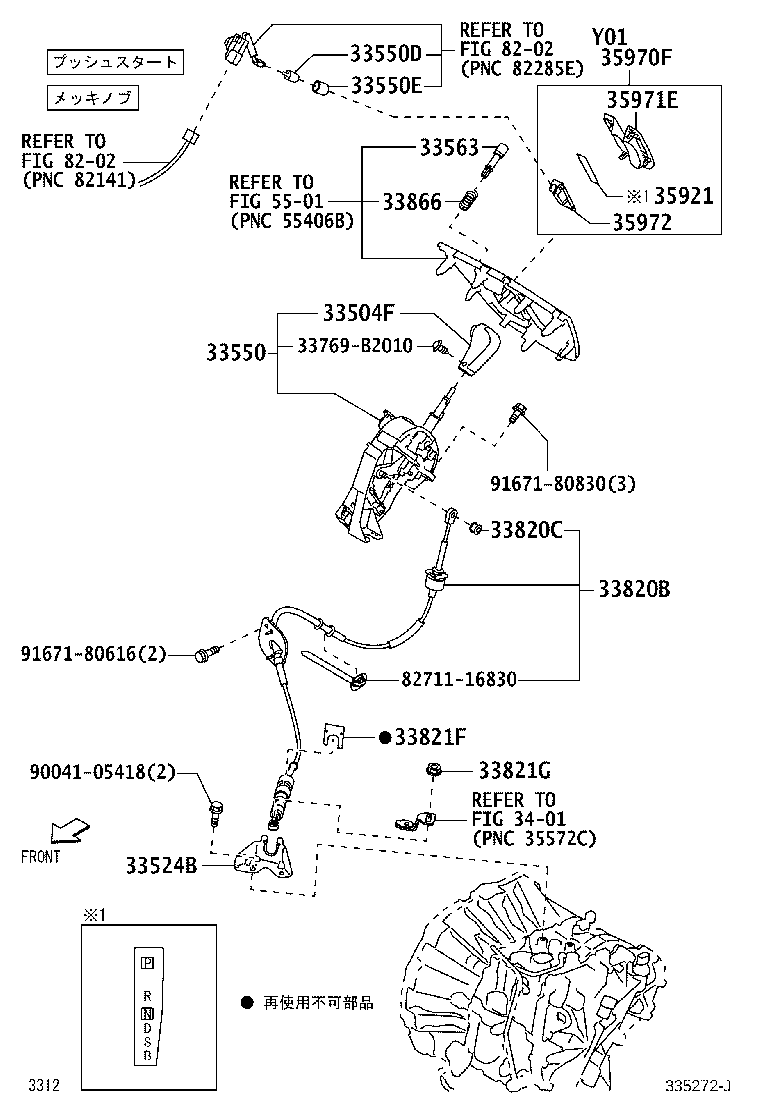

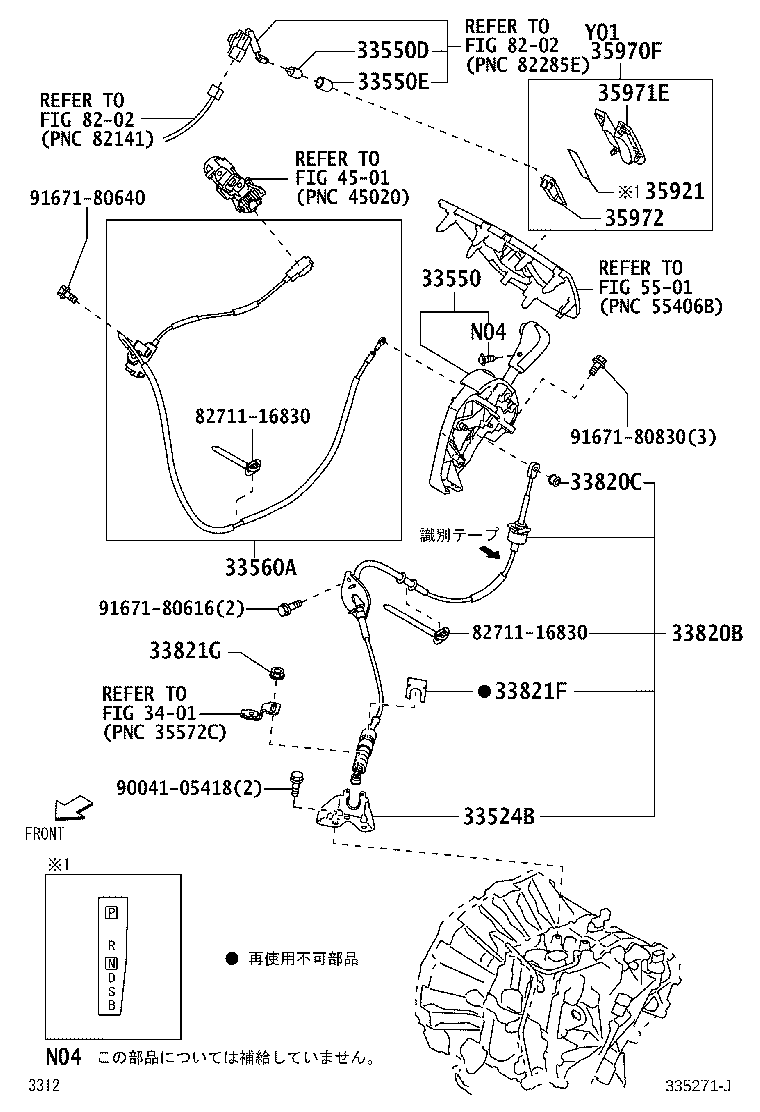

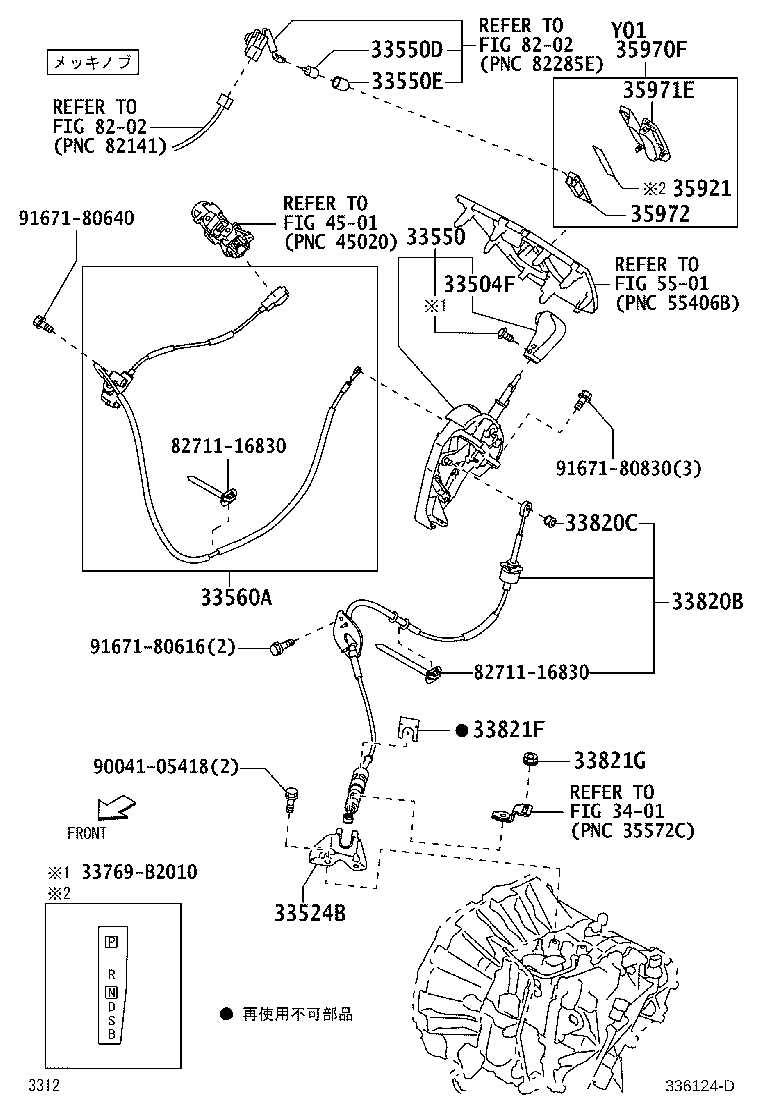

Figure 335270I 335270I 2012-04 → 2013-07 Figure 336124D 336124D 2012-04 → 2013-07 Figure 335272J 335272J 2012-04 → 2013-07 Figure 335271J 335271J 2013-07 → — Figure 336125D 336125D 2013-07 → — Figure 335273K 335273K 2013-07 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33524B Bracket, Control Cable
33550 Floor Shift Assy, Transmission
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33560A Cable Assy, Shift Lock Release
33563 Button, Shift Lock Release
33820B Cable Assy, Transmission Control
33820C Bush (FOR TRANSMISSION CONTROL CABLE)
33821F Clamp, NO.2 (FOR TRANSMISSION CONTROL CABLE)
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33866 Spring, Shift Lock Release
35921 Plate, Control Position Indicator
35970F Housing Assy, Position Indicator
35971E Housing, Position Indicator
35972 Cover, Position Indicator Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
