Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle Assy(CVT)

47 part groups · 7 illustrations

Illustrations

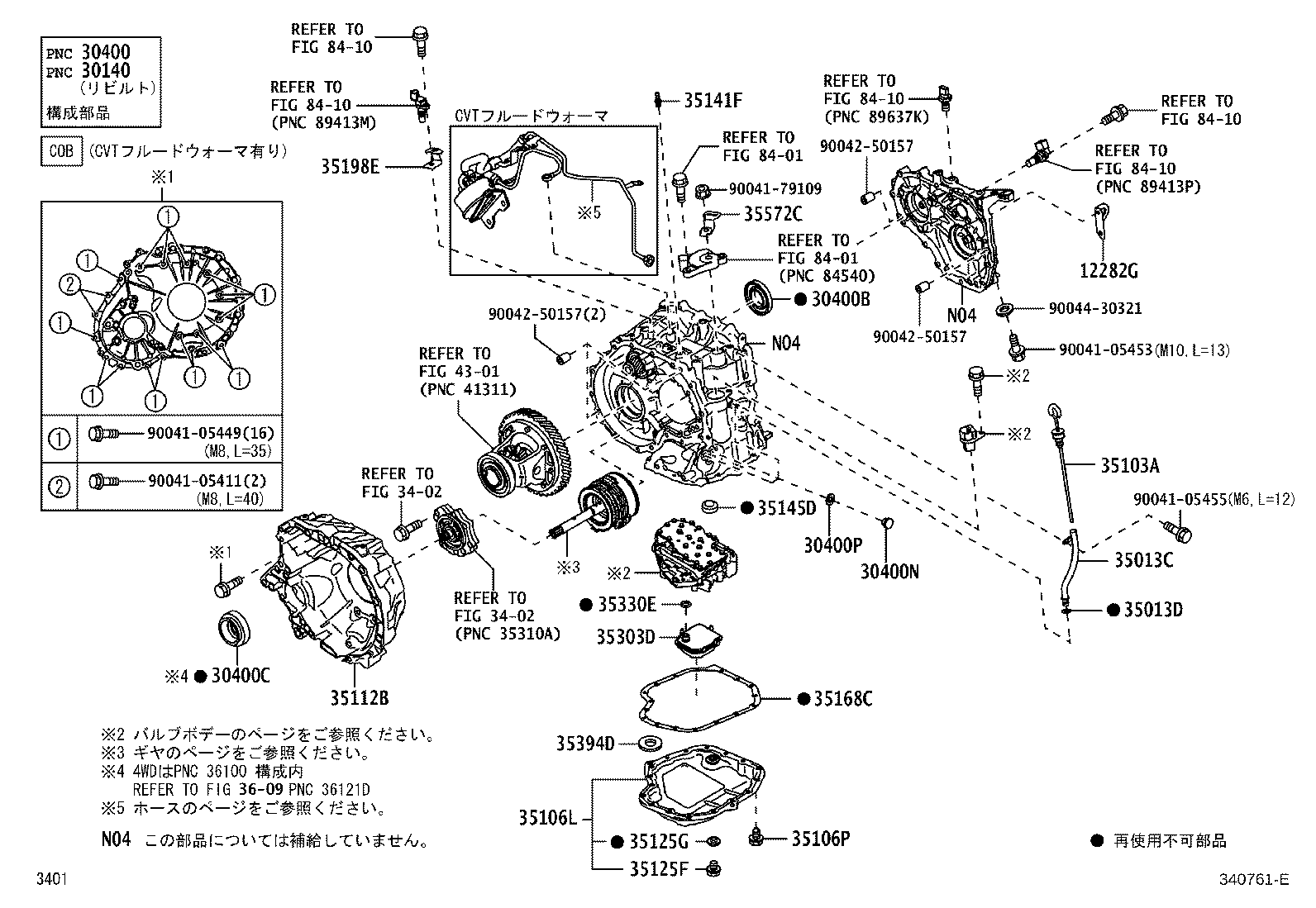

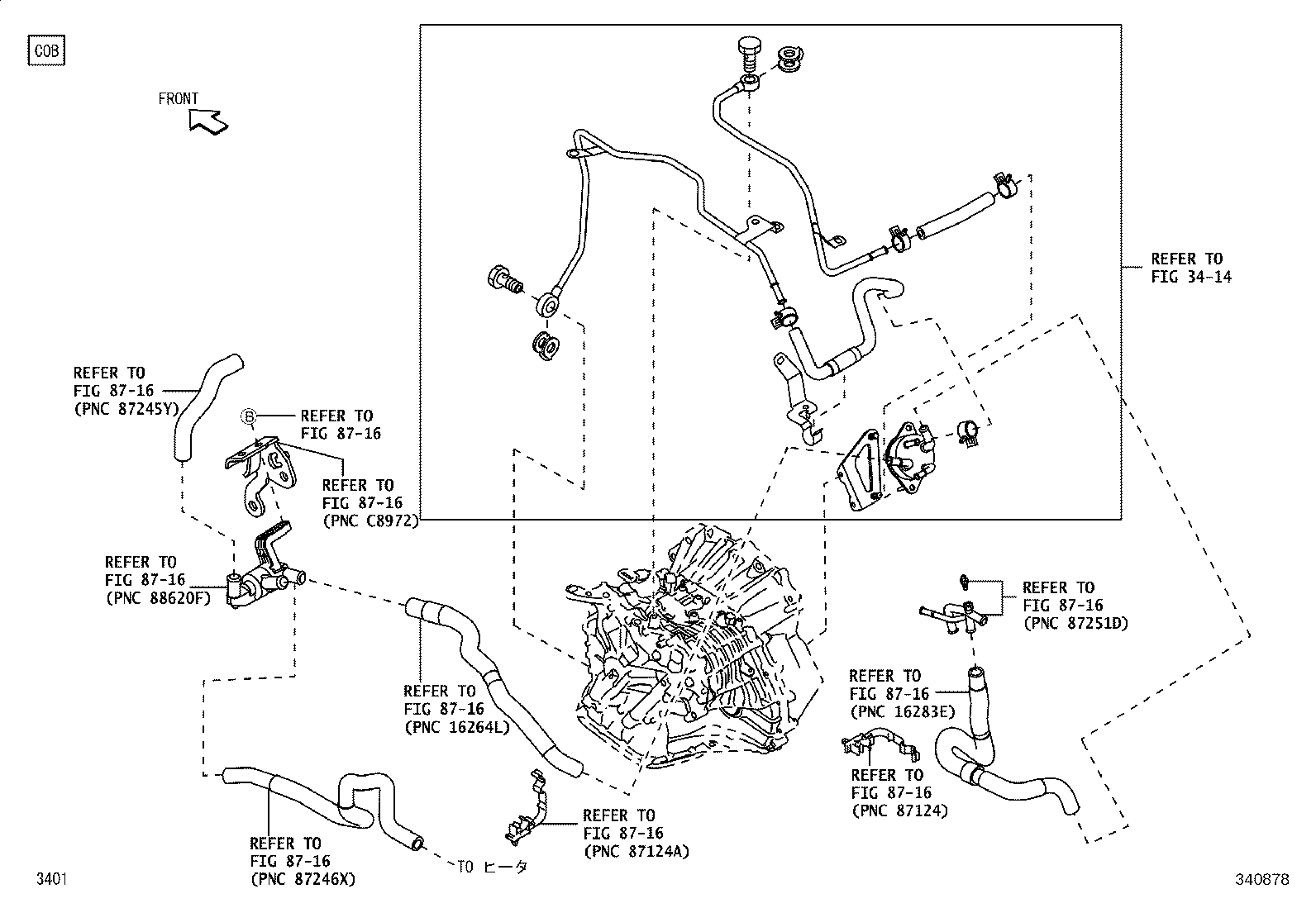

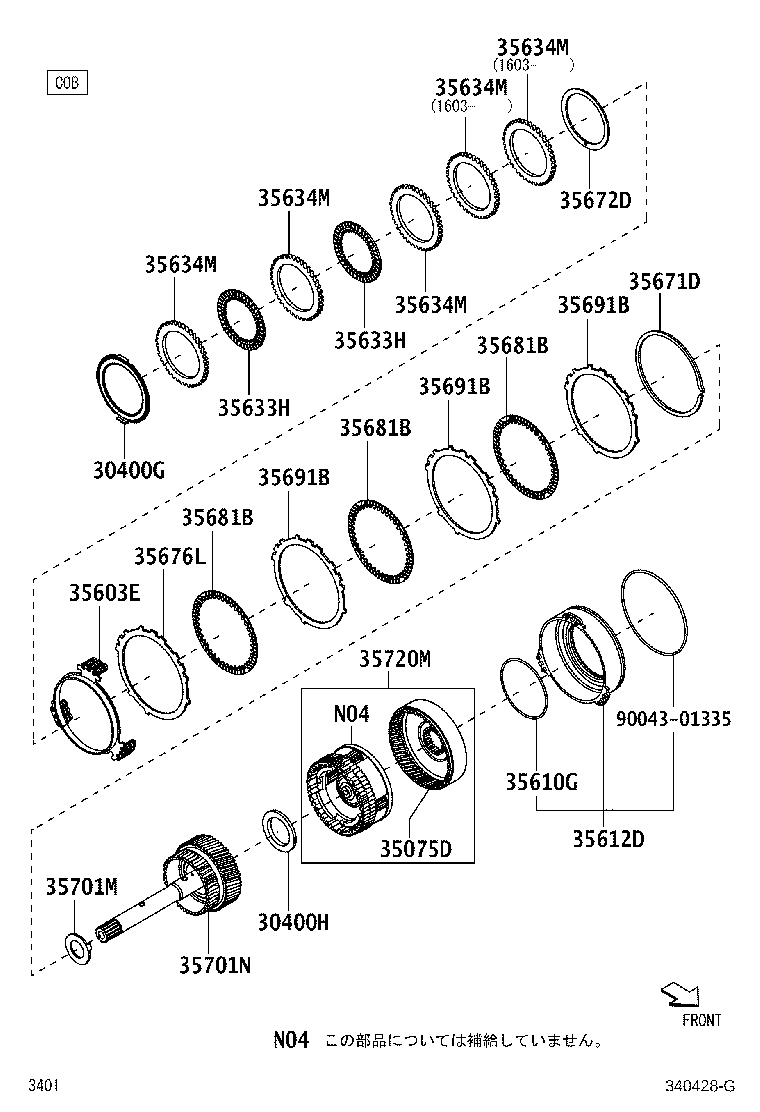

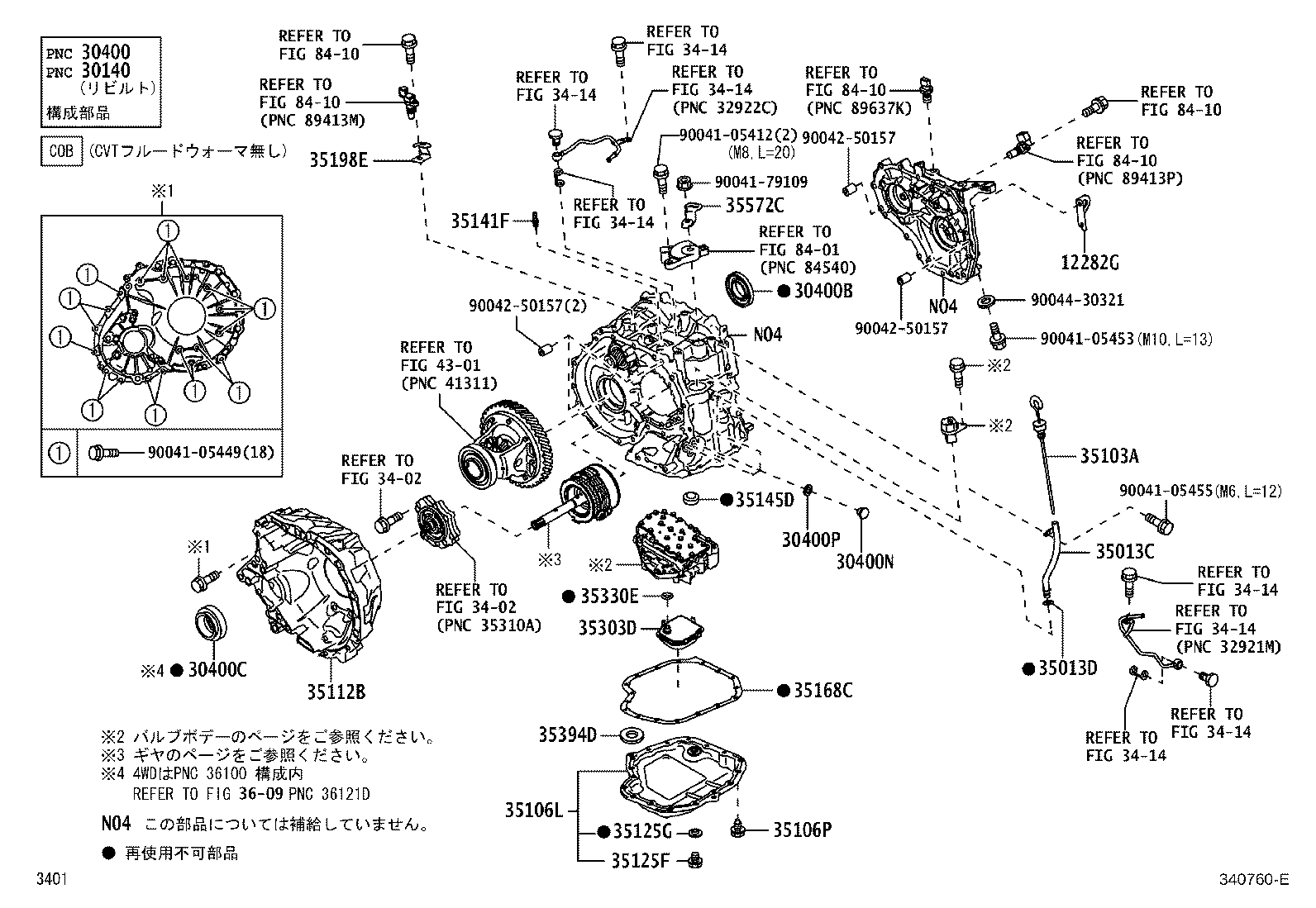

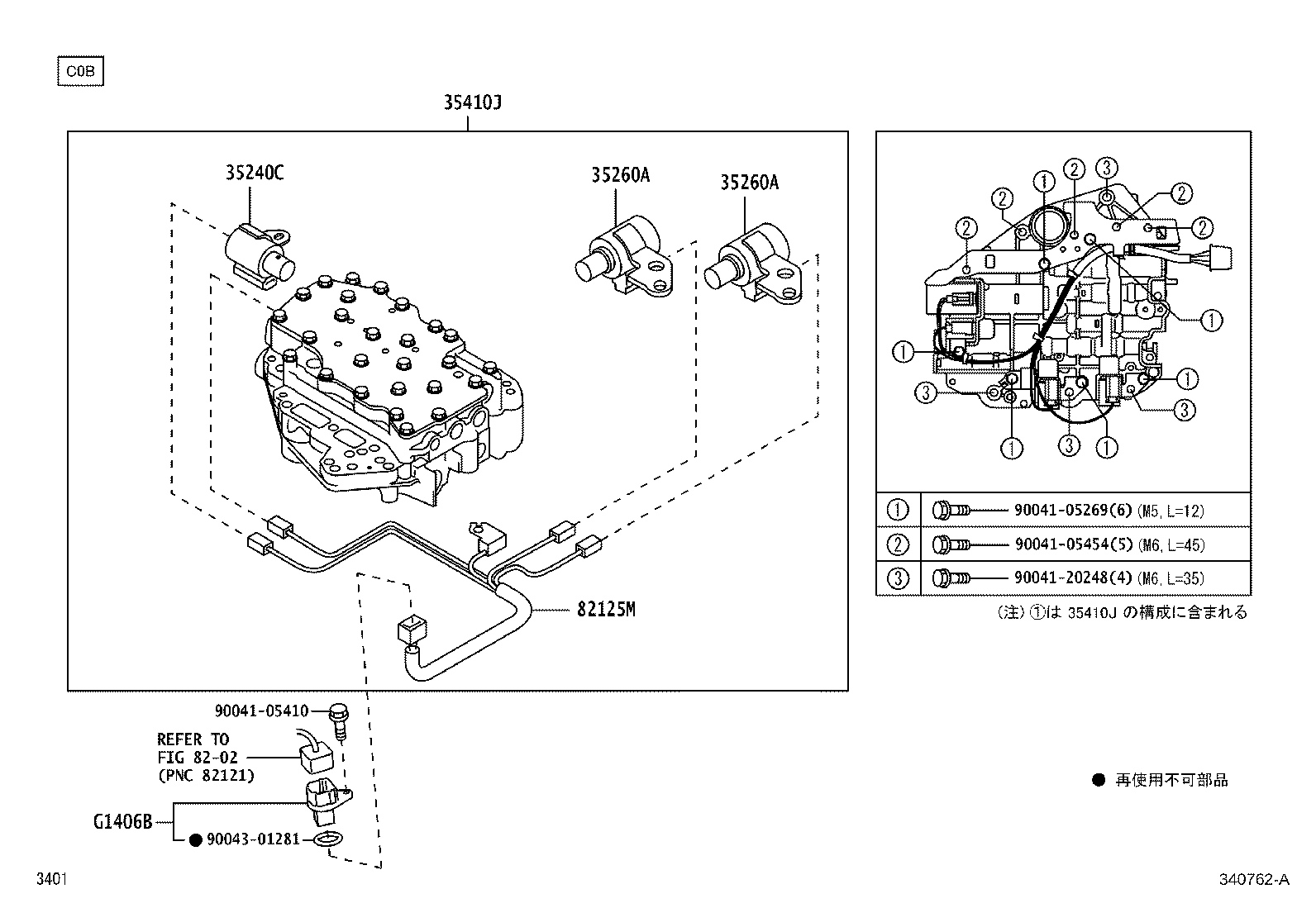

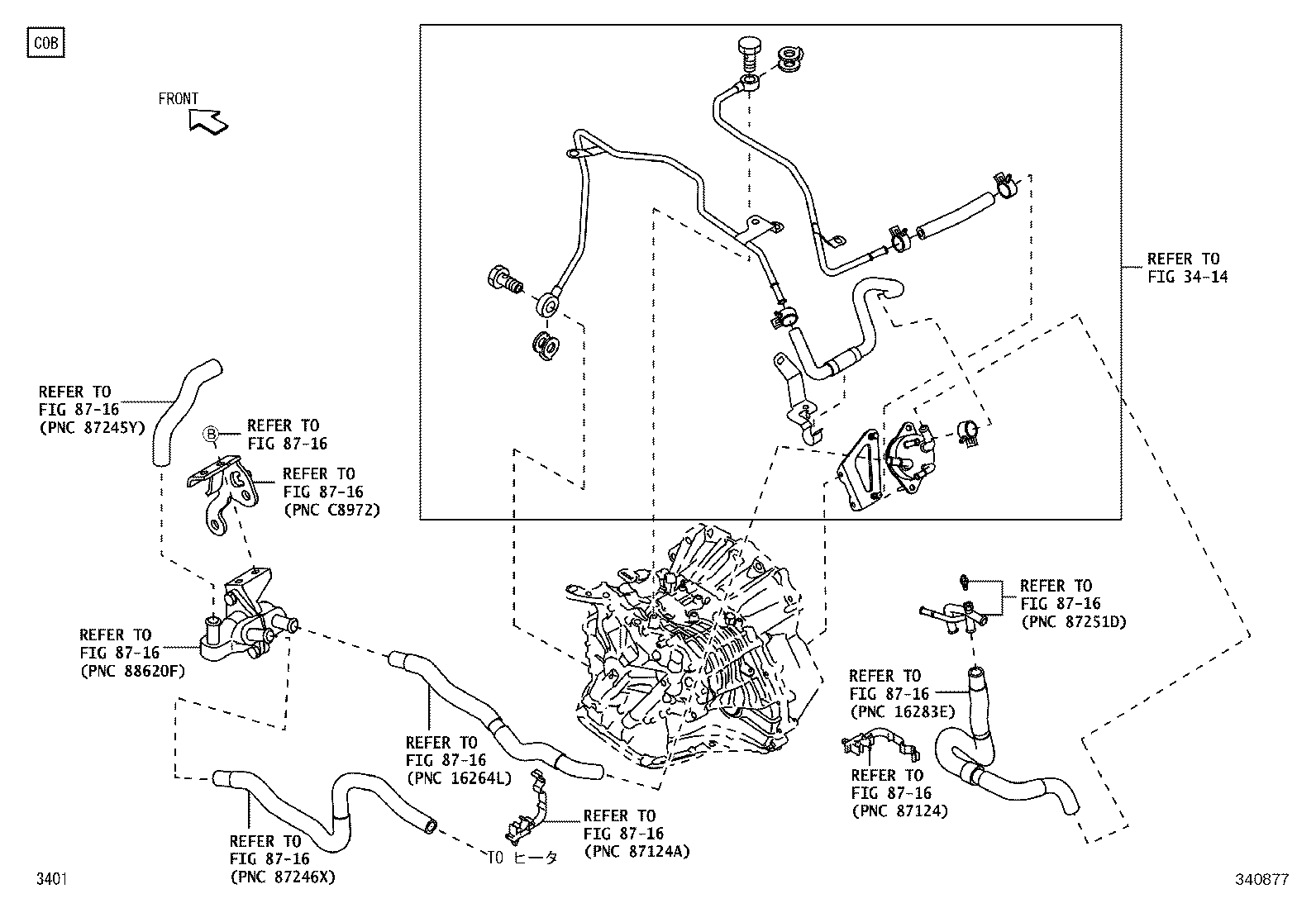

Figure 340759A 340759A 2012-04 → — Figure 340760E 340760E 2012-04 → 2013-07 Figure 340761E 340761E 2013-07 → — Figure 340762A 340762A 2012-04 → — Figure 340877 340877 2013-07 → 2015-08 Figure 340878 340878 2015-08 → — Figure 340428G 340428G 2012-04 → —

Part groups

PNCDescription
12282G Hanger, Transaxle
30140 Transaxle Assy, Cvt, Rebuilt(W/O TORQUE CONVERTER)
30400 Transaxle Assy, Continuously Variable
30400B Seal, Type T Oil, NO.1(FOR CVT)
30400C Seal, Type T Oil, NO.2(FOR CVT)
30400G Bearing, Thrust Needle Roller
30400H Bearing, Thrust Needle Roller
30400N Plug, Refill(CVT)
30400P Gasket, Refill Plug(CVT)
31128B Cover, Clutch Housing Under
33117N Bracket, Stiffener Plate
35013C Tube Sub-assy, Transmission Oil Filler
35013D Ring, O(FOR TRANSMISSION OIL FILLER TUBE)
35075D Gear Sub-assy, Front Planetary Ring
35103A Gage Sub-assy, Transmission Oil Level
35106L Pan Sub-assy, Transaxle Oil(CVT)
35106P Bolt(FOR TRANSAXLE OIL PAN)
35112B Case, Torque Converter & Diffrential
35125F Plug, Overflow(CVT)
35125G Gasket, Overflow Plug(CVT)
35141D Hose(FOR BREATHER PLUG)
35141F Plug, Breather, NO.1(CVT)
35145D Gasket, Transaxle Case
35168C Gasket, Transaxle Oil Pan(CVT)
35198E Bracket, Wire Harness Clamp, NO.1
35240C Solenoid Assy, Transmission 3Way, NO.1
35260A Solenoid Assy, Transmission 3Way, NO.4
35303D Strainer Sub-assy, Oil
35330E Ring, O (FOR OIL STRAINER)
35394D Magnet, Oil Cleaner(CVT)
35410J Body Assy, Transmission Valve
35572C Lever, Transmission Control Shaft
35603E Spring Sub-assy, Forward Clutch Return
35610G Ring, O (FOR FORWARD MULTIPLE DISC CLUTCH)
35612D Piston, Forward Clutch
35633H Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
35634M Plate, Clutch, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH)
35671D Plate, Brake Cushion
35672D Plate, Clutch Cushion
35676L Flange, Brake
35681B Disc, Brake, NO.1
35691B Plate, Brake, NO.1
35701M Bearing, Thrust Needle Roller (FOR INPUT SHAFT)
35701N Shaft Sub-assy, Input
35720M Gear Assy, Planetary
82125M Wire, Transmission
G1406B Connector Sub-assy, Trans Solenoid
