Toyota Pixis Epoch
2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan
Supported model
Data version 2017-11
Parking Brake & Cable

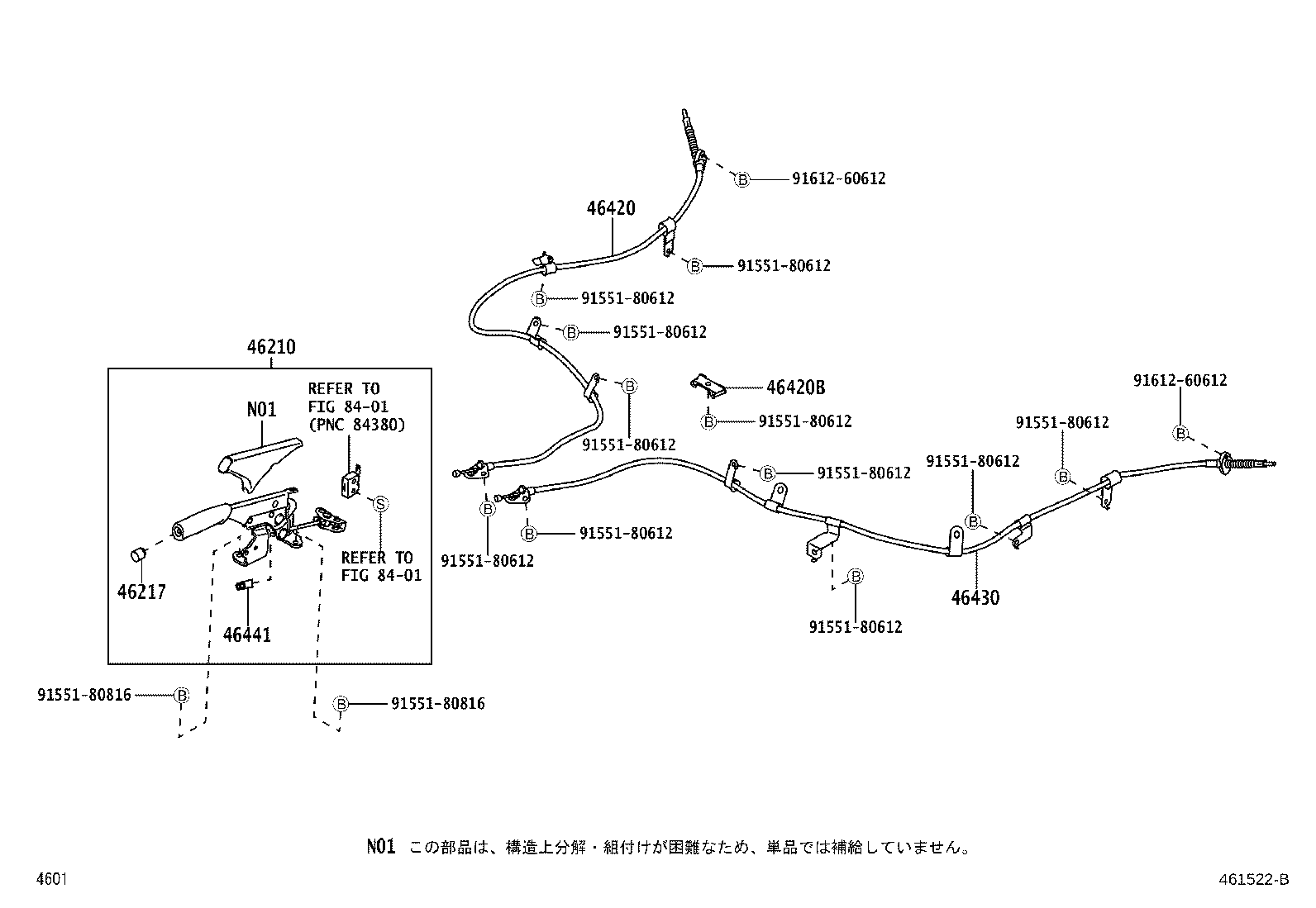

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46210 | Lever Assy, Parking Brake |
| 46217 | Knob, Parking Brake Release Rod |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420B | Clamp, NO.2(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441 | Nut, Wire Adjusting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
