Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

19 part groups · 2 illustrations

Illustrations

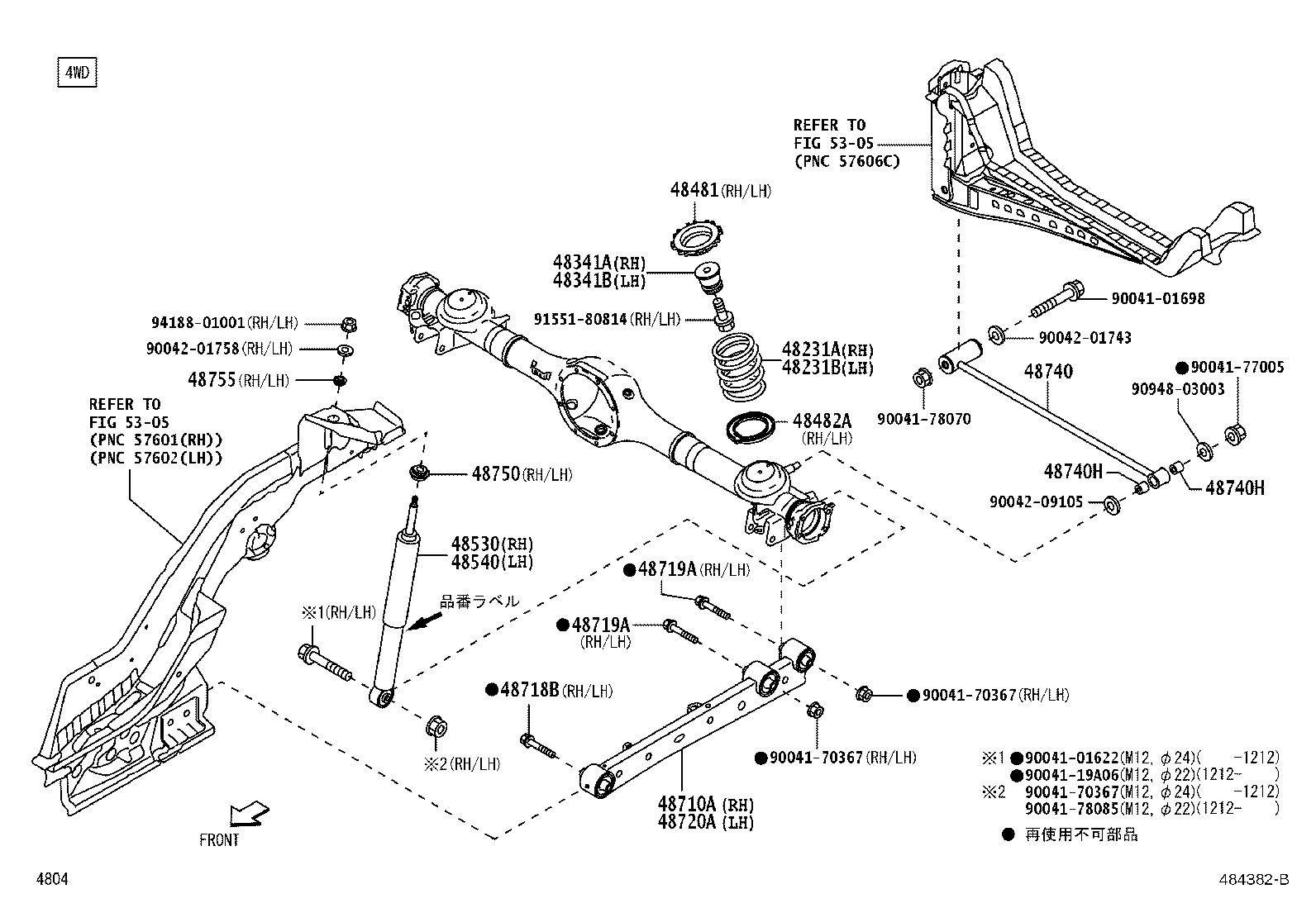

Figure 484381B 484381B 2012-04 → — Figure 484382B 484382B 2012-04 → —

Part groups

PNCDescription
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48341 Bumper, Rear Spring
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48481 Seat, Rear Spring, Upper
48482A Seat, Rear Spring, Lower
48530 Absorber Assy, Shock, Rear RH
48540 Absorber Assy, Shock, Rear LH
48710A Arm Assy, Rear Suspension, NO.1 RH
48710J Arm Assy, Rear Suspension, NO.1
48718B Shaft, Rear Suspension Lower Arm, NO.1
48719A Shaft, Rear Suspension Lower Arm, NO.2
48720A Arm Assy, Rear Suspension, NO.1 LH
48725A Bolt(FOR LOWER CONTROL ARM)
48740 Rod Assy, Rear Lateral Control
48740H Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48750 Support Assy, Rear Suspension
48755 Support, Rear Suspension
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
