Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 2 illustrations

Illustrations

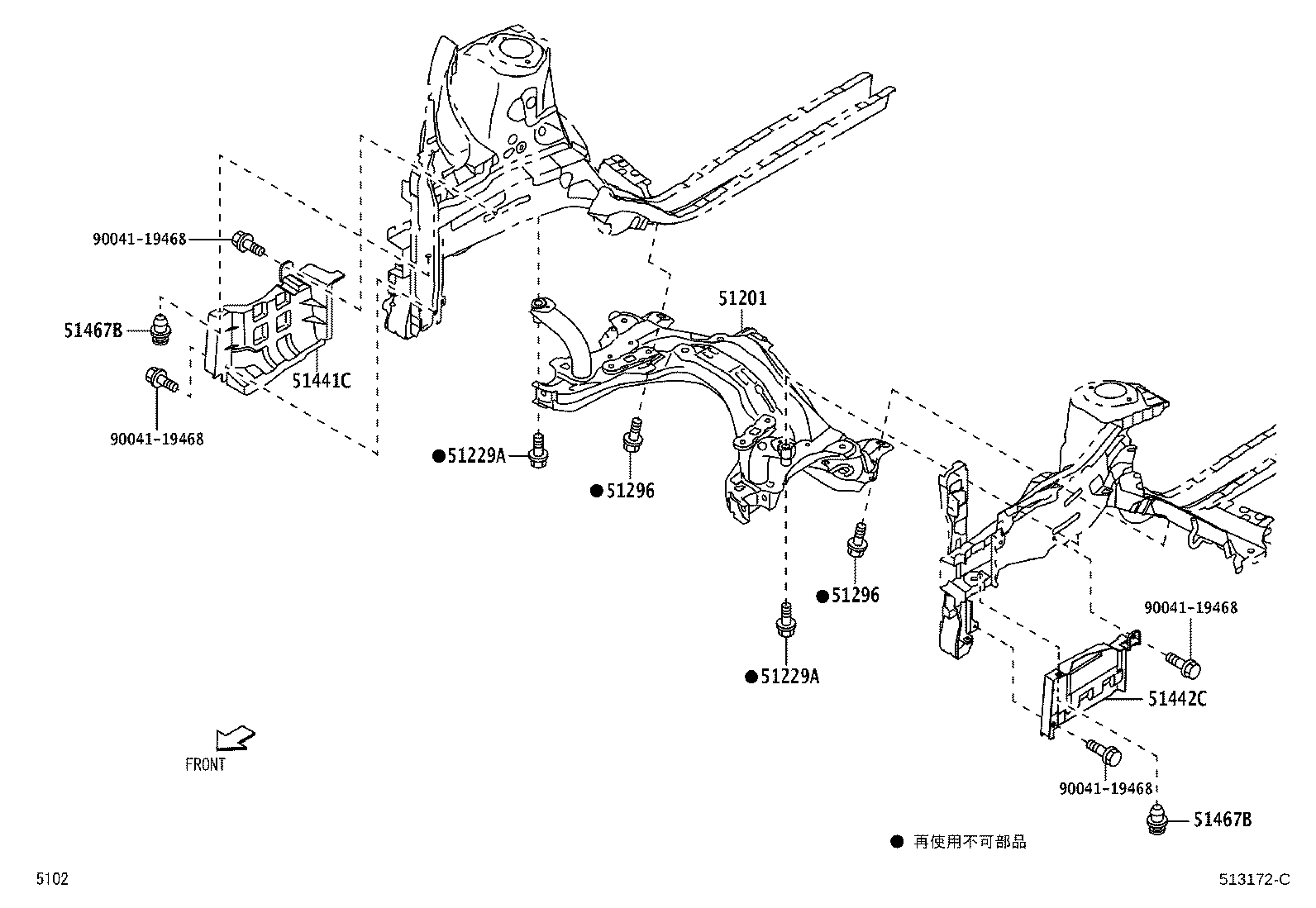

Figure 513171D 513171D 2012-04 → — Figure 513172C 513172C 2012-04 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51223A Cover, Engine Mounting Hole
51229A Bolt, Front Suspension Member Mounting
51296 Bolt, Front Suspension Member Mounting
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51454 Clip
51467B Retainer, Engine Under Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
