Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

9 part groups · 2 illustrations

Illustrations

Figure 522635F

522635F 2012-04 → 2013-07

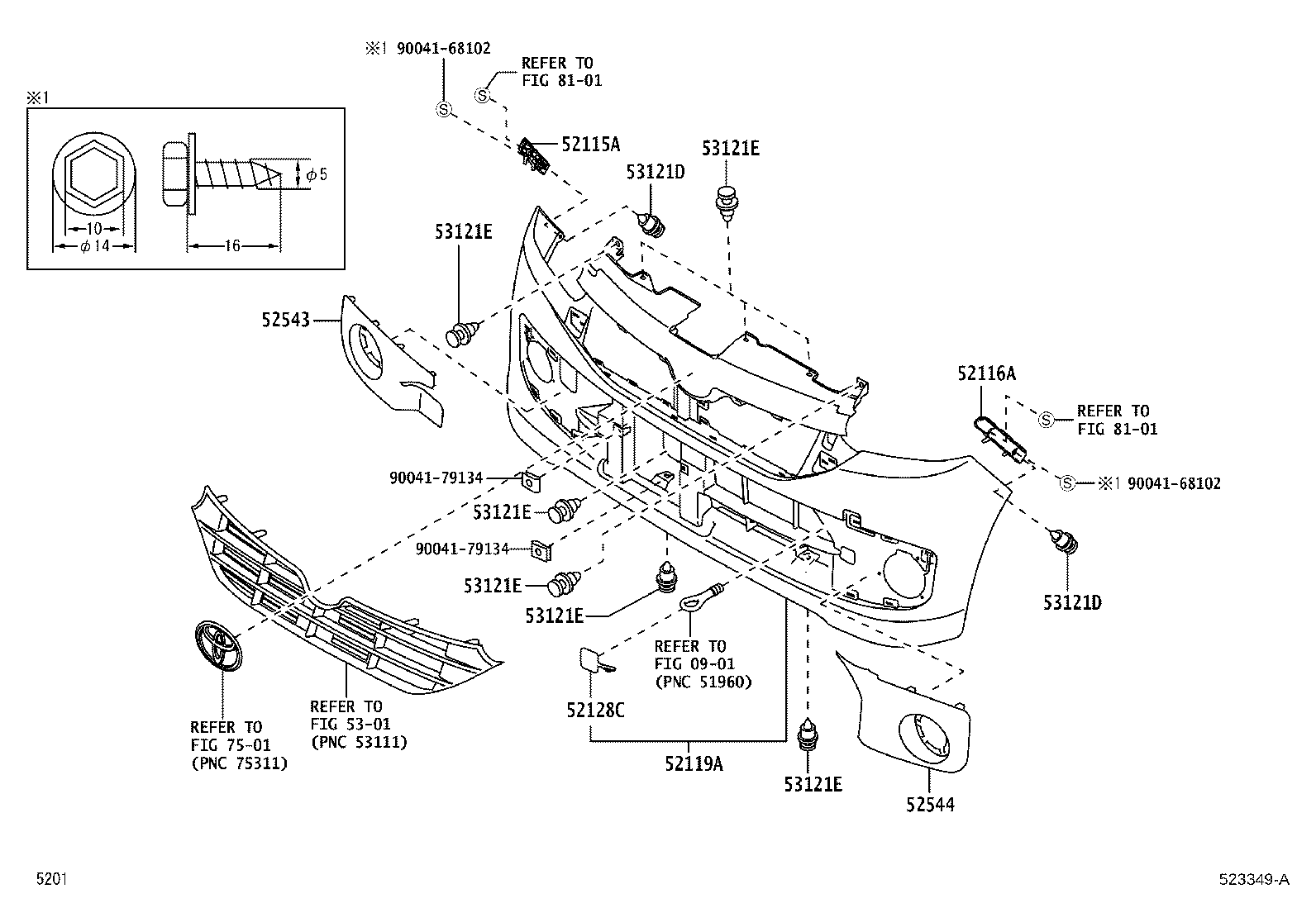

Figure 523349A

523349A 2013-07 → —

Part groups

PNC	Description
52115A	Support, Front Bumper Side, RH
52116A	Support, Front Bumper Side, LH
52119A	Cover, Front Bumper
52128C	Cover, Front Bumper Hole, LH
52543	Seal, Front Bumper Side, RH
52544	Seal, Front Bumper Side, LH
52545	Seal, Front Bumper Side, NO.2 RH
53121D	Clip(FOR FRONT BUMPER), NO.2
53121E	Clip(FOR FRONT BUMPER), NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
